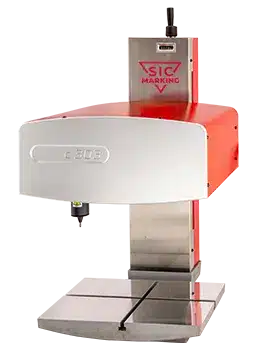

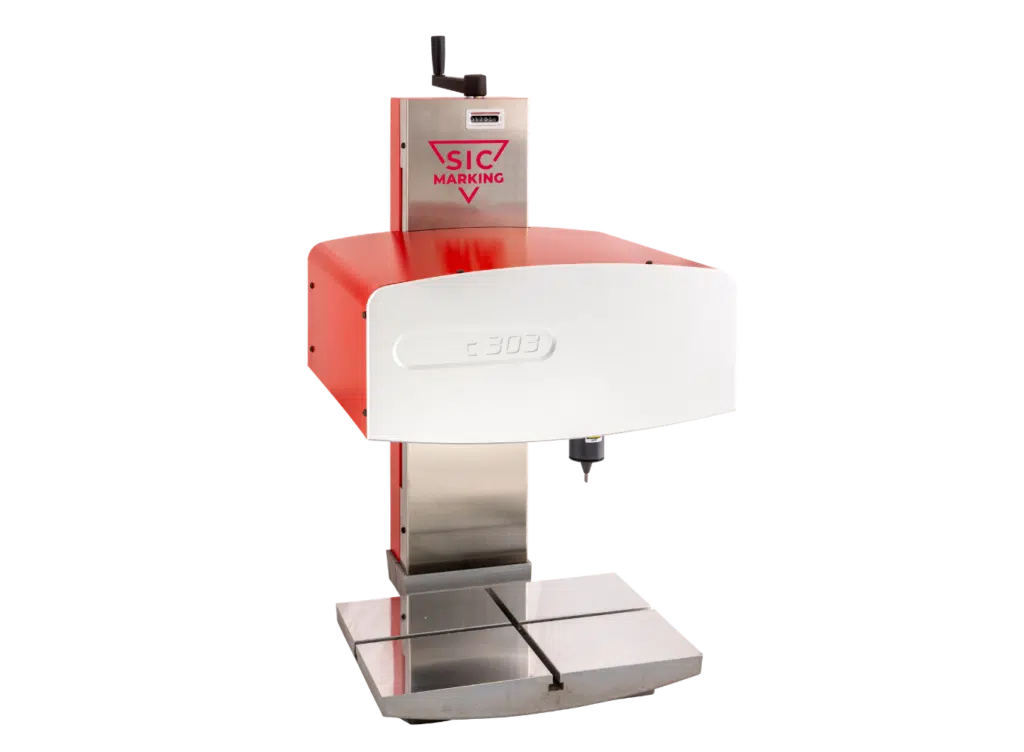

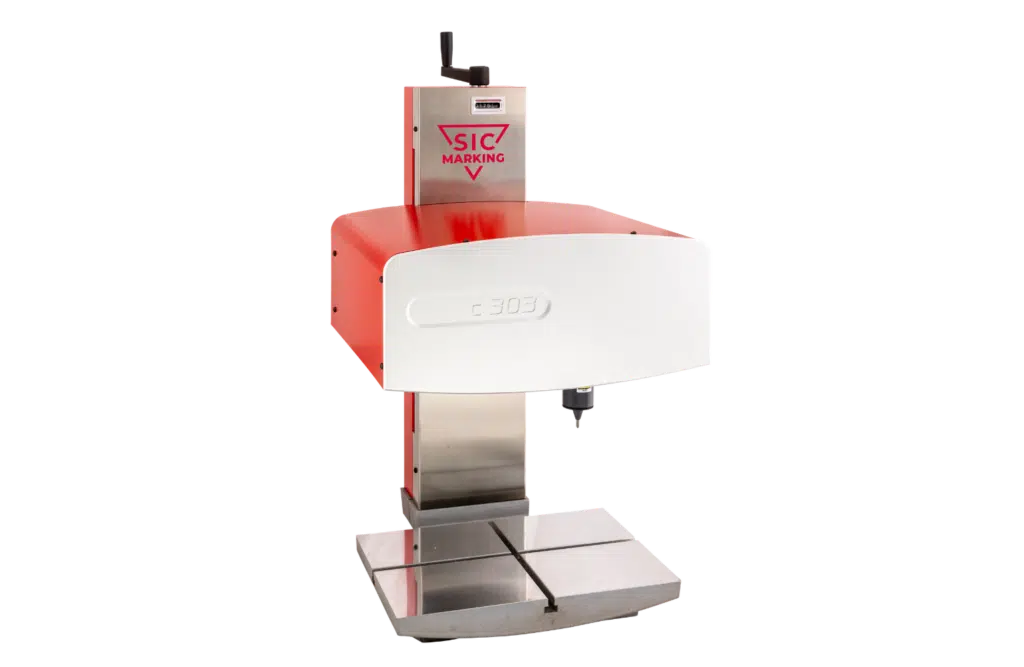

Dot peen machine c-303 column-mounted

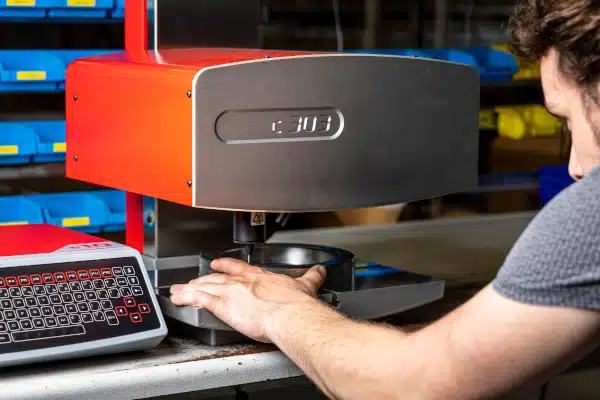

The C303 is a COLUMN-MOUNTED DOT PEEN MARKING MACHINE, i.e. a machine that slides on a vertical axis to adjust the position of the marking head.

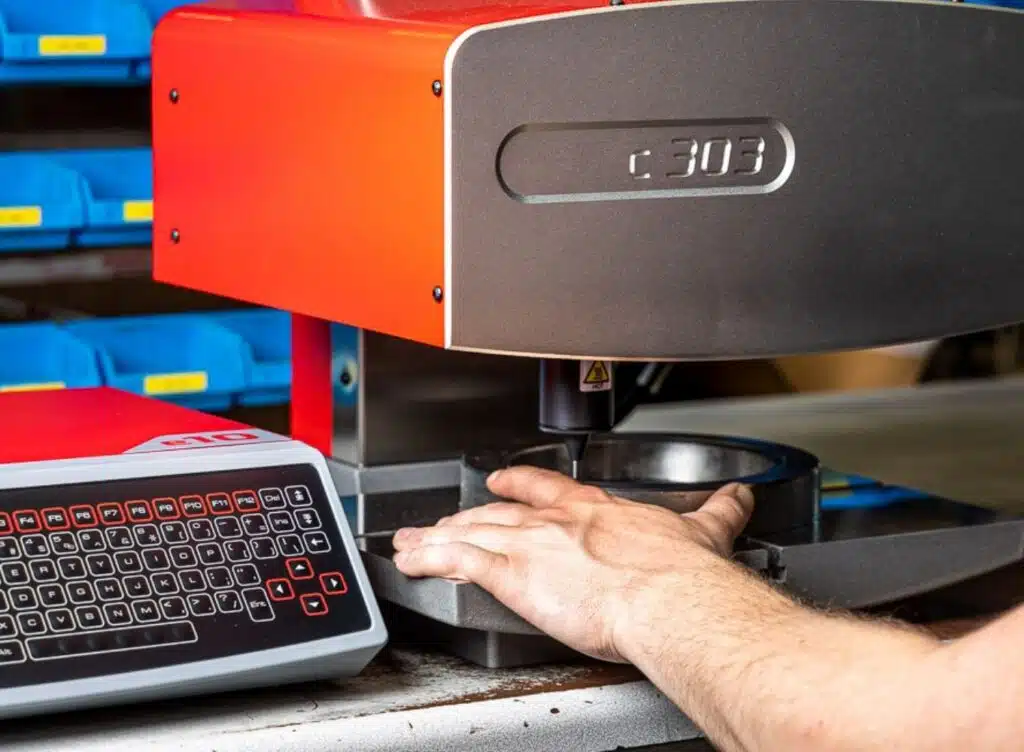

It is ideal for marking small or medium sized parts, which are placed directly beneath the marking head.
It differs from other machines by its VERY LARGE MARKING WINDOW: 300×150 mm

The C303 is a fast machine, designed for INTENSIVE USE.
This machine is PARTICULARLY ROBUST with a cast alloy base and a strengthened column.

It has an INTEGRAL METER that records the piece heights, to facilitate the setting of the marking distance when parts are changed.

The LED LIGHTING SYSTEM facilitates marking when indoor light is insufficient.

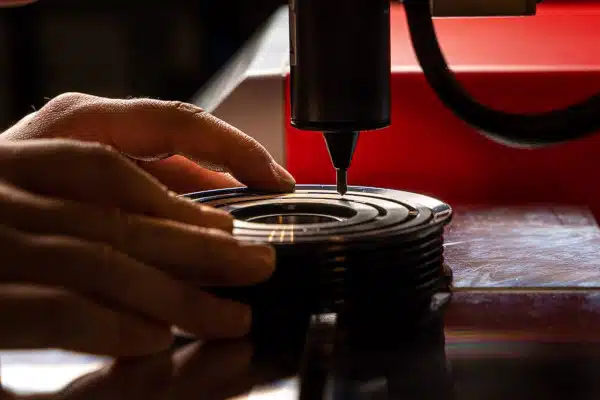

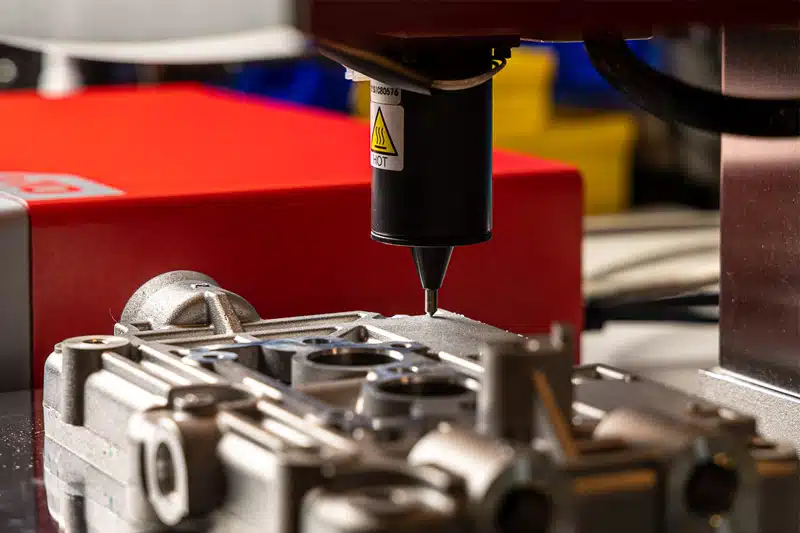

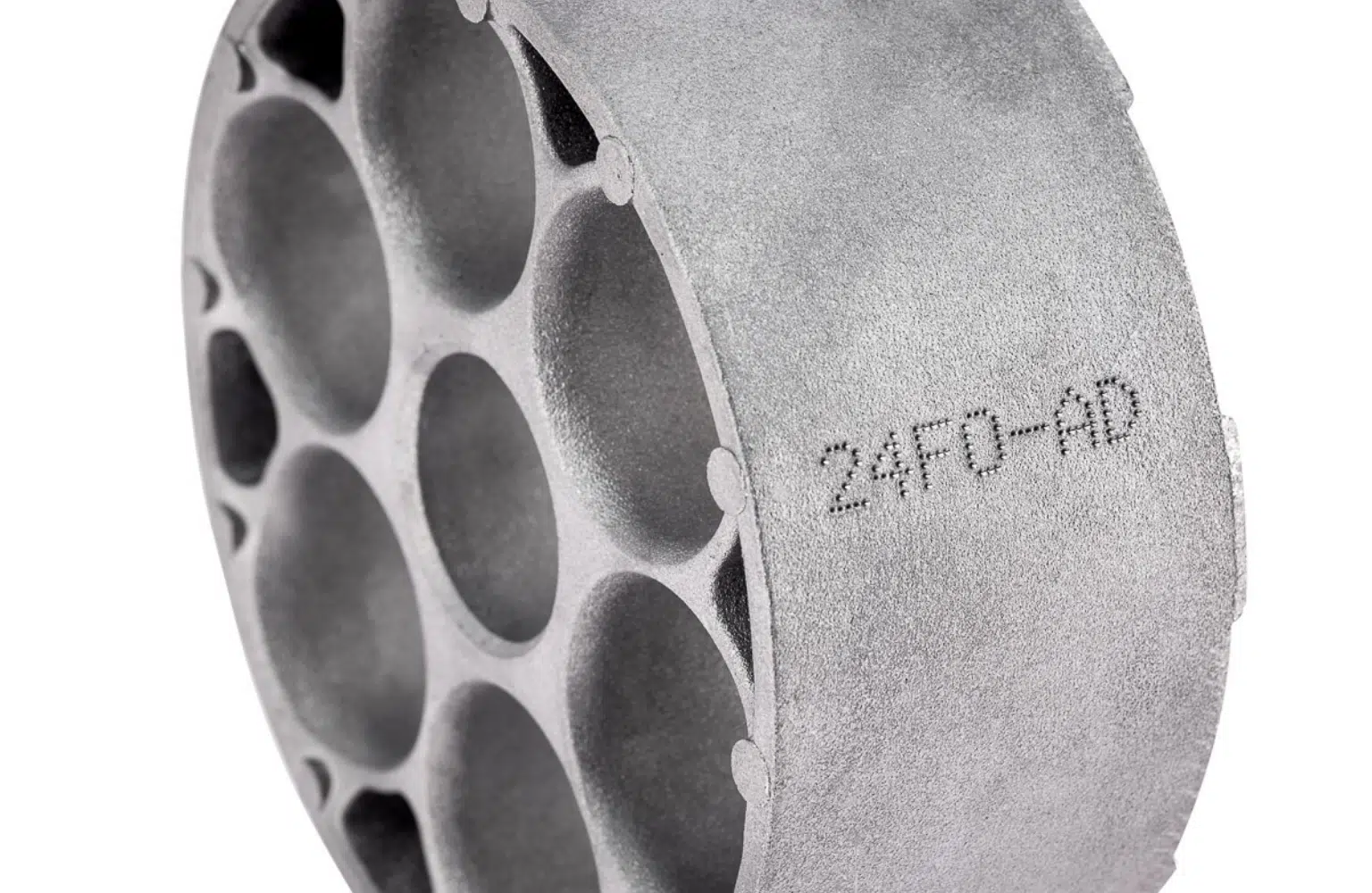

Dot peen marking technology with electromagnetic control enables parts with various shapes and surface finishes to be marked: plane, concave, convex, circular, raw and machined surfaces.

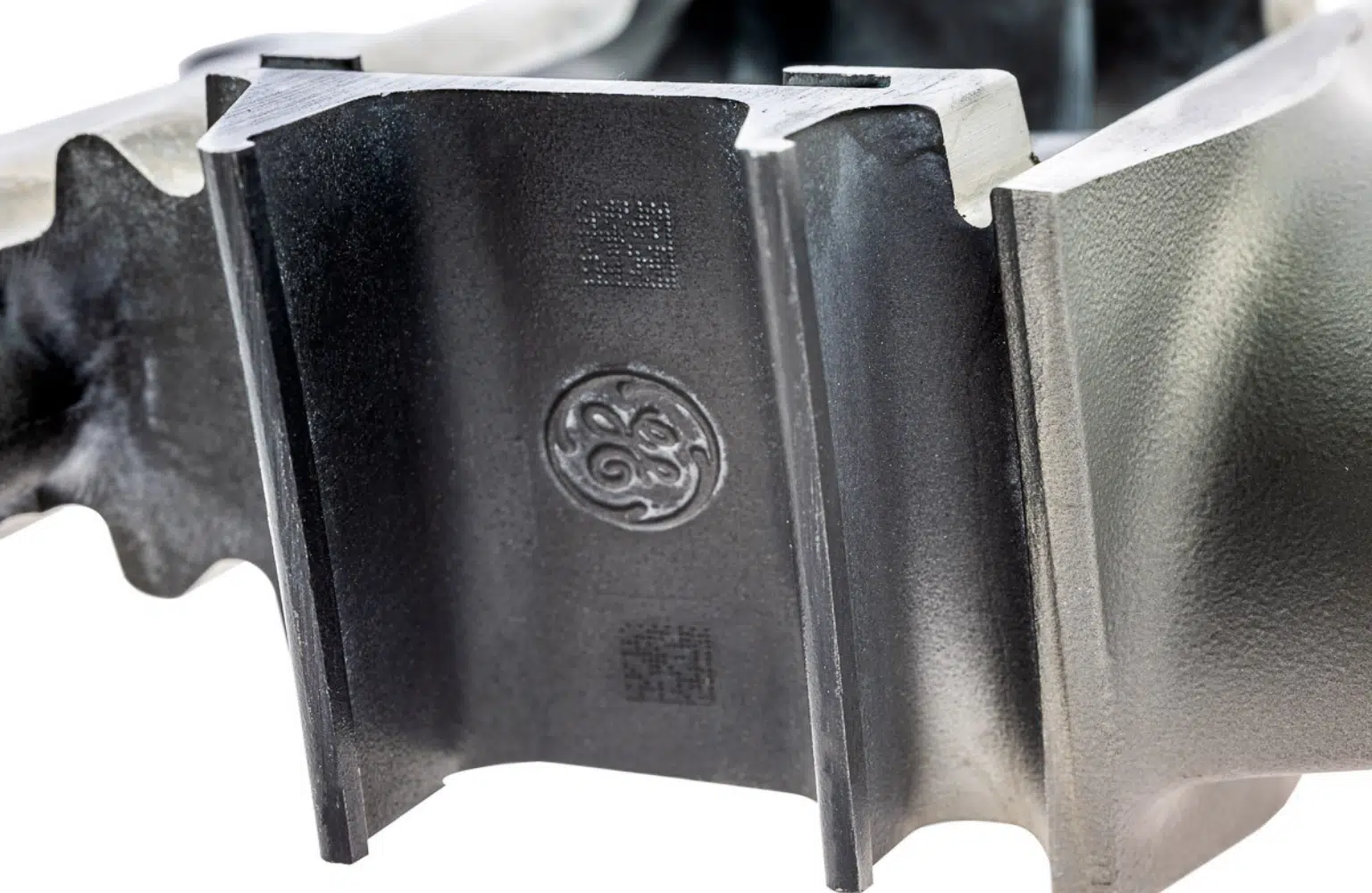

The C303 machine can engrave alphanumeric text, logos, or 2D Datamatrix codes.

It only needs an electrical power supply.

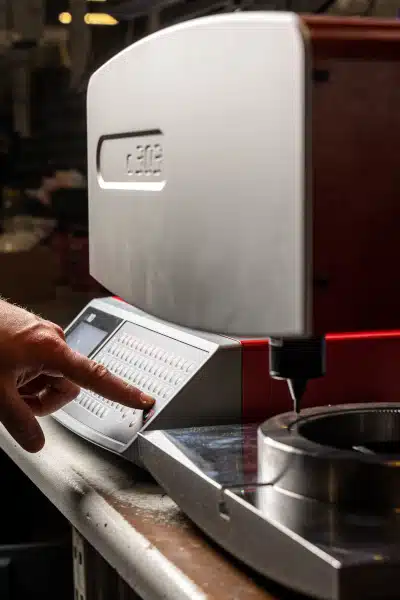

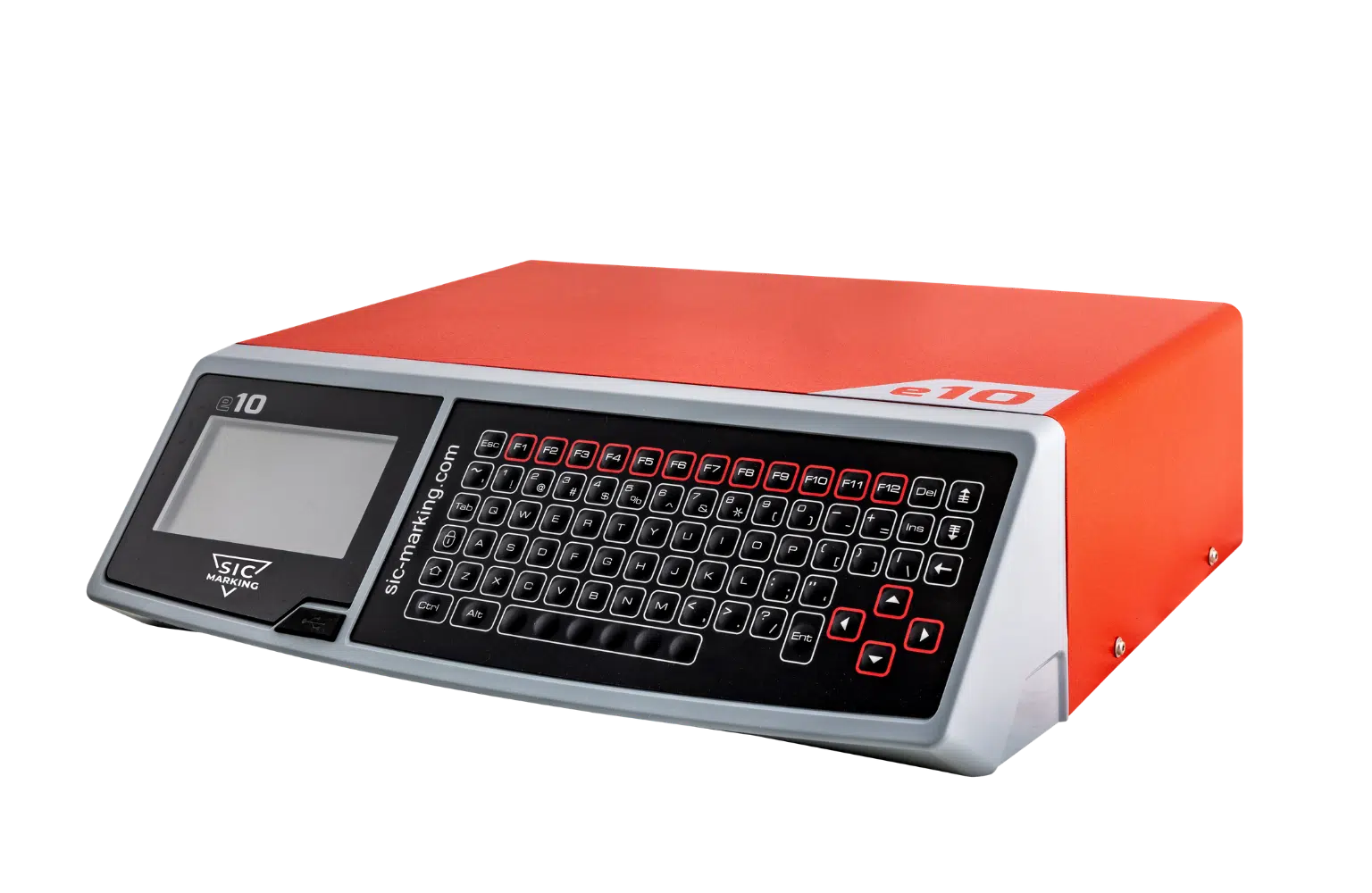

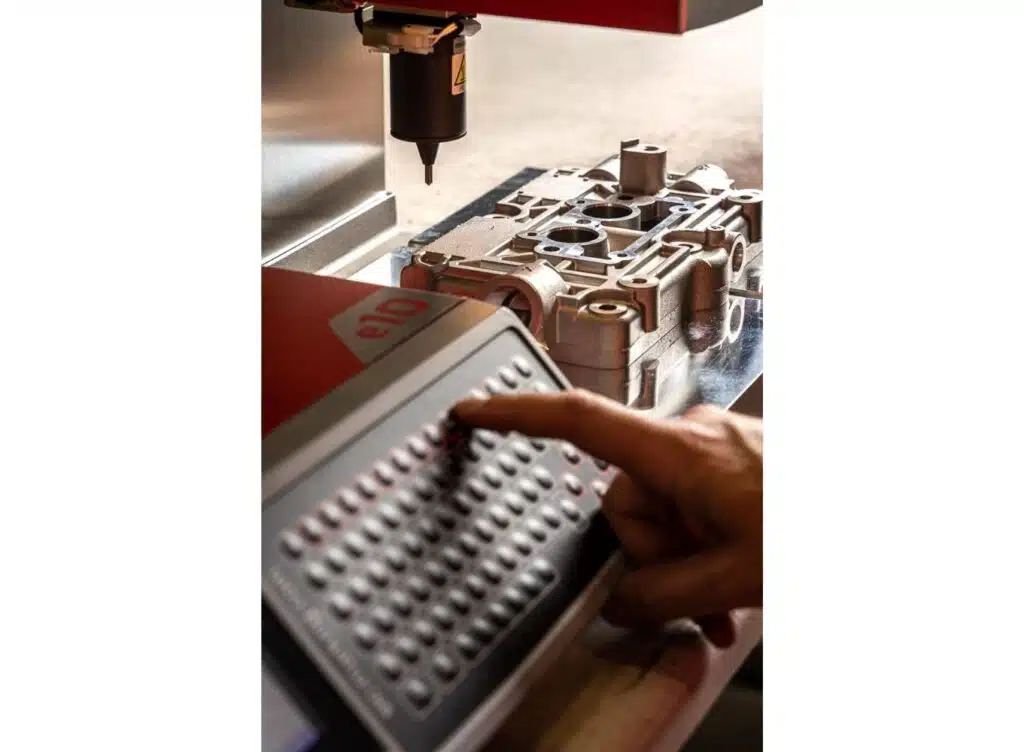

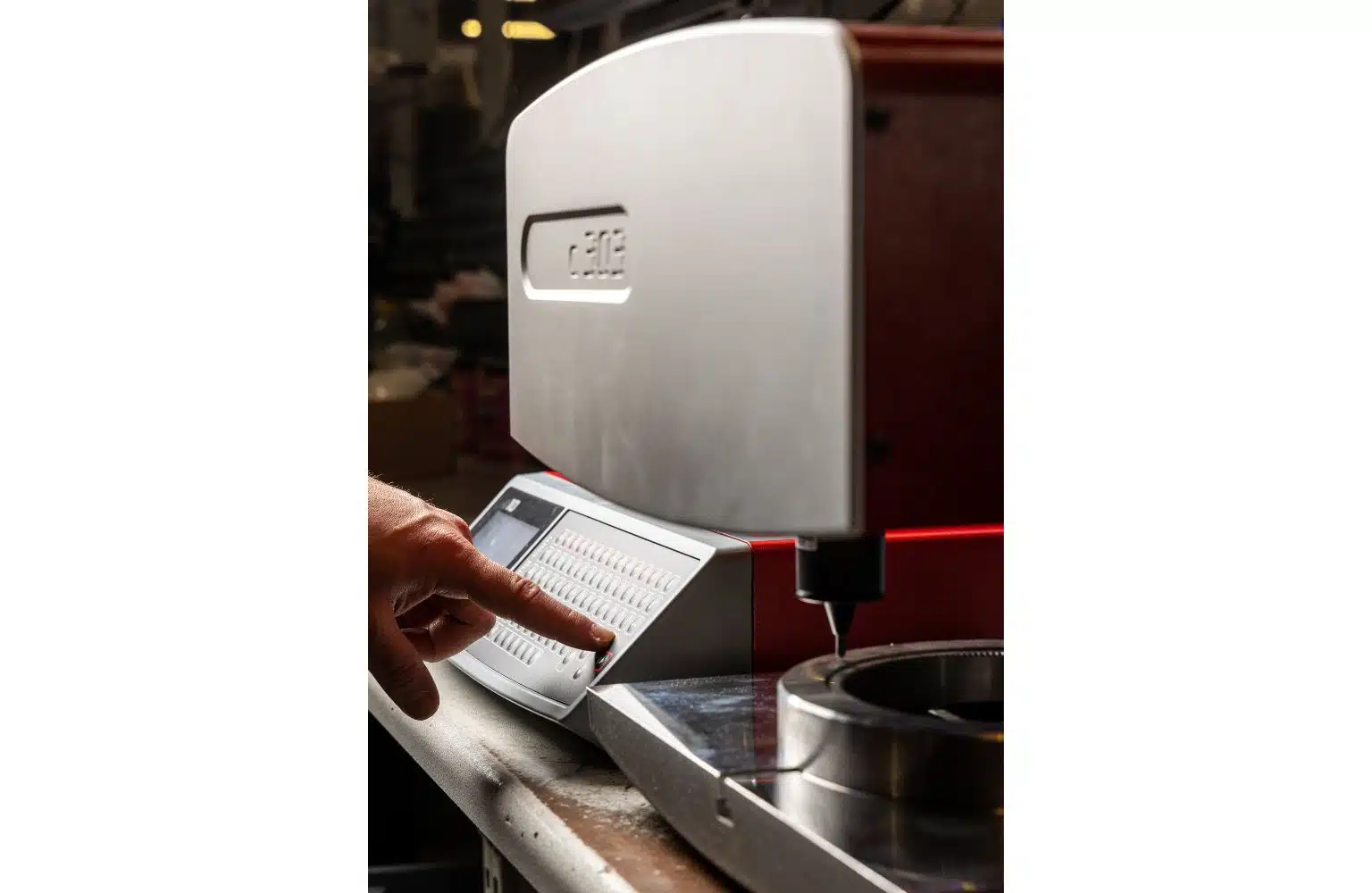

The E10 CONTROLLER that controls the C303 has a Qwerty keyboard covered by a waterproof membrane and a backlit colour screen that provides the user with a simple and intuitive interface.
Marking files can be uploaded/downloaded to/from the controller, to/from a PC, using a USB memory stick.

Marking window	300 x 150 mm
Weight	30 kg
Dimensions	385 x 350 x 704 mm
Stylus	Carbure 60 mm
Rate	Up to 5 characters per second
Depth	Up to 0.5 mm
Maximum stylus stroke	Up to 8 mm

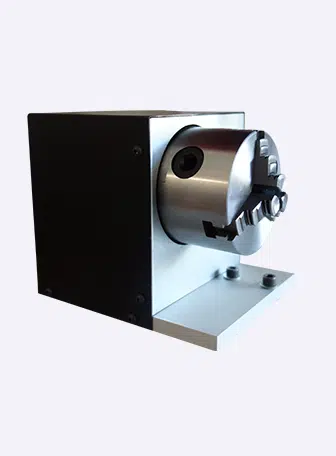

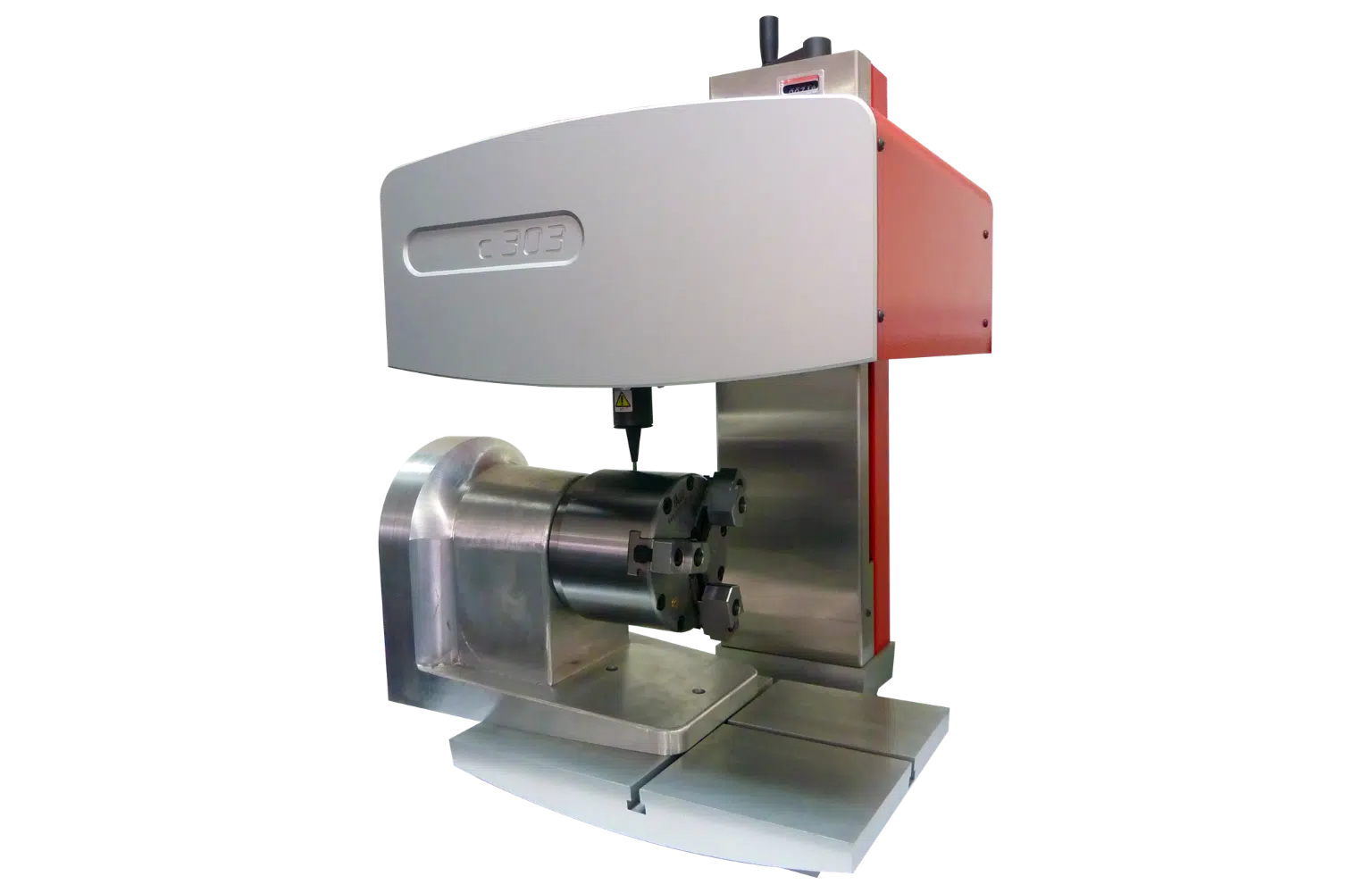

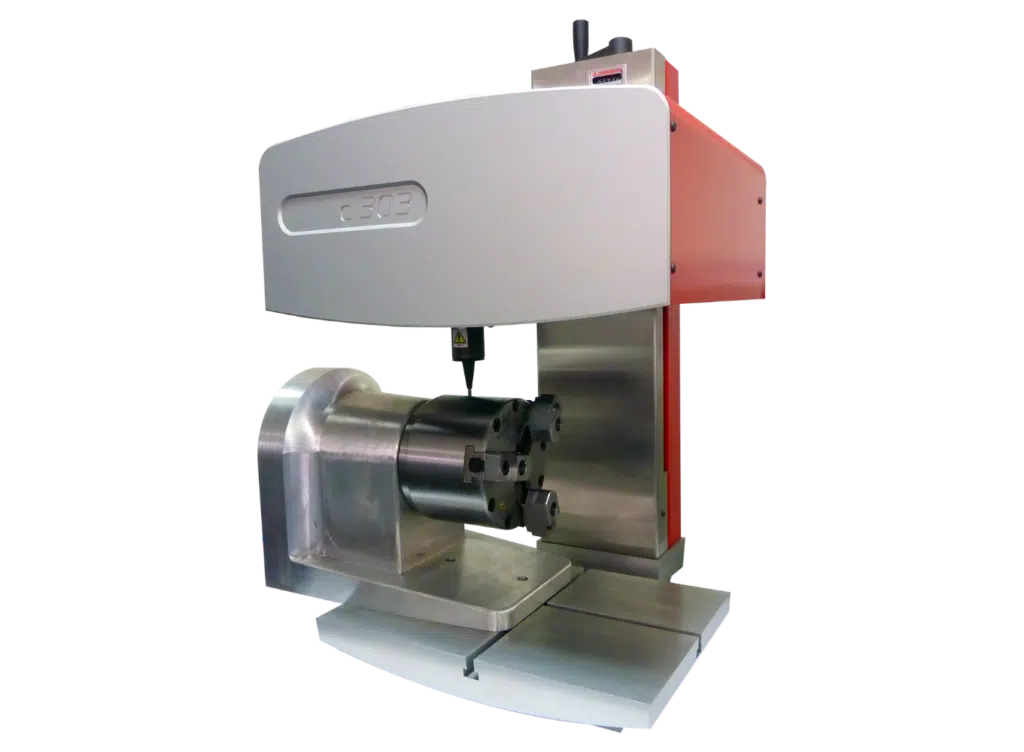

The rotary axis enables marking on cylindrical or series parts in rotation, ensuring precise and uniform marking across the entire surface. It optimizes productivity by automating the marking process without manual repositioning.

The barcode reader allows automatic and fast selection of the file and content to be marked, eliminating the possibility of input errors. It can read 1D and 2D codes, including QR and Datamatrix codes. It features a Bluetooth connection, ensuring wireless communication with the machine.

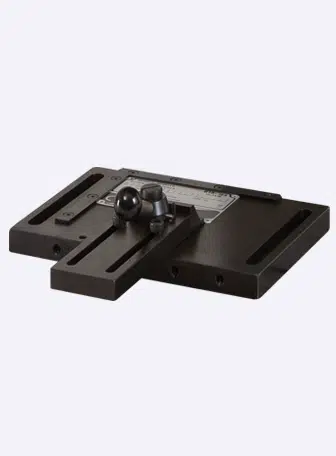

The plate support is a tool for positioning and clamping plates using magnets. A reference square allows the plate to be positioned precisely and repeatedly. The plate is held by one or two magnetic pads and allows the marking of plates of different dimensions without prior adjustment.

The plate feeder makes it possible to automate the marking of plates by presenting them one by one under the stylus, without the intervention of the operator between each part. This allows continuous and autonomous marking. It is ideal for large volumes of industrial data plates.
