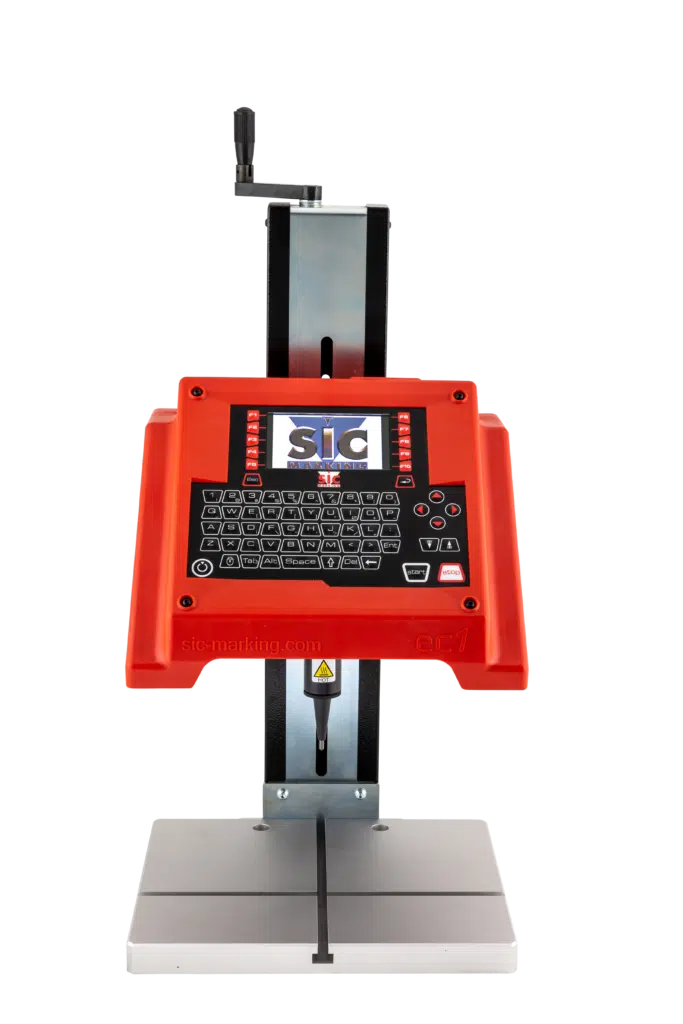

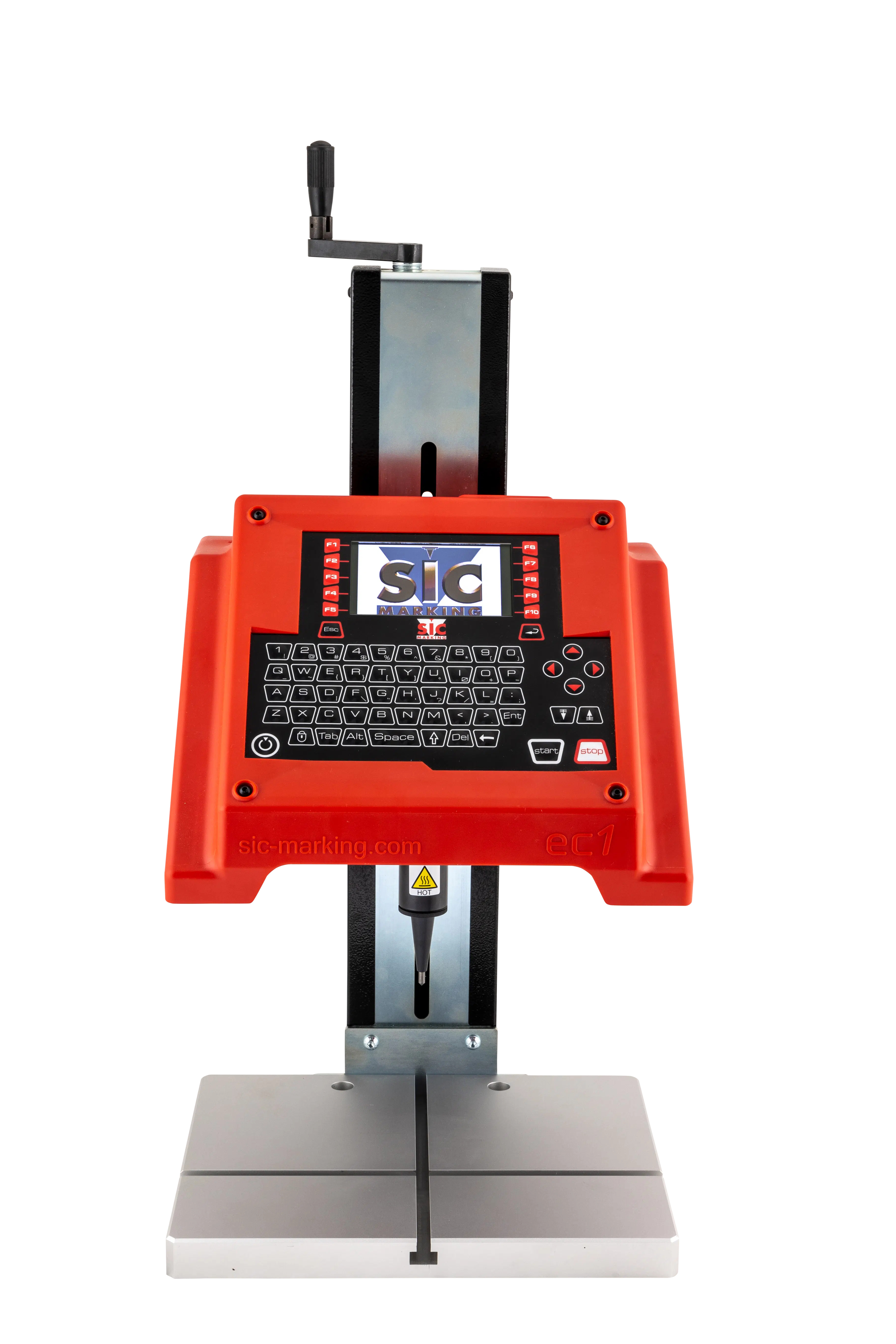

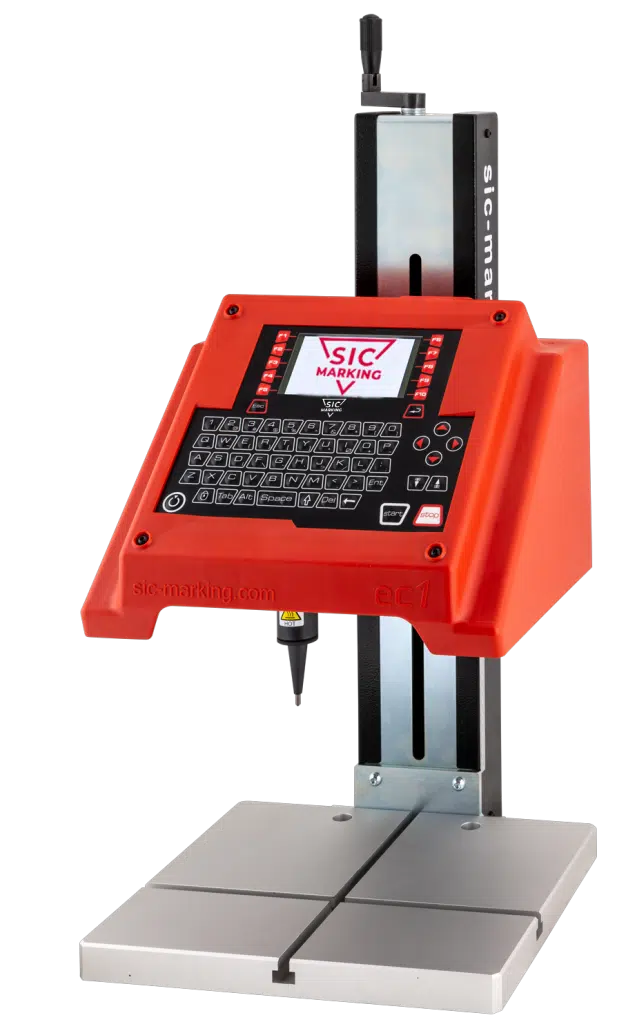

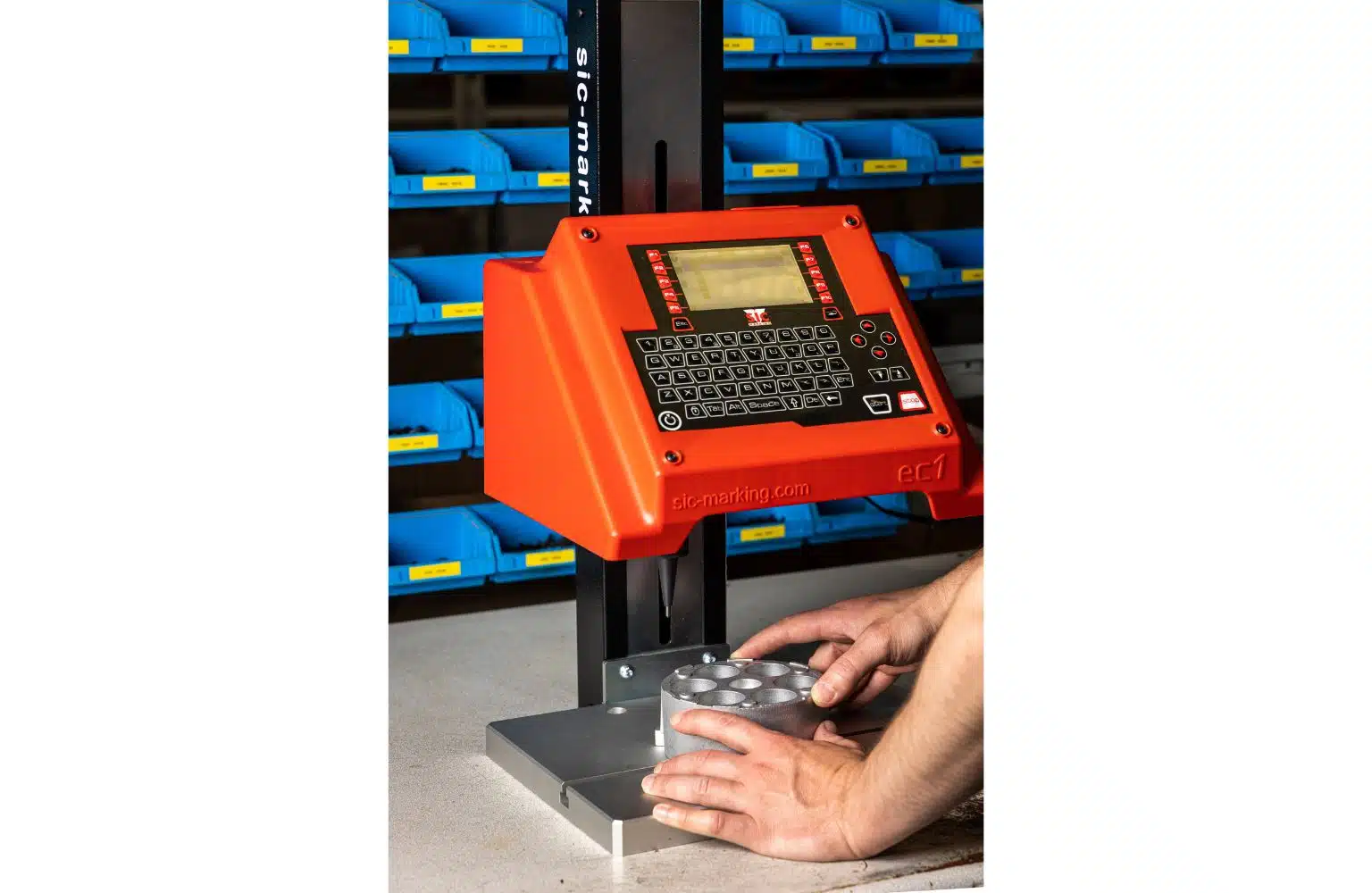

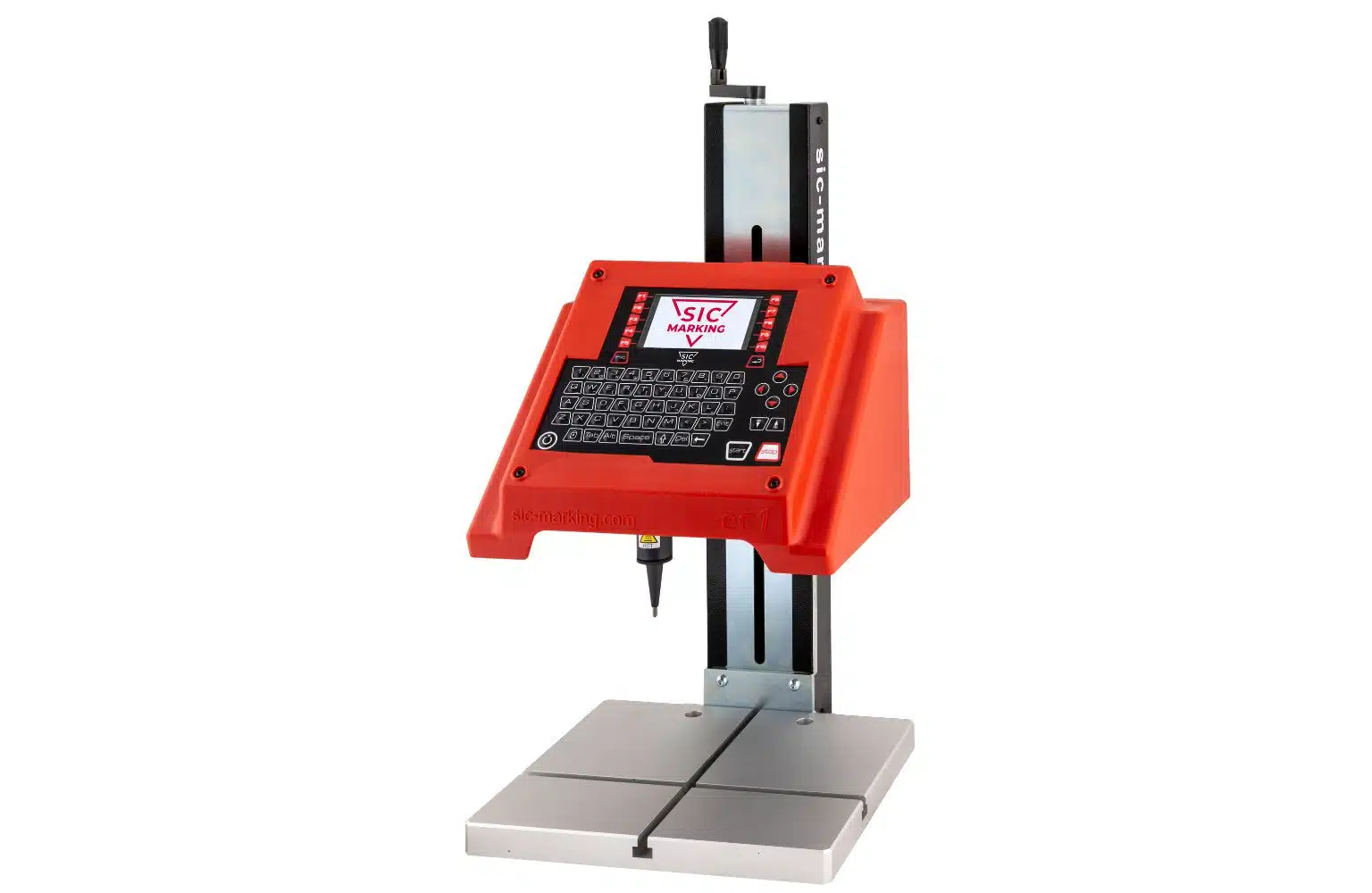

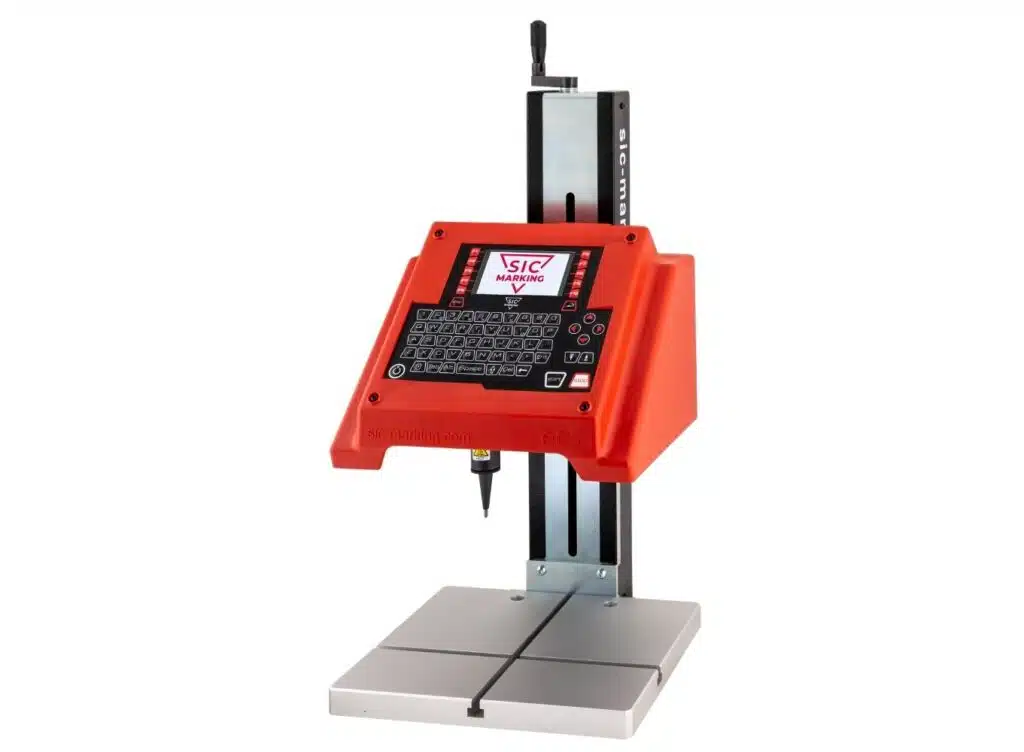

The EC1 is a COLUMN-MOUNTED DOT PEEN MARKING MACHINE – a machine that can be manually adjusted on the vertical axis to position the marking head according to the height of the part.
It is ideal for marking small or medium sized parts, which are placed directly beneath the marking head.
The EC1 has a WIDE MARKING WINDOW (120×100Â mm) and a column stroke of up to 300Â mm, which allows it to mark parts of various shapes and sizes.
This machine also has a CONTROL SYSTEM, including a graduated column for adapting the position of the stylus in relation to the marking area.
The EC1 is able to mark ALL TYPES OF MATERIALS from plastic to metal up to a hardness of 62 HRC with CONSISTENT QUALITY AND PRECISION.
It only needs connecting to a POWER SUPPLY.

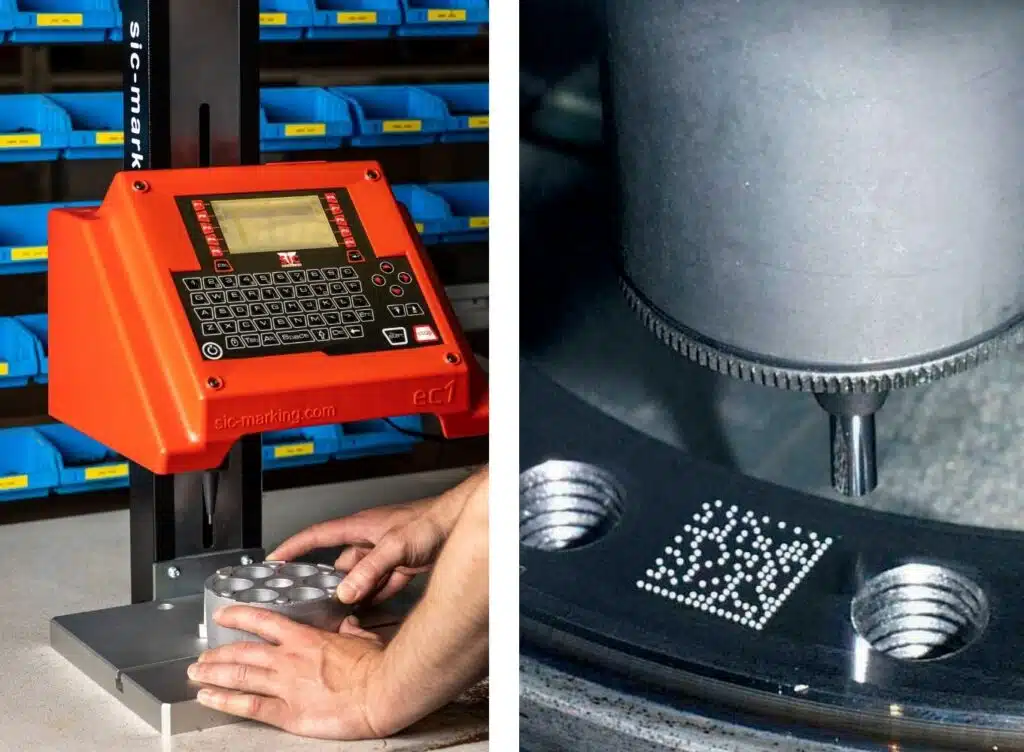

Dot peen marking technology with electromagnetic control enables parts with a variety of shapes and surface finishes to be marked: flat, concave, convex, circular, raw and machined surfaces.

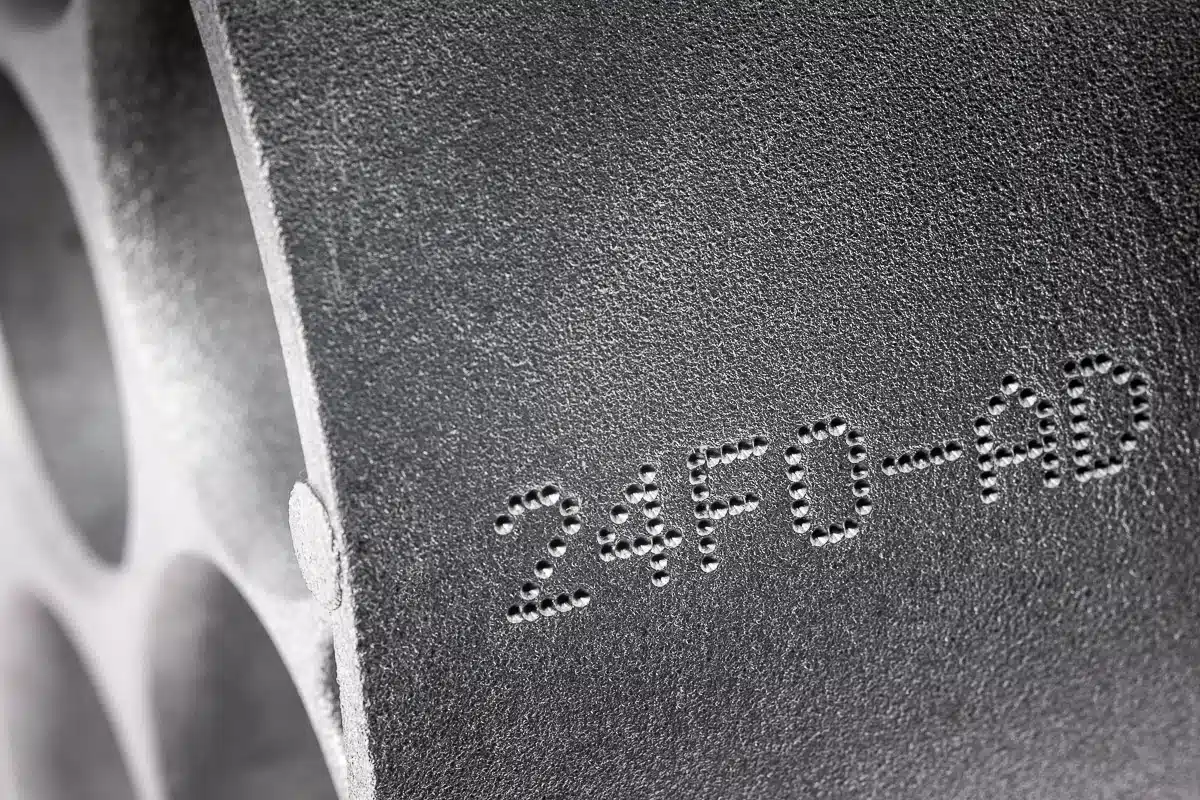

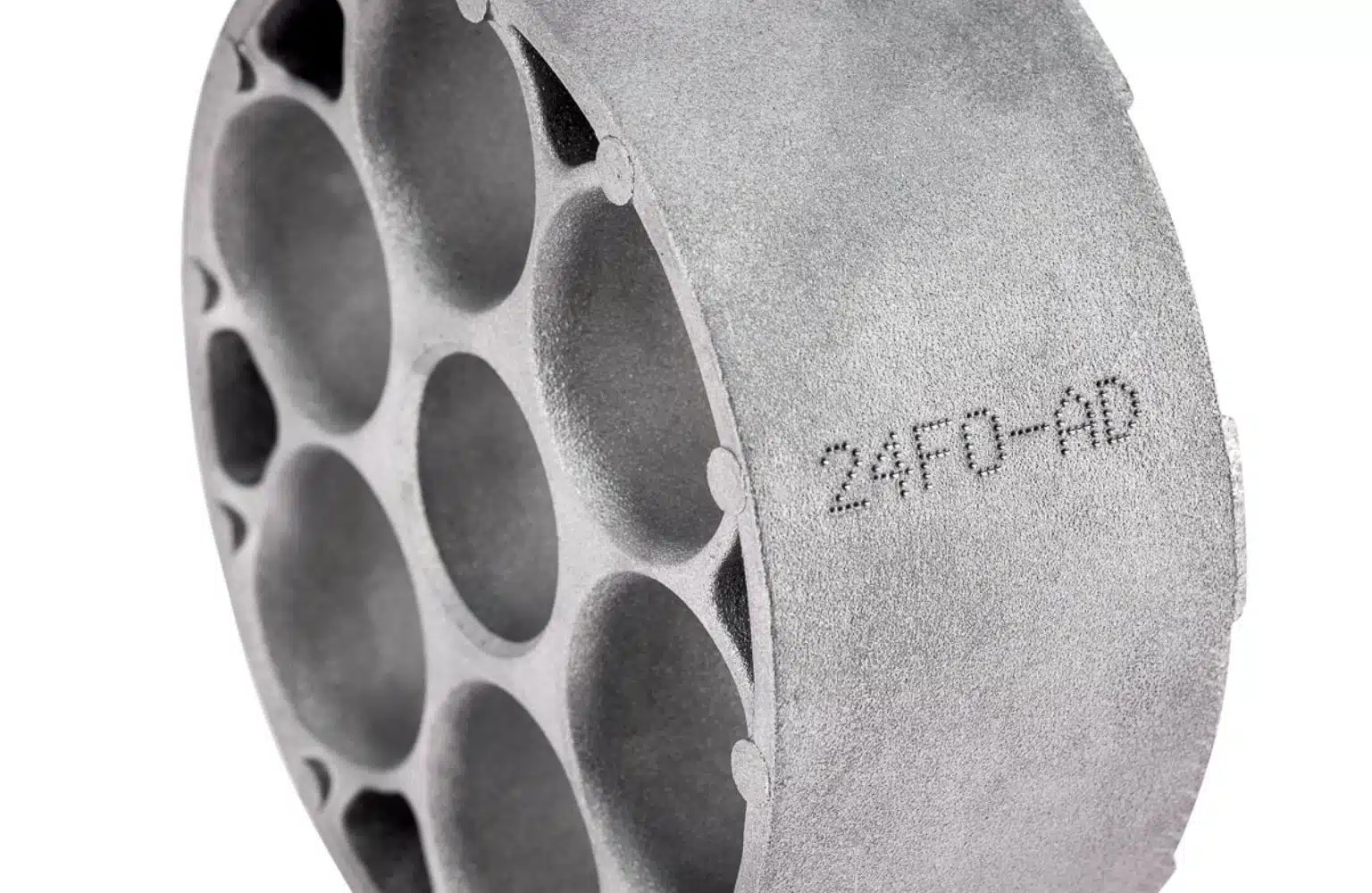

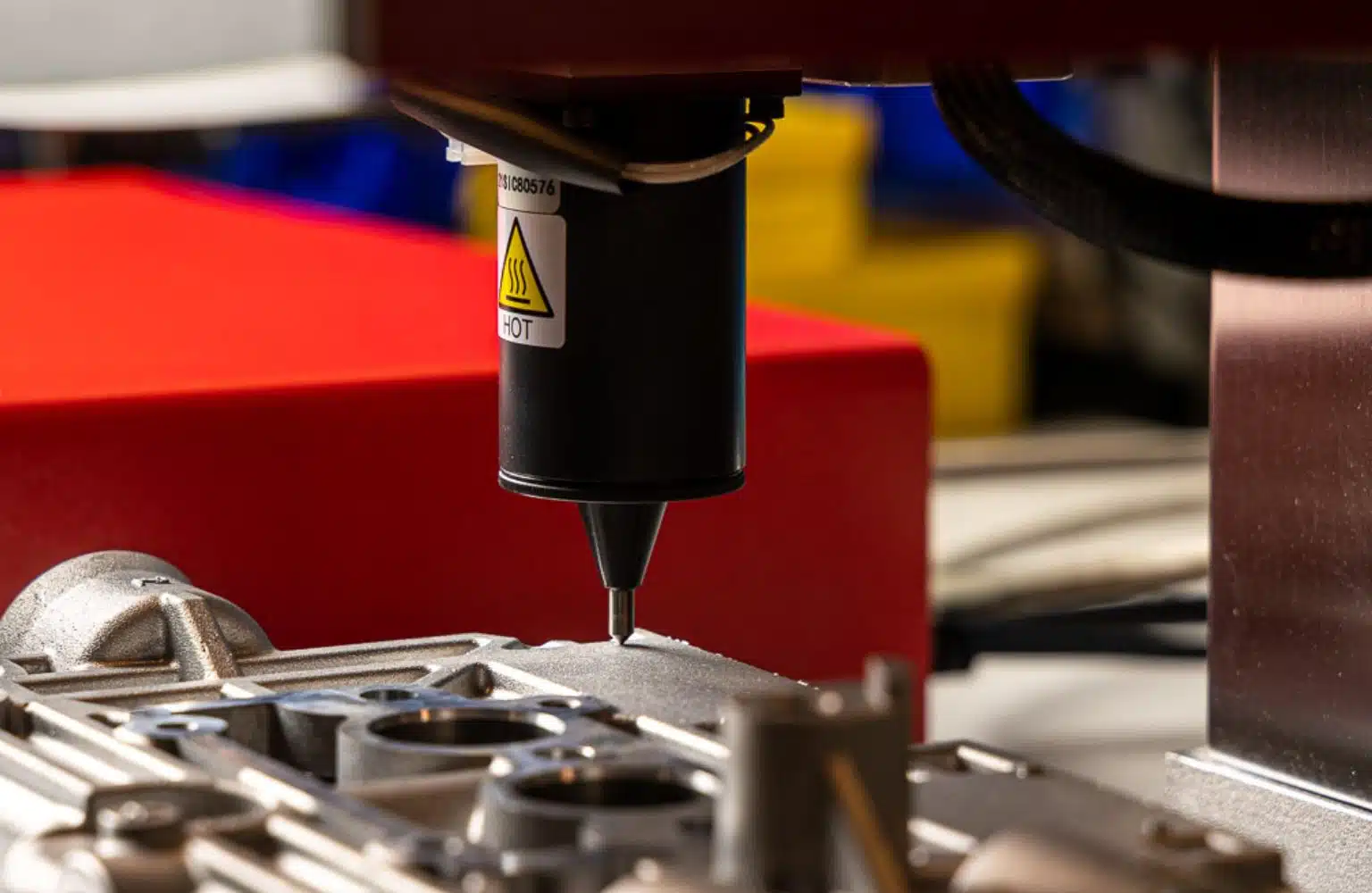

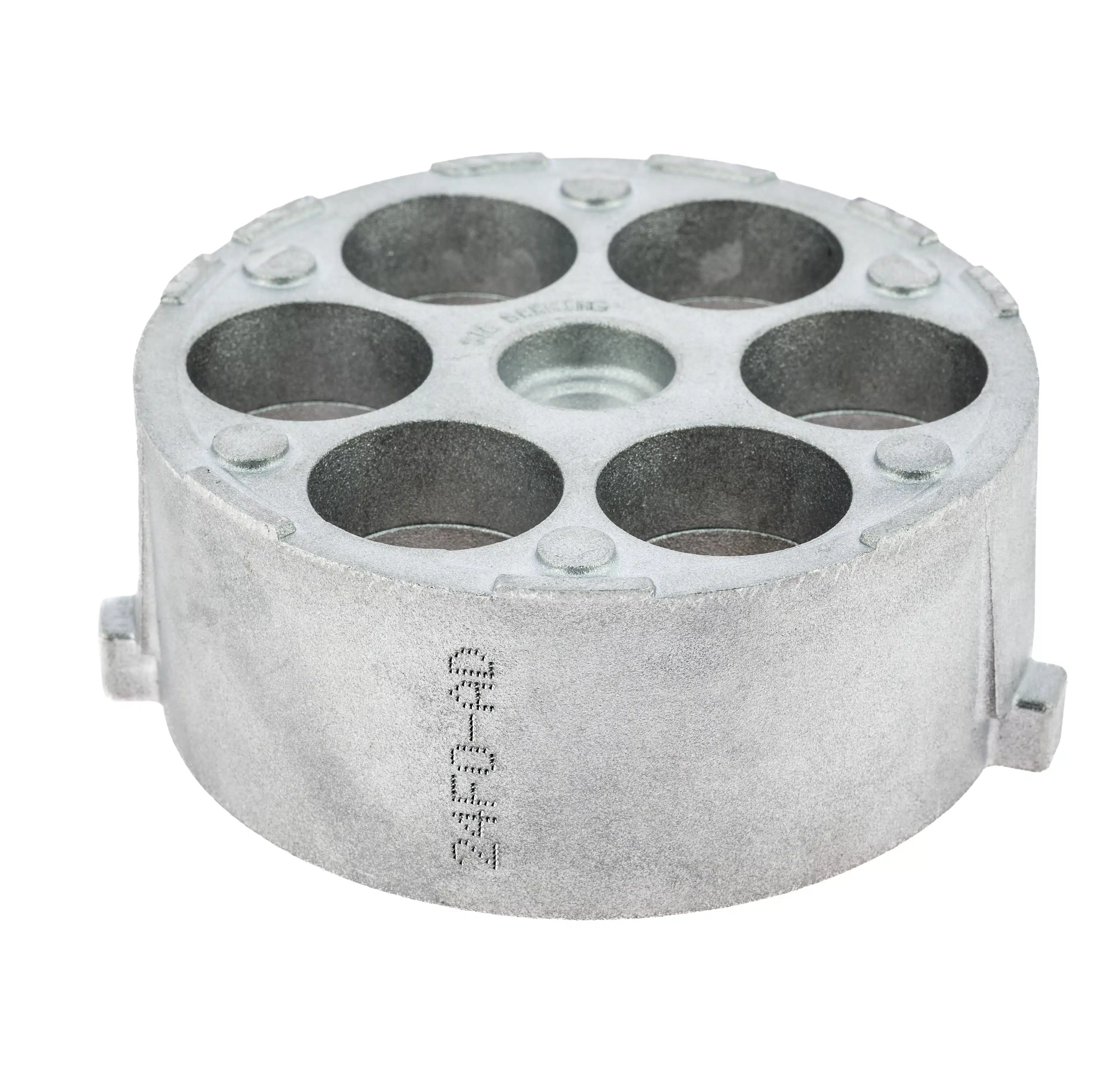

Thanks to the tungsten carbide stylus, which displaces the material by creating a series of indents in the surface to be marked, the EC1 is equally capable of engraving alphanumeric text, logos, 2D Data Matrix codes or QR codes.

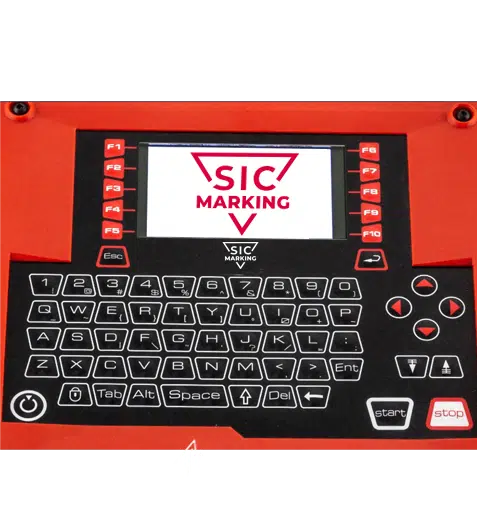

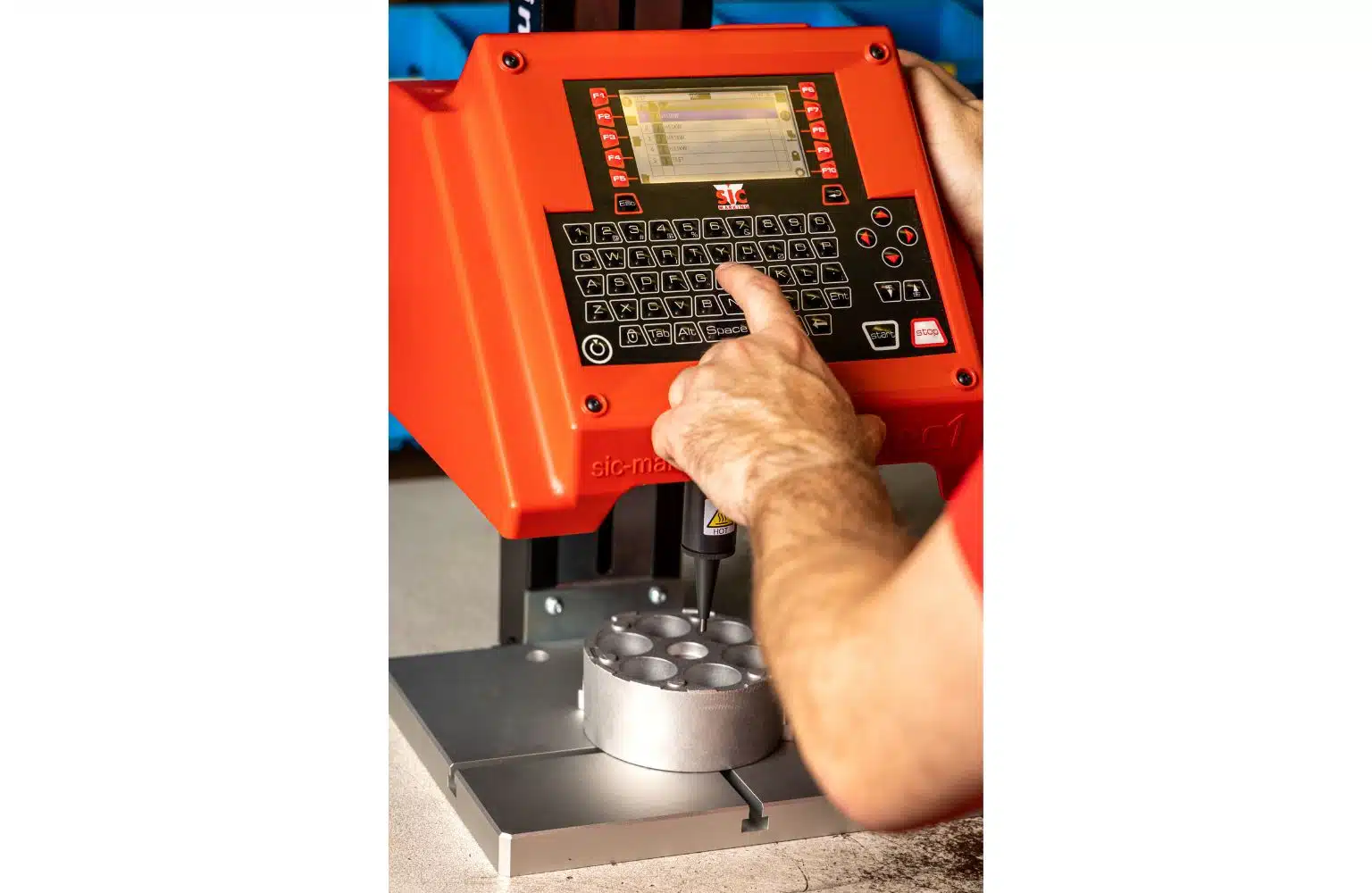

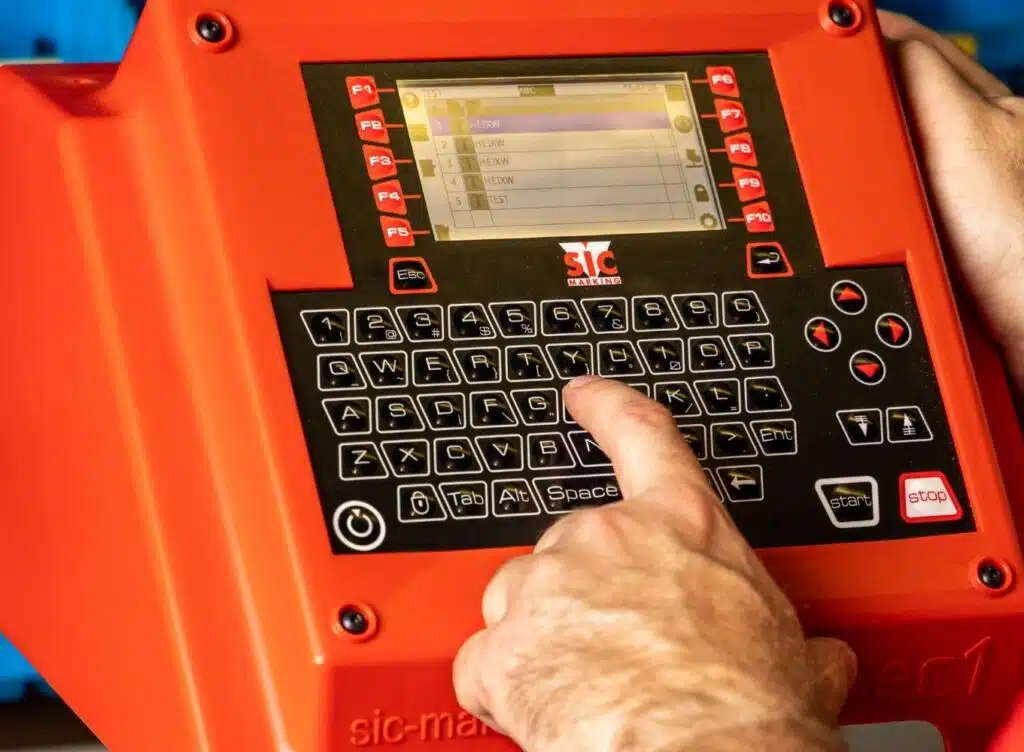

Thanks to an industrial keyboard (covered with a protective membrane), a colour display and an integrated controller, USING THE EC1 IS EASY AND INTUITIVE.
The controller is fully programmable and its USB port allows all types of marking file to be imported and exported.
Need information?
Contact one of our experts!
120 x 100Â mm
16Â kg
280Â mm
Carbide
For parts with a diameter of up to 150 mm
95 x 54Â mm
Integrated QWERTY keyboard
100W
110V or 220V / 50-60Hz
> 1000 files
100 MB
Serial number and time/date stamping
Download from a PC or USB key
5×7, Arial, Courier, OCR, OCR_BOLD and OCRA
Linear, radial, angular, Data Matrix, logo, mirror
From 0.1 mm to 99 mm
Up to 0.3 mm
0.22 mm
2 security levels
15 languages
Anti-duplication
RS232, USB
Creation and transfer of backups, logos

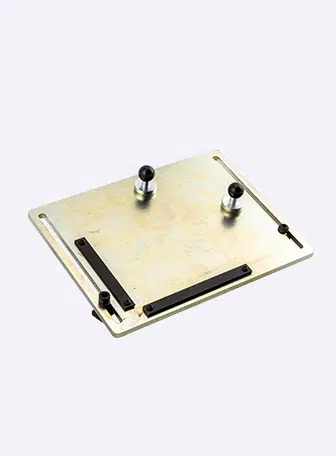

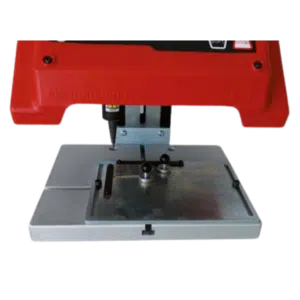

MAGNETIC PLATE HOLDER
This system is a tool for magnetically positioning and clamping plates.
Â
A guide bracket allows the plate to be positioned accurately and repeatedly.
Â
The plate is held by one or two magnetic pads.
This system is compatible with our EC1 dot peen marking machine.
Â
The benefit:
Â
It enables plates with different dimensions to be marked without prior adjustment.
The maximum plate dimensions are 160 x 128 mm.
ROTARY D-AXIS

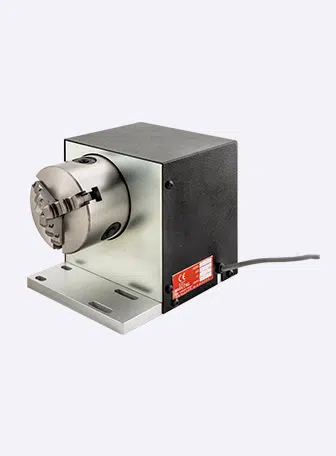

The rotary axis is specifically designed for the E1 range and a 3rd axis PCB can be installed to control the D-axis. It allows a circular part to be marked around the circumference.
Â
The D-axis comprises:
Â
Â
The benefits:
Â

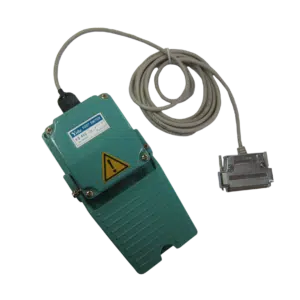

CONTROL PEDAL
This marking cycle start pedal relates to the E1 range only.
It is a foot-operated control.
Â
The benefit:
Â
It allows the marking cycle to be started with the foot
