Dot peen marking machine c-153, small and medium part engraver

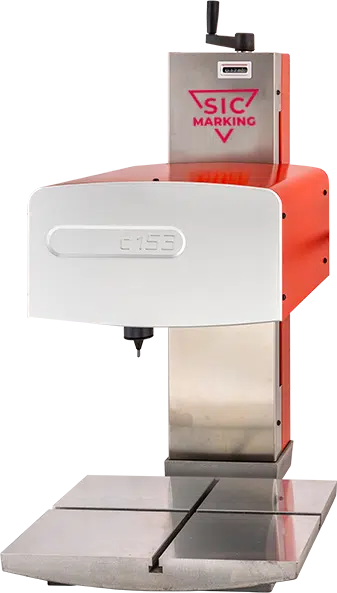

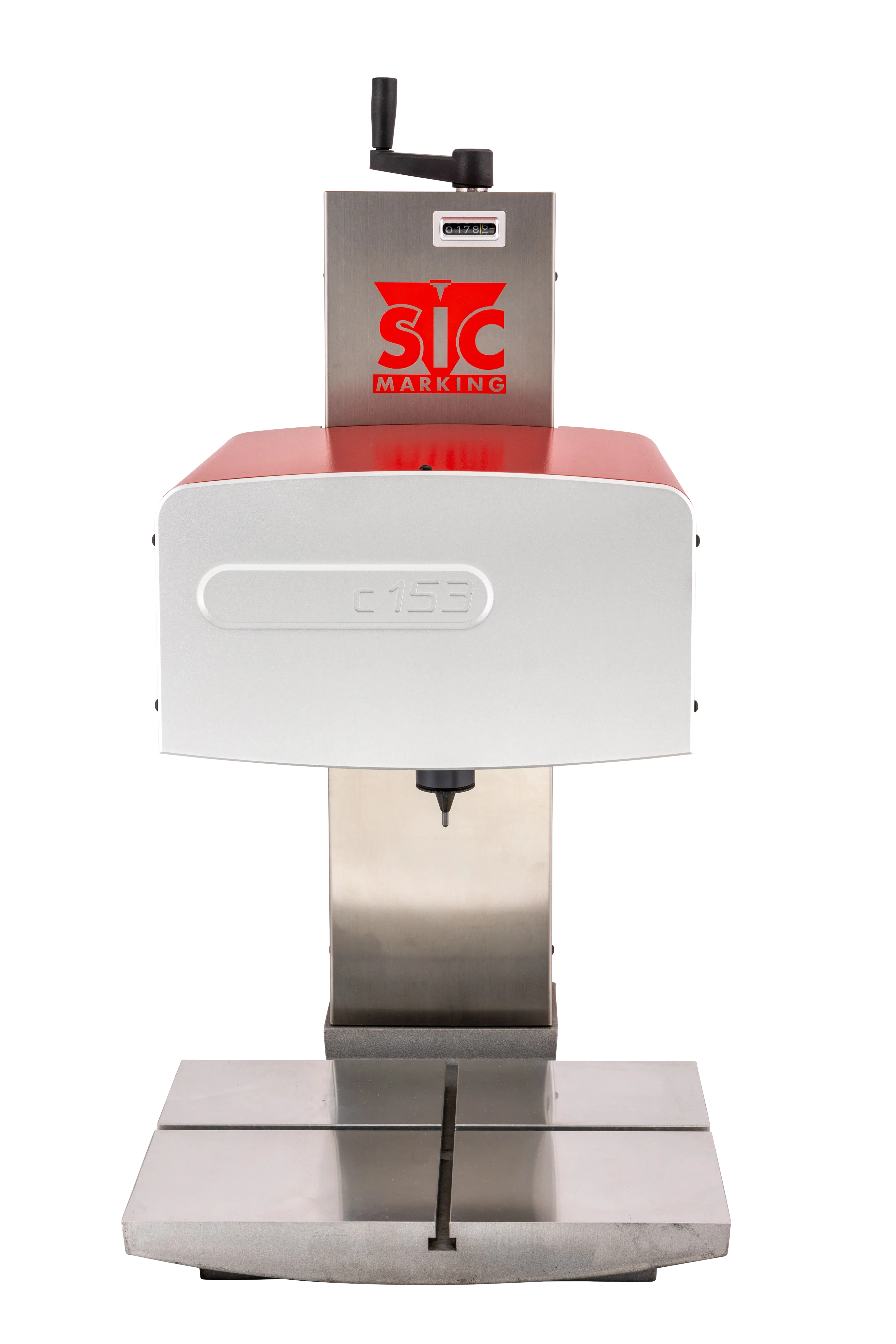

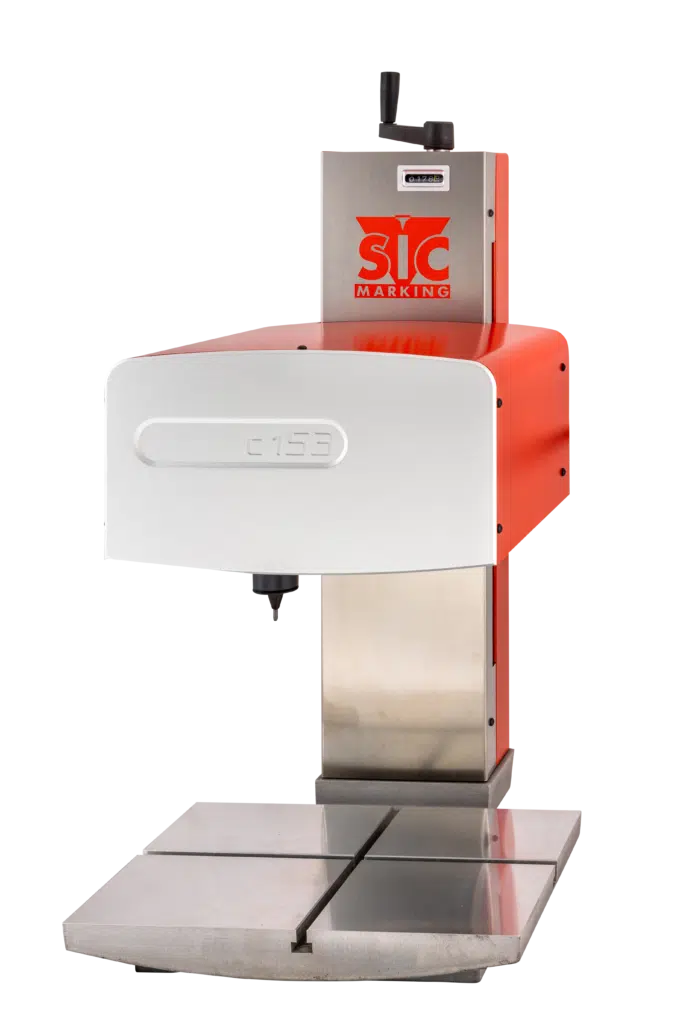

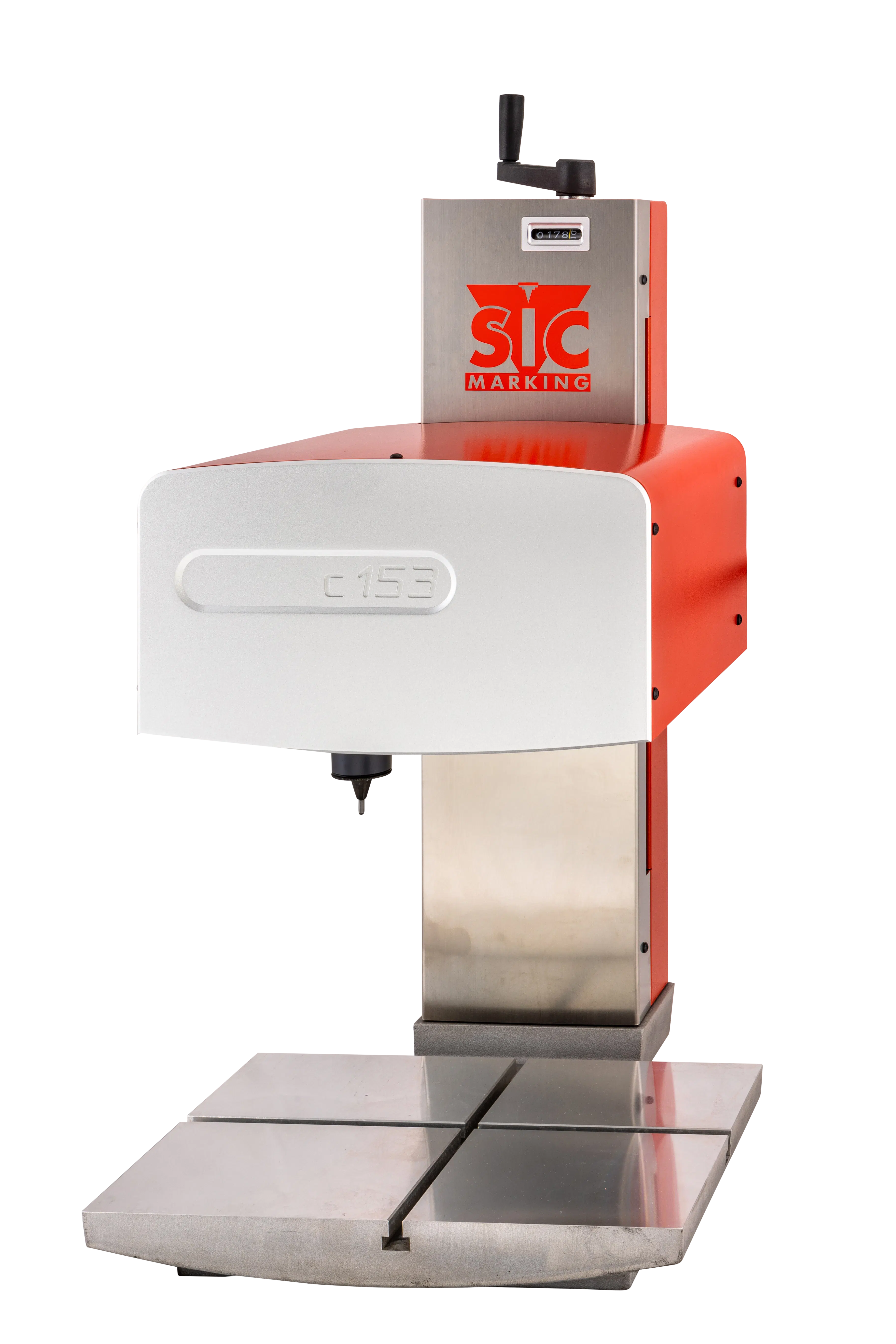

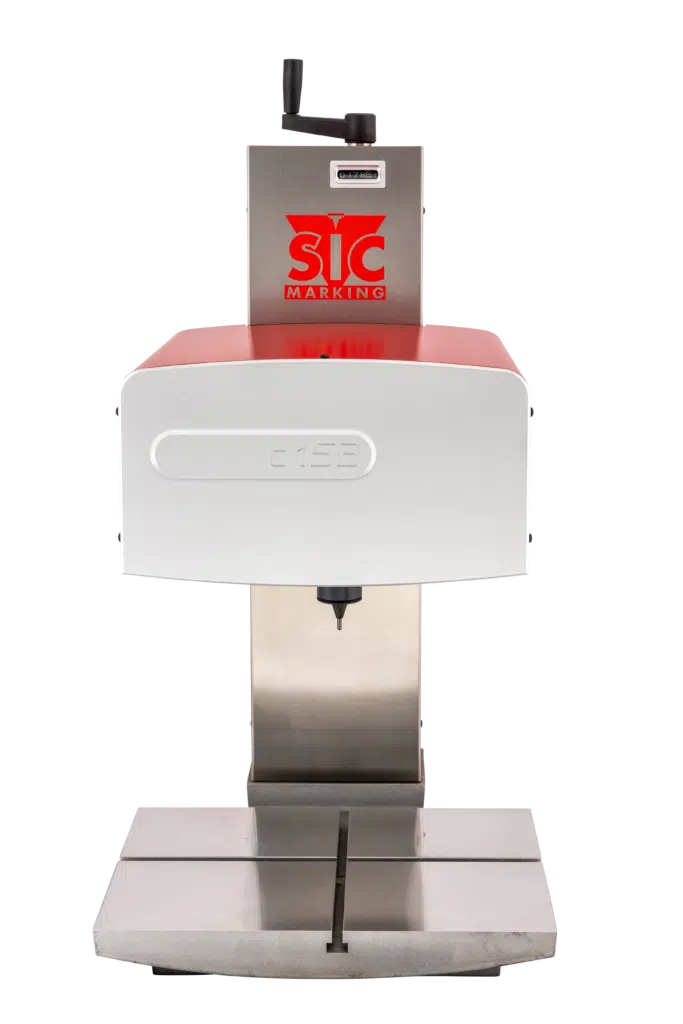

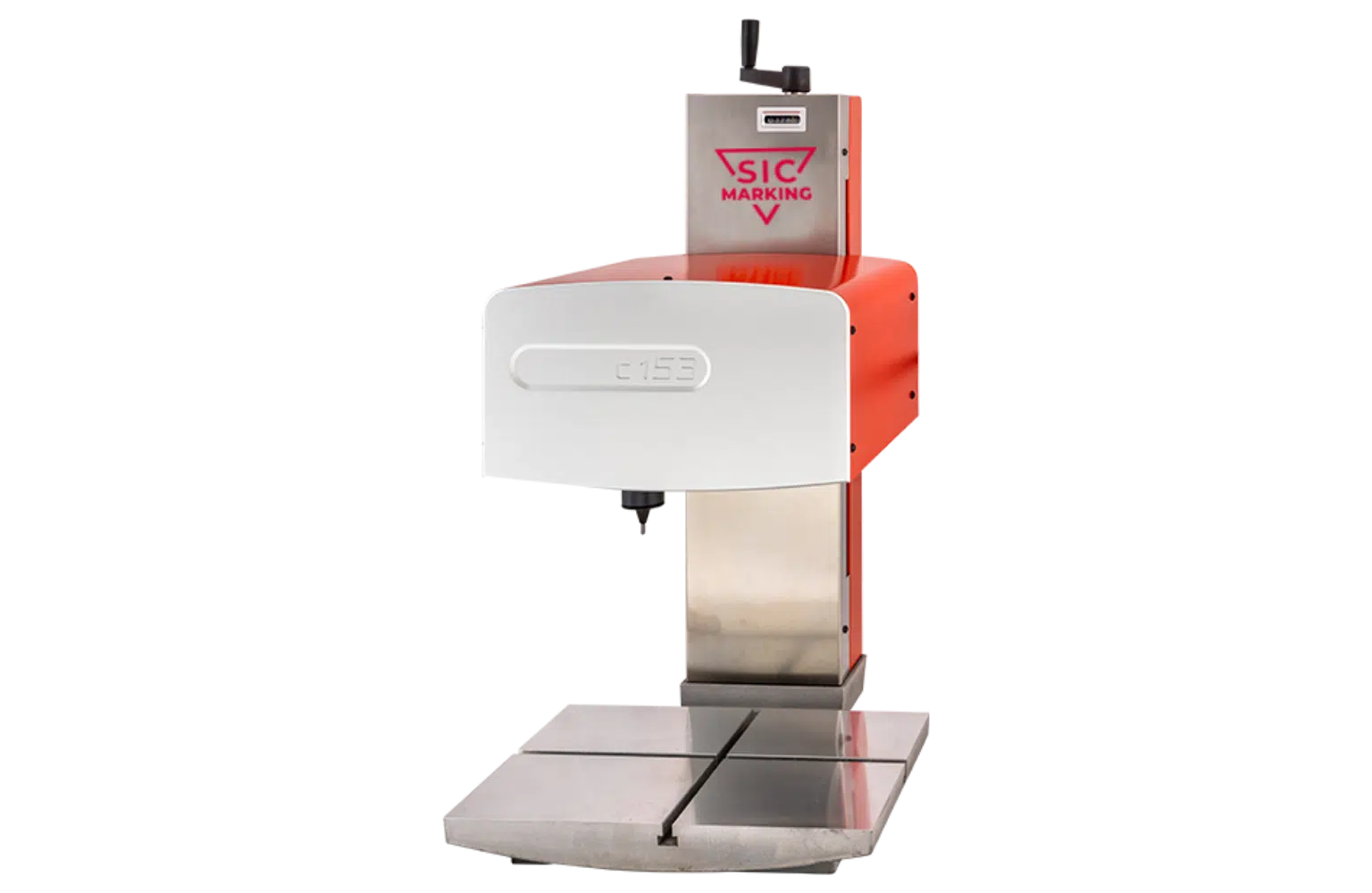

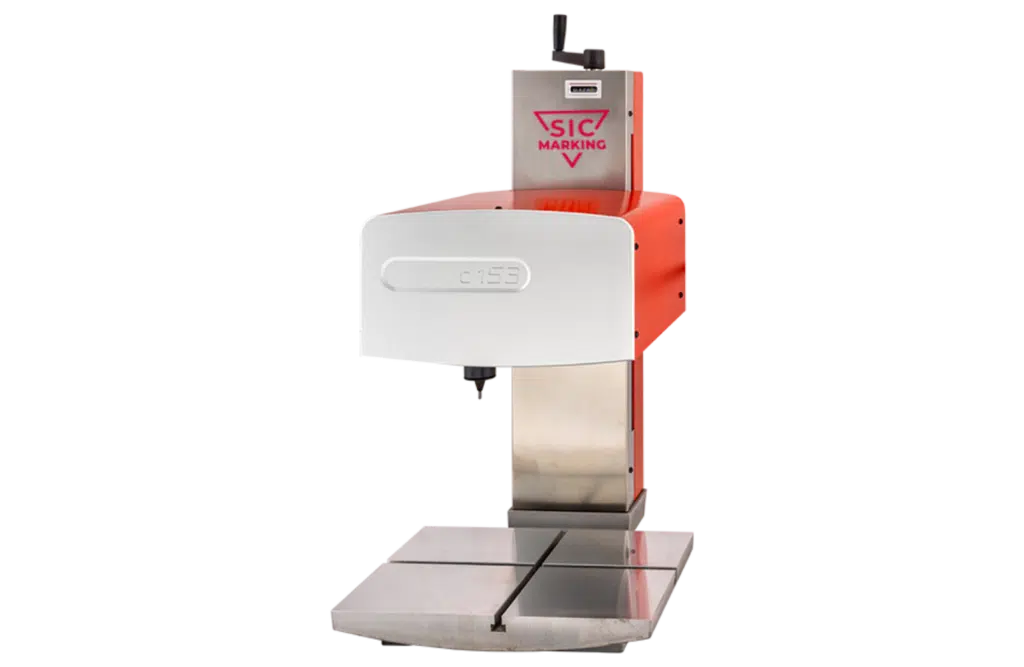

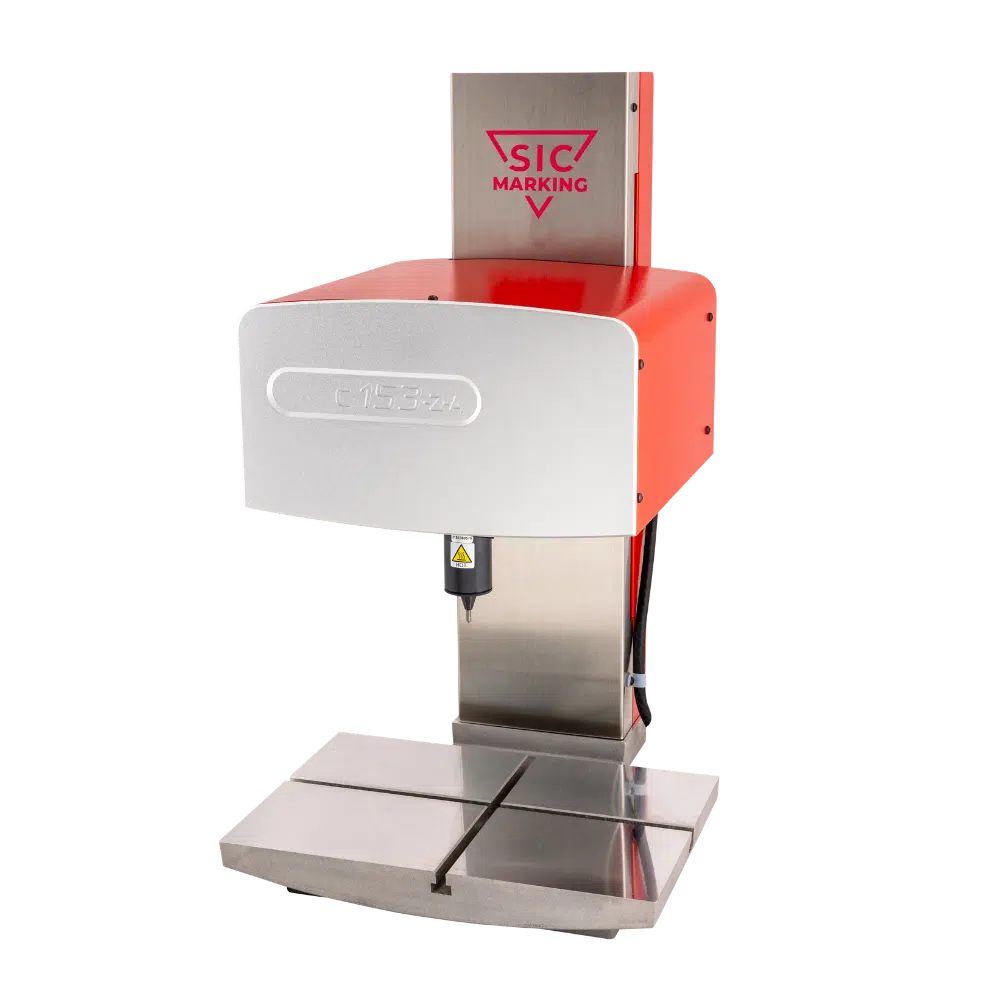

The C153 is a column-mounted dot peen marking machine, i.e. a machine that slides on a vertical axis to adjust the position of the marking head.

It is particularly suitable for marking small and medium size parts that are placed directly under the marking head.

The C153 is a fast machine designed for intensive use.

The column-mounted dot peen marking machine is particularly robust with a cast alloy base and a strengthened column.

It has an integral meter that facilitates the setting of the marking distance when parts are changed.

The marking machine can mark on a large surface, thanks to a wide marking window of 160 x 100 mm.

The LED lighting system facilitates marking when indoor light is insufficient.

It only needs an electrical power supply.

Dot peen marking technology with electromagnetic control enables parts with various shapes and surface finishes to be marked: flat, concave, convex, circular, raw and machined surfaces.

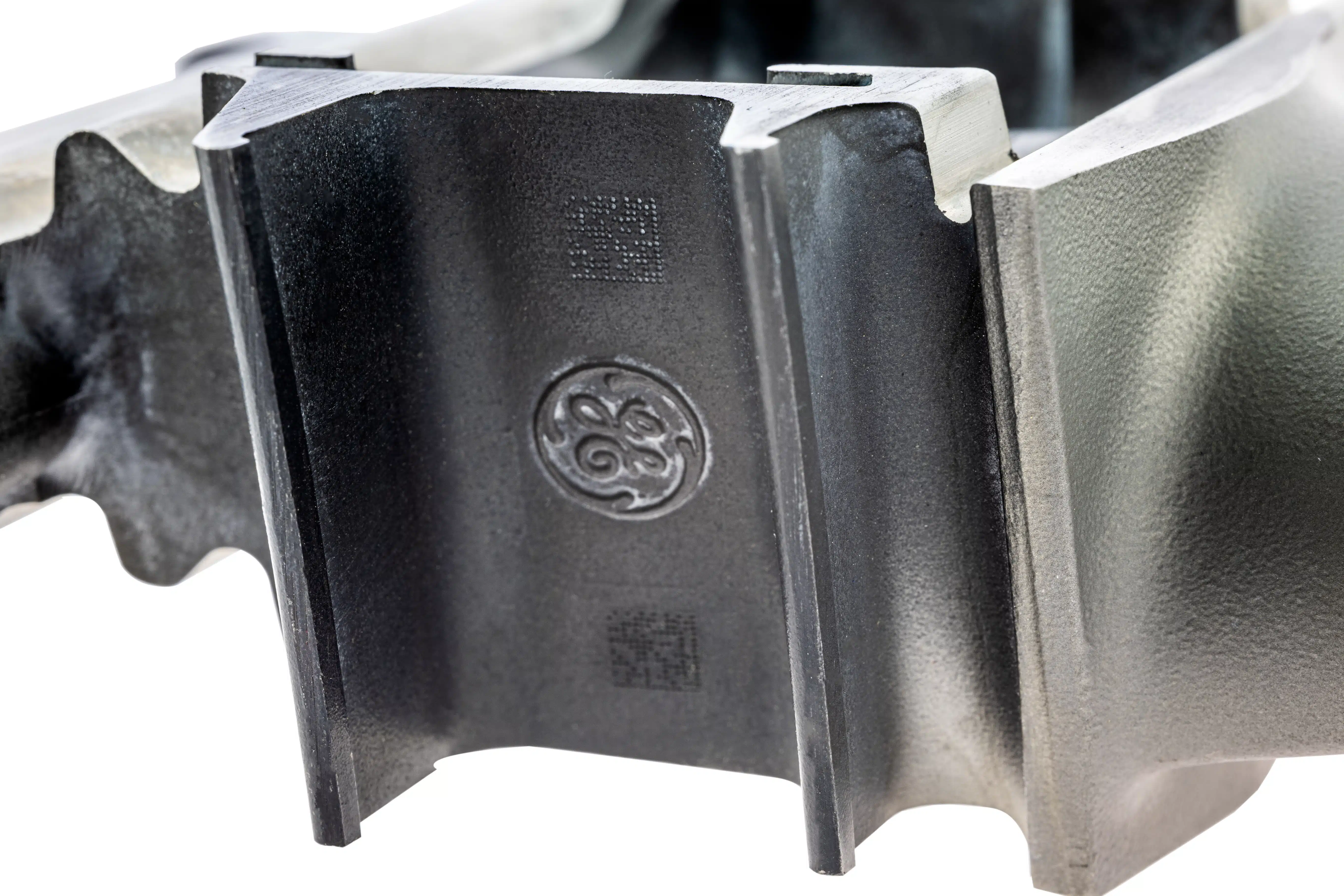

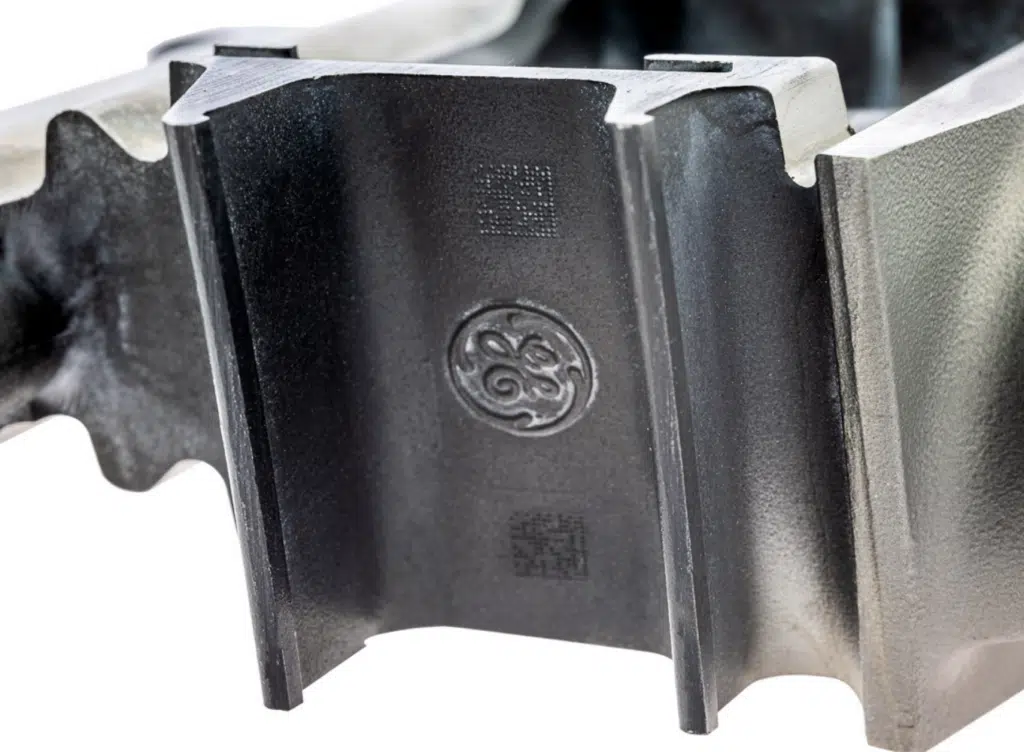

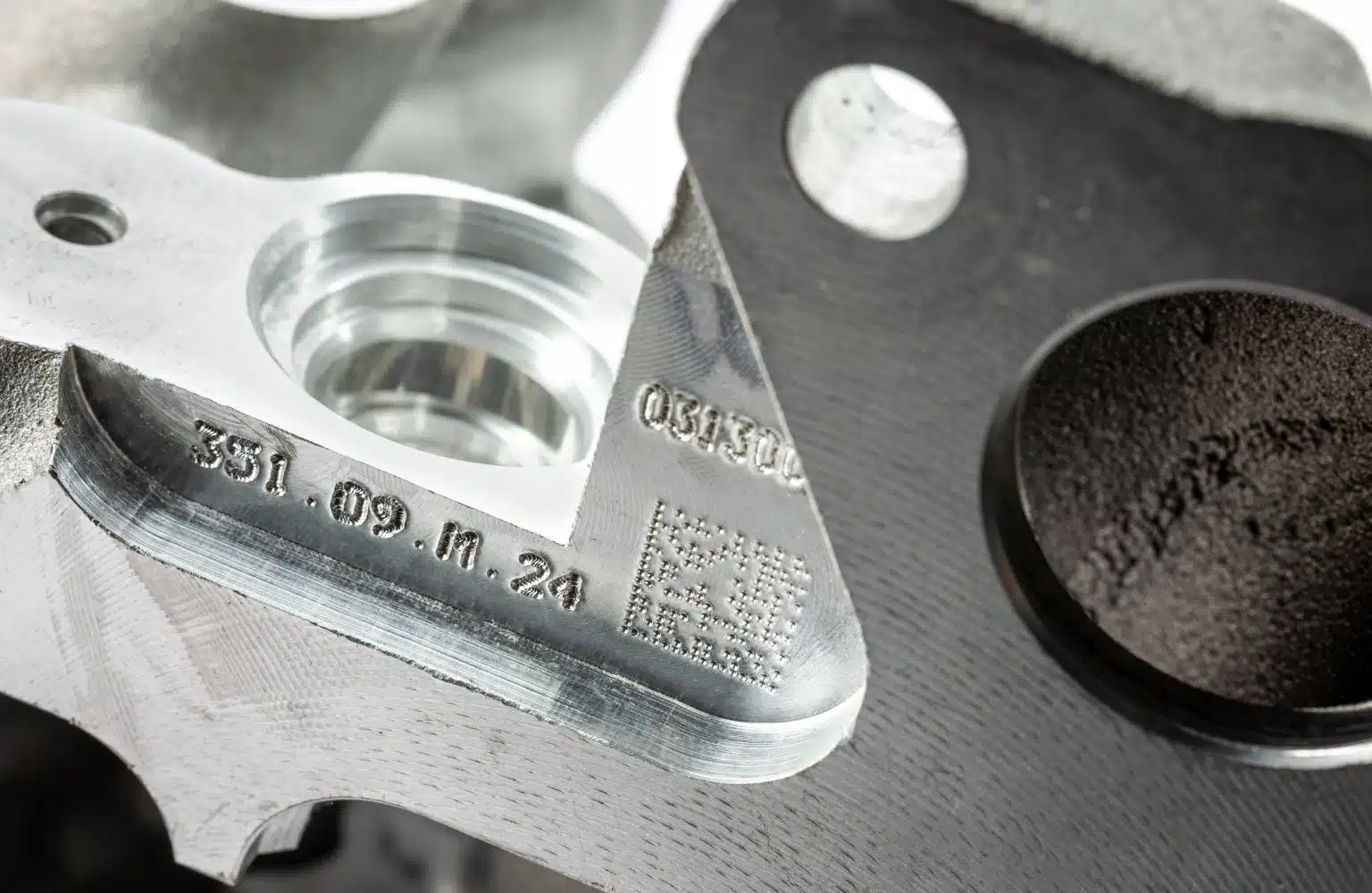

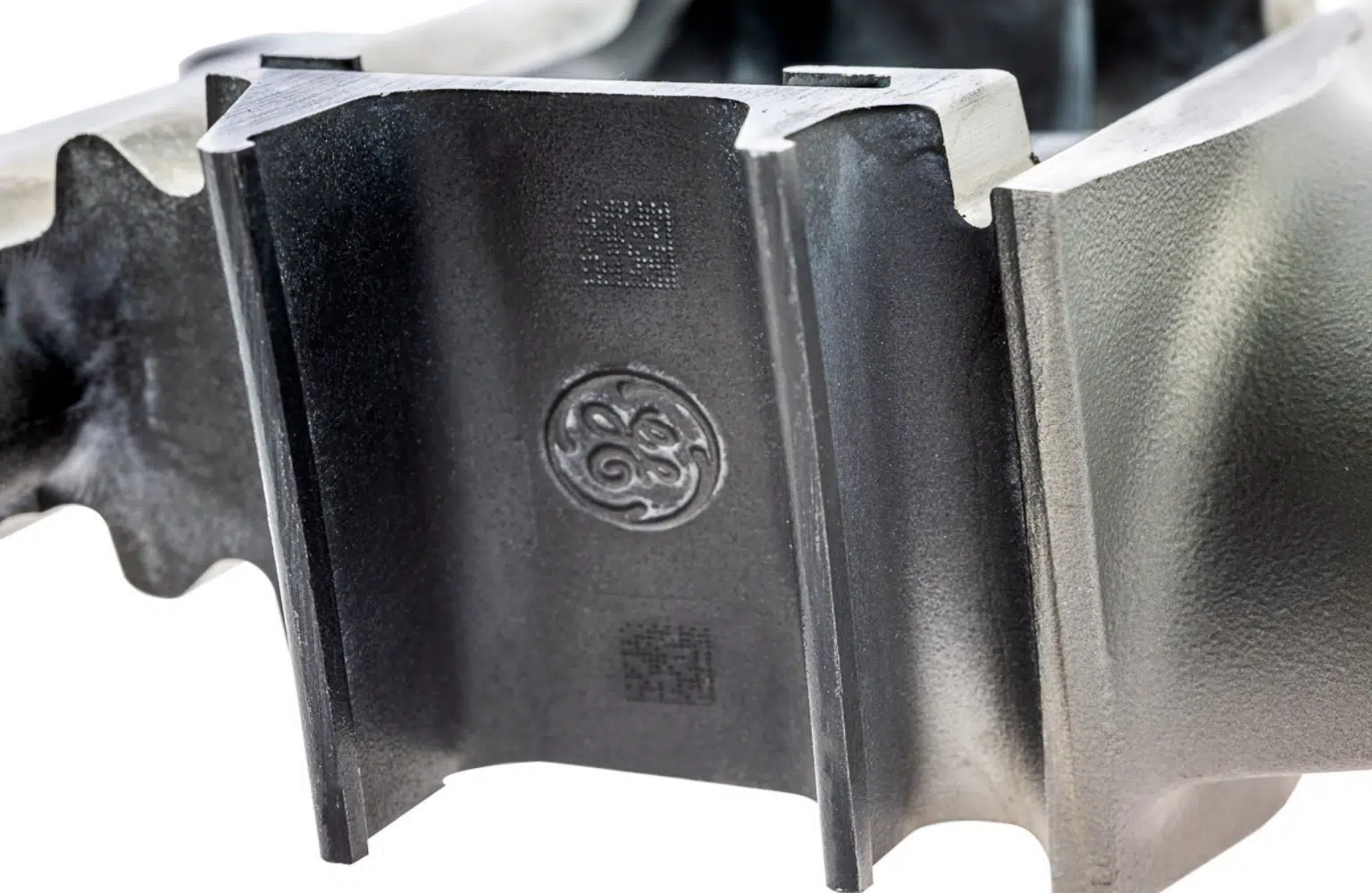

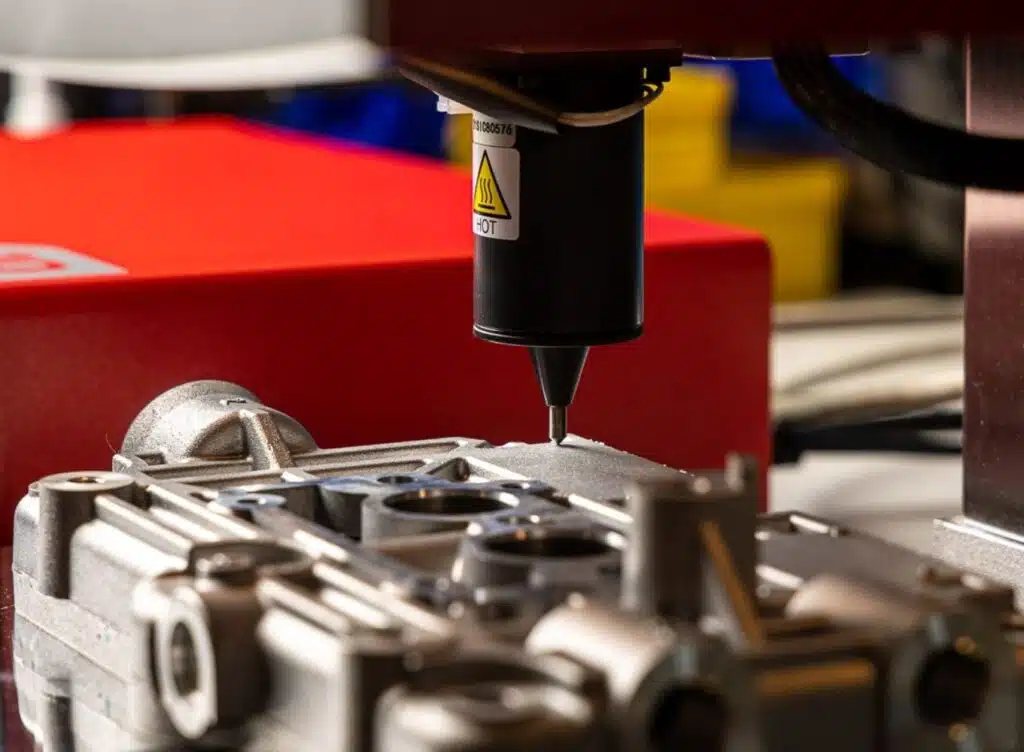

Thanks to the tungsten carbide stylus, which deforms the material by creating a series of indents in the surface to be marked, the column-mounted dot peen marking machine C153 can engrave alphanumeric text, logos, or 2D Data Matrix codes.

It only needs an electrical power supply.

Marking window	160 x 100 mm
Weight	28 kg
Dimensions	385 x 350 x 704 mm
Stylus	Carbide 60 mm
Column travel	Max. 270 mm

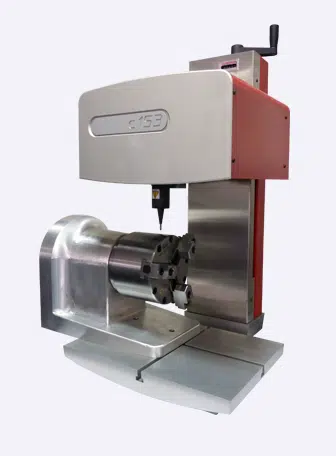

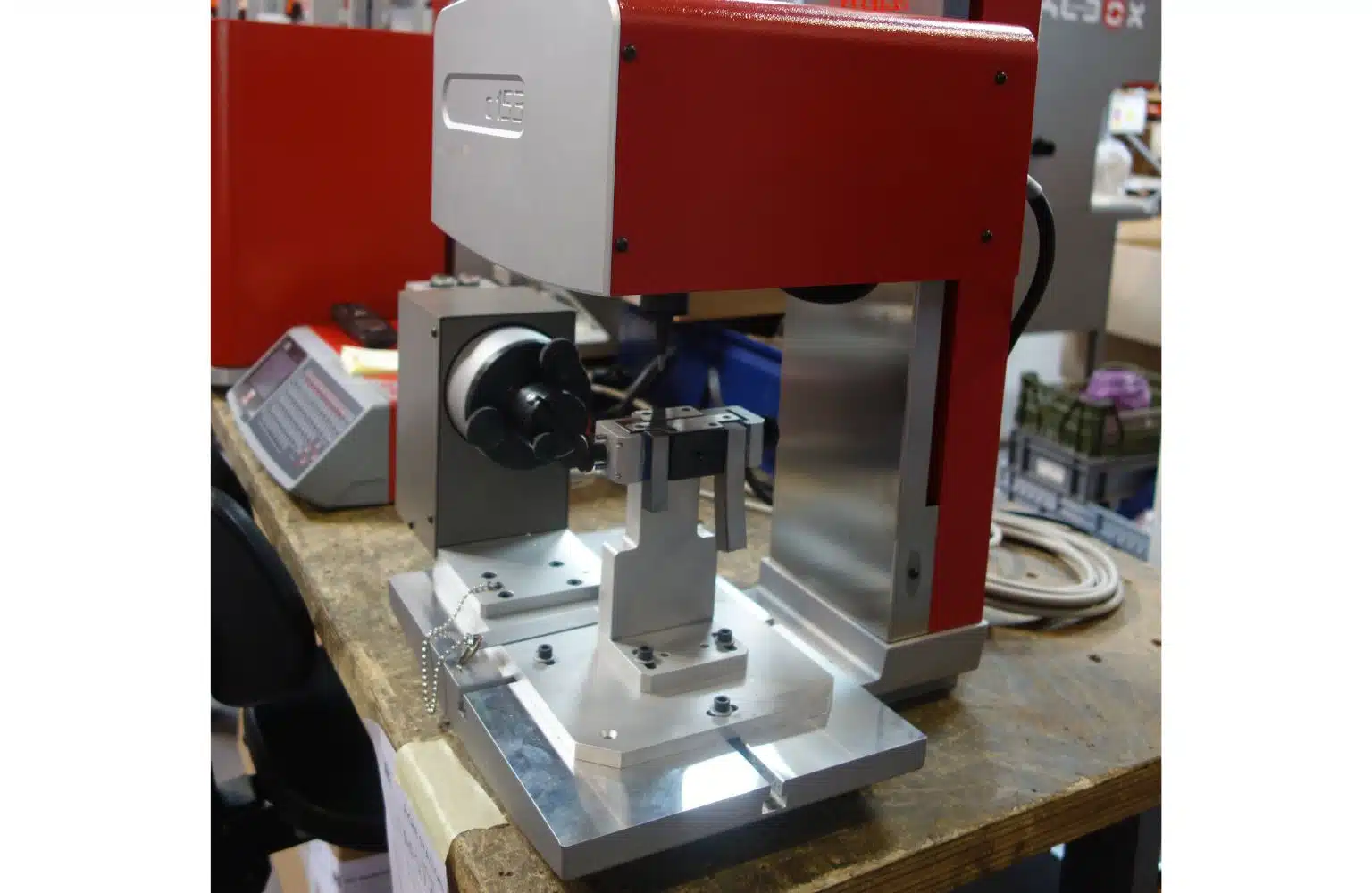

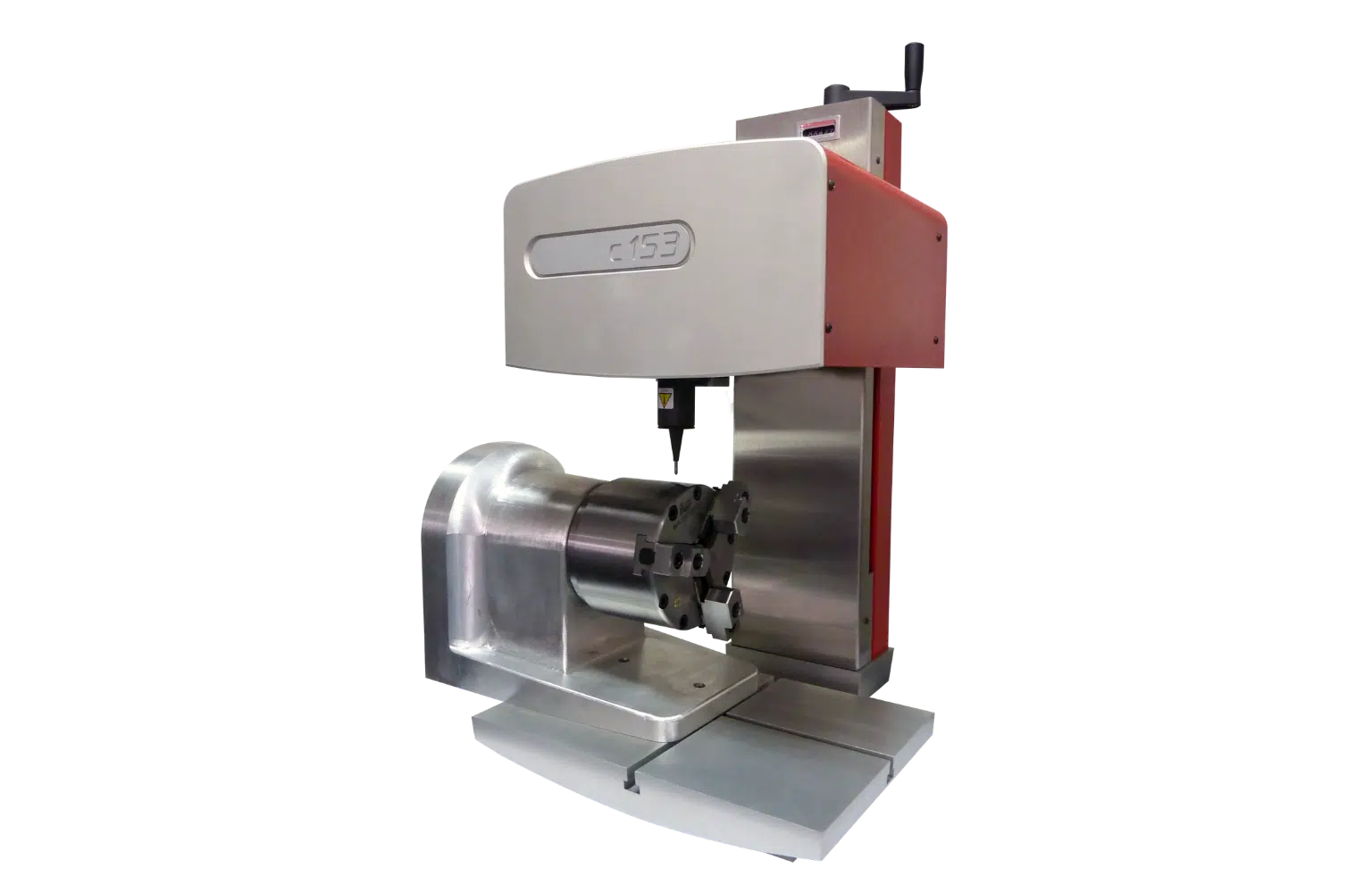

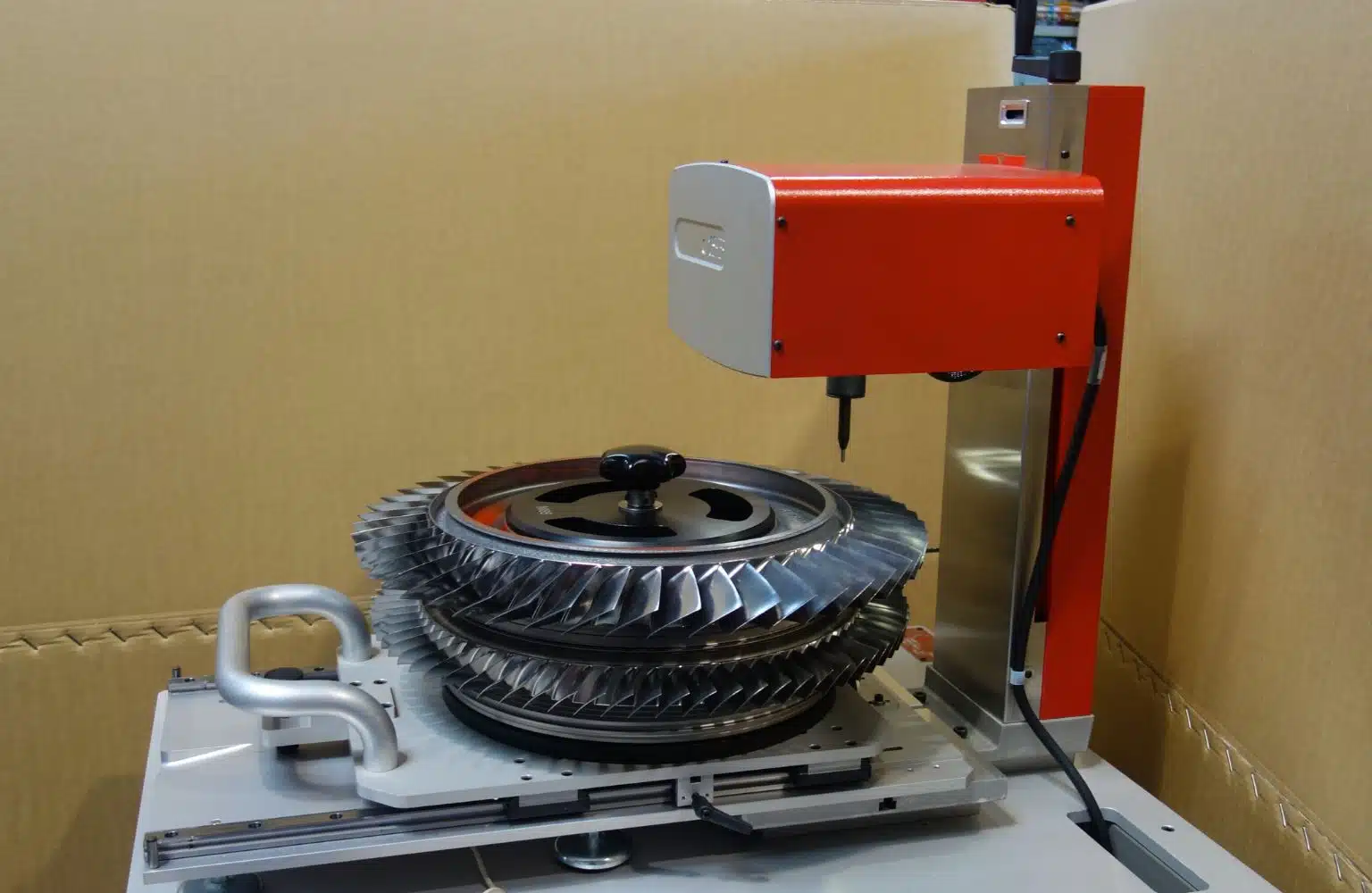

The rotary axis enables marking on cylindrical or series parts in rotation, ensuring precise and uniform marking across the entire surface. It optimizes productivity by automating the marking process without manual repositioning.

The barcode reader allows automatic and fast selection of the file and content to be marked, eliminating the possibility of input errors. It can read 1D and 2D codes, including QR and Datamatrix codes. It features a Bluetooth connection, ensuring wireless communication with the machine.

The plate support is a tool for positioning and clamping plates using magnets. A reference square allows the plate to be positioned precisely and repeatedly. The plate is held by one or two magnetic pads and allows the marking of plates of different dimensions without prior adjustment.

The plate feeder makes it possible to automate the marking of plates by presenting them one by one under the stylus, without the intervention of the operator between each part. This allows continuous and autonomous marking. It is ideal for large volumes of industrial data plates.
