Inline laser marking machine i104 HD

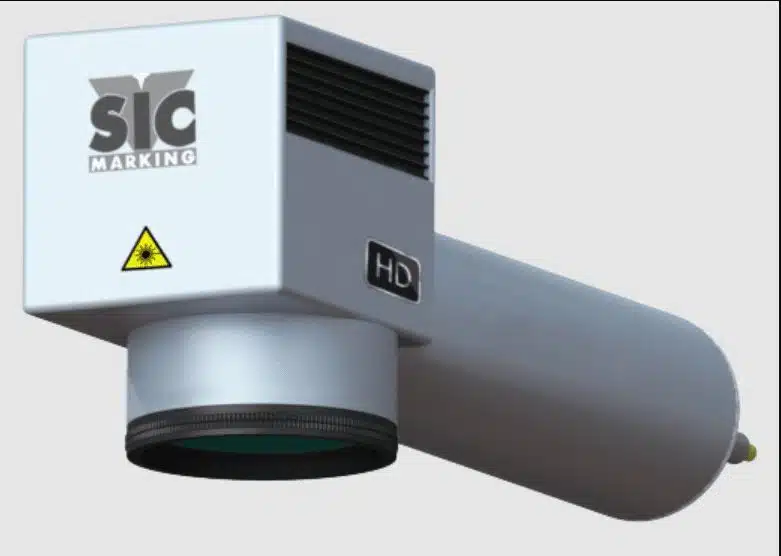

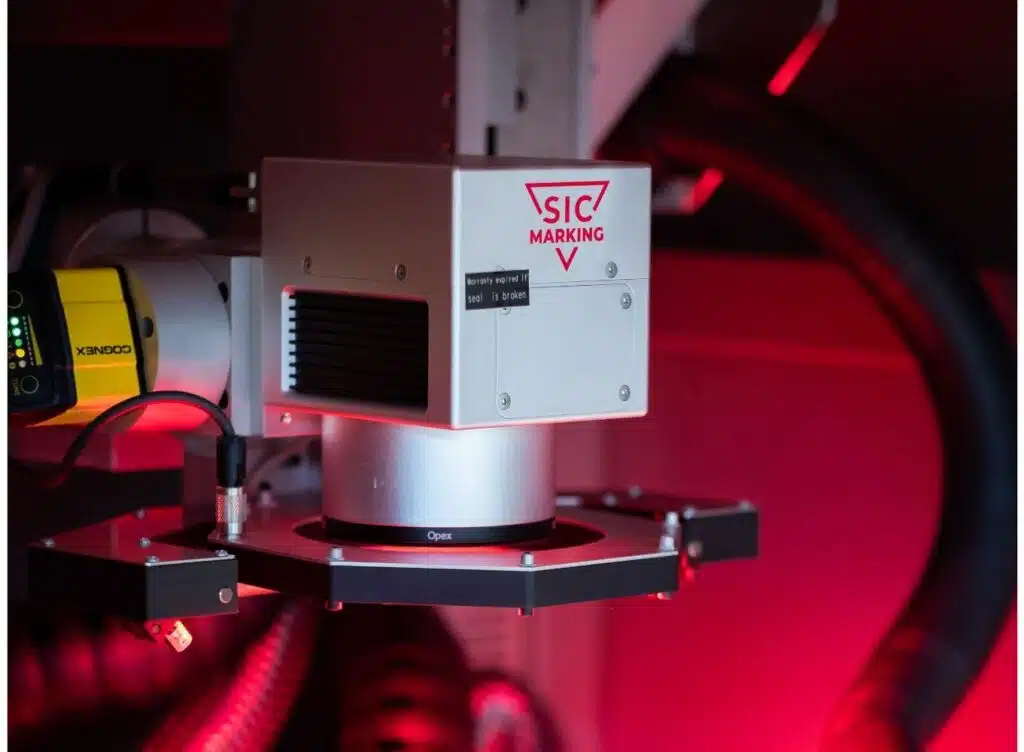

The I-104 HD is a FIBRE LASER marking head that can be integrated into production lines.
Fibre laser is a LATEST GENERATION, ULTRA-HIGH PERFORMANCE AND DURABLE technology. Our HD laser marking systems are equipped with a particularly efficient ytterbium-enhanced MOPA (Master-Oscillator Power-Amplifier) fibre laser source.

The power of the I-104 HD laser marking head allows it to MARK WITH CONTRAST ON ALL TYPES OF MATERIAL (steel, aluminium alloy, stainless steel, titanium, plastics, etc.).

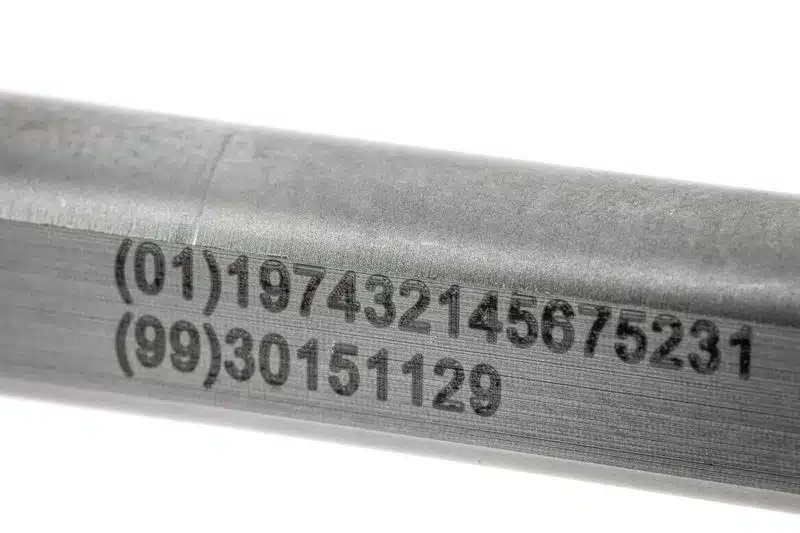

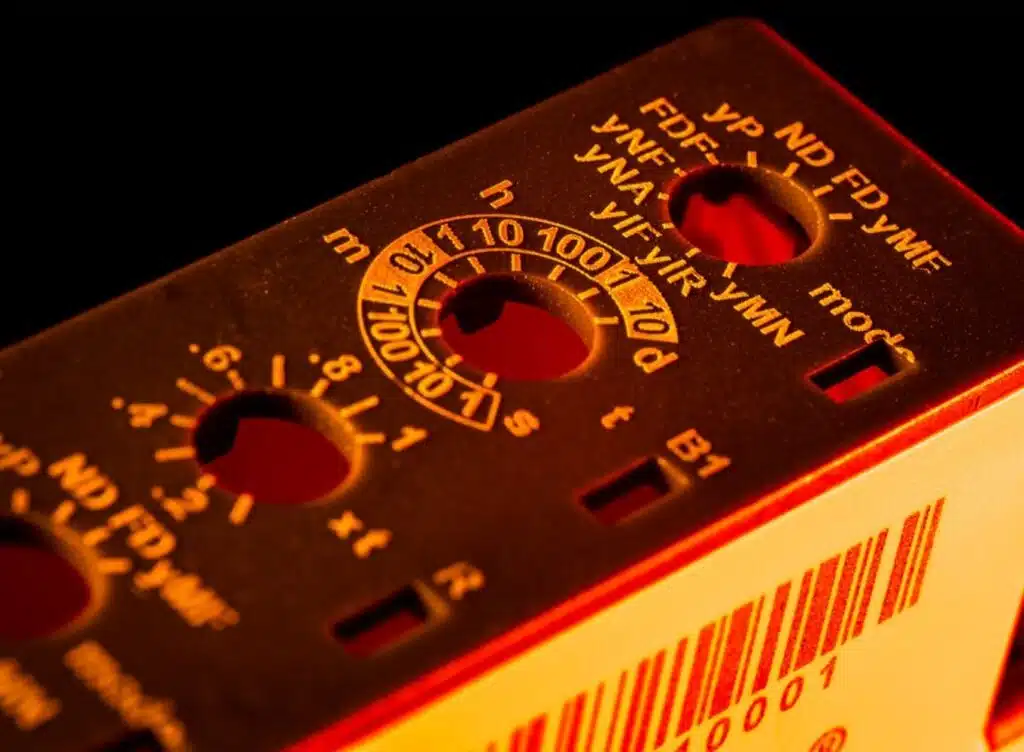

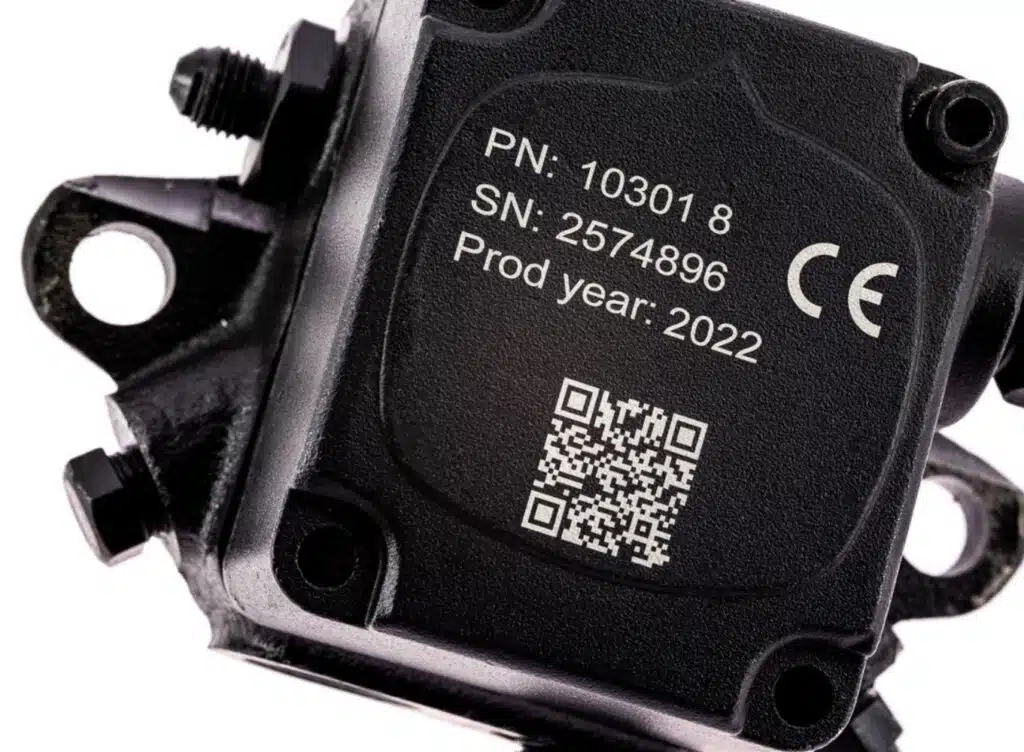

The marking of logos, alphanumeric codes and standard 1D, 2D and Datamatrix codes is particularly precise.
The cycle time is shorter on materials such as aluminium alloy and the contrast is greater on plastics.

The I-104 HD laser engraving machine is extremely COMPACT and is therefore very EASY TO INSTALL IN A BOX OR ON A PRODUCTION LINE.
It can OPERATE WITH OR WITHOUT A PC. Without a PC, a single connection can fully control the laser from your PLC.

It is therefore very simple to integrate our laser machines on all production lines that use Profibus, Profinet or Ethernet/IP (boards on option) field buses.

The I-104 HD laser is very COMPETITIVE. It meets your needs precisely and offers a quick ROI.
In particular, its GREAT STRENGTH and its very modest maintenance requirements allow us to guarantee 100,000 hours of operation.

Our laser experts and TECHNICAL PERSONNEL REMAIN AVAILABLE to conduct your marking tests in a real situation and recommend the best setup for your specifications.

Marking window	60 x 60mm - 100 x 100 mm - 170 x 170mm - 220 x 220mm - 300 x 300mm (consult us)
Standard focusing distance	See downloadable data sheet

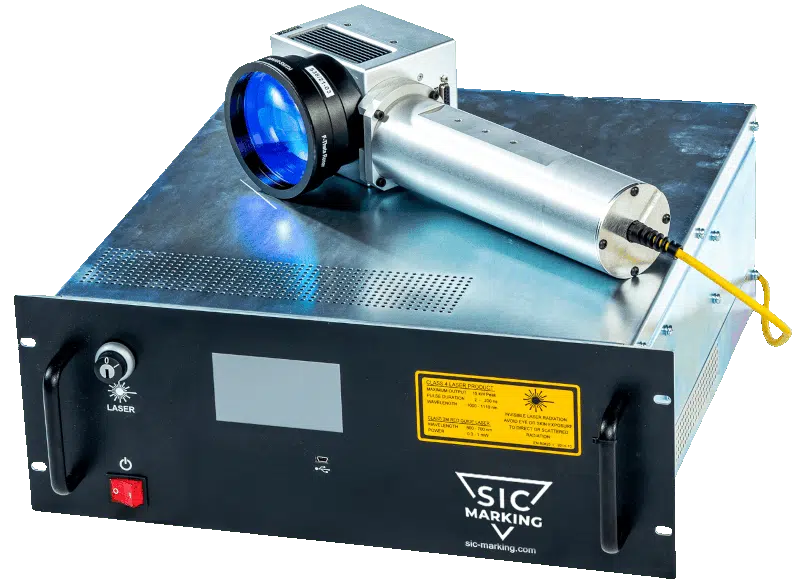

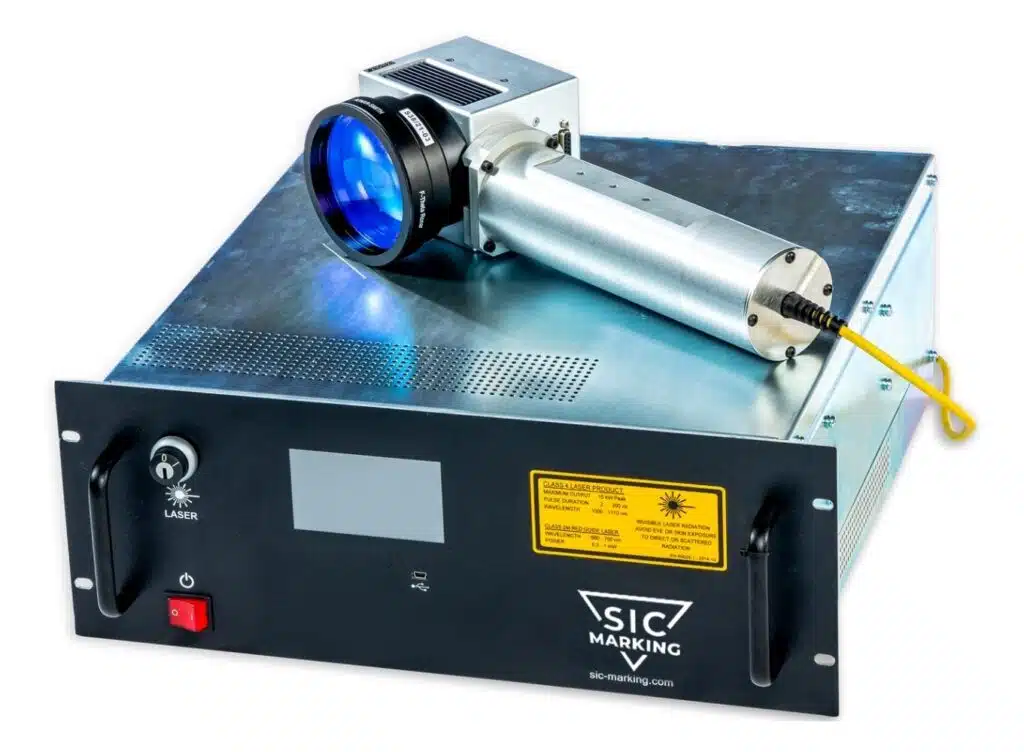

Weight	Fibre control unit: 25 kg – i103 Easy marking head: 5kg
Security	Configuration class 4 (standard EN60825-1)
Control	Without PC (Standalone mode)
Operating procedure	Pulsed (variable frequency)
Source	SIC Marking ytterbium-enhanced fibre laser
Pulse length	From 2 ns to 200 ns
Wavelength	1064 nm
Mean power	20W
Software	SIC LASER PC or SIC Factory automation (option)
Peak power	7 kW
Focusing	Integral laser pointer
Cooling	Air cooled only
Interfaces	RS 232 / Ethernet
Optional boards	Profibus, Profinet, Ethernet/IP
Inputs/Outputs	For cycle management

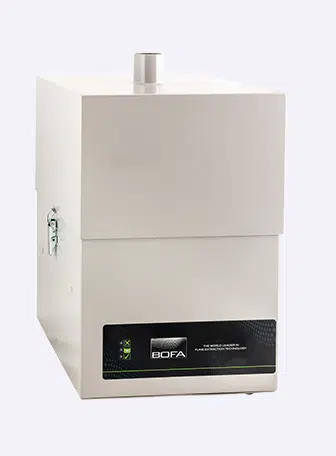

This suction system is a fume extractor directly linked to the laser station with suction hose. It is necessary to treat the toxic fumes generated by the laser and prevent clogging of the lens. It is equipped with a high-efficiency submicron air filter, a prefilter and an activated carbon filter.

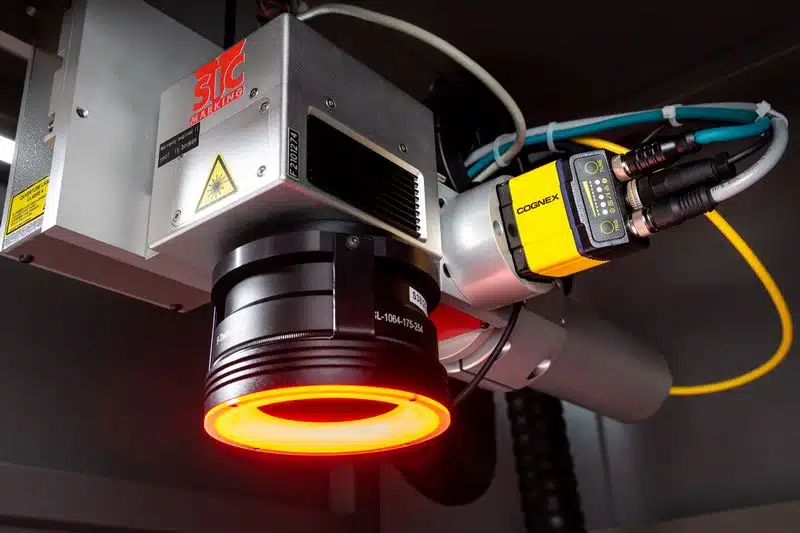

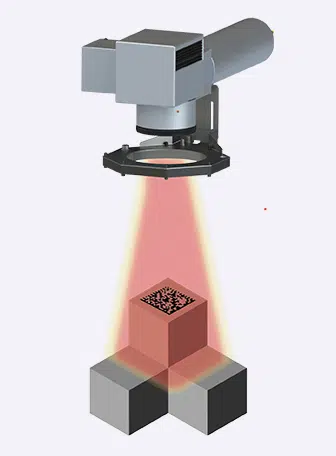

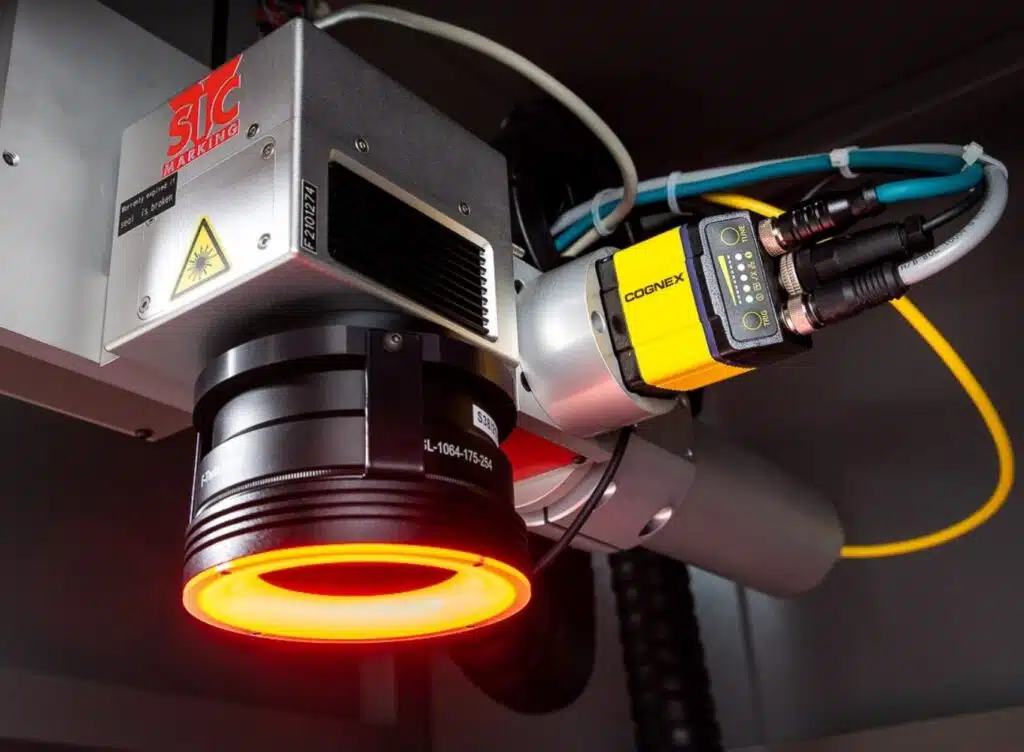

The integrated reading function allows automatic replay of 2D and 3D codes. Once the cycle is started, these are immediately read in the same program sequence without any additional movement. The reader communicates the read result with an evaluation of the code quality. The proposed system allows a reading of the code whatever its position in the marking window.

The 3D marking function gives the possibility to mark in a volume at more or less 40 mm from the focal plane. The marking quality and the laser speed are maintained. This function also allows a quick change of reference in the case of parts with variable height.
