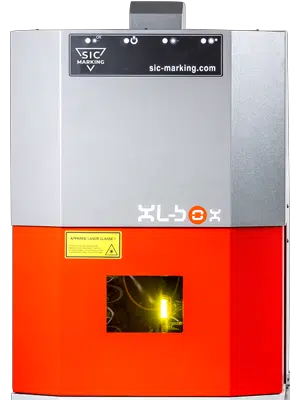

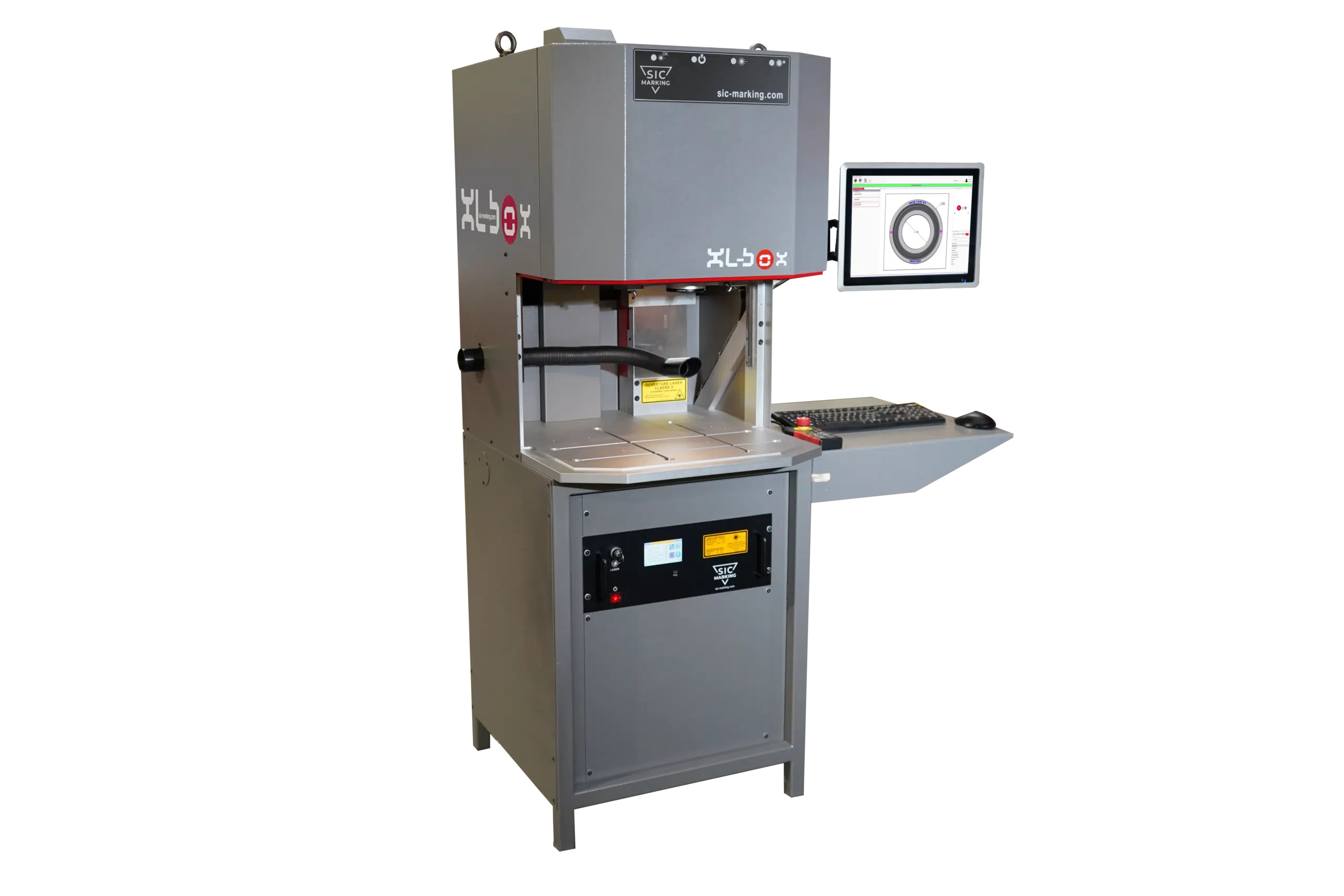

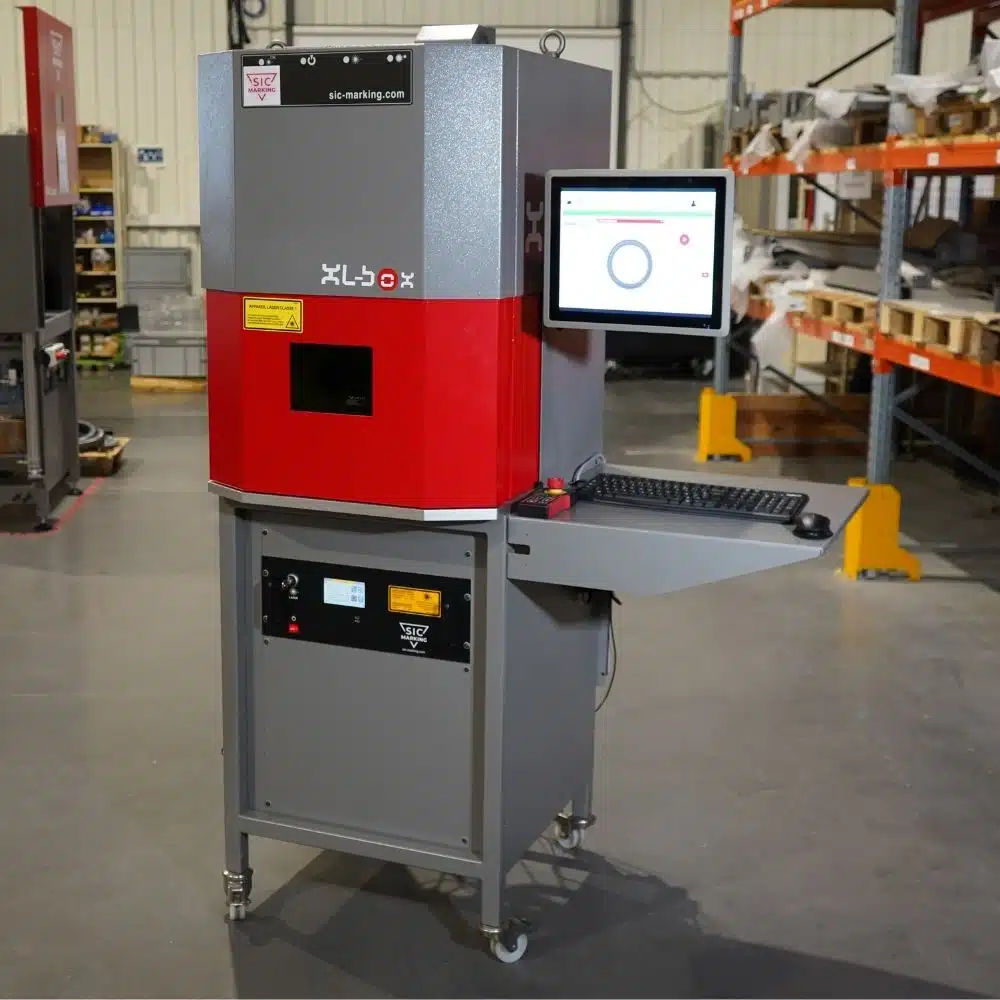

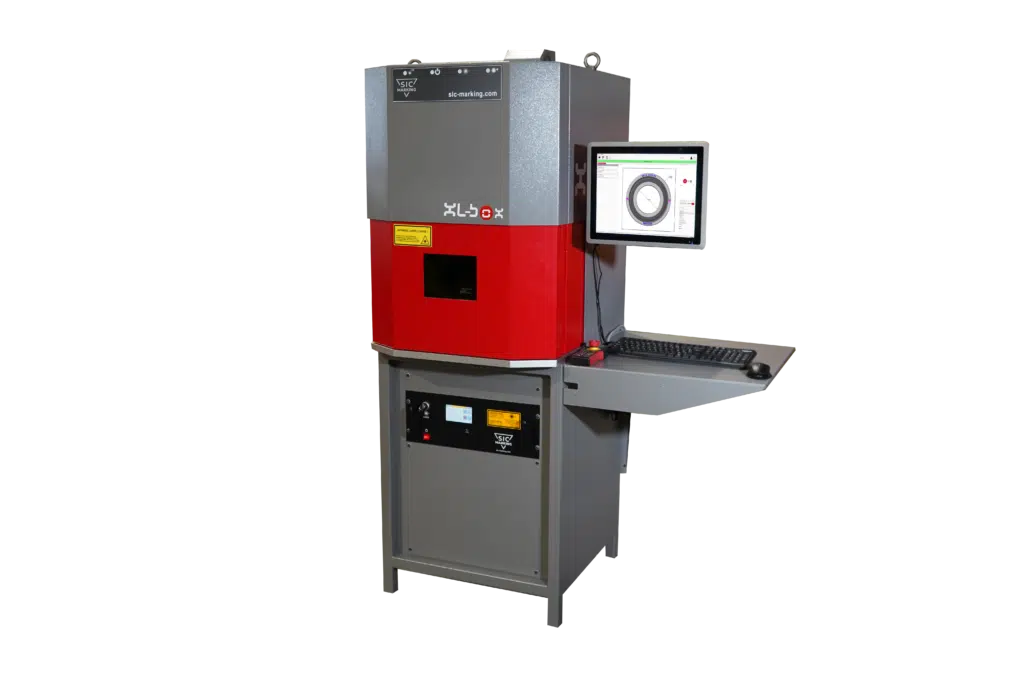

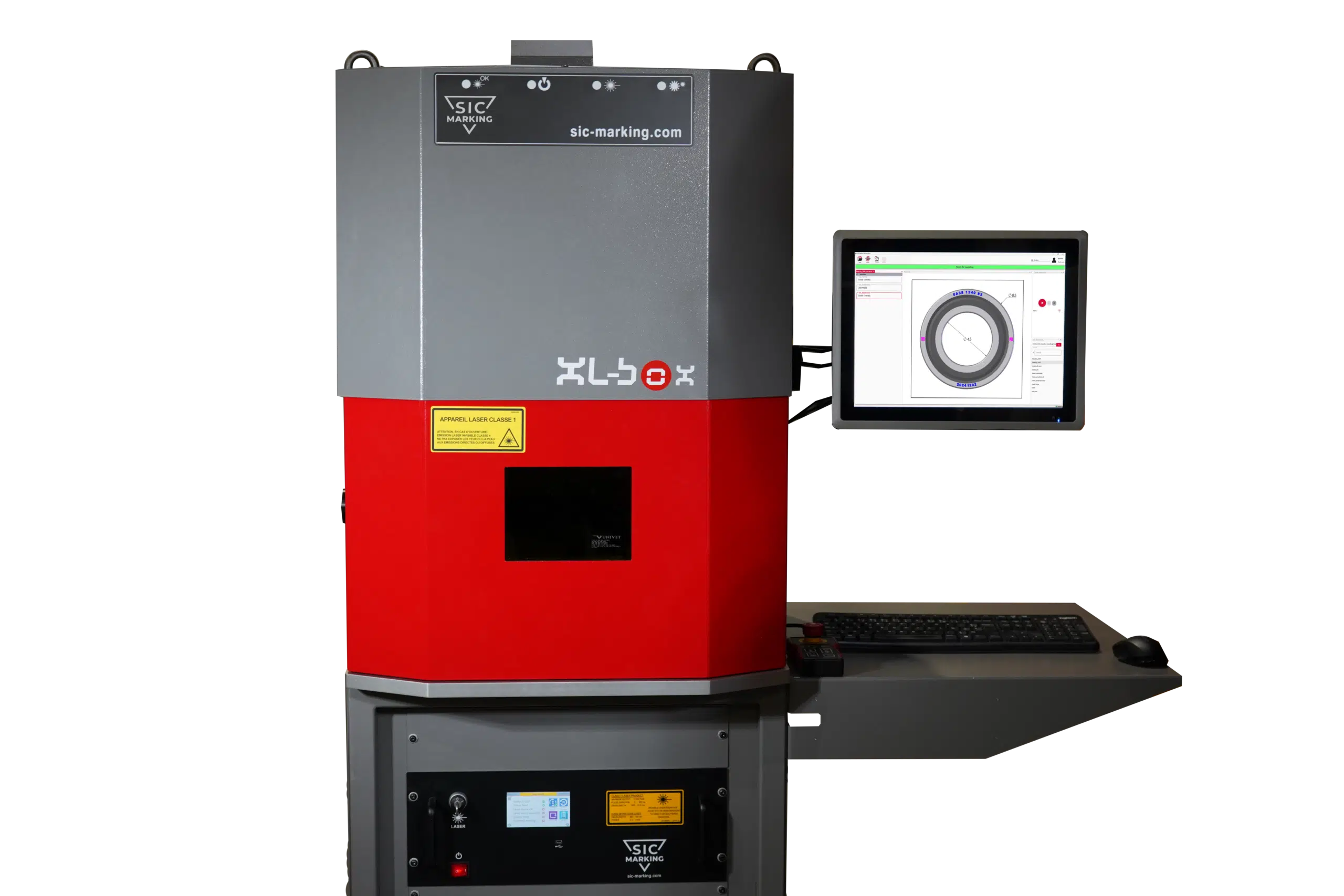

The XL-BOX is a MULTI-FUNCTION LASER MARKING STATION that can be used by an operator or integrated in a robotised cell.

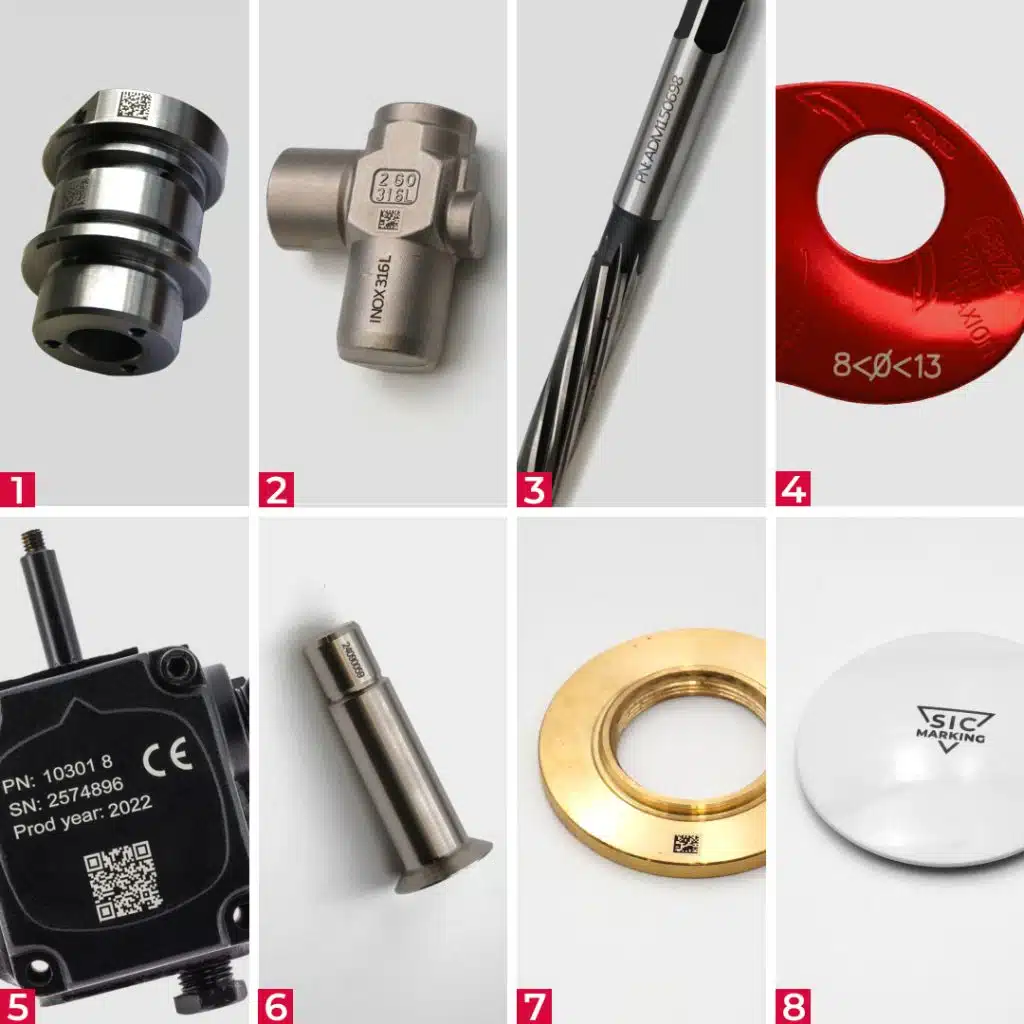

The ytterbium-enhanced SIC Marking fibre laser is a latest generation technology that enables HIGH QUALITY MARKING WITHOUT AFFECTING THE MATERIAL, irrespective of the material (steel, aluminium alloy, stainless steel, titanium, plastics, etc.) and with a shorter cycle time.

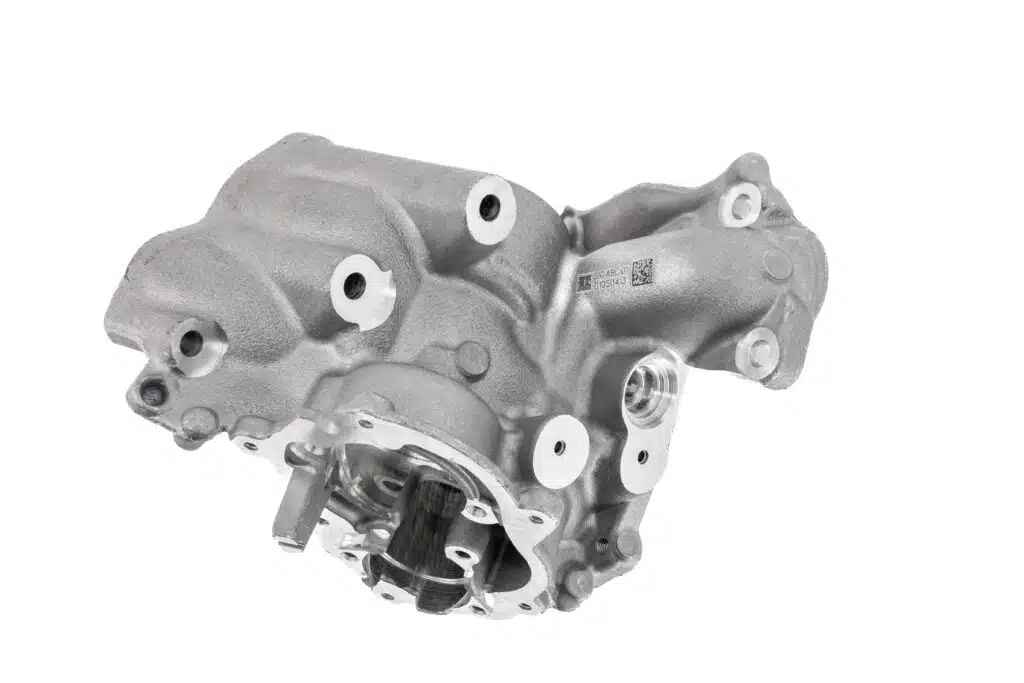

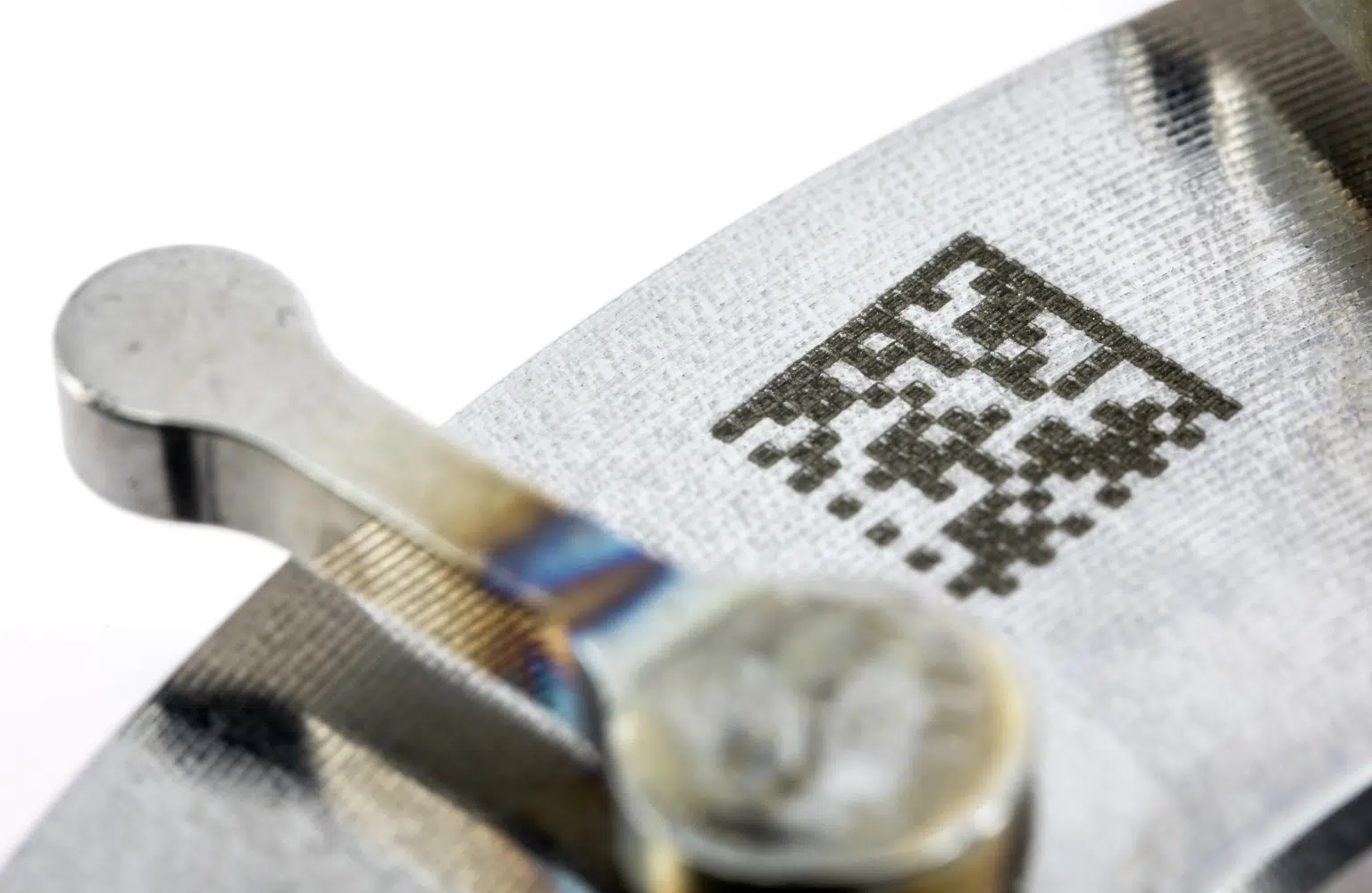

The marking may be alphanumeric codes, barcode or 2D Datamatrix codes.
The XL BOX provides HIGH CONTRAST ENGRAVING, READABLE WITH THE NAKED EYE, OR instantaneously by READING CAMERAS INTEGRAL with the station. Small, medium and even large production runs can be marked, as the XL-BOX is designed for HIGH RATE marking.

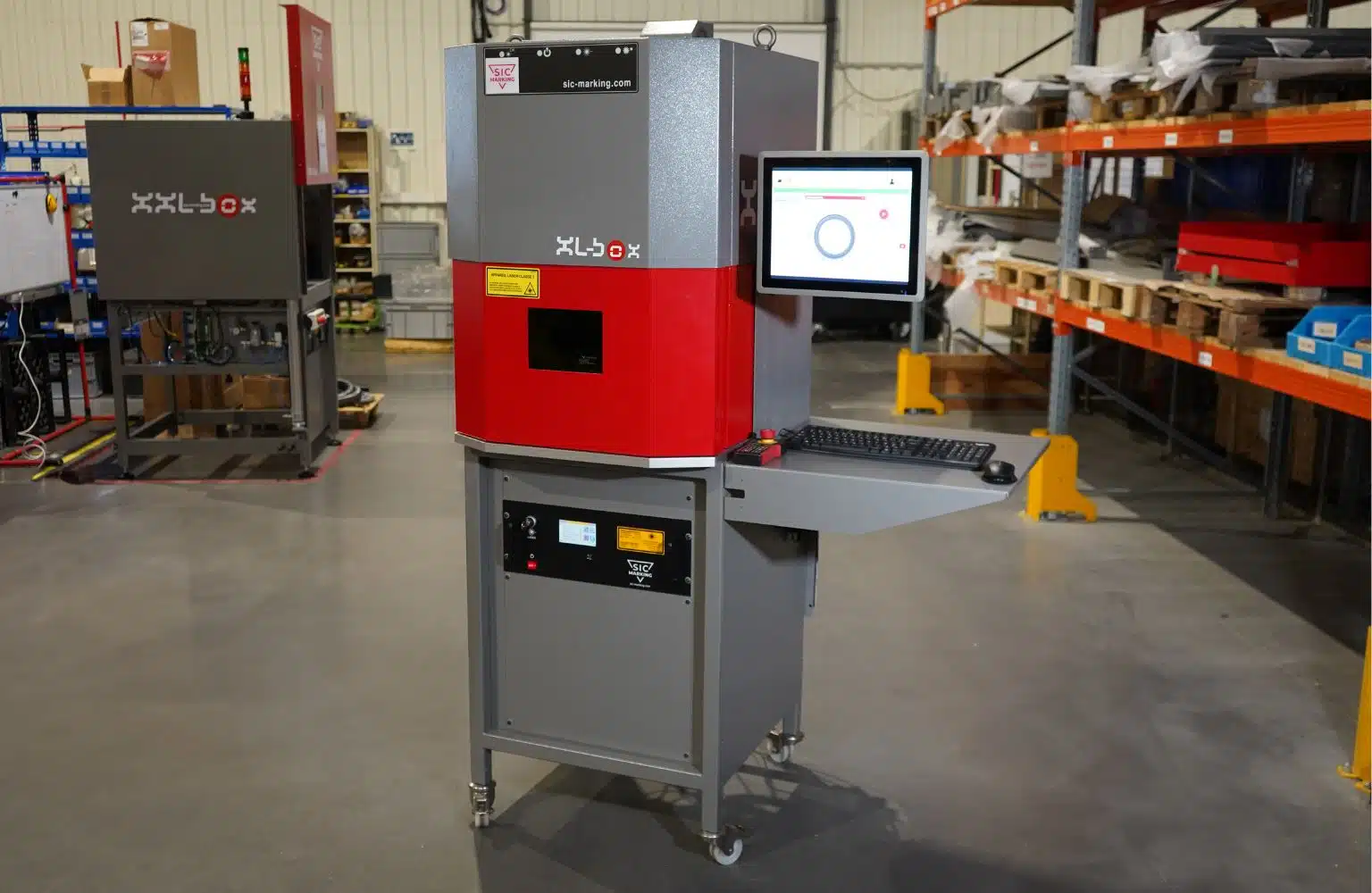

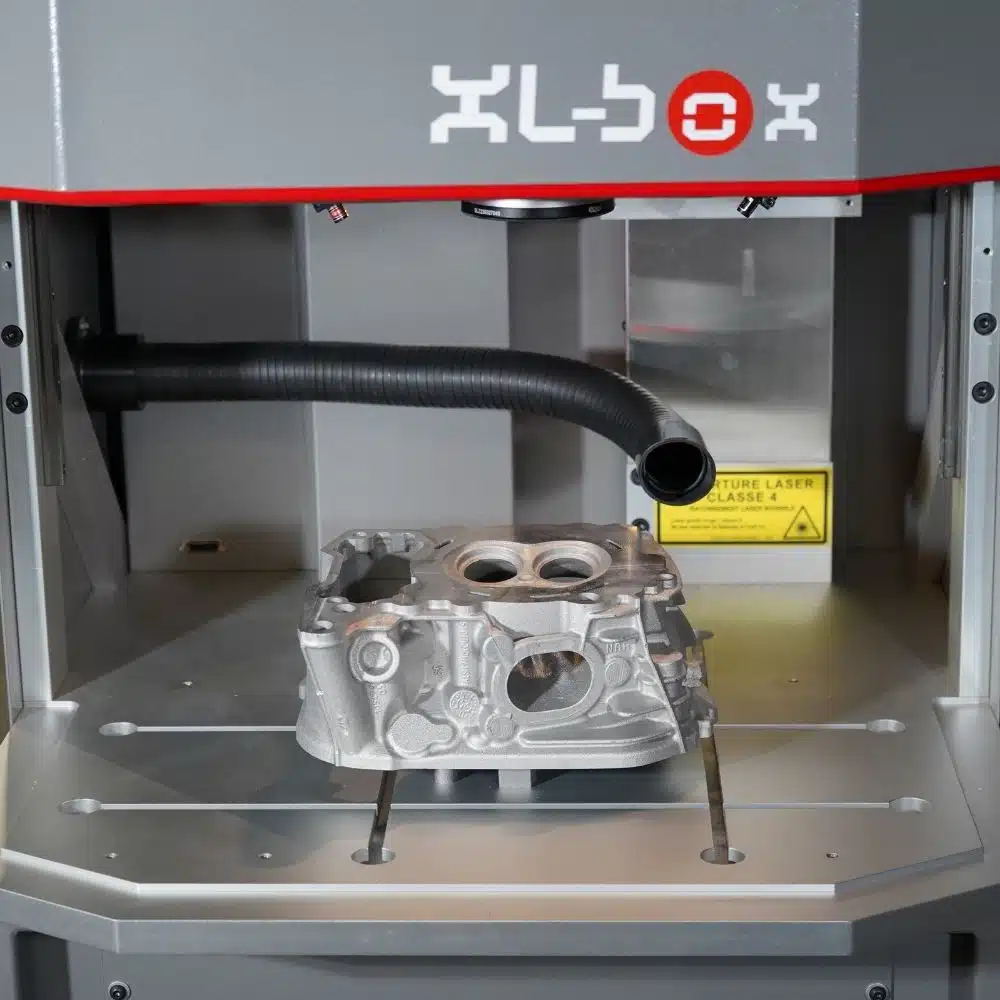

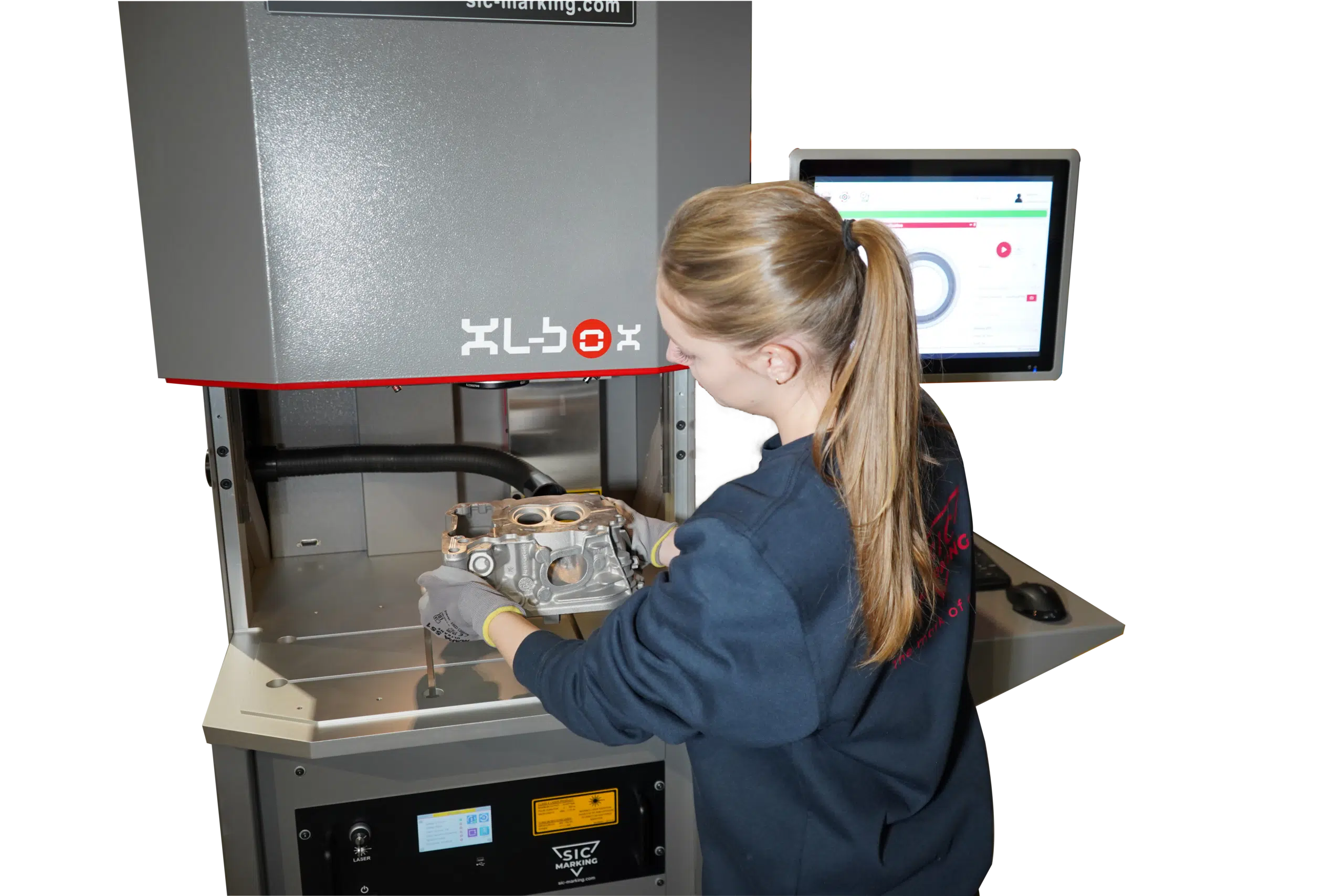

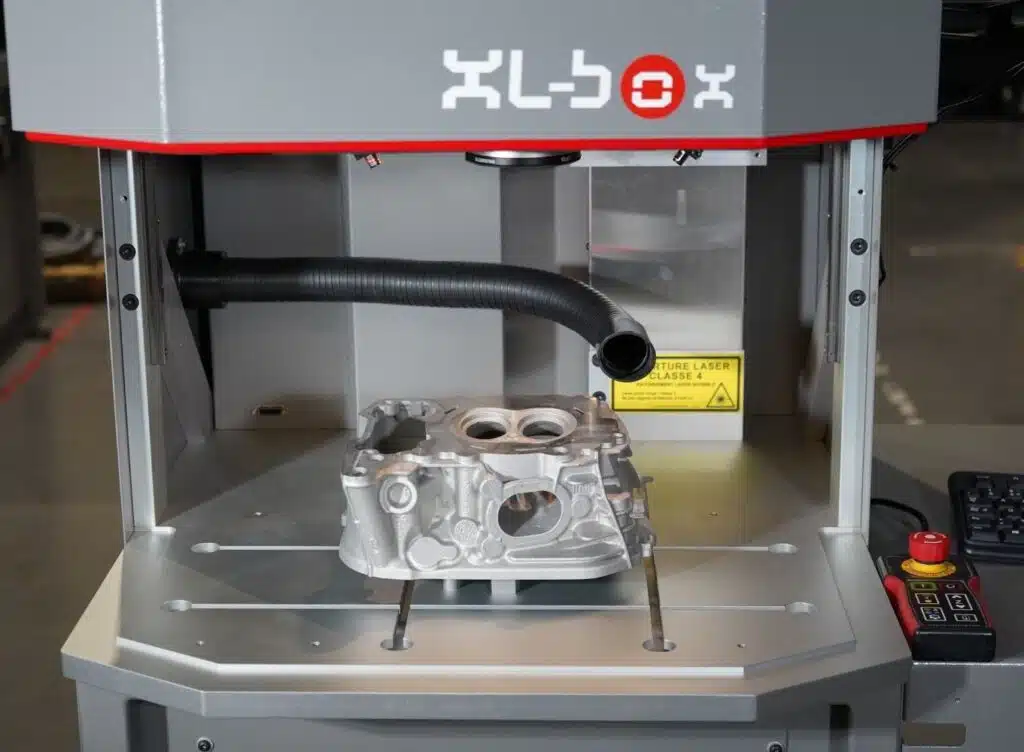

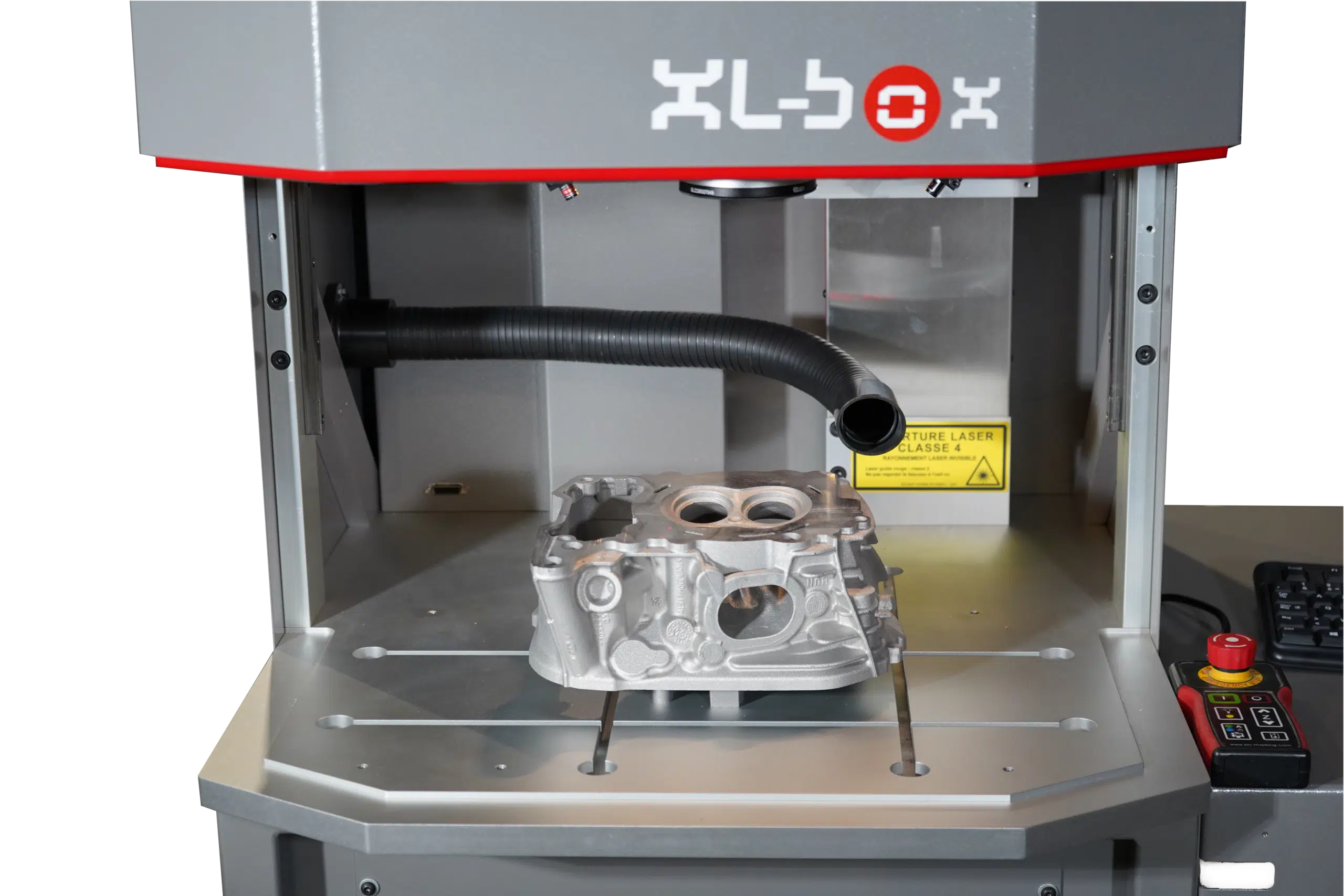

Used as a standalone unit, the engraving station is very ROBUST AND ERGONOMIC for the operator, providing access to a VERY LARGE WORK ZONE (570*564 mm) from the 3 sides.

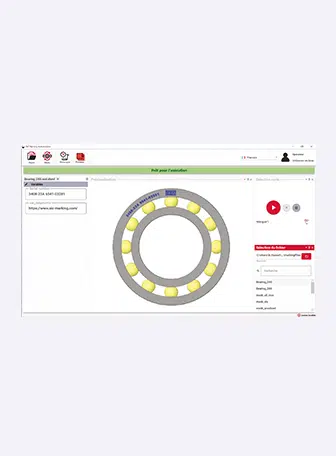

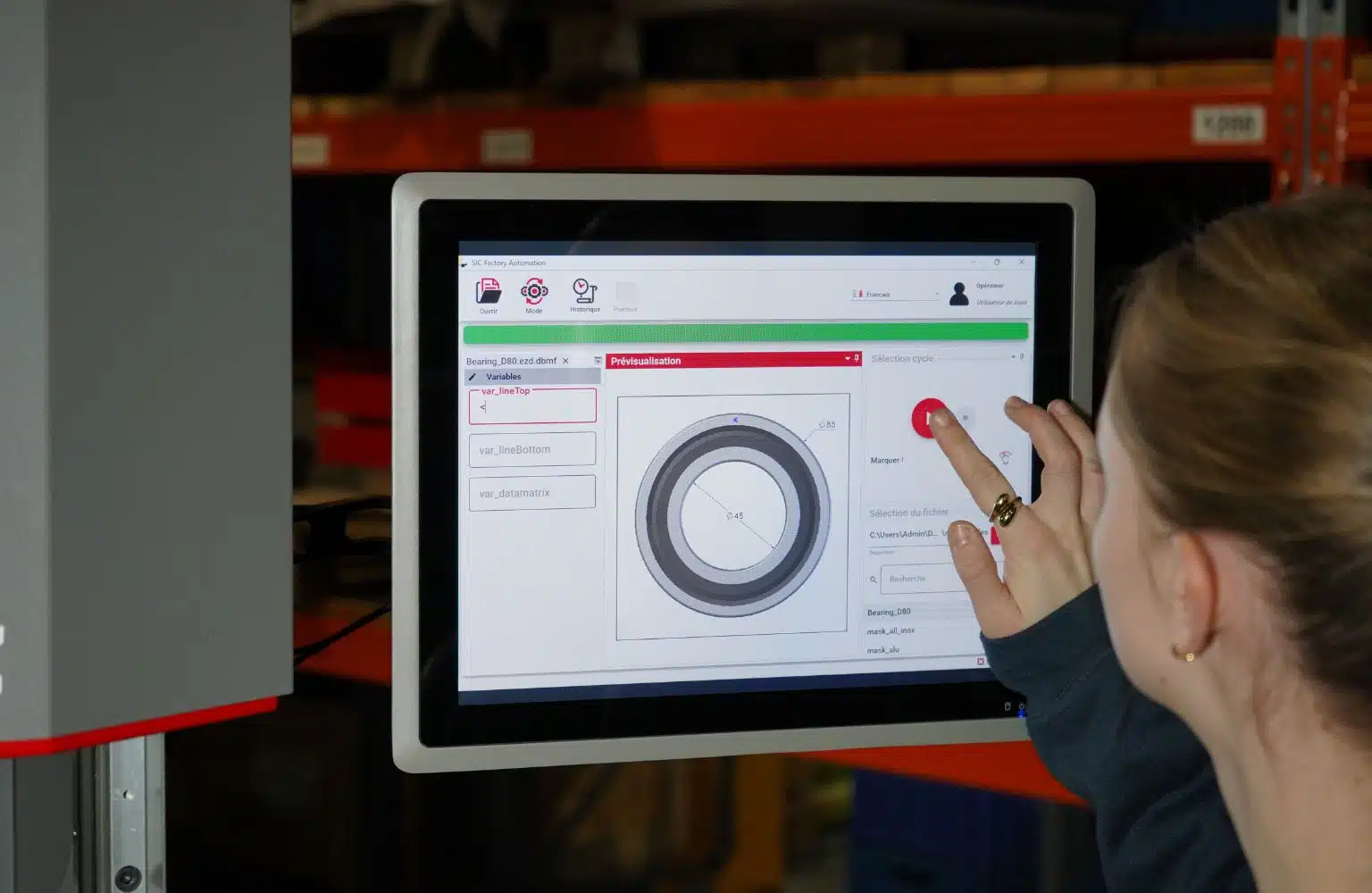

The UNIQUE AND INTUITIVE PRODUCTION SOFTWARE is easy to use, even for personnel without much experience in laser technology.

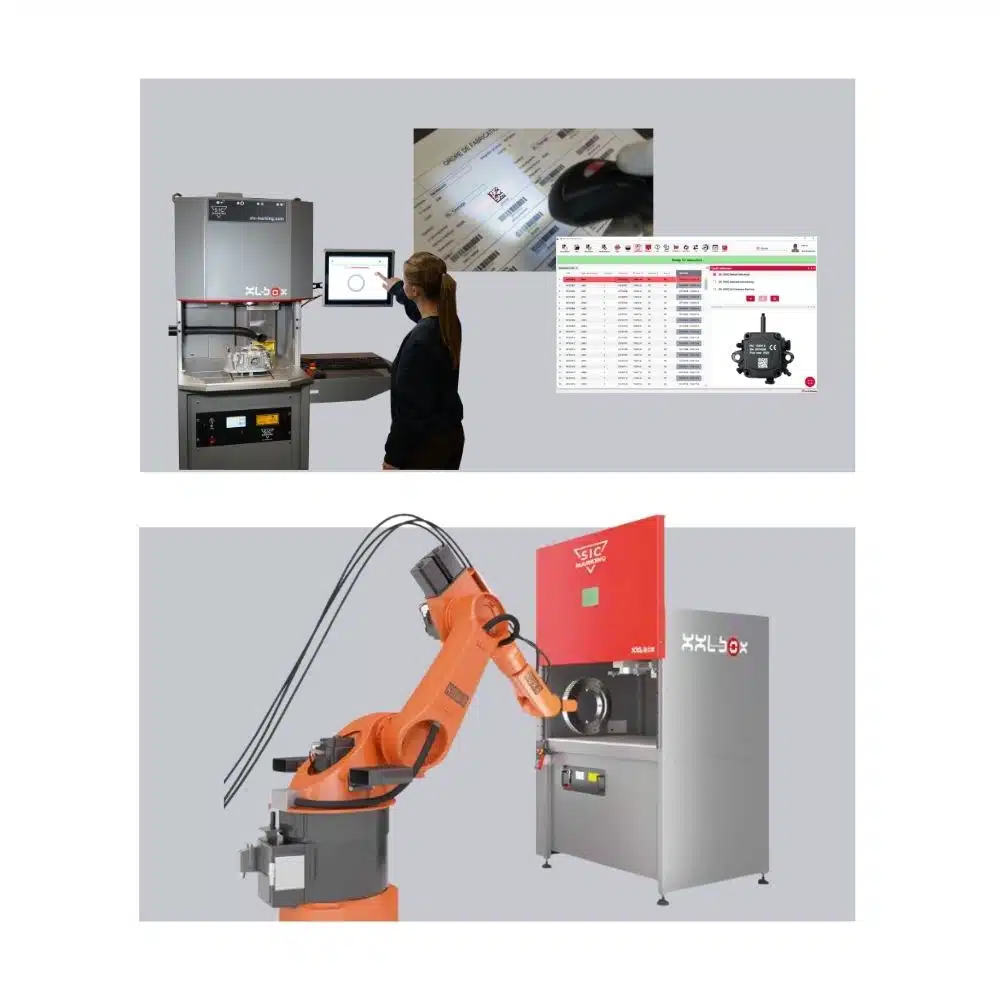

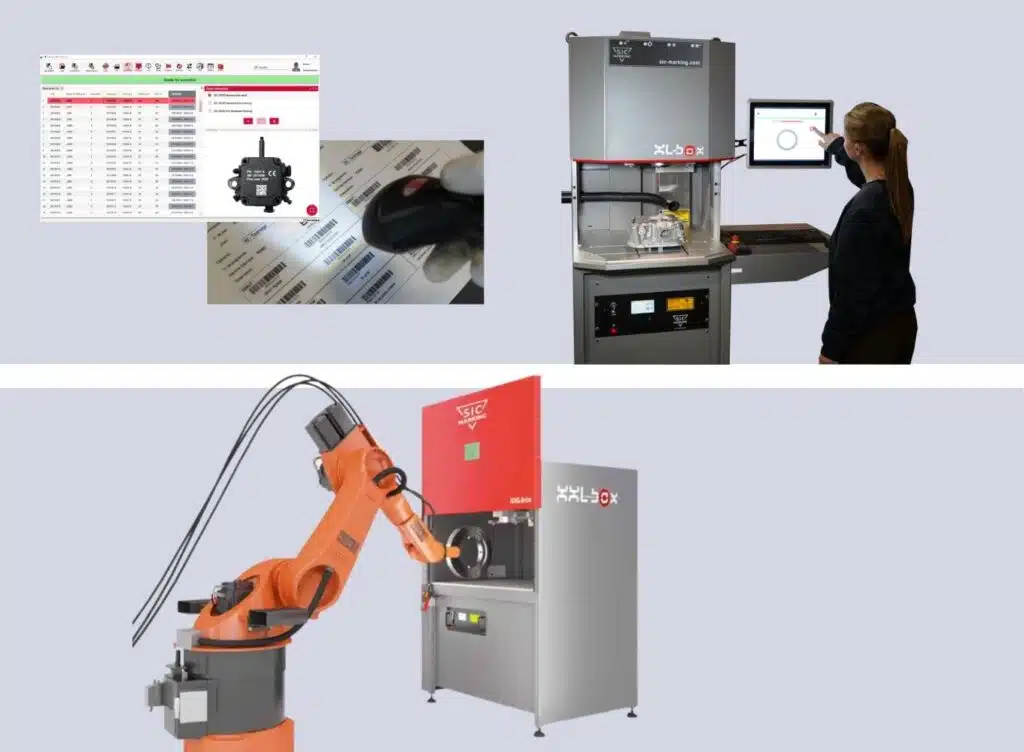

When the XL-BOX laser marking station is integrated into a robotised cell, ONLY ONE CONNECTION TO THE LASER CONTROL RACK is needed for the island PLC to manage the entire station. The station can thus communicate marking data, open and close the automatic door to load and unload parts, start the marking or start up the fumes evacuation.
The XL-BOX equipment provides MAXIMUM SAFETY during use. In addition to a CLASS 1 safety enclosure (standard EN 60825-1), the laser XL-BOX has a PL-E SAFETY LEVEL, WHICH IS THE HIGHEST POSSIBLE ACCORDING TO STANDARD ISO 13849-1.

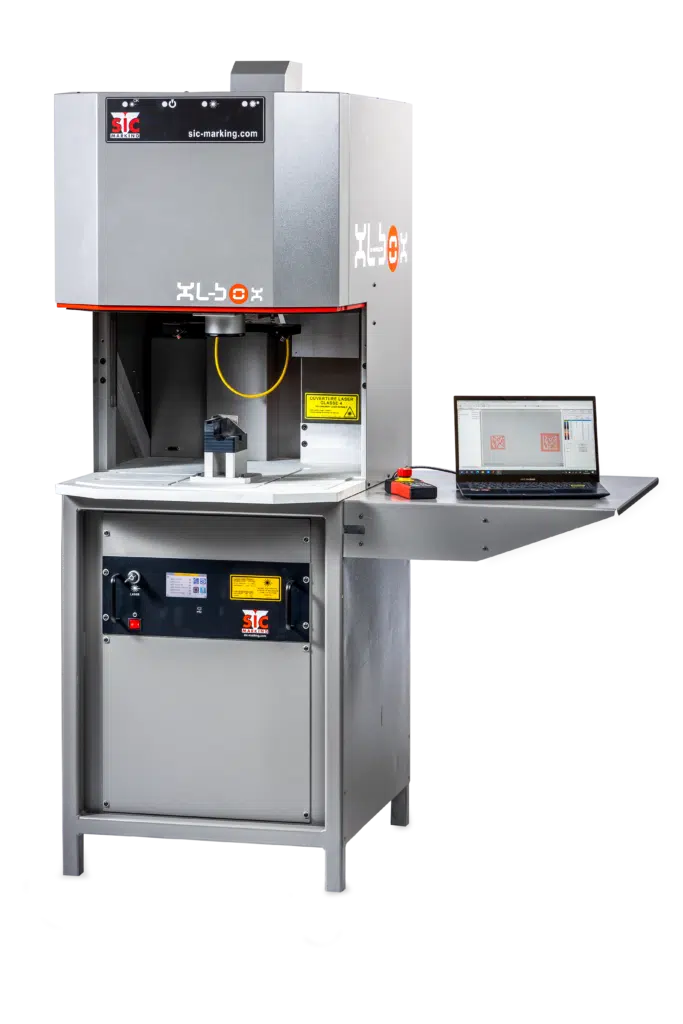

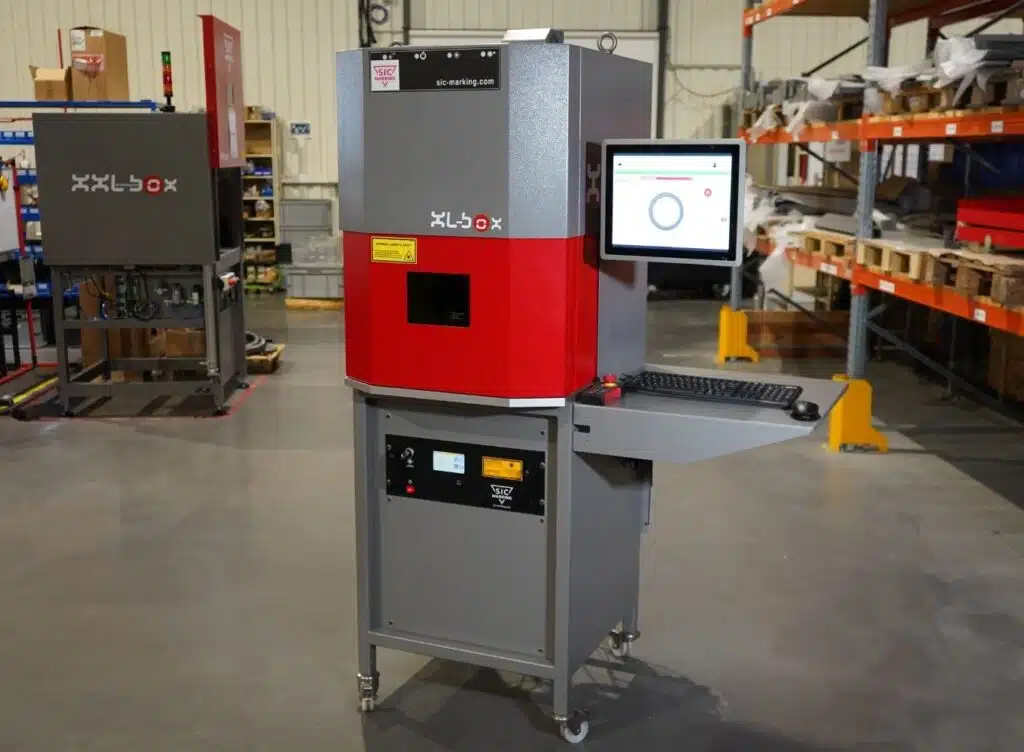

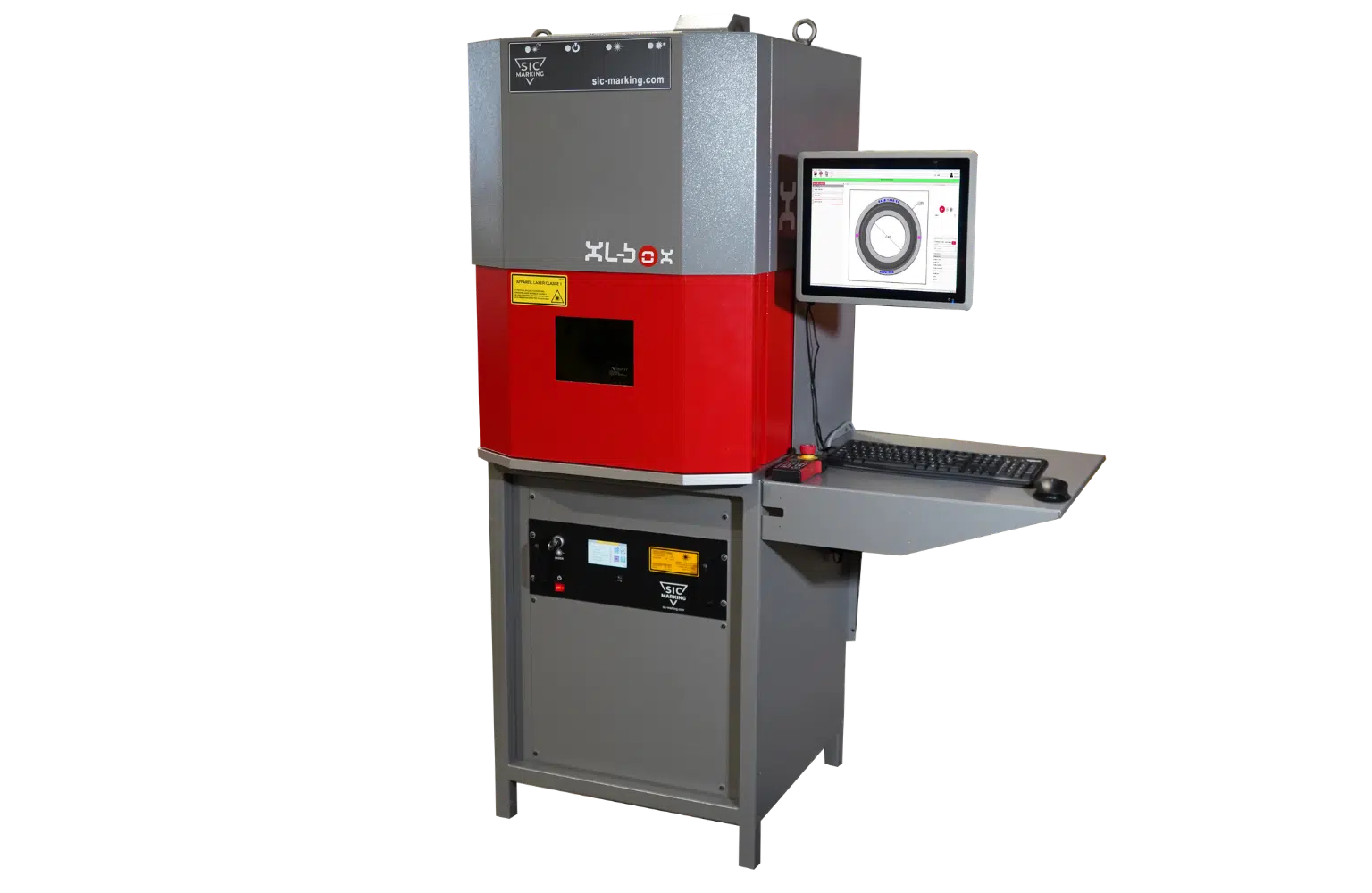

The system status is indicated by LED lights in the top strip on the enclosure. The interior of the work zone is lit up by LEDs, providing optimum working conditions for the user. The XL-BOX laser engraving machine is available with castors and a table for a PC.
