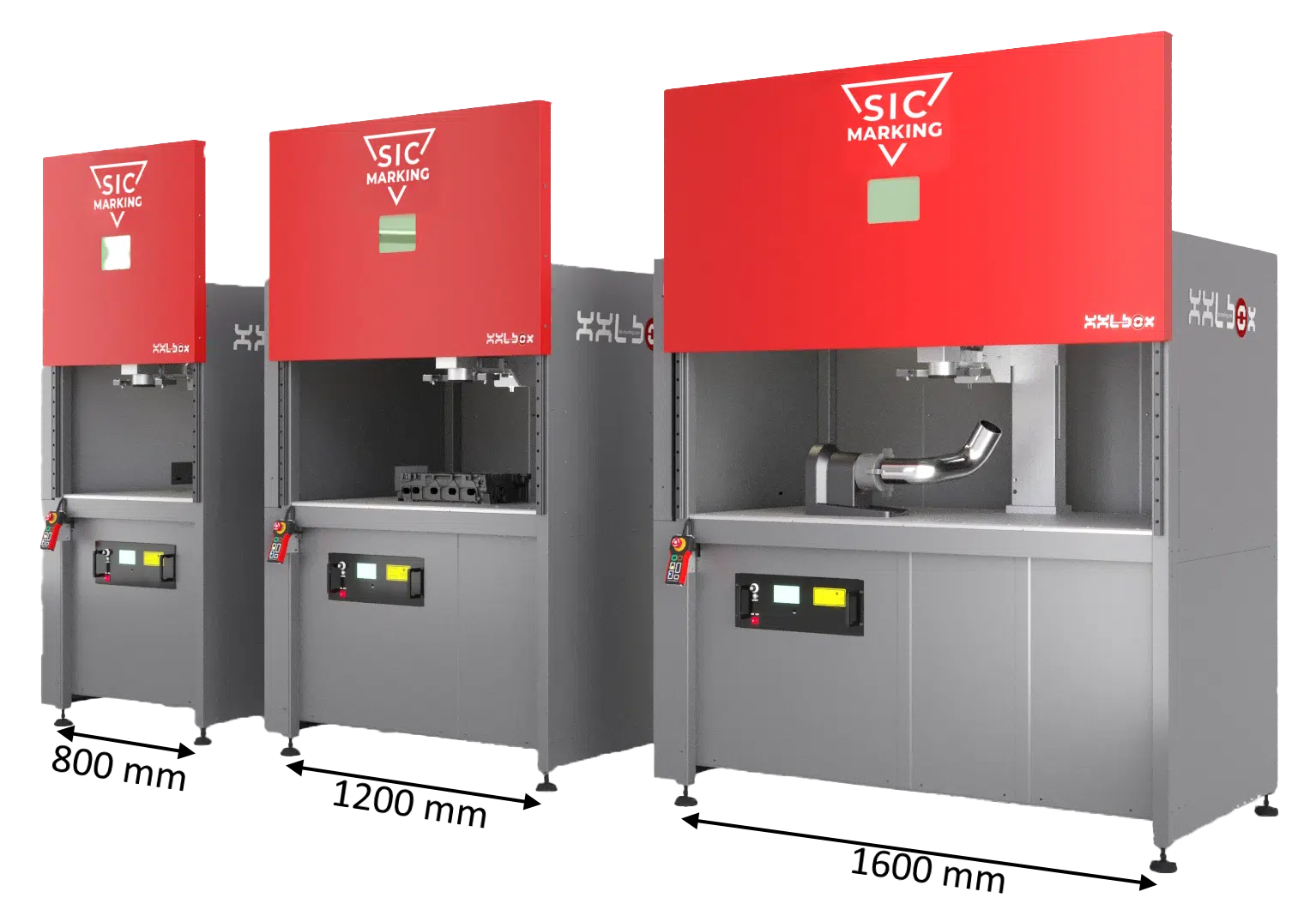

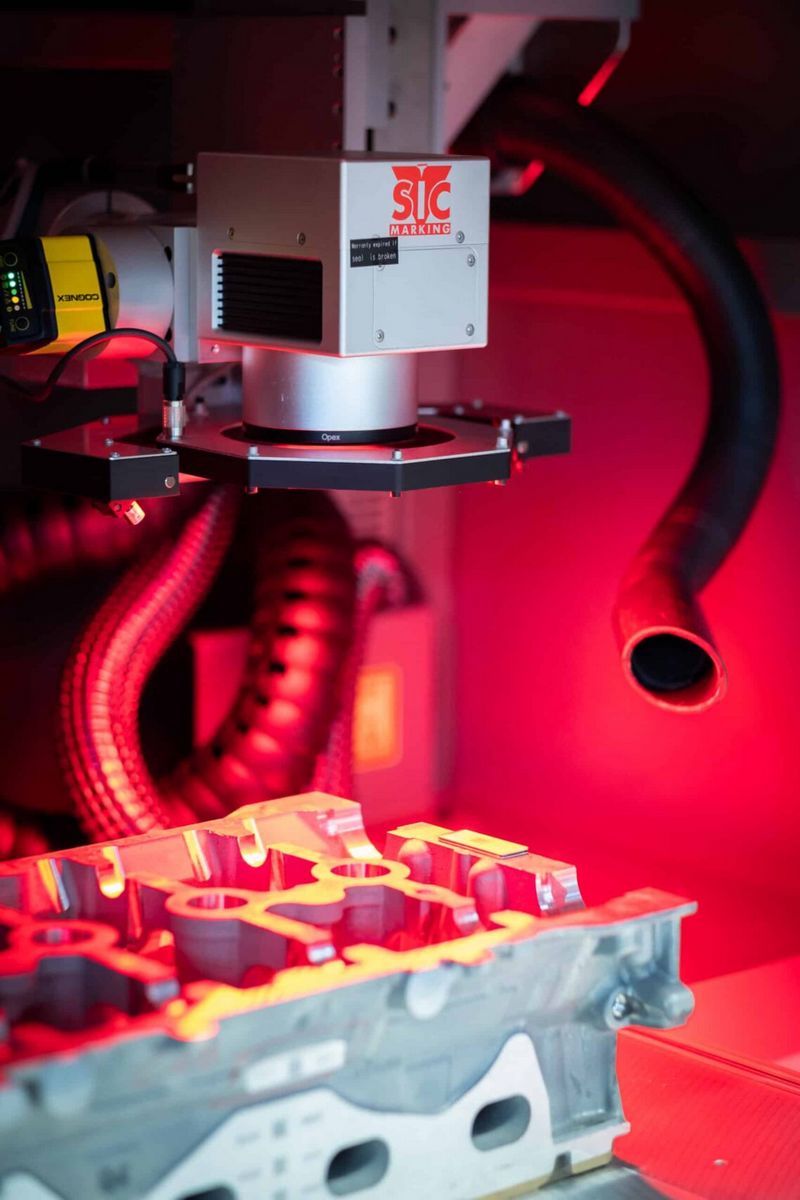

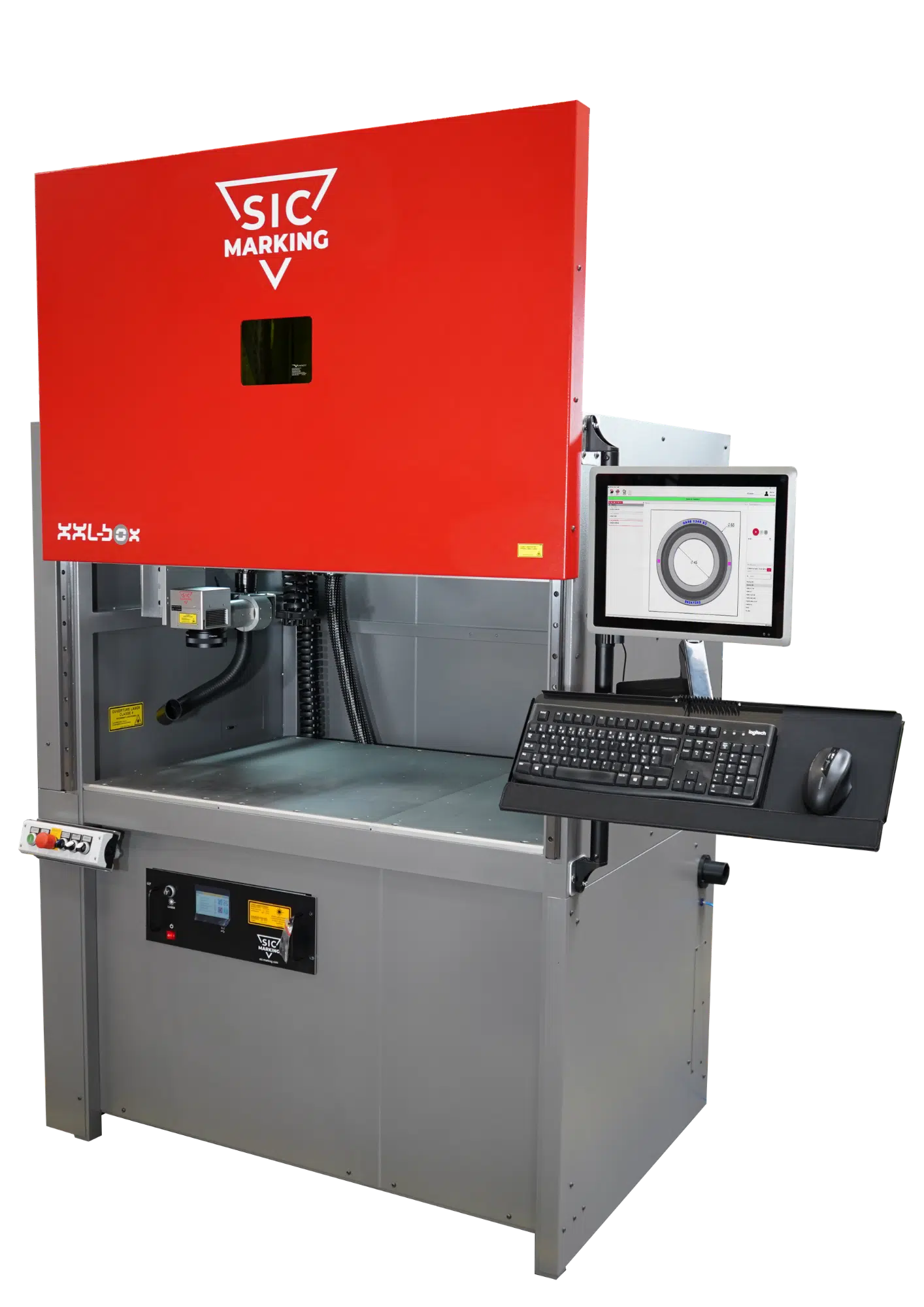

XXL-BOX Laser Station

Secure. Large parts. Full modularity.

The largest marking field on the market, enabling the marking of the most voluminous parts + Three widths available (800, 1200 and 1600 mm) to suit all your workpieces.

Wide range of sources from 20W to 100W, meeting all industrial requirements.

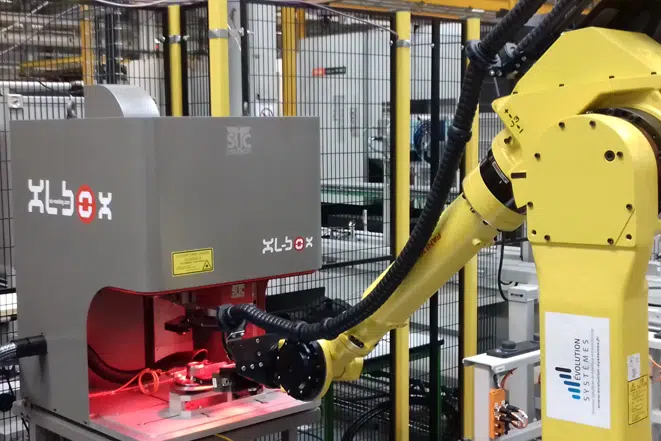

Two operating modes: operator mode and robot mode for integration on a production line.

Modular station with three possible axis configurations and multiple available options (rotary table, drawers, etc.).

Robust and secure laser marking machine, ensuring complete safety in demanding industrial environments.

Description Technical specifications Accessories

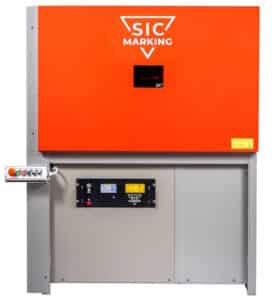

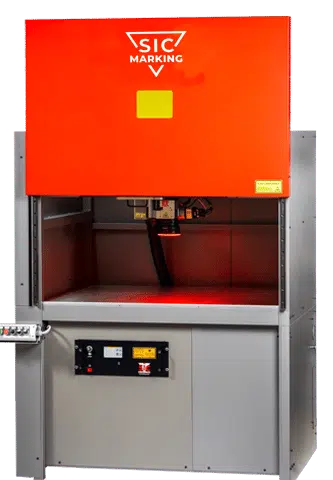

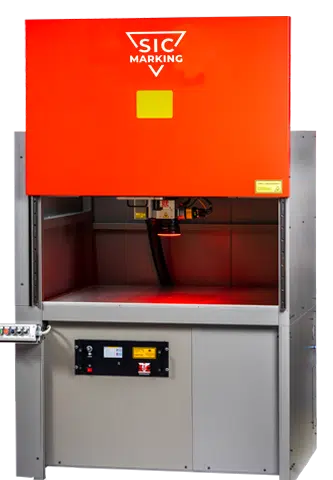

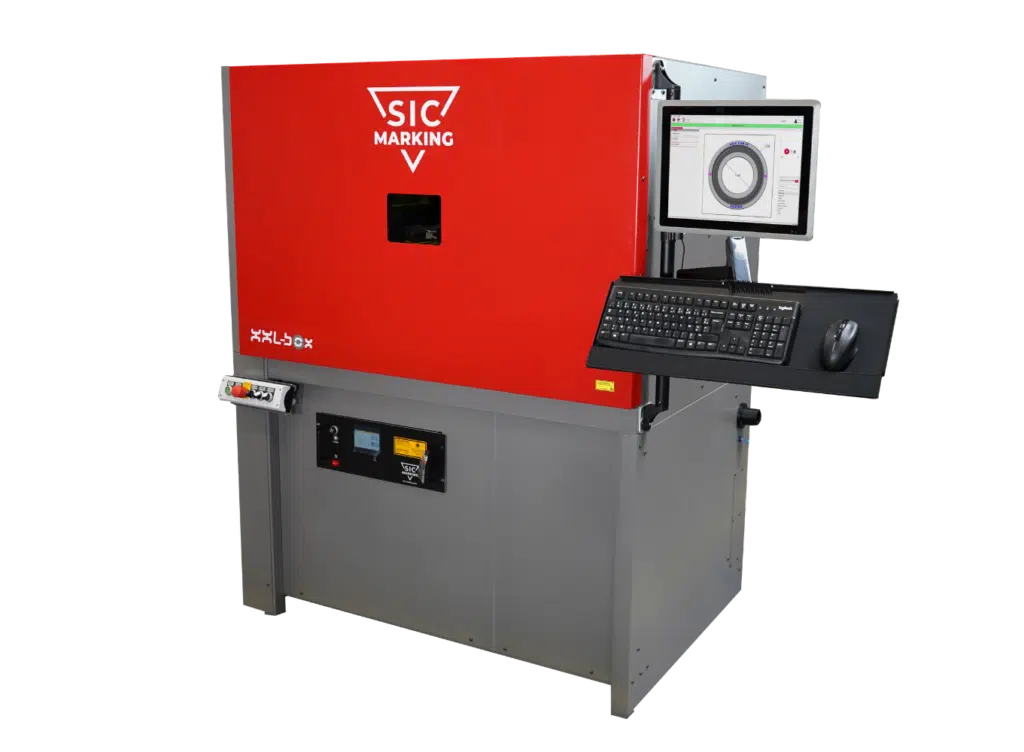

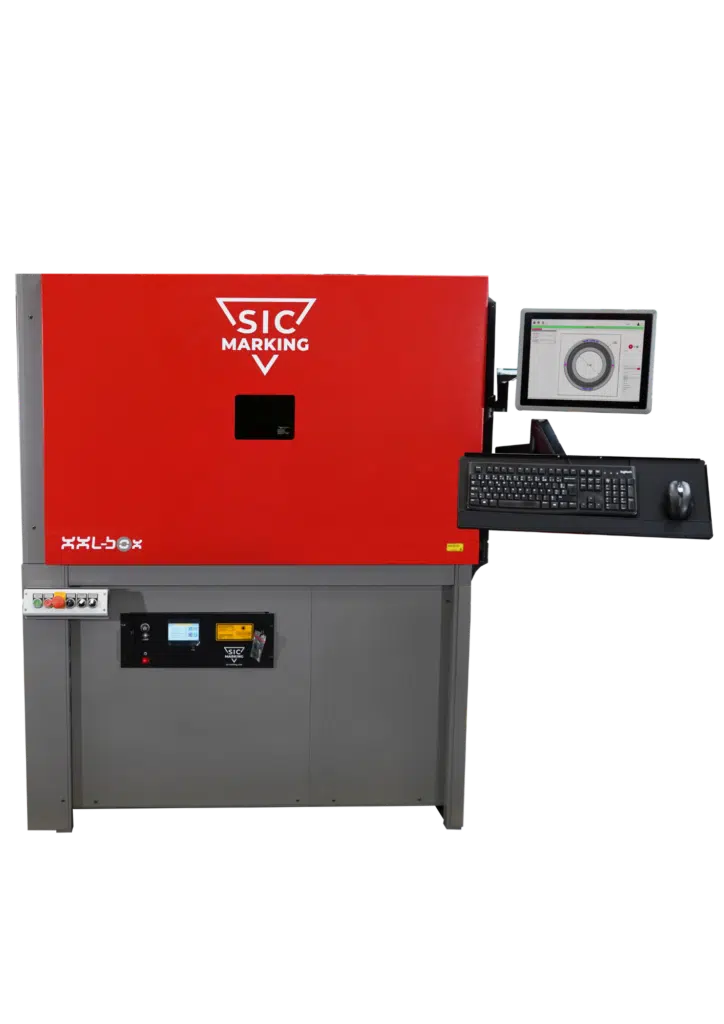

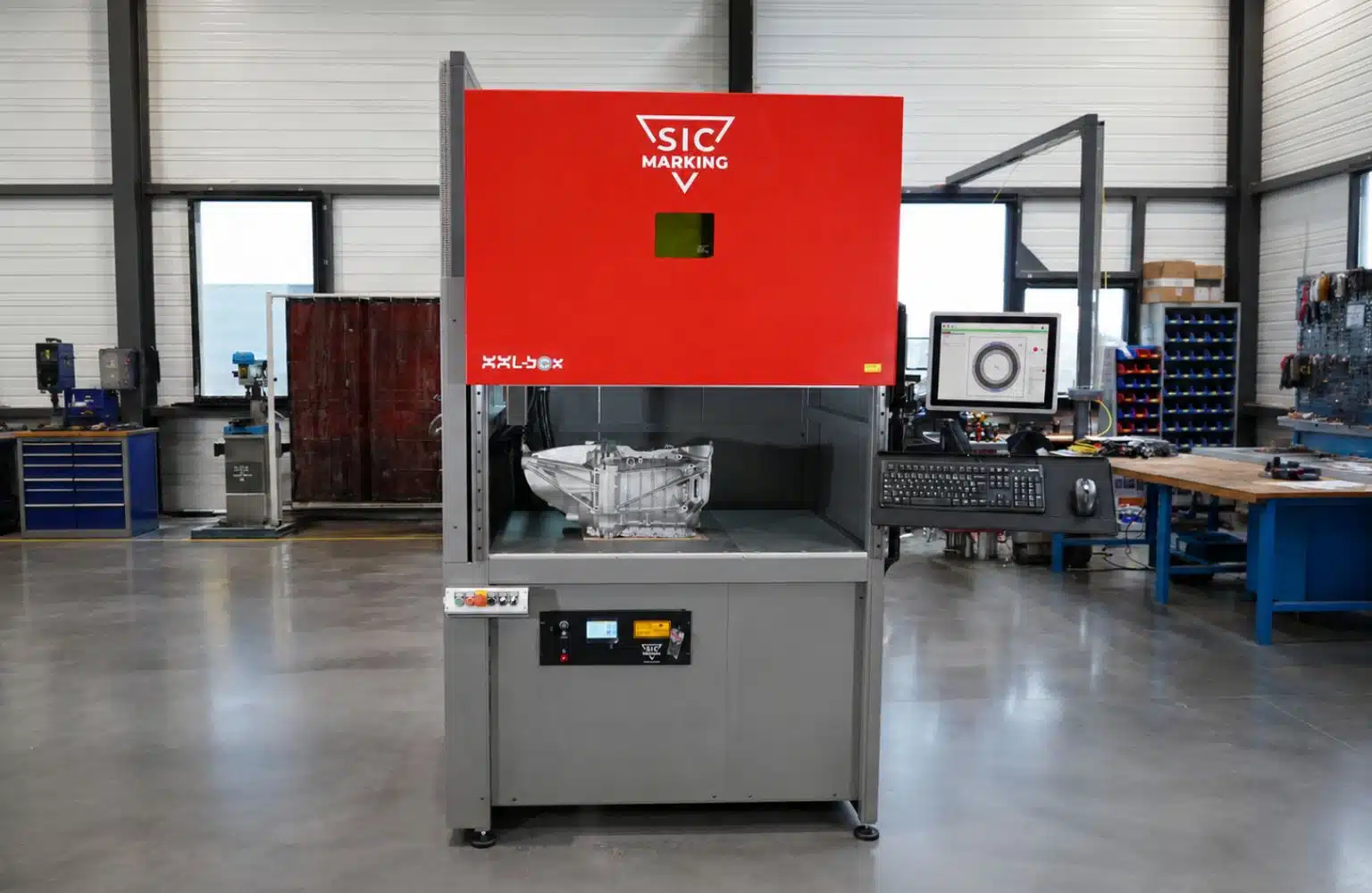

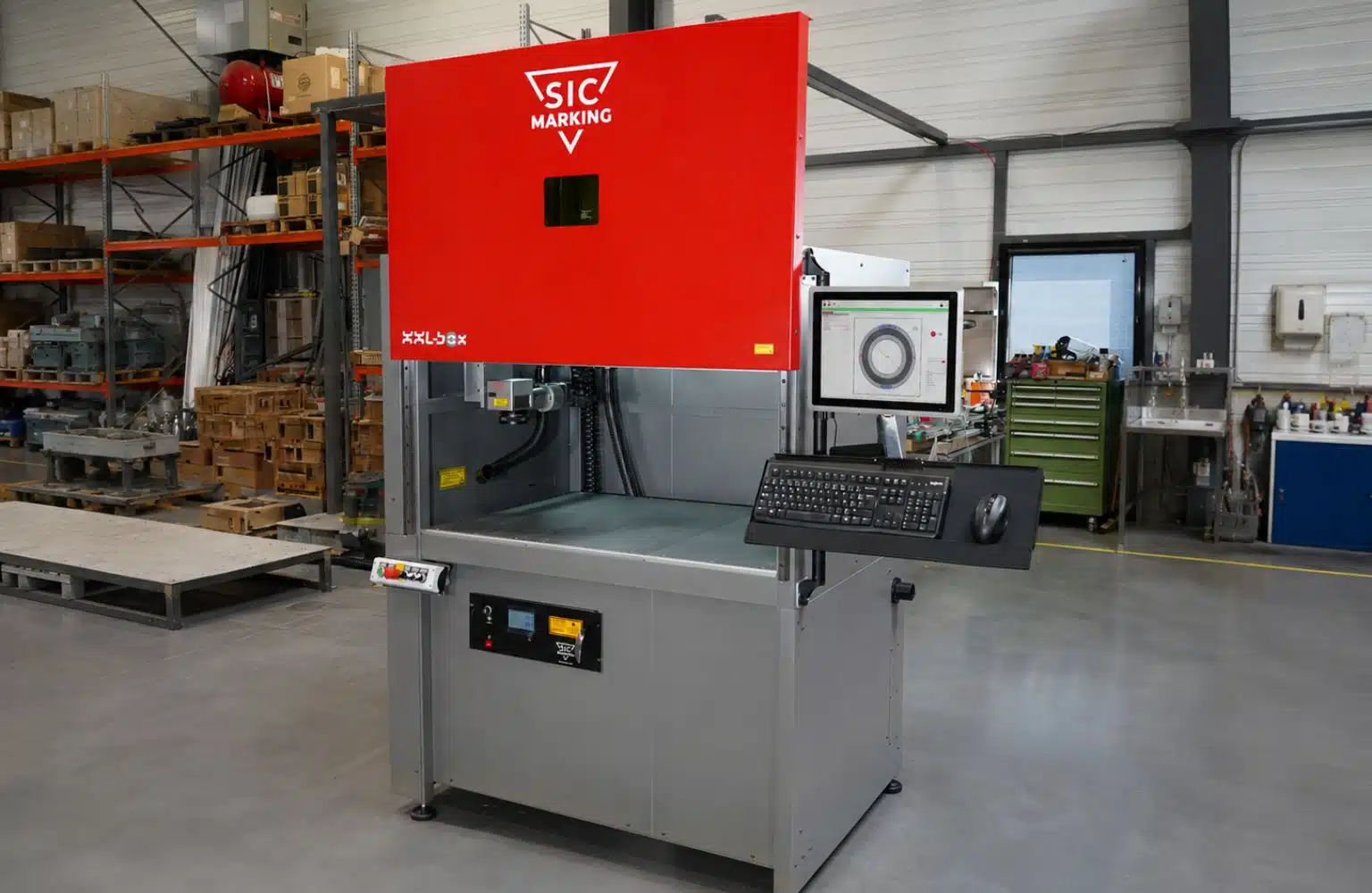

The XXL-BOX is a safe Class 1 laser marking station with automatic door.

It is fully modular and can mark large parts.

This station is also suitable for surface preparation operations such as cleaning or roughening.

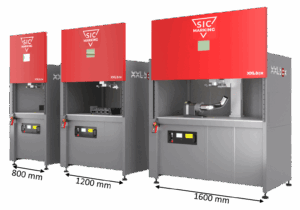

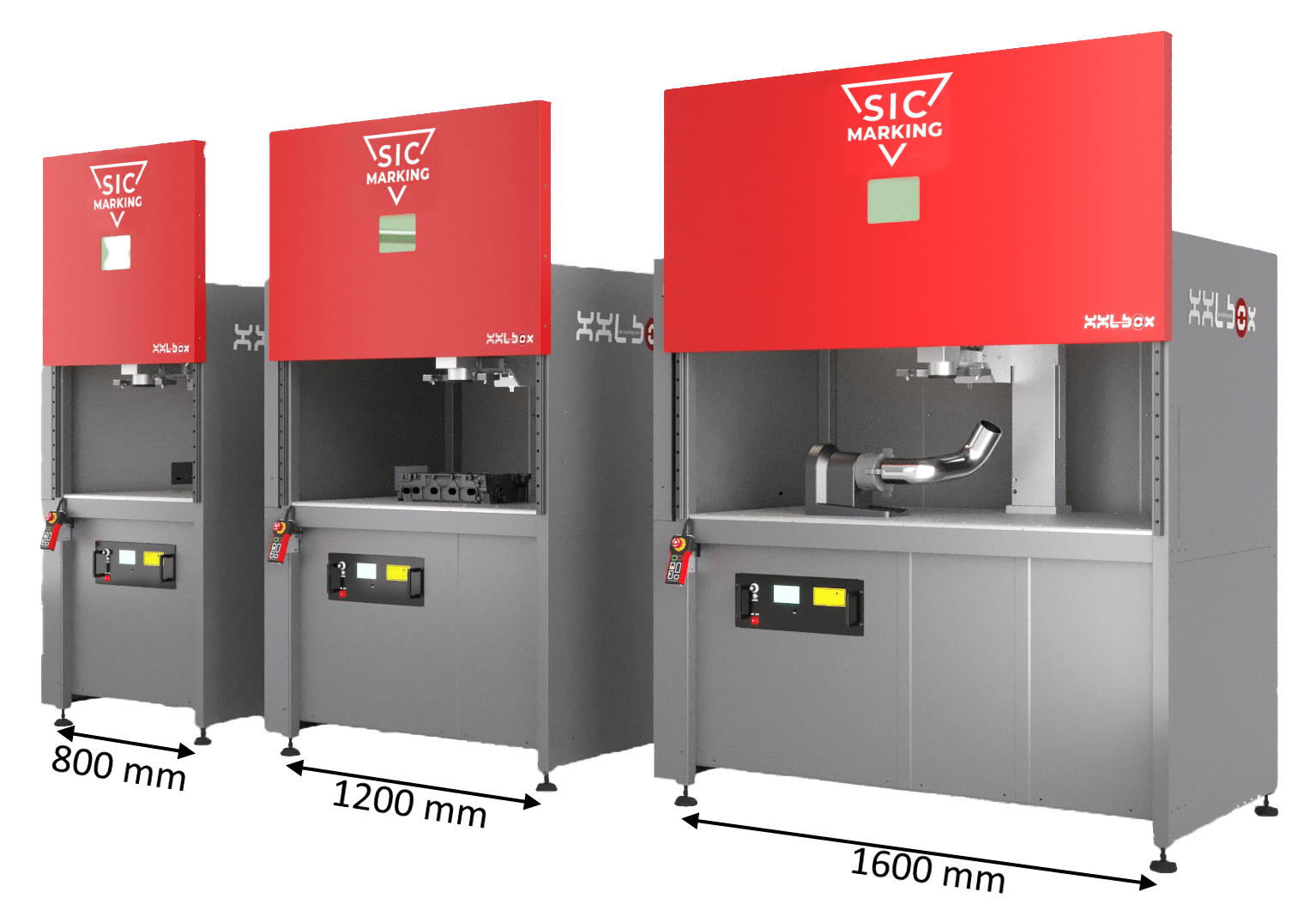

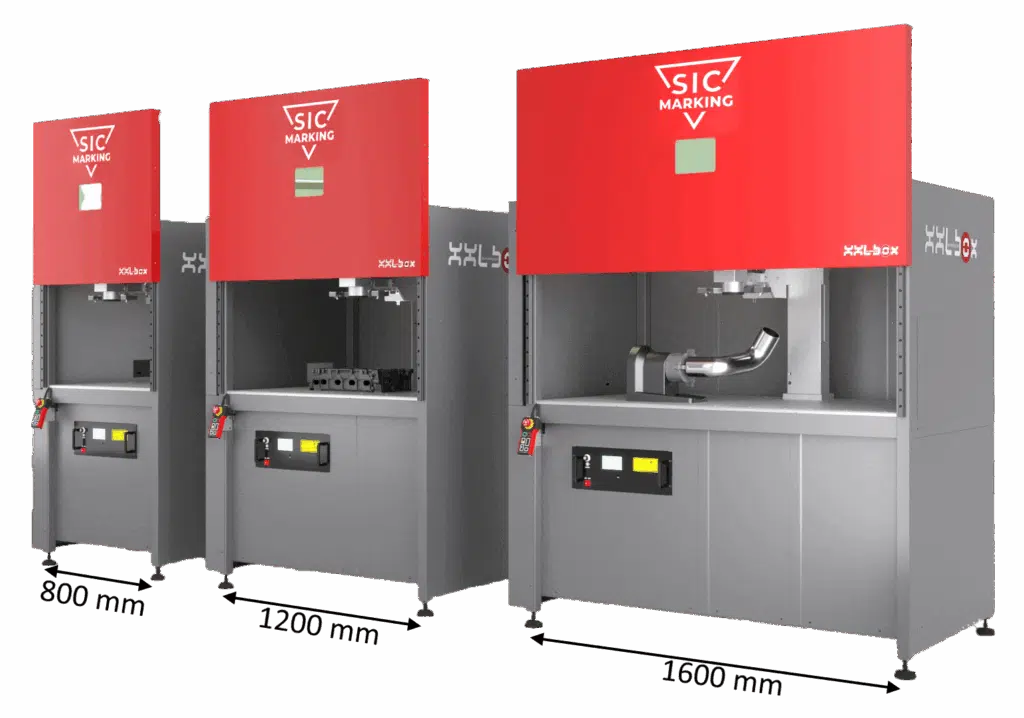

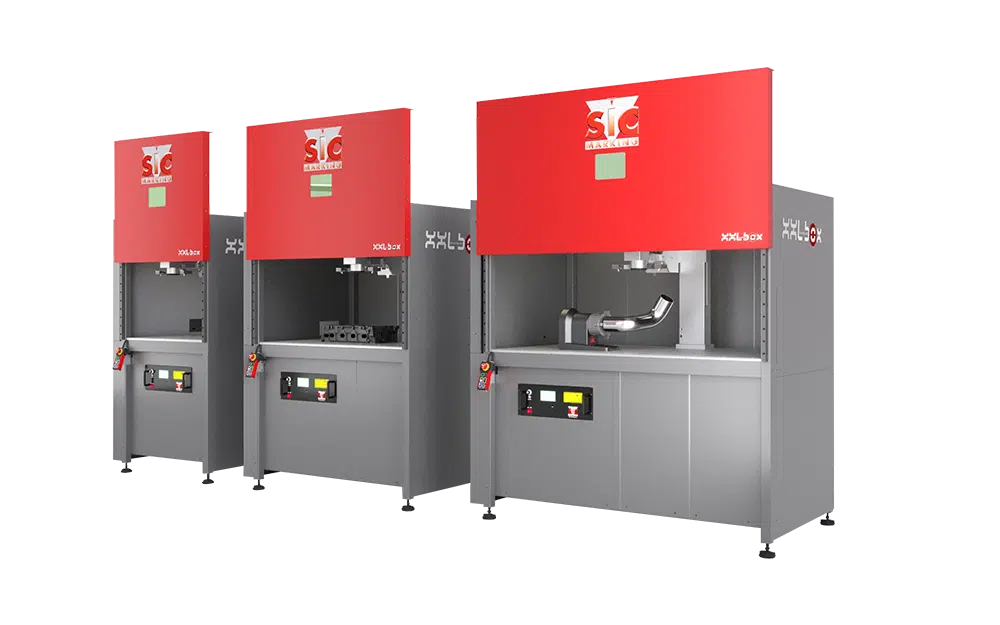

The XXL-BOX is available in 3 widths: 800, 1200 or 1600mm. It is equipped with a fiber laser ranging from 20W to 100W, to meet the most demanding applications.

Its modular design enables the integration of various options (marking head integrated code reading, 3D module).

Different axis configurations enable the XXL-BOX to adapt to your production process.

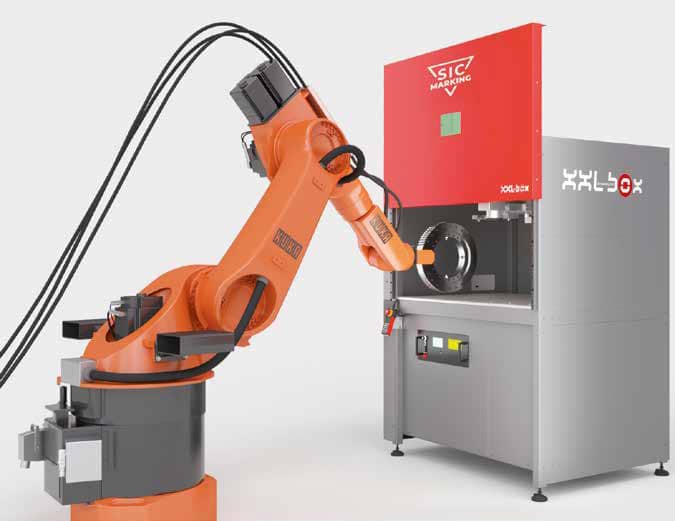

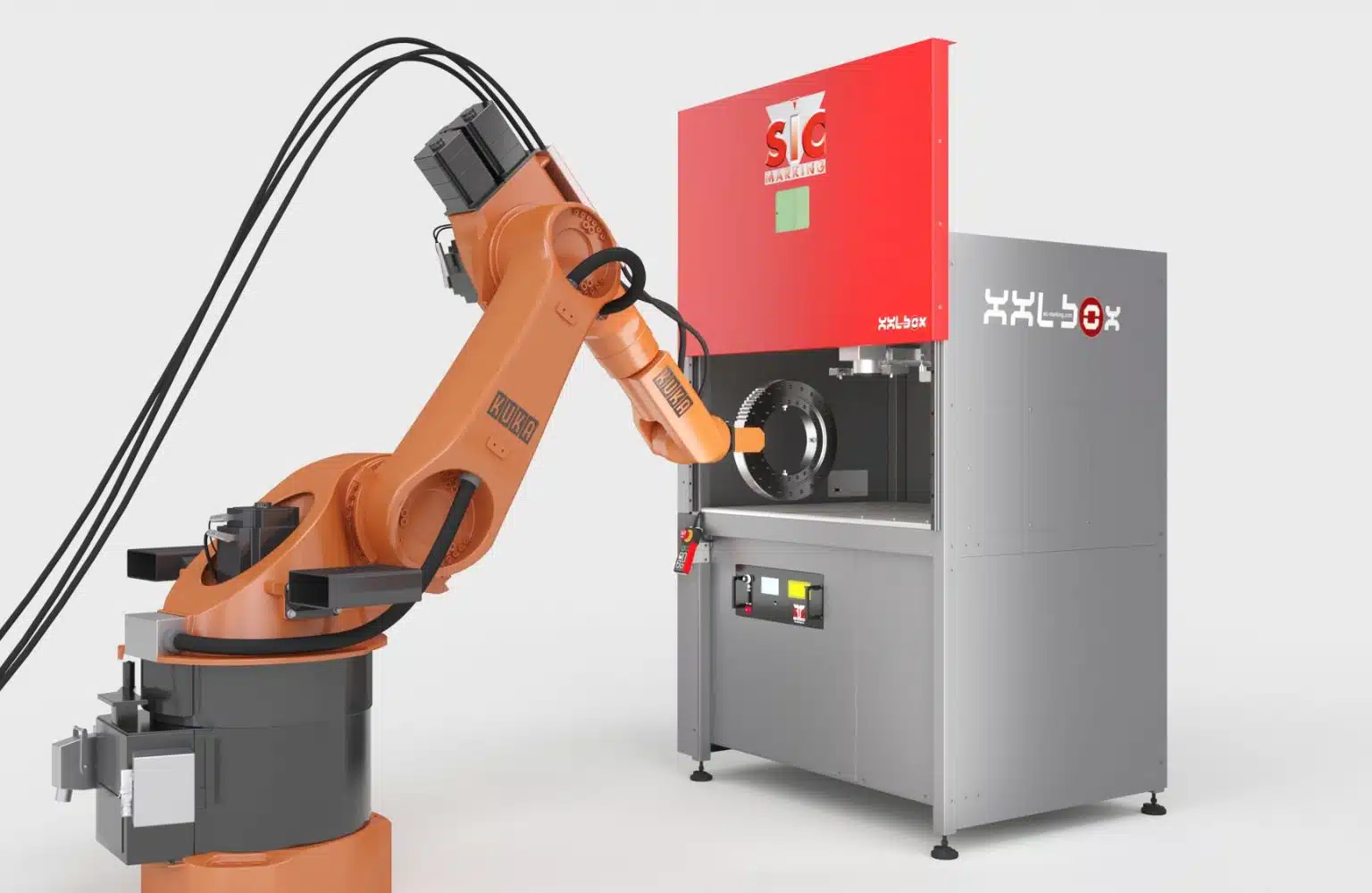

The XXL-BOX is also a turnkey solution that can be easily integrated into a robotic cell.

Laser Technology Fiber
Power 20W / 30W / 50W / 60W / 100W
Security Class 1 (EN 60825-1 standard)
External dimensions (W x D x H) XXLBOX 800 : 1020 x 1040 x 1850 mm | XXLBOX 1200: 1220 x 1040 x 1850 mm | XXLBOX 1600: 1620 x 1040 x 1850 mm
Marking window F100: 60 x 60 mm* | F160: 100 x 100 mm | F254: 170 x 170 mm | F330: 220 x 220 mm* | F430: 300 x 300 mm* | (*nous consulter)
Maximum Room Height 400 mm with F160

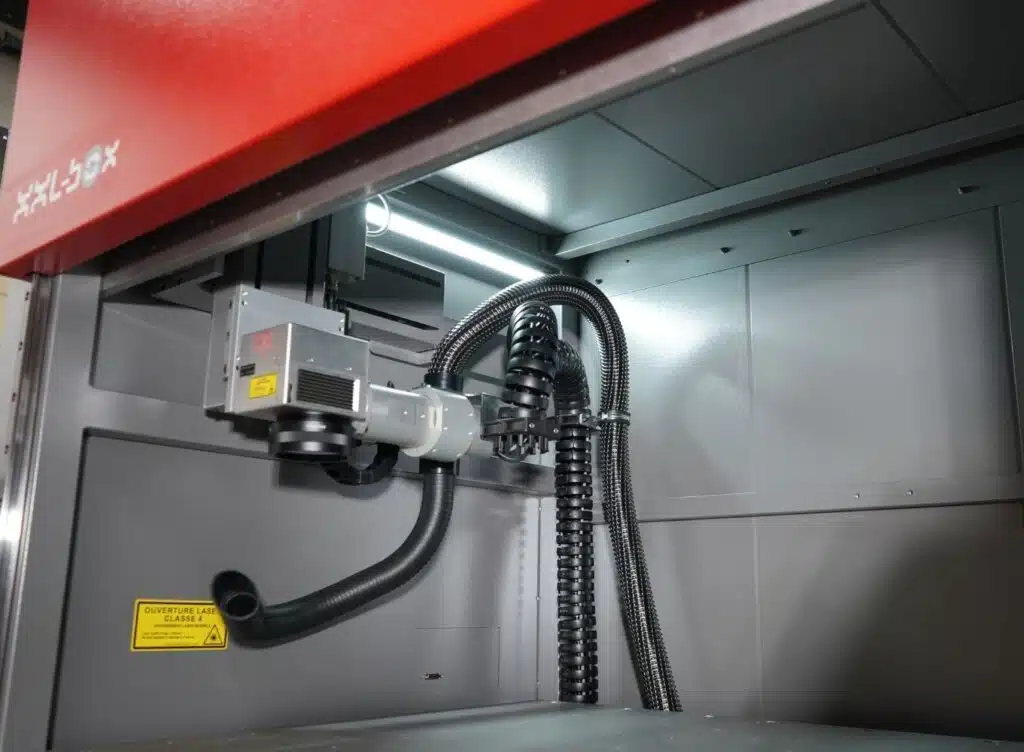

The fume extractor is essential for protecting operators from emitted fumes and maintaining optimal marking quality. It effectively removes particles and fumes generated during laser marking, preventing accumulation on parts or lenses. By safeguarding operators and equipment, it extends system lifespan and complies with industrial safety standards.

The code reader provides immediate verification of 1D and 2D codes produced by the FIT Laser. Whether integrated into the marking head or externally on the production line, it ensures reliable code reading for traceability. Connected to the controller, it allows automatic and rapid validation.​

Tiroir manuel ou automatique marquage lot de pièces

Greatly facilitates part handling and reduces machine cycle time.

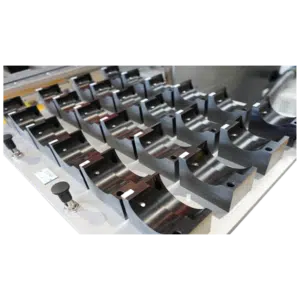

Supports et posages sur-mesure

Development of custom fixtures and supports.

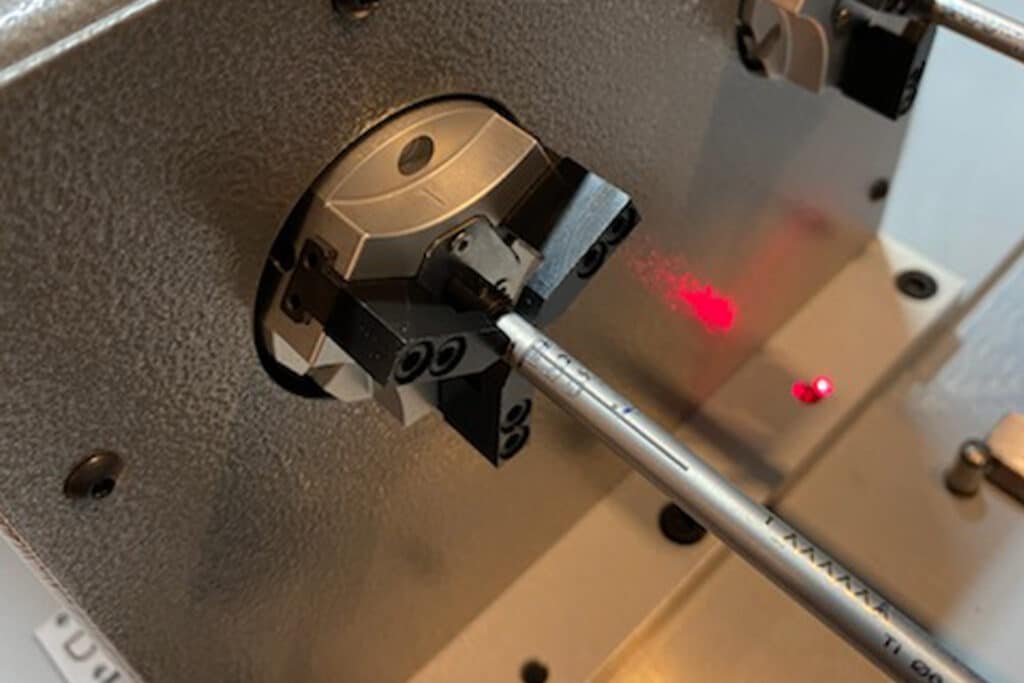

Axe rotatif charge lourde

The rotary axis allows marking of cylindrical parts up to 30kg, ensuring precise and uniform marking over the entire surface. It boosts productivity by automating the marking process without manual repositioning.

IHM sur bras

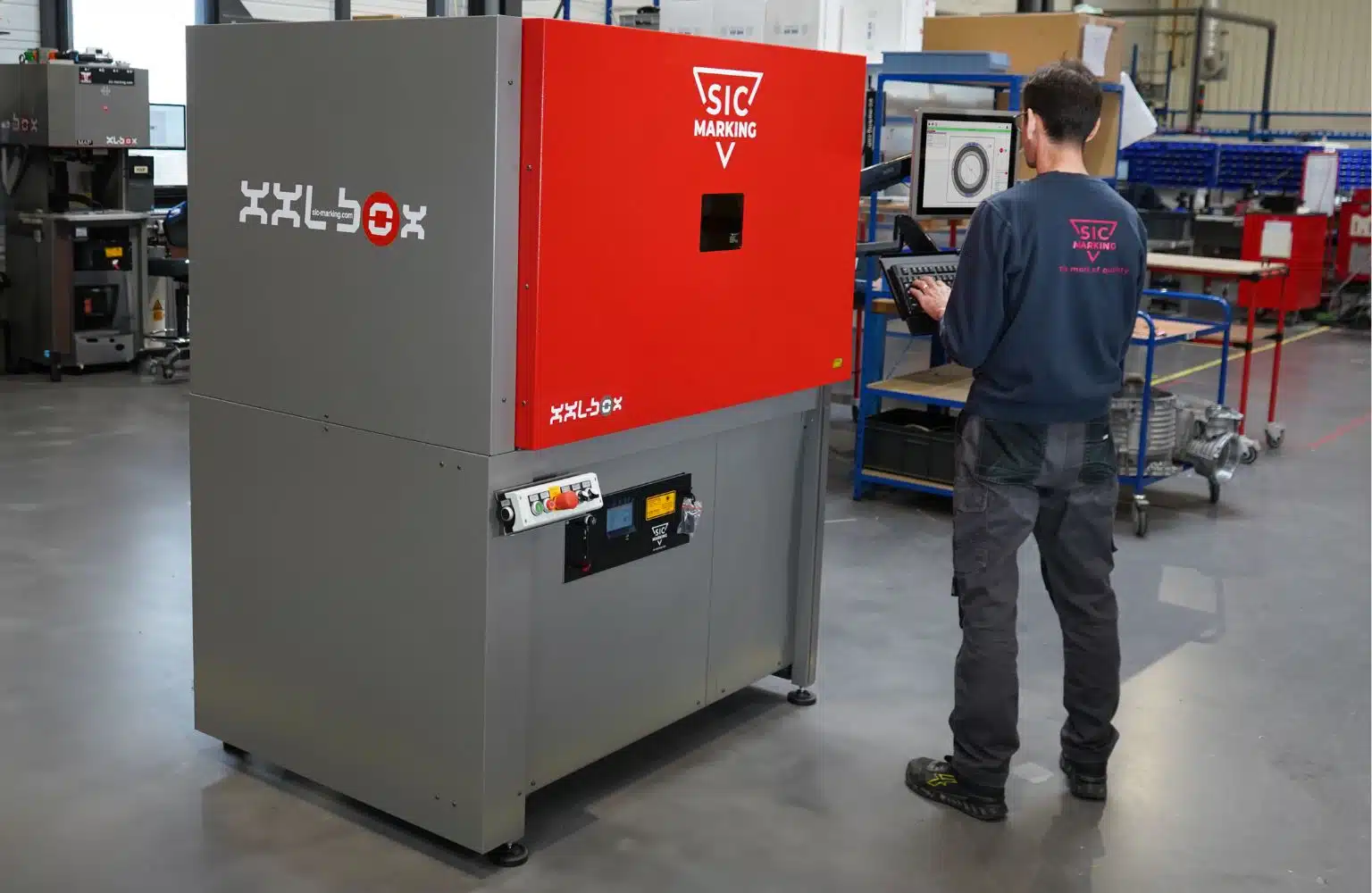

Configuration offering optimal ergonomics for the operator: the HMI can be easily moved, oriented, or brought closer as needed.

Key Benefits

Maximum useful volume

3 widths available: 800, 1200 and 1600mm.

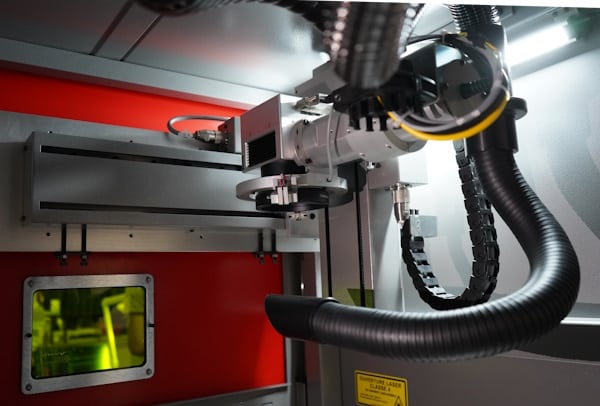

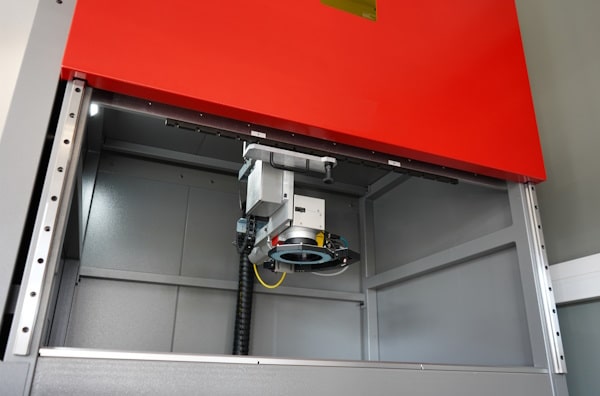

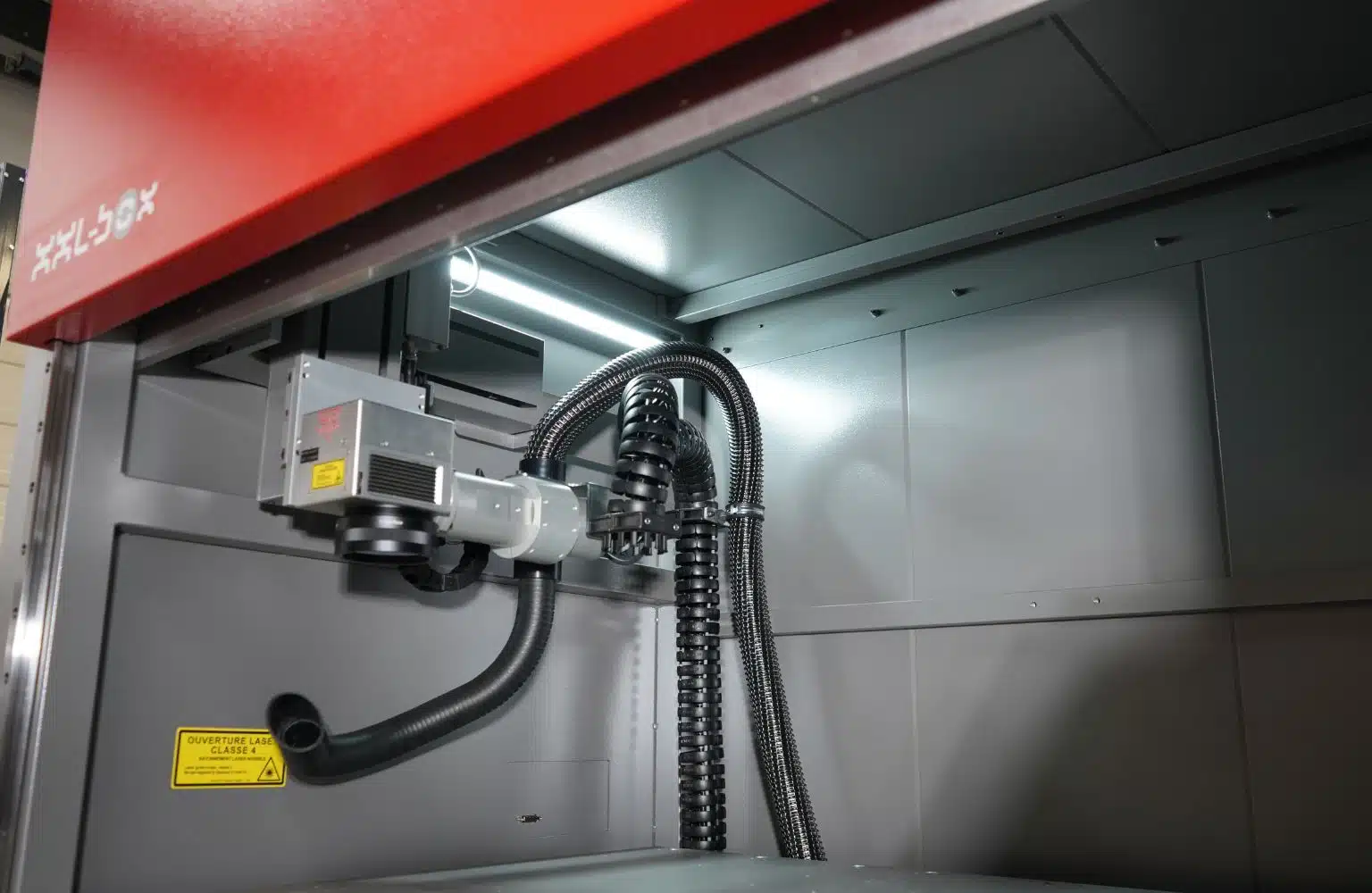

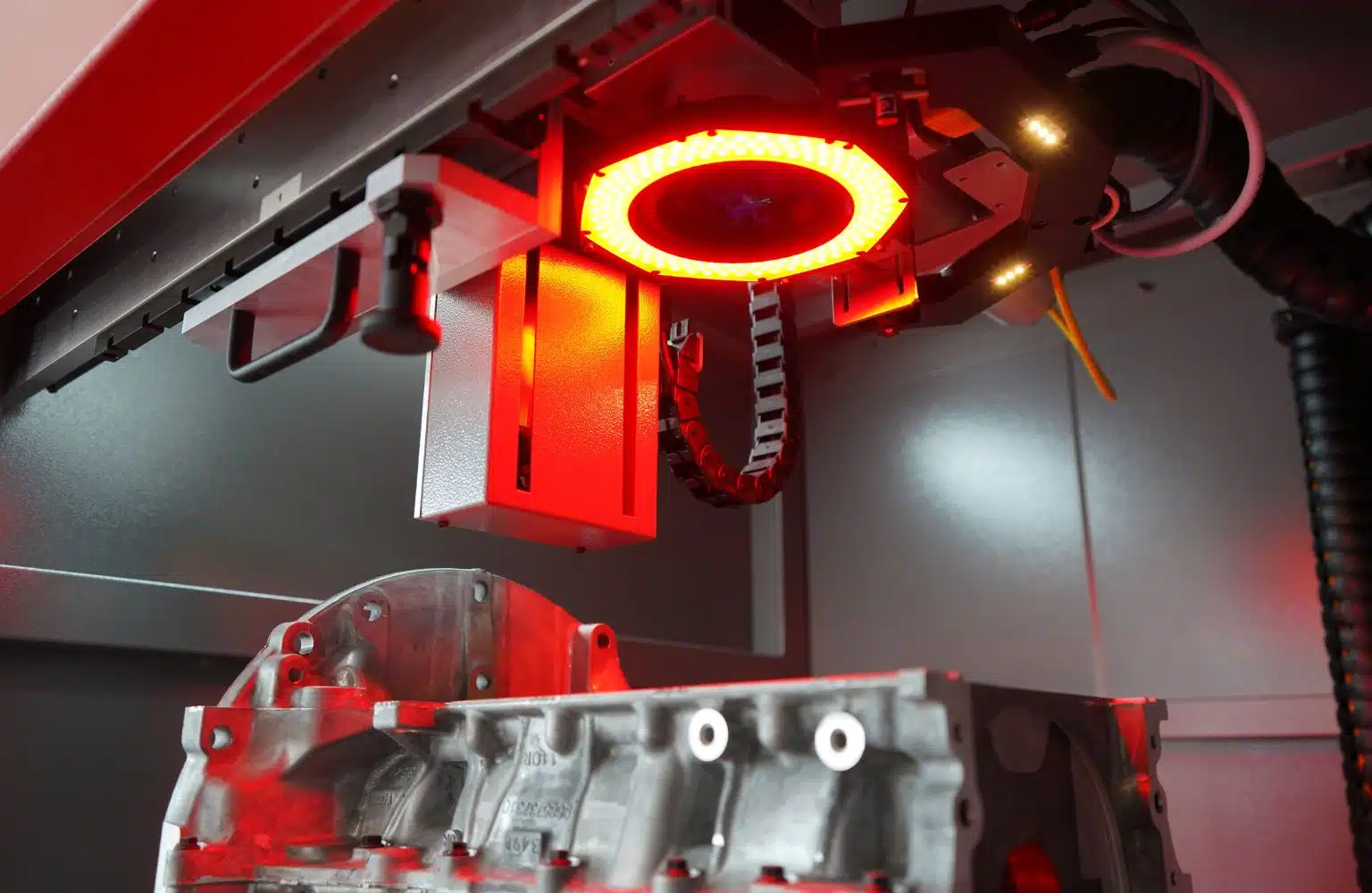

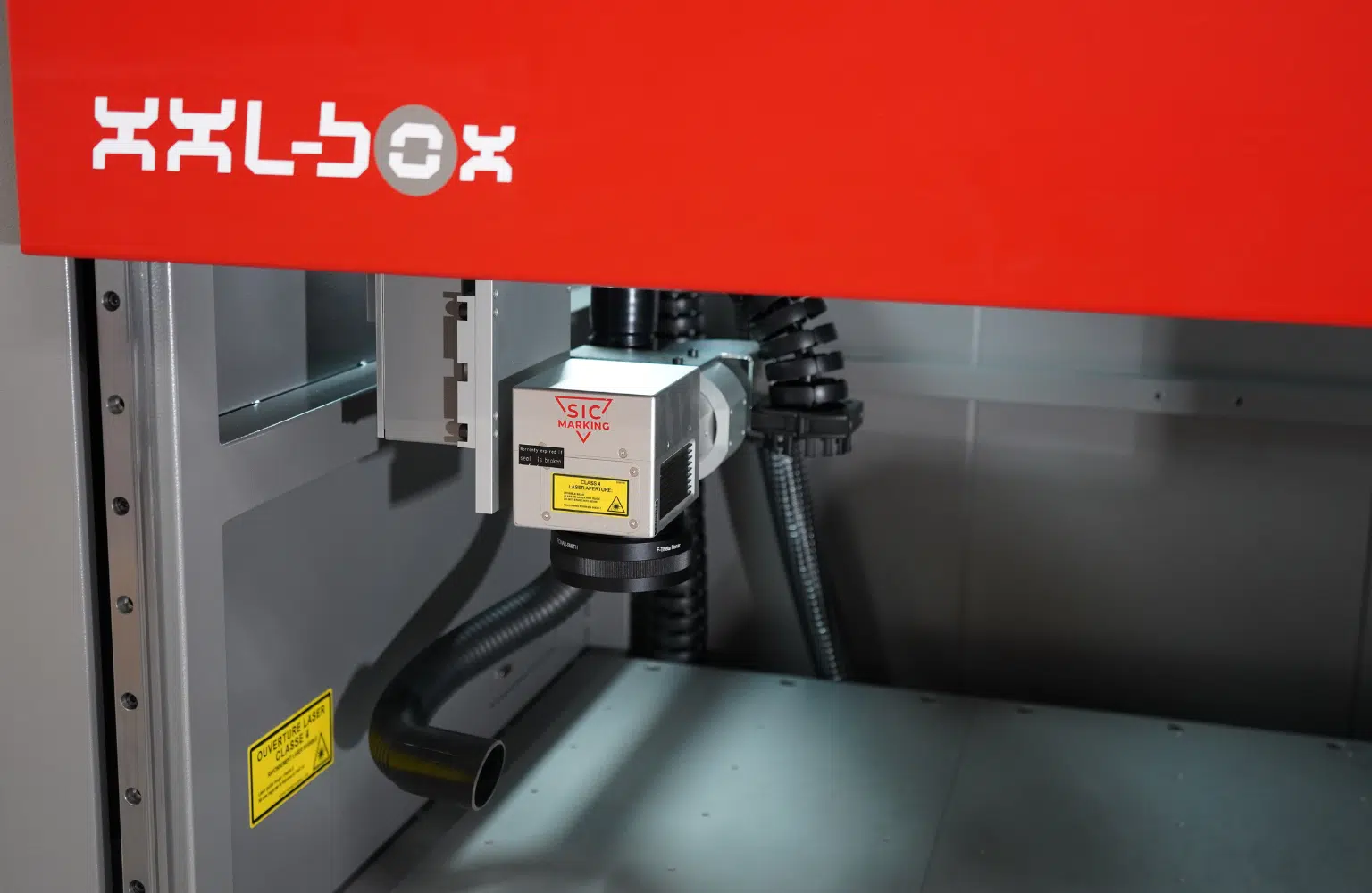

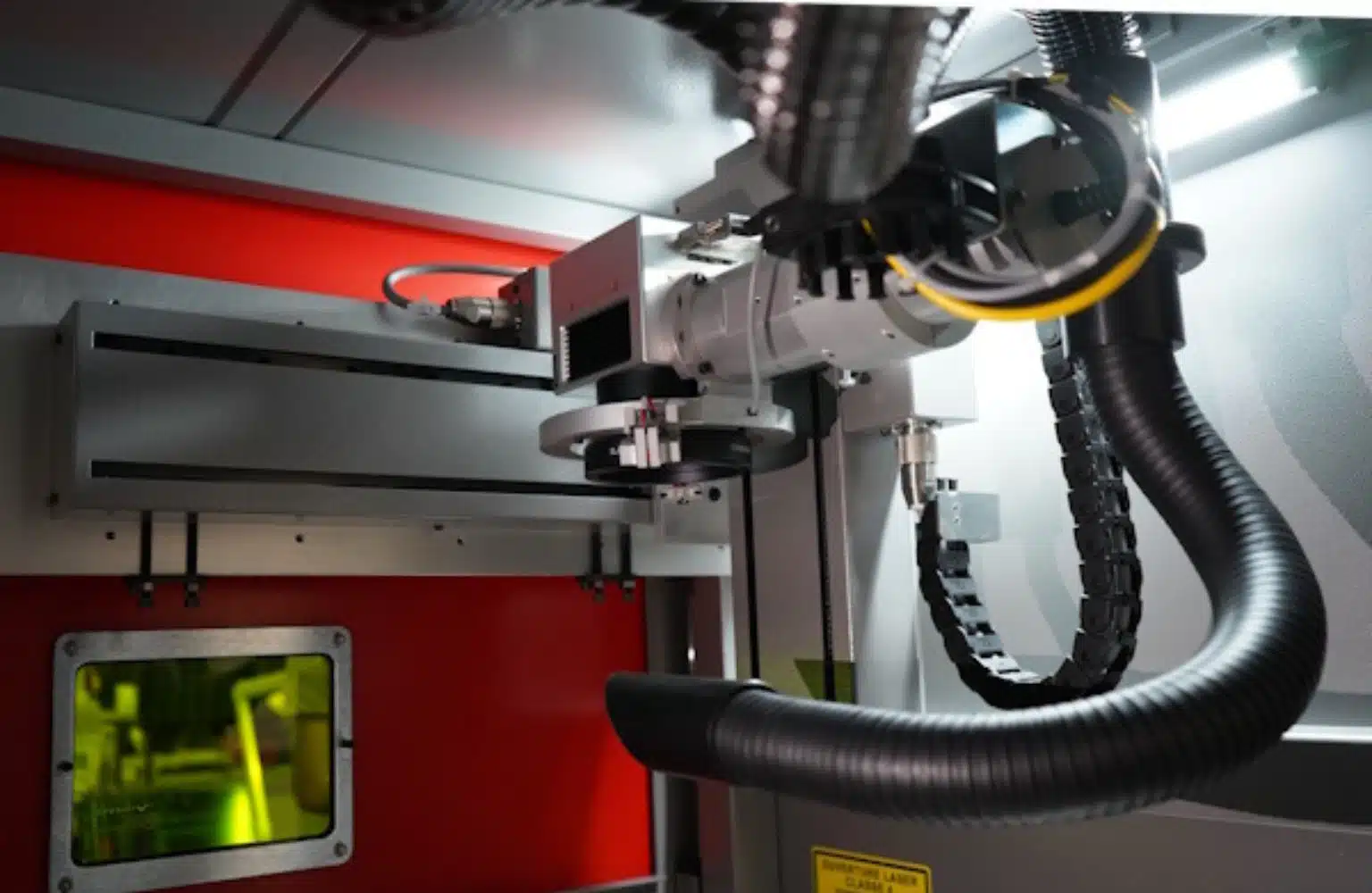

Optimized marking area. Thanks to its suspended marking head, the XXL-Box makes full use of its working volume, without obstructing the work area.

The largest working volume on the market, thanks to its ability to mark parts up to 520mm high and 820mm deep.

A safe, robust station

CLASS 1 safety station compliant with LASER EN 60825-1 safety standard, ensuring total safety.

Robust welded Steel frame for industrial environments.

A fully modular solution

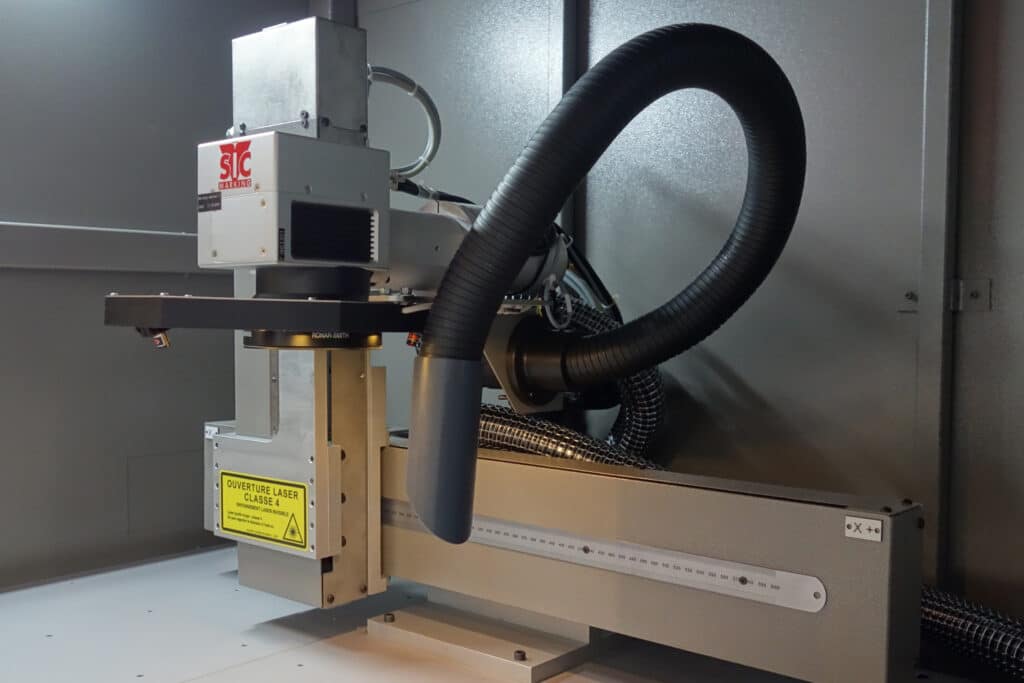

Axis configurations for customized solutions:

– Manual axis: for quick and easy installation.
– Motorized axis: for easy handling and reduced costs.
– Controlled axis: for complete automation.

Maximum flexibility for marking voluminous parts or your part trays, guaranteeing uncompromising productivity.

Options available:

    • Rotary table
    • Drawer
    • Integrated smart-vision for quality control of marked QR Codes or DATAMATRIX.
    • 3D module for 3-dimensional marking.

Interfaces adapted to your production

Different interfaces are available, so choose the one that suits your needs:

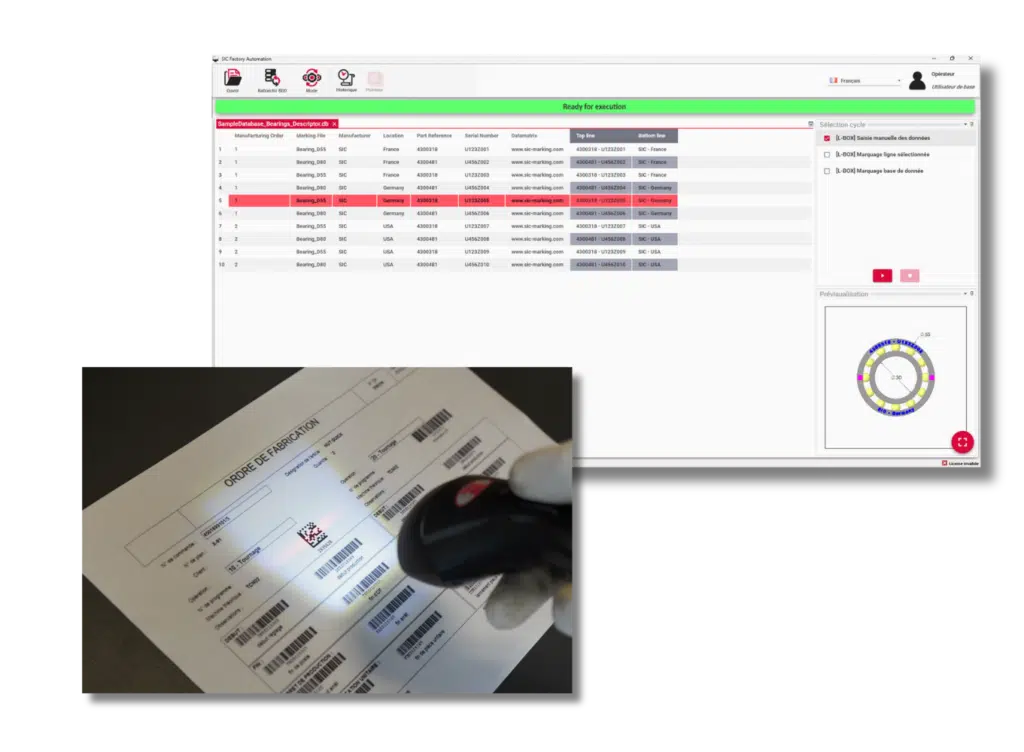

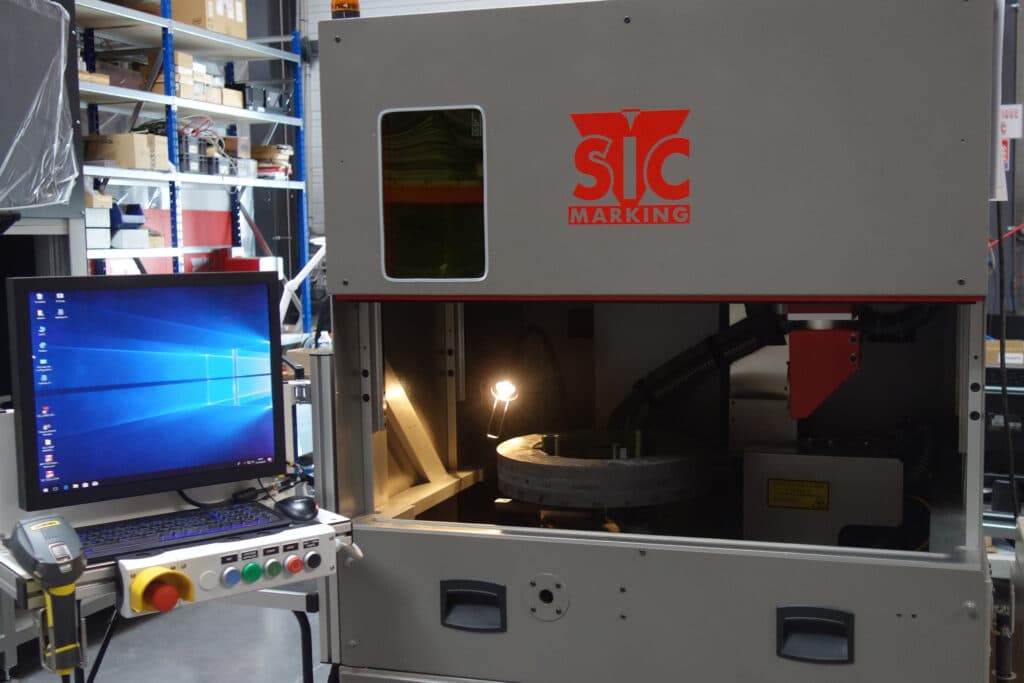

Operator mode thanks to SIC FACTORY AUTOMATION

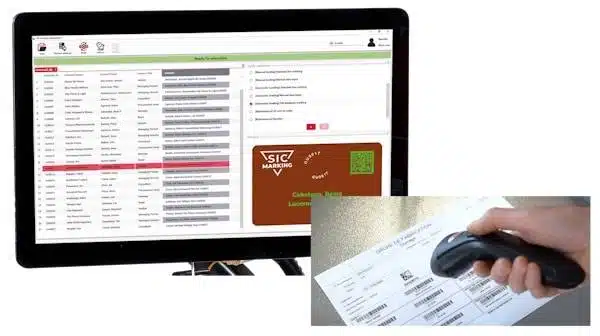

  • Intuitive, high-performance software with human/machine interface, dedicated to the operator
  • Easily interfaces with your production management system
  • Scalable thanks to its extensive functionality for creating customized production cycles

PLC mode integrated into your production line

Controls the XXL-BOX through your line PLC via fieldbus, (standard communication interfaces: Profibus, Profinet, Ethernet-IP).

Enables integrators and machine builders to avoid development costs by using a standard housing.

From 20W to 100W: power to suit every application

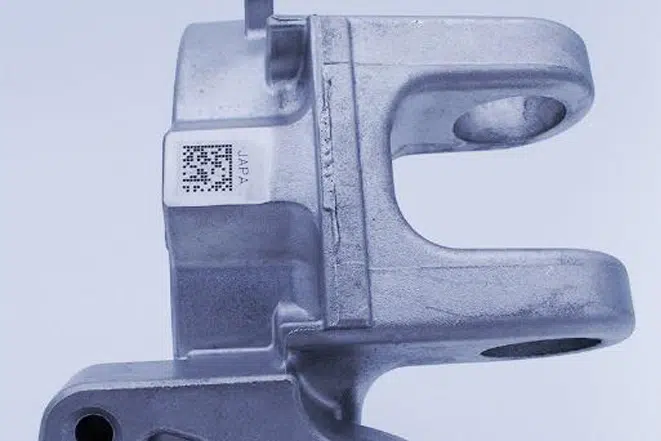

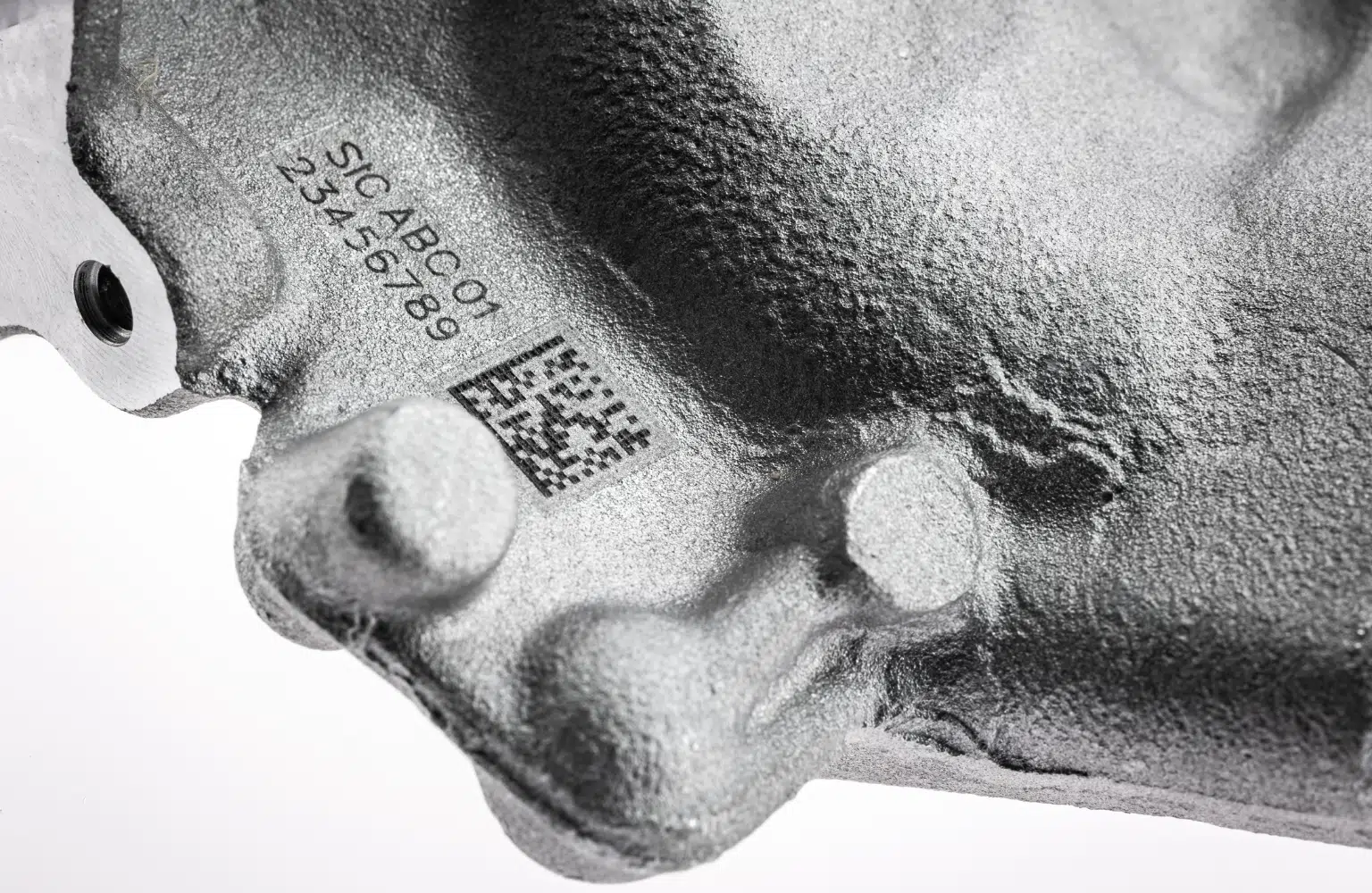

With a power range from 20W to 100W, available in standard or MOPA sources, the XXL-BOX is perfectly suited to marking a wide variety of materials: steel, aluminum, non-ferrous metals, engineering plastics, carbon and others.

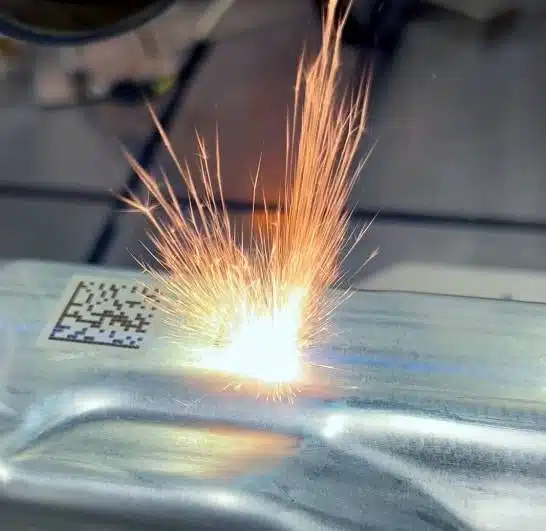

For high-contrast markings and deep etching in very short cycle times.

Markings resistant to surface treatment processes (E-coat, KTL, etc.), painting or shot-blasting.

Suitable for surface preparation operations: increasing roughness, coefficient of friction, cleaning or material removal.
