Inline laser engraver
i104 EASY

With or without a PC
Versatile and flexible
Easy to incorporate
inline laser marking machine i 104 Easy
Description

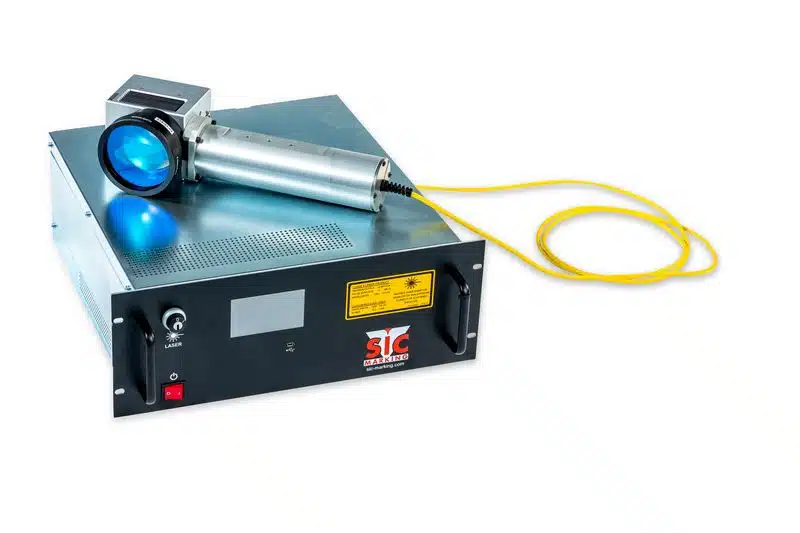

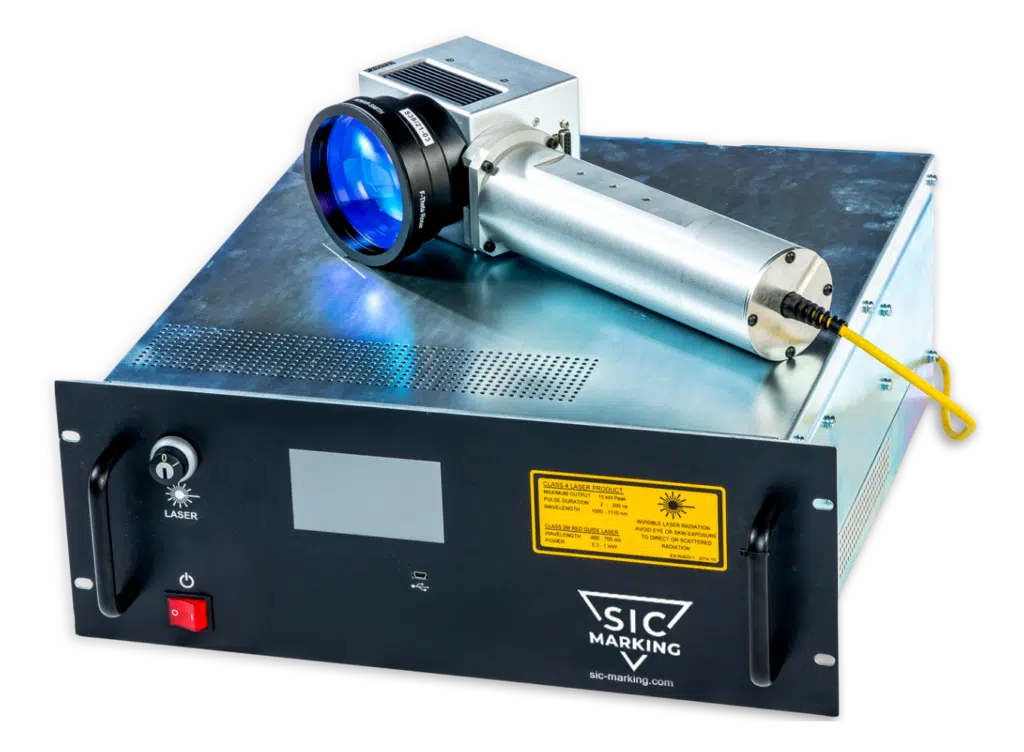

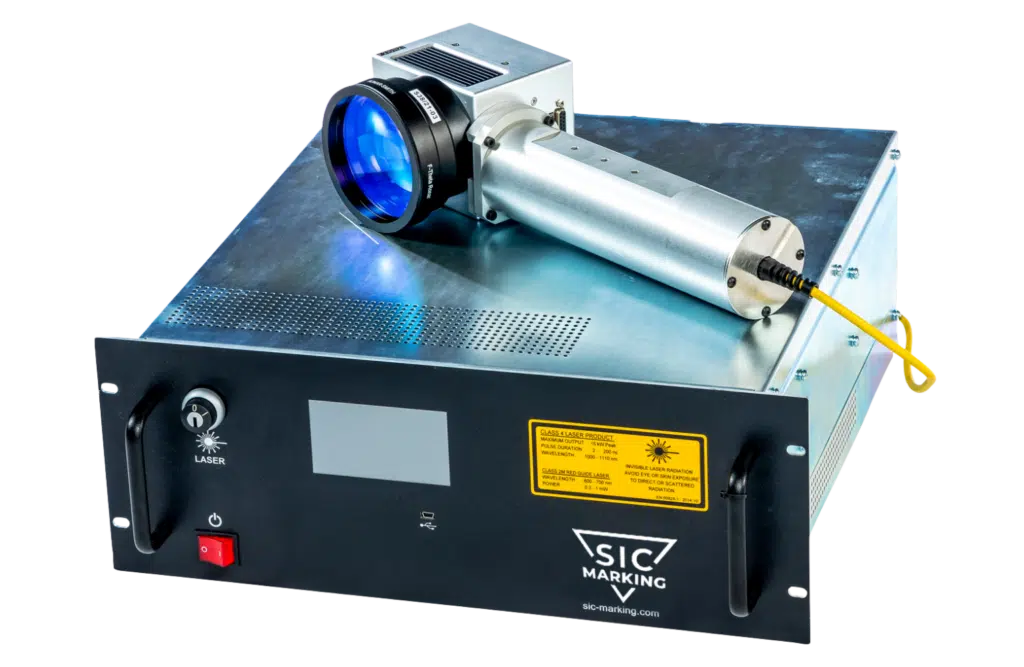

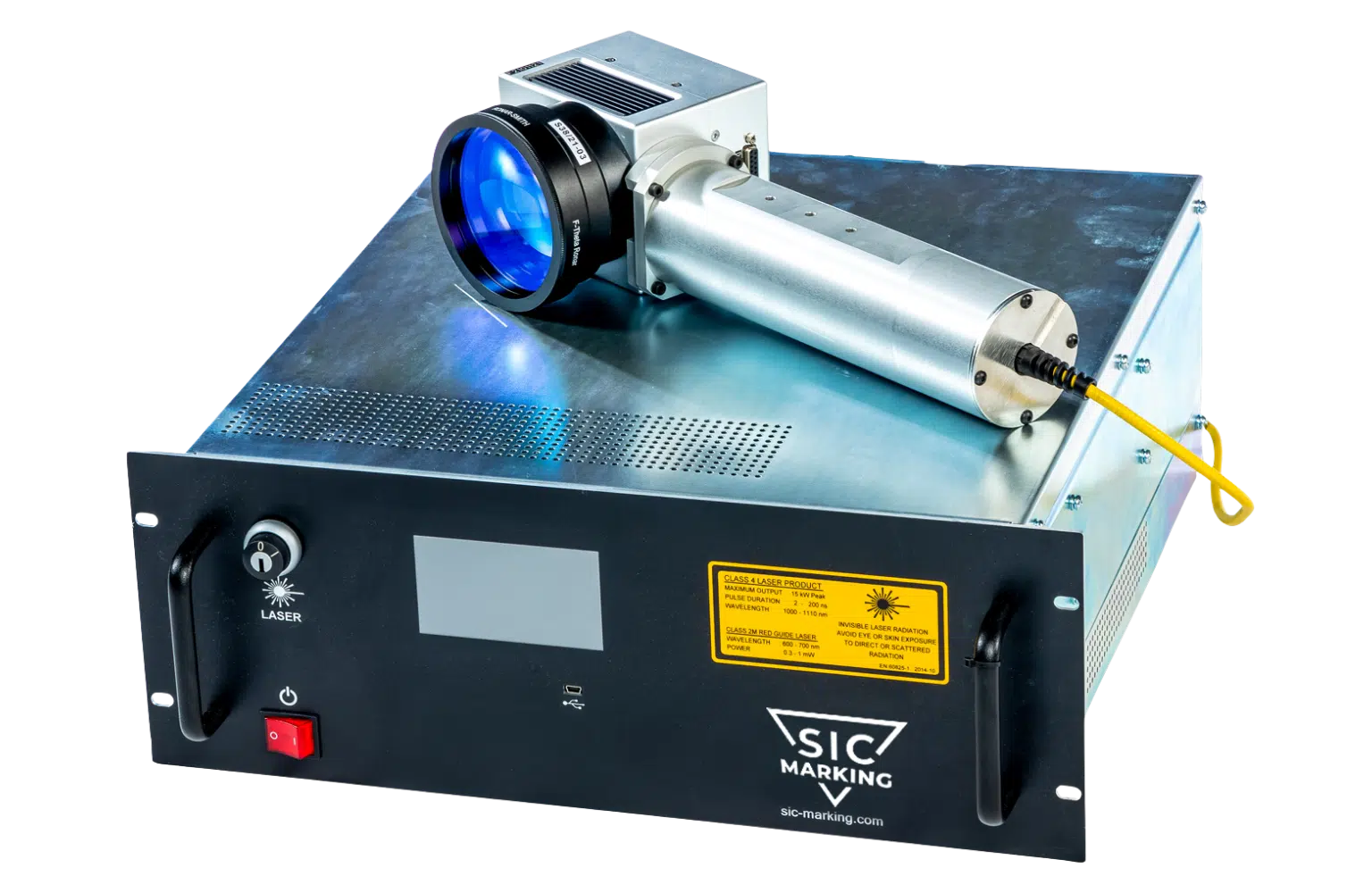

The I-104 EASY is a FIBRE LASER marking head, THAT CAN BE INTEGRATED INTO YOUR PRODUCTION LINES.
Our EASY laser marking systems are equipped with proven technology, with an ytterbium-enhanced fibre laser source and SEVERAL POWER RATINGS AVAILABLE to meet your needs.

The I-104 EASY marking laser is designed to mark parts at HIGH RATES in any industrial environment.

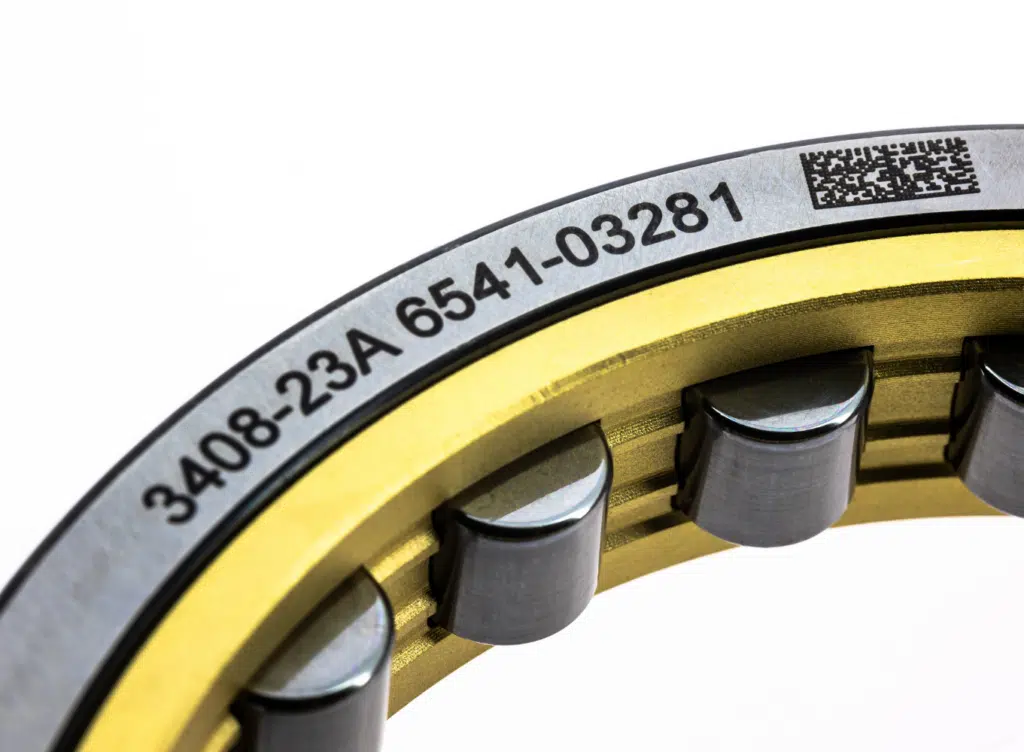

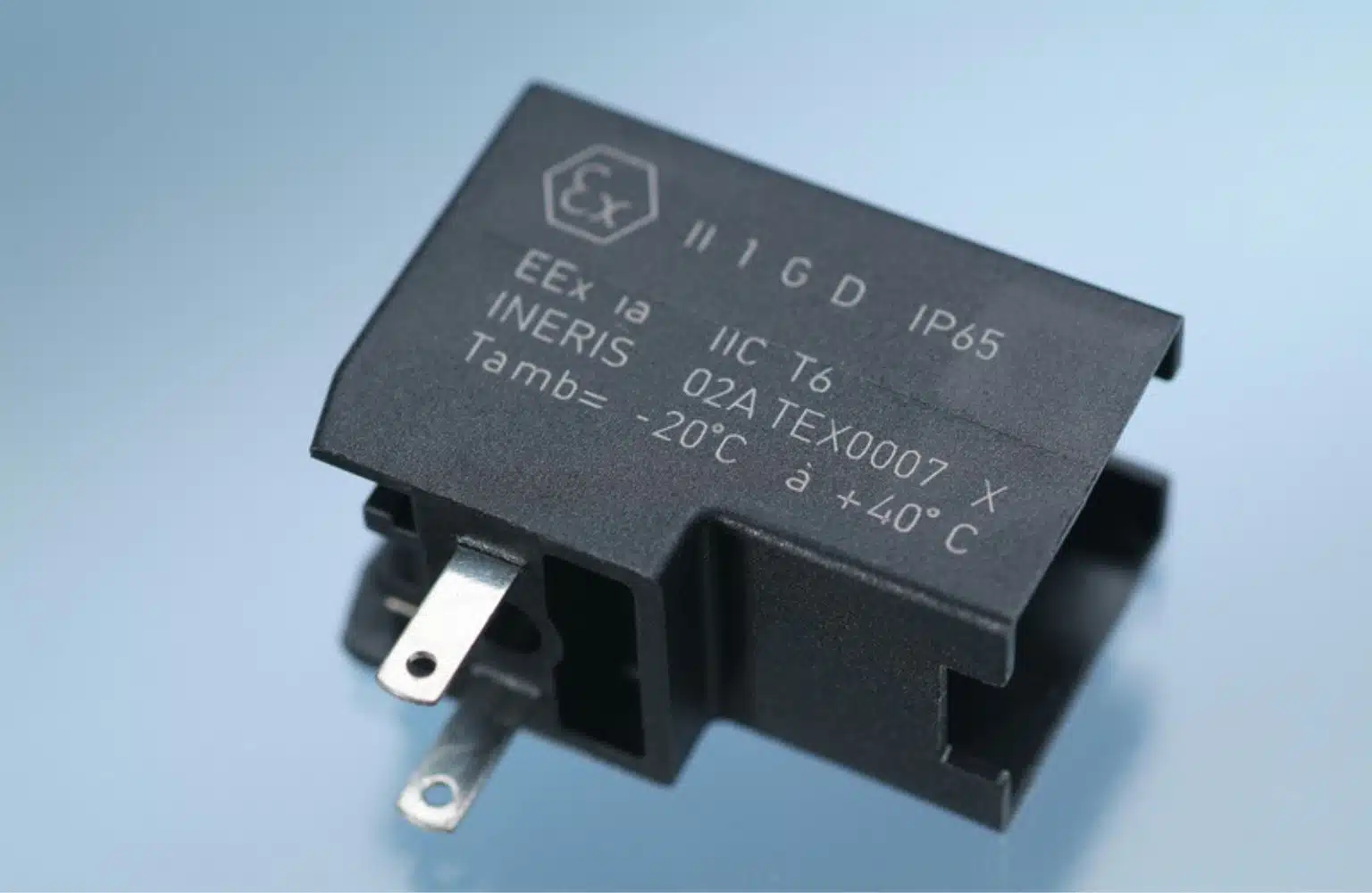

It provides HIGH QUALITY MARKING on many materials (steel, aluminium alloy, stainless steel, titanium, plastics, etc.).

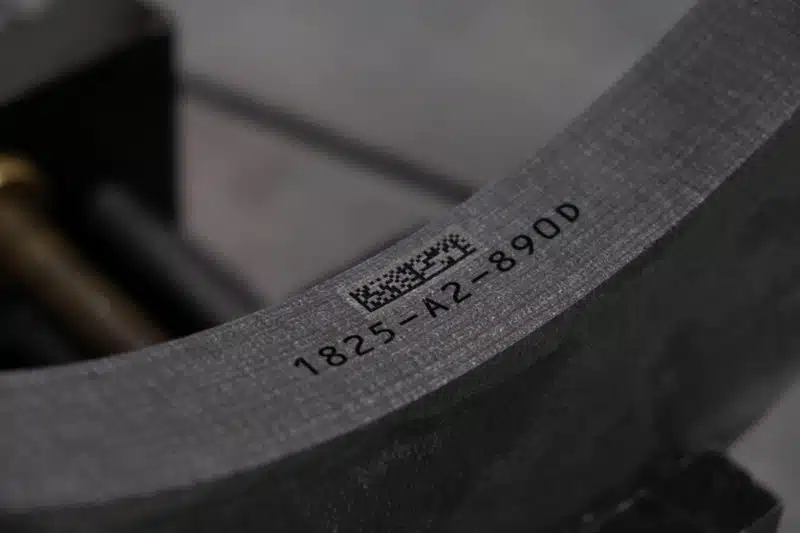

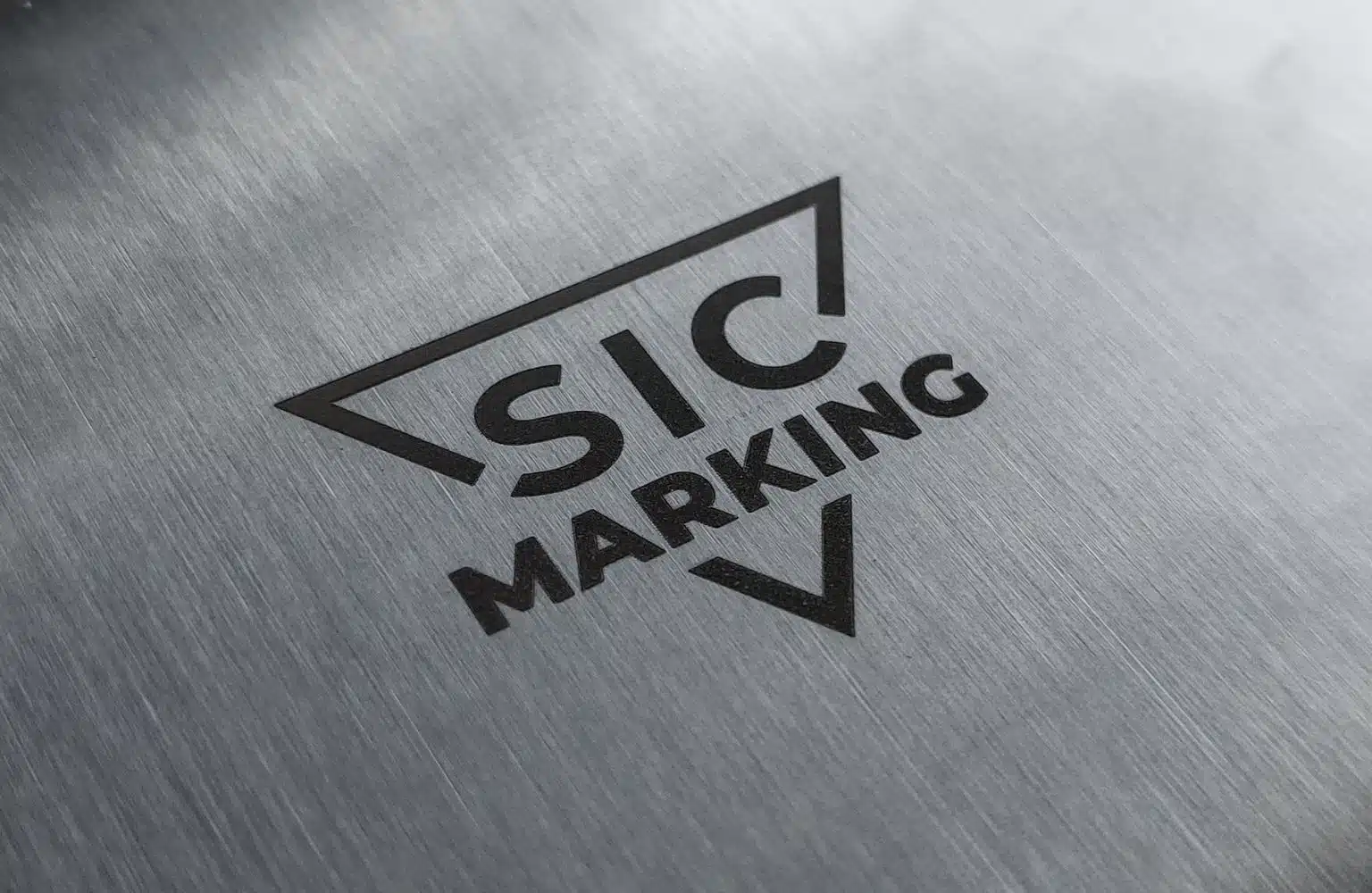

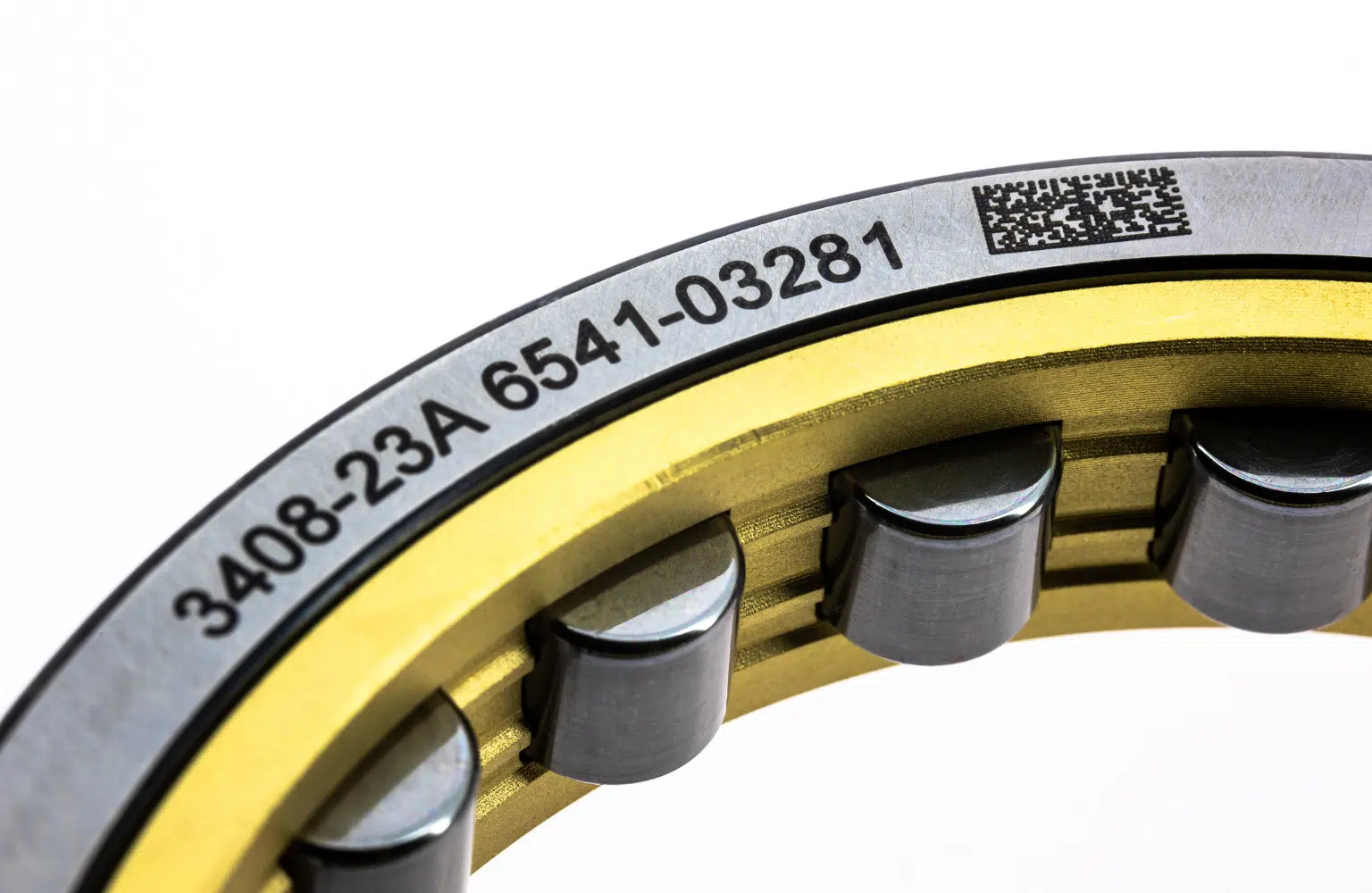

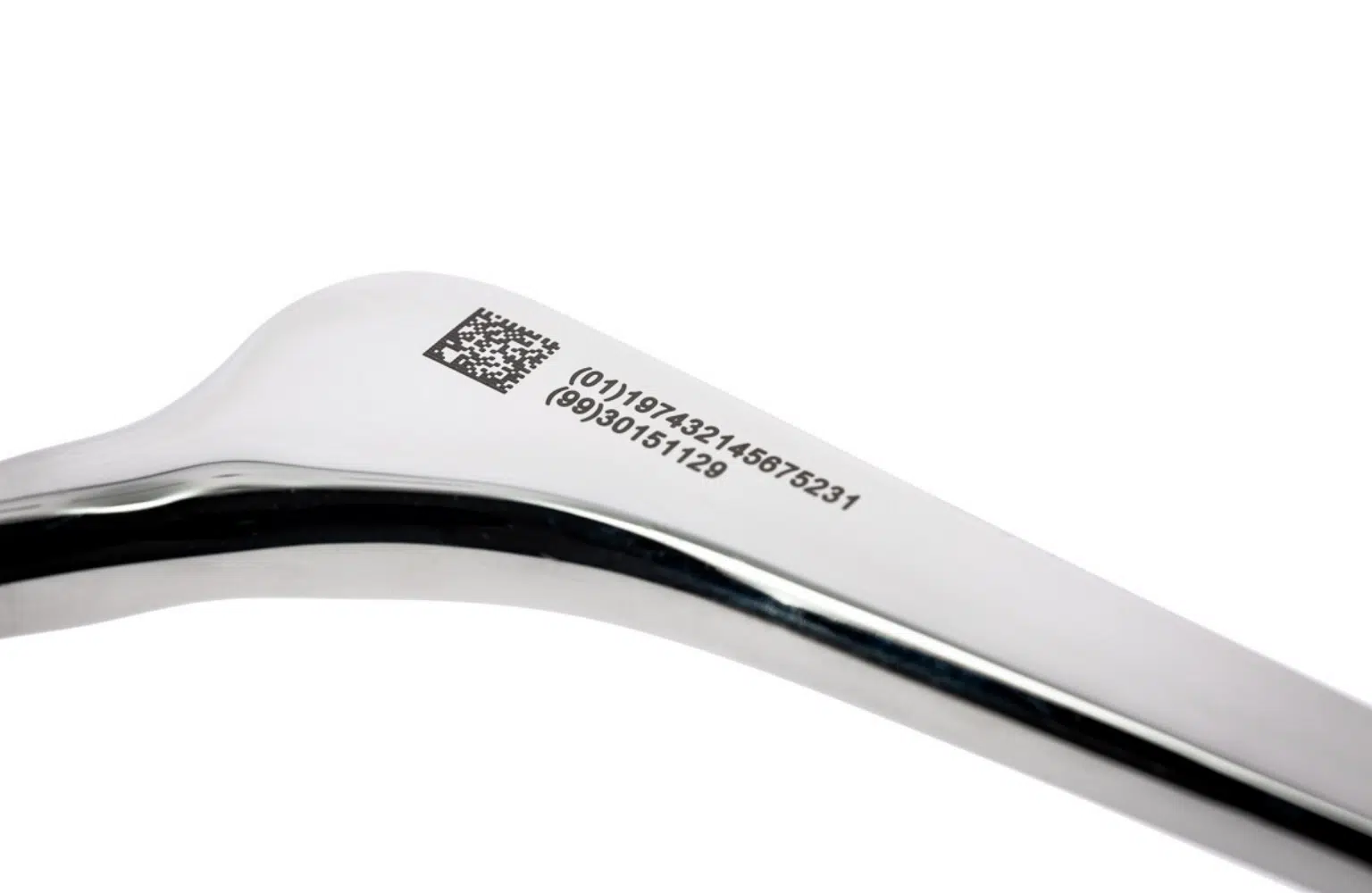

The I-104 EASY laser marking head marks high definition logos, alphanumeric codes, and 1D, 2D and datamatrix codes, with precision and contrast.

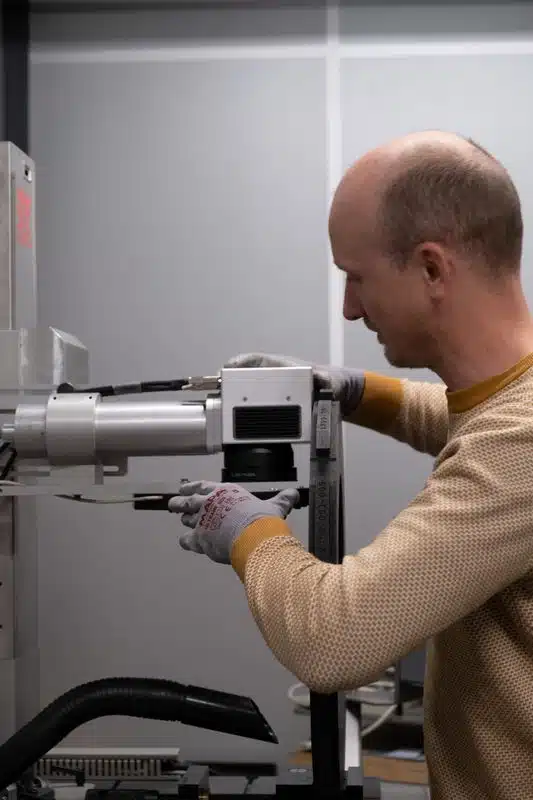

The I-104 EASY laser is extremely COMPACT and is therefore very EASY TO INSTALL in a box or on a production line.
It can operate with or without a PC. Without a PC, a single connection can fully control the laser from your PLC.

It is therefore very simple to integrate our laser machines on all production lines that use Profibus, Profinet or Ethernet/IP (boards on option) field buses.

The I-104 laser is very COMPETITIVE. It meets your needs precisely and offers a quick ROI.
In particular, its GREAT STRENGTH and its very modest maintenance requirements allow us to guarantee 100,000 hours of operation.

Our laser experts and technical personnel remain available to conduct your marking tests in a real situation and recommend the best setup for your specifications.

Mechanical specifications

Marking window

60 x 60*mm – 100 x 100 mm – 170 x 170 mm – 220 x 220*mm – 300 x 300*mm (*consult us)

Standard focusing distance

See downloadable data sheet

Weight

Fibre control unit: 25 kg – i103 Easy marking head: 5kg

Security

Configuration class 4 (standard EN60825-1)

Control

Without PC (Standalone mode)

Electronic specifications

Source

SIC Marking ytterbium-enhanced fibre laser

Operating procedure

Pulsed (variable frequency)

Wavelength

1064 nm

Optical fibre length

3 m

Mean power

20W, available in 30W

Peak power

7 kW

Focusing

Integral laser pointer

Cooling

Air cooled only

Control software

COMMUNICATION
Interfaces

RS 232 / Ethernet

Optional boards

Profibus, Profinet, Ethernet/IP

Inputs/Outputs

For cycle management

Software

COM test

Options

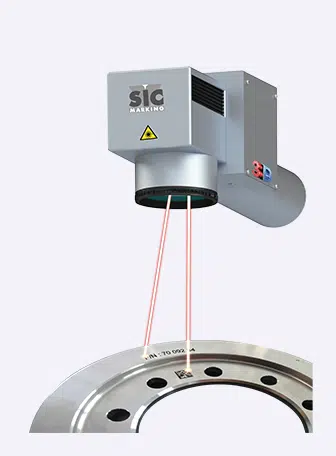

3D MARKING FUNCTION: AUTOMATIC ADJUSTMENT OF MARKING PLANE

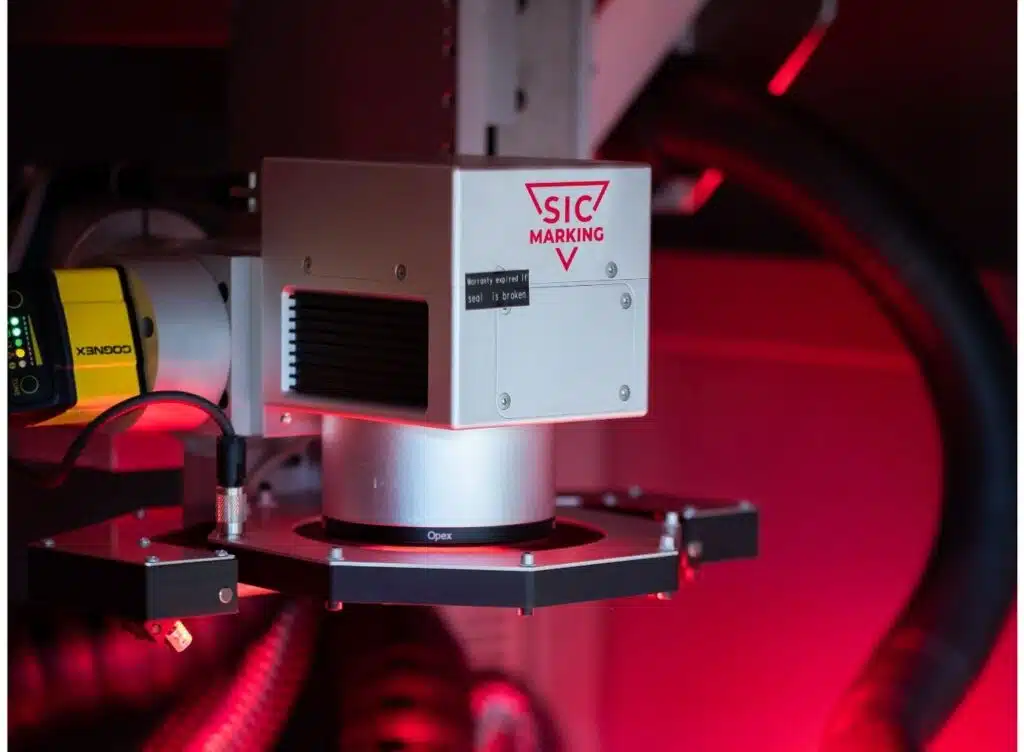

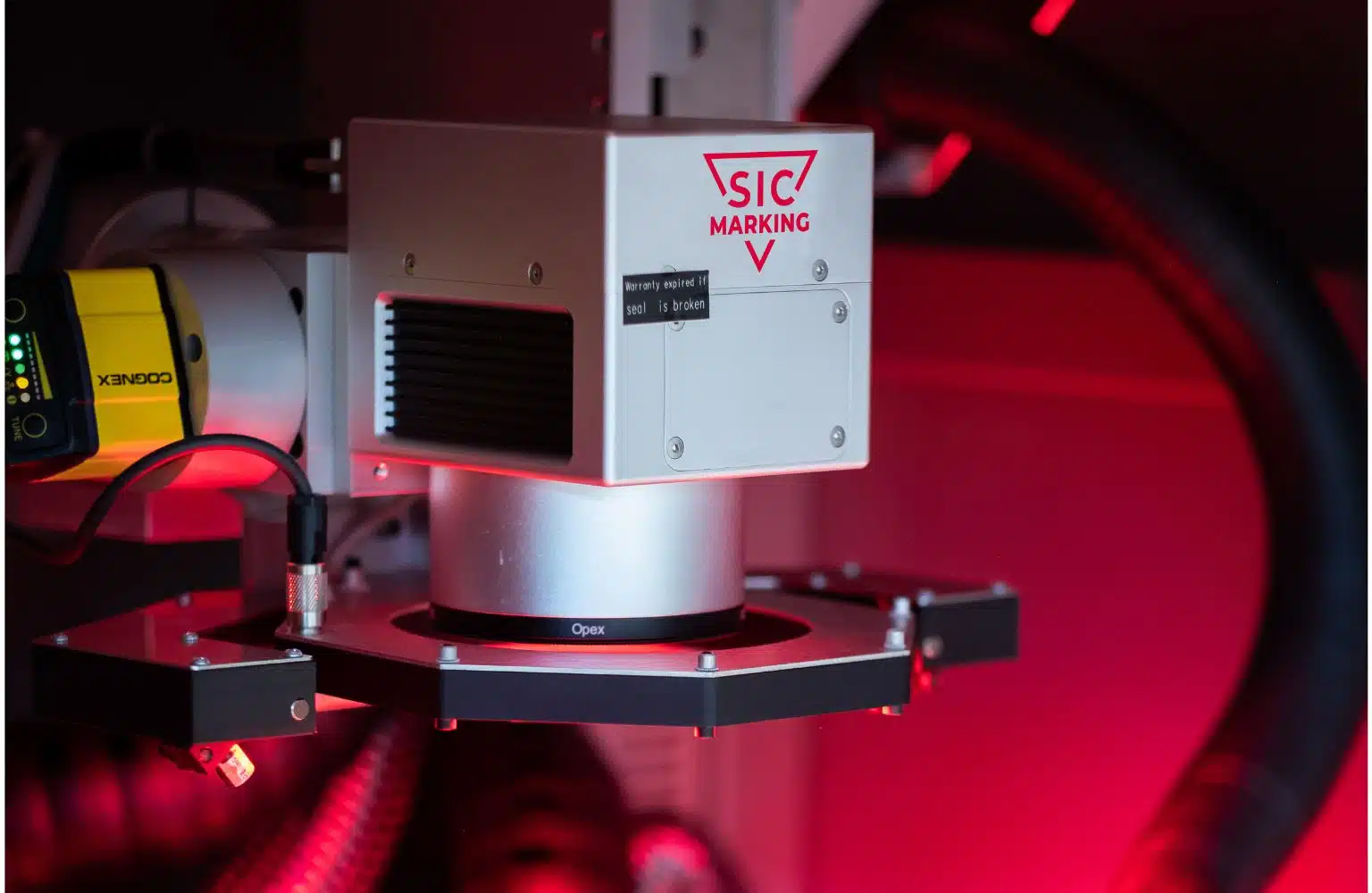

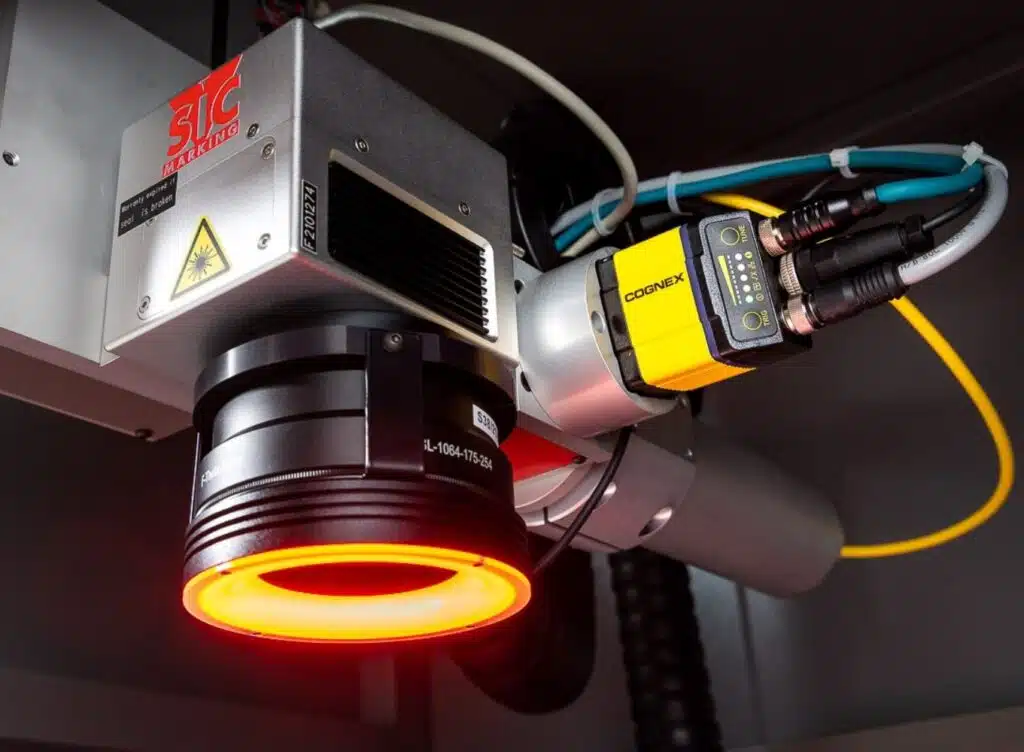

INTEGRATED READ FUNCTION

COMMUNICATION BOARDS
