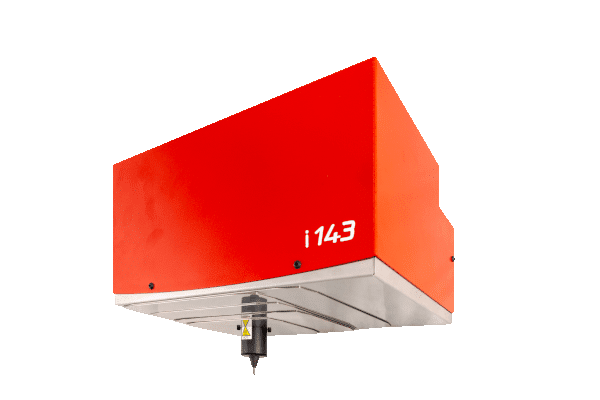

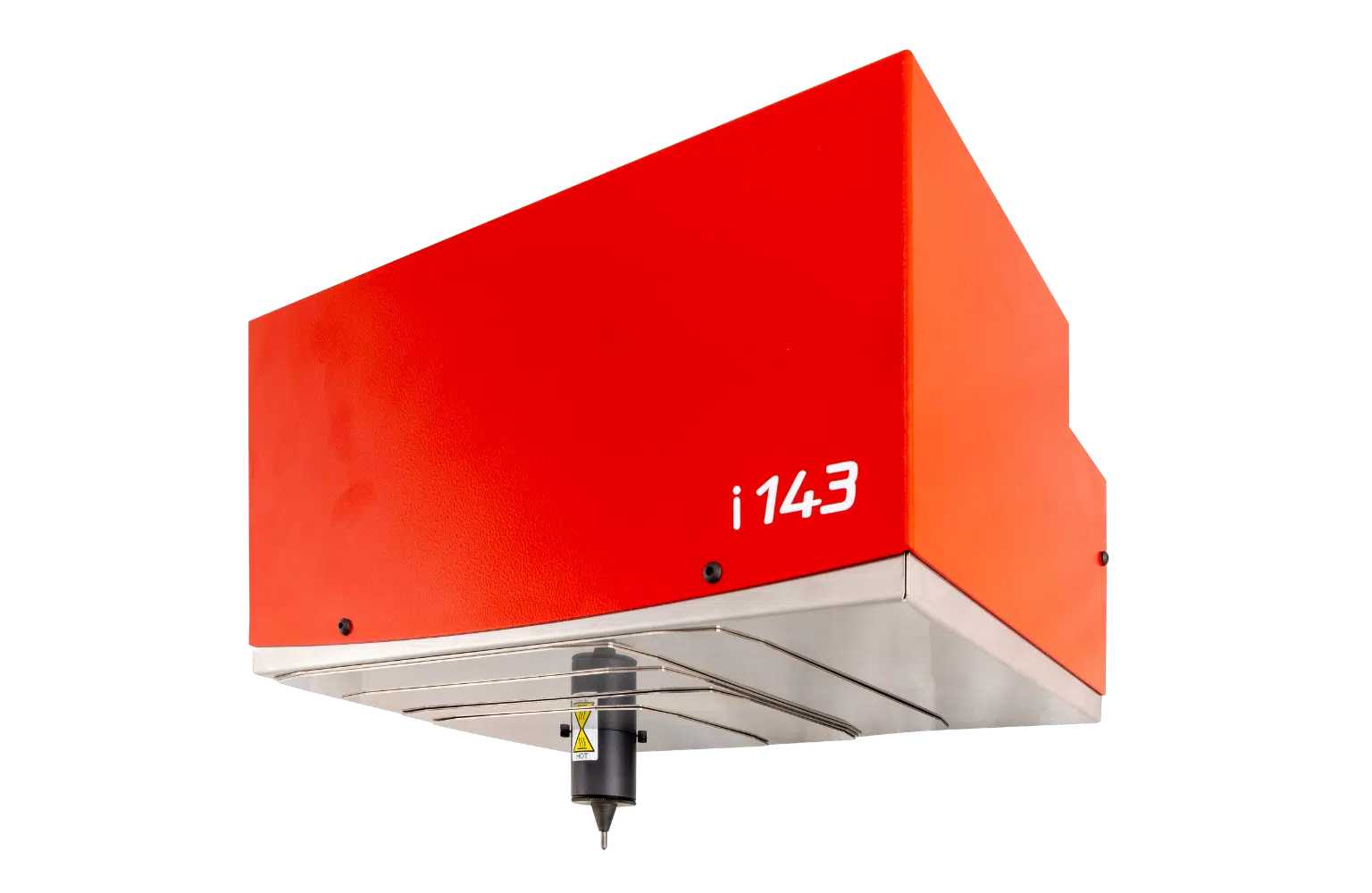

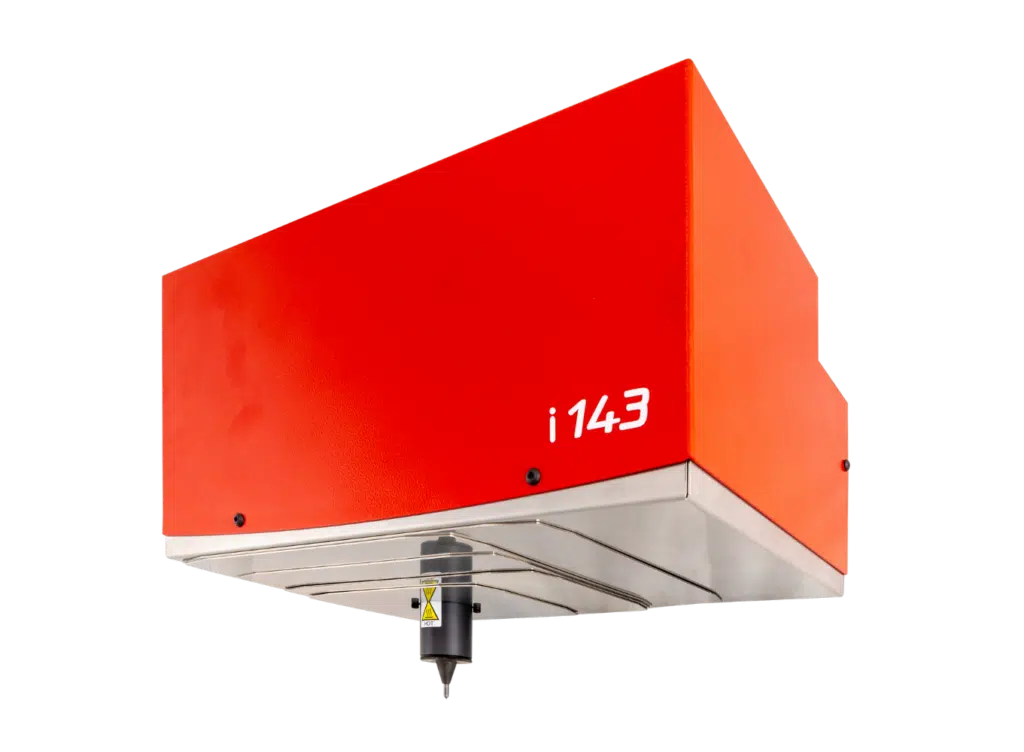

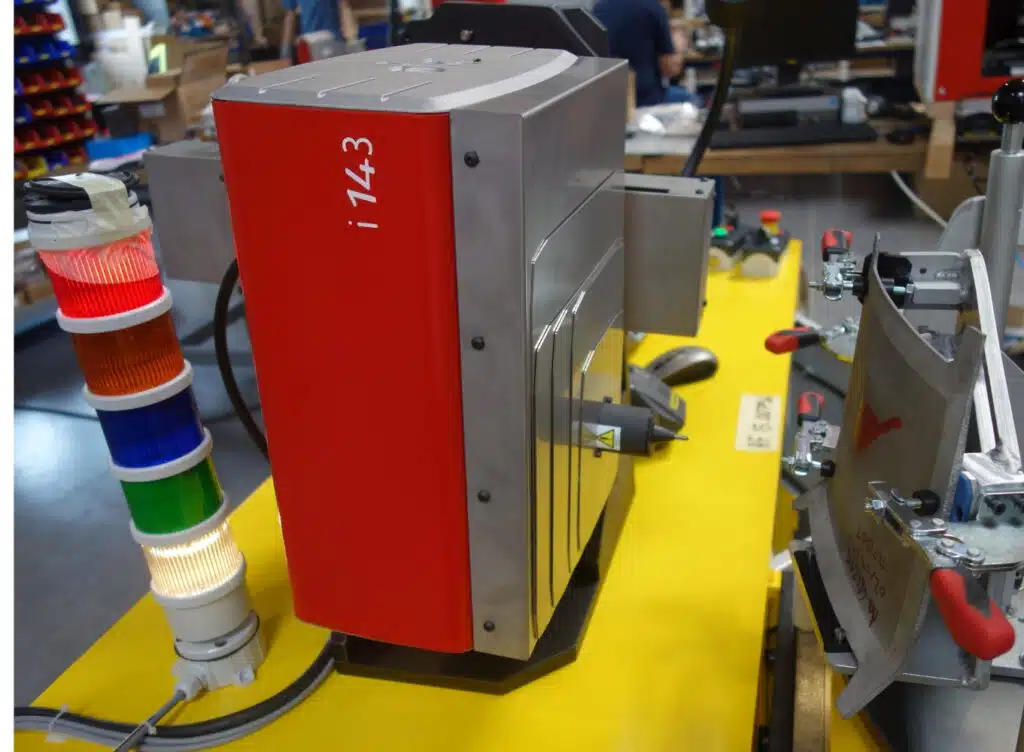

Electro-magnetic dot peen marking machine i-143

The I 143 is an electro-magnetic dot peen marking machine that can mark all types of industrial parts with its large marking field: 150×100 mm.

The I 143 is a dot peen marking machine designed for easy integration on automated lines in an industrial environment.
The precision of its electro-magnetic control and its crossed table make it the best for marking very high quality 2D codes (Datamatrix, QR codes, etc.)

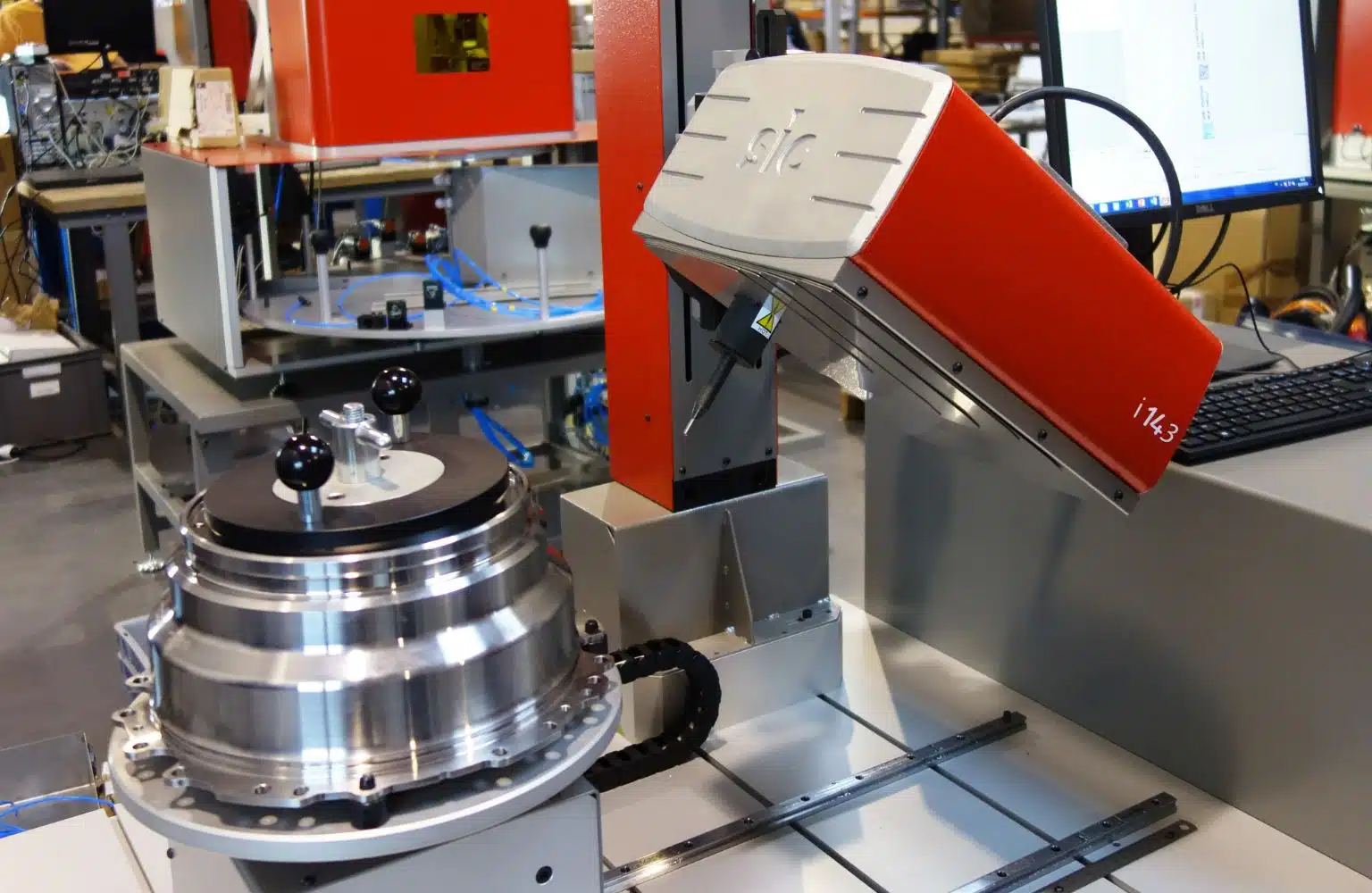

This integrable engraving machine can be used in a production line irrespective of the desired position.

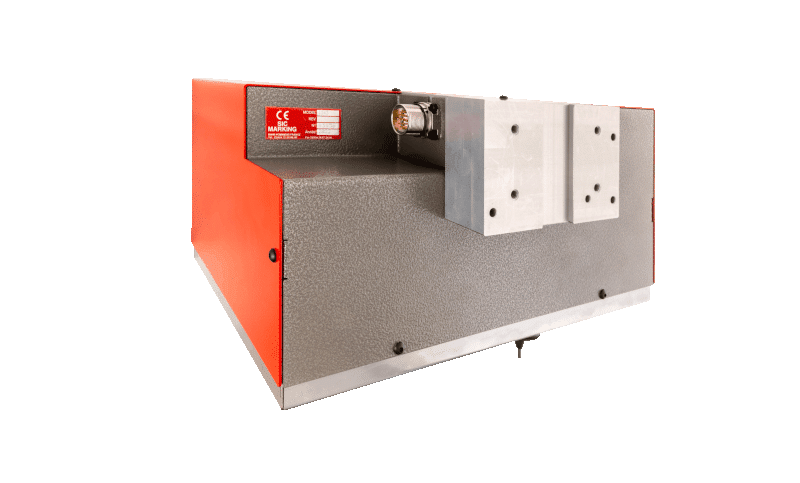

Also, the I 143 connector can be moved onto the side face if needed, to meet any production line requirements.

Its robust structure is protected from oil or dust projections by bellows, which also give simpler utilisation in an industrial environment.

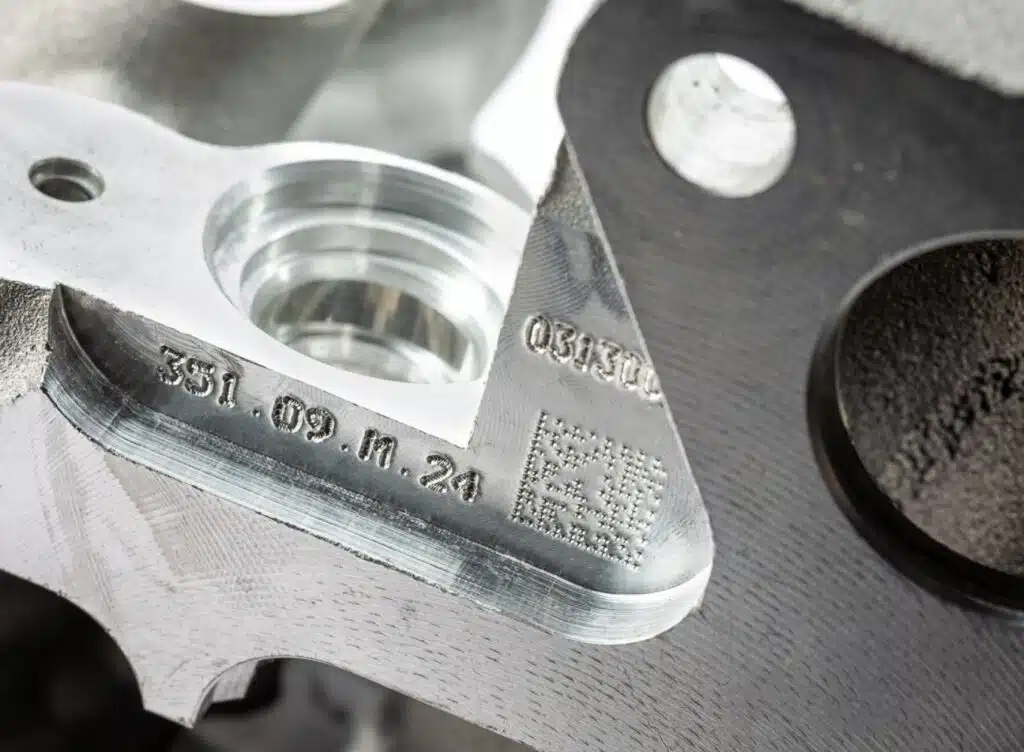

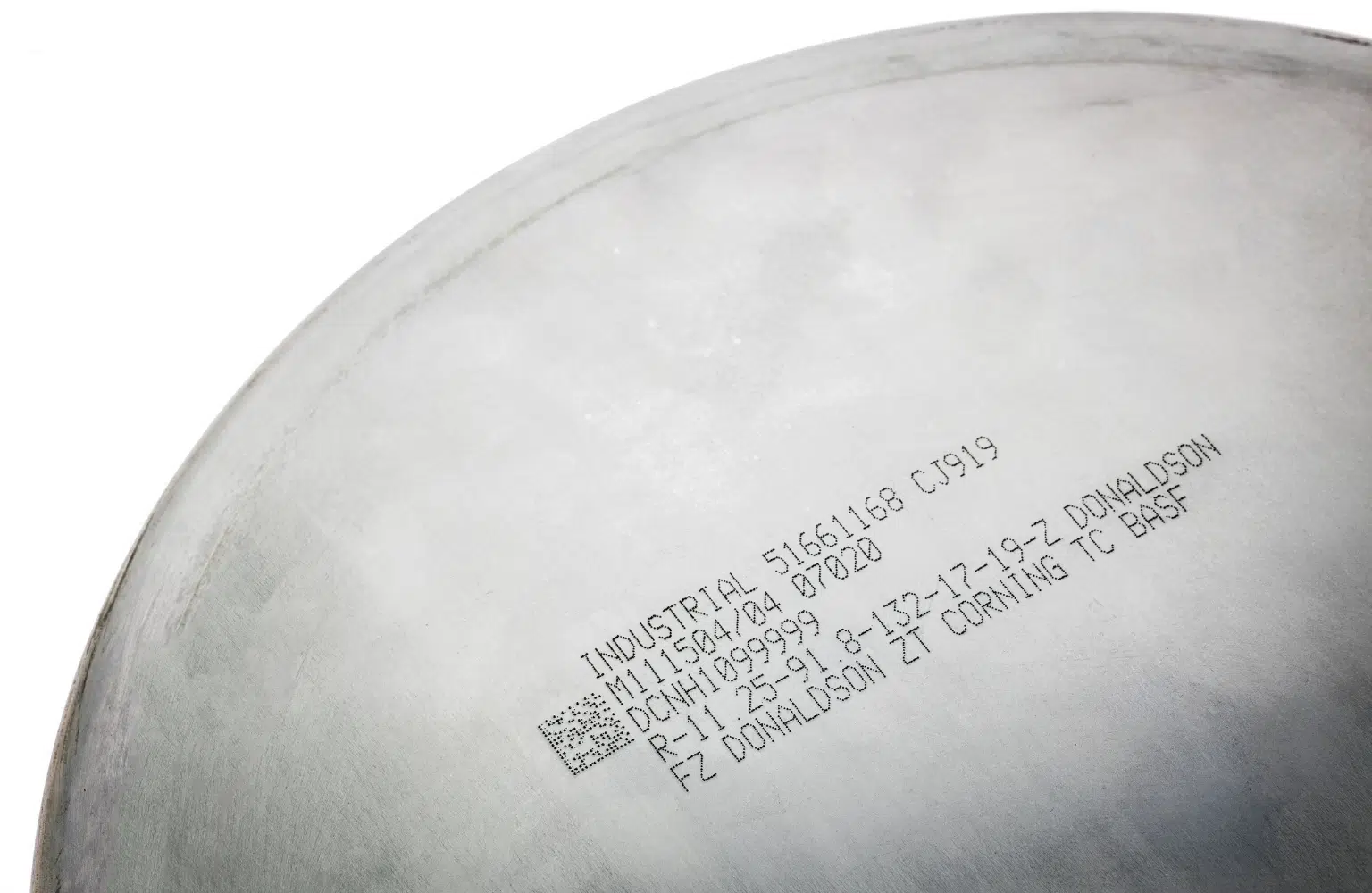

I 143 marking may be alphanumeric text, a logo, a 2D Datamatrix code or a QR Code.

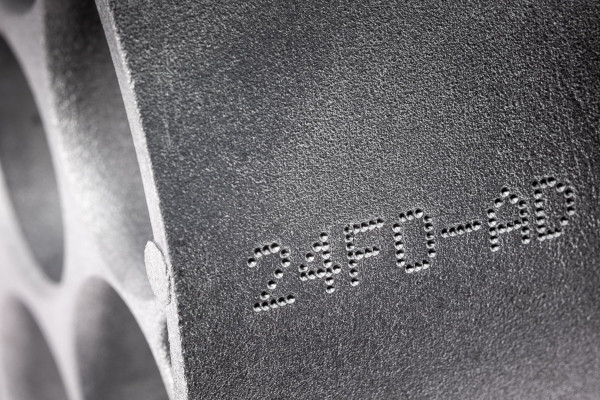

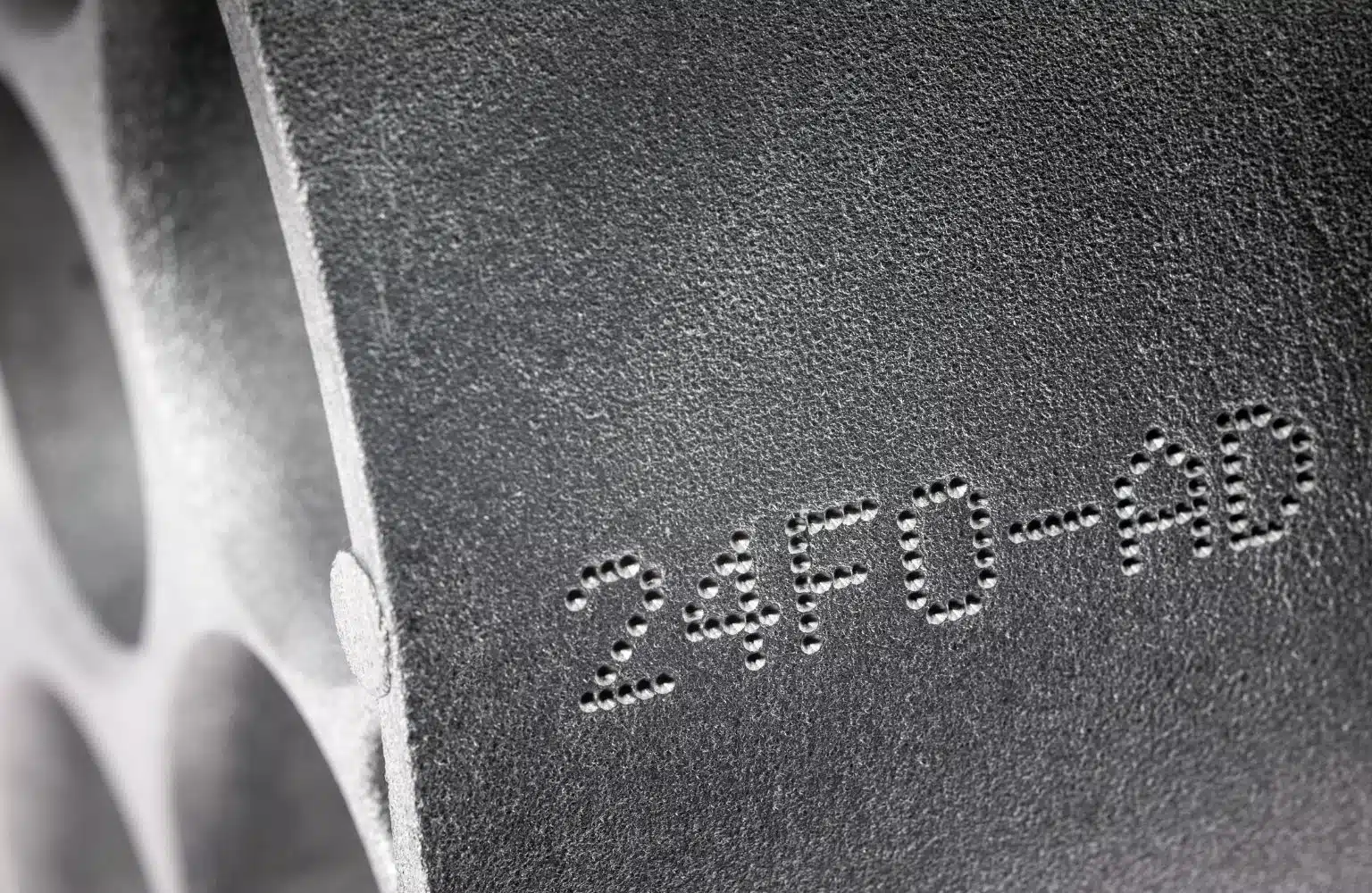

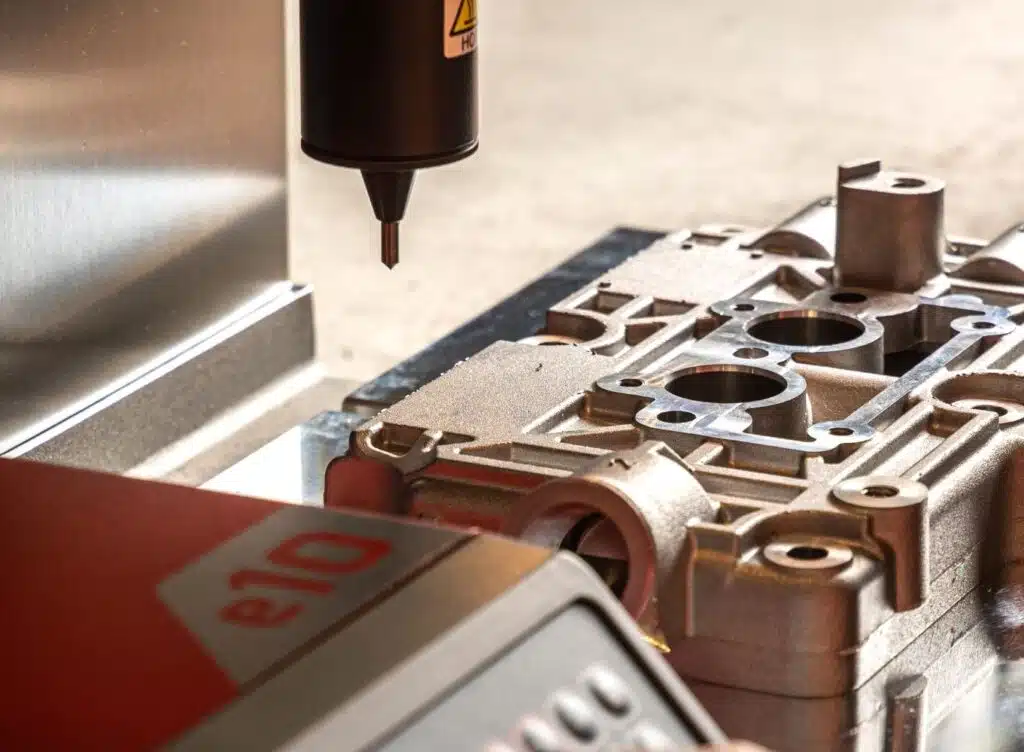

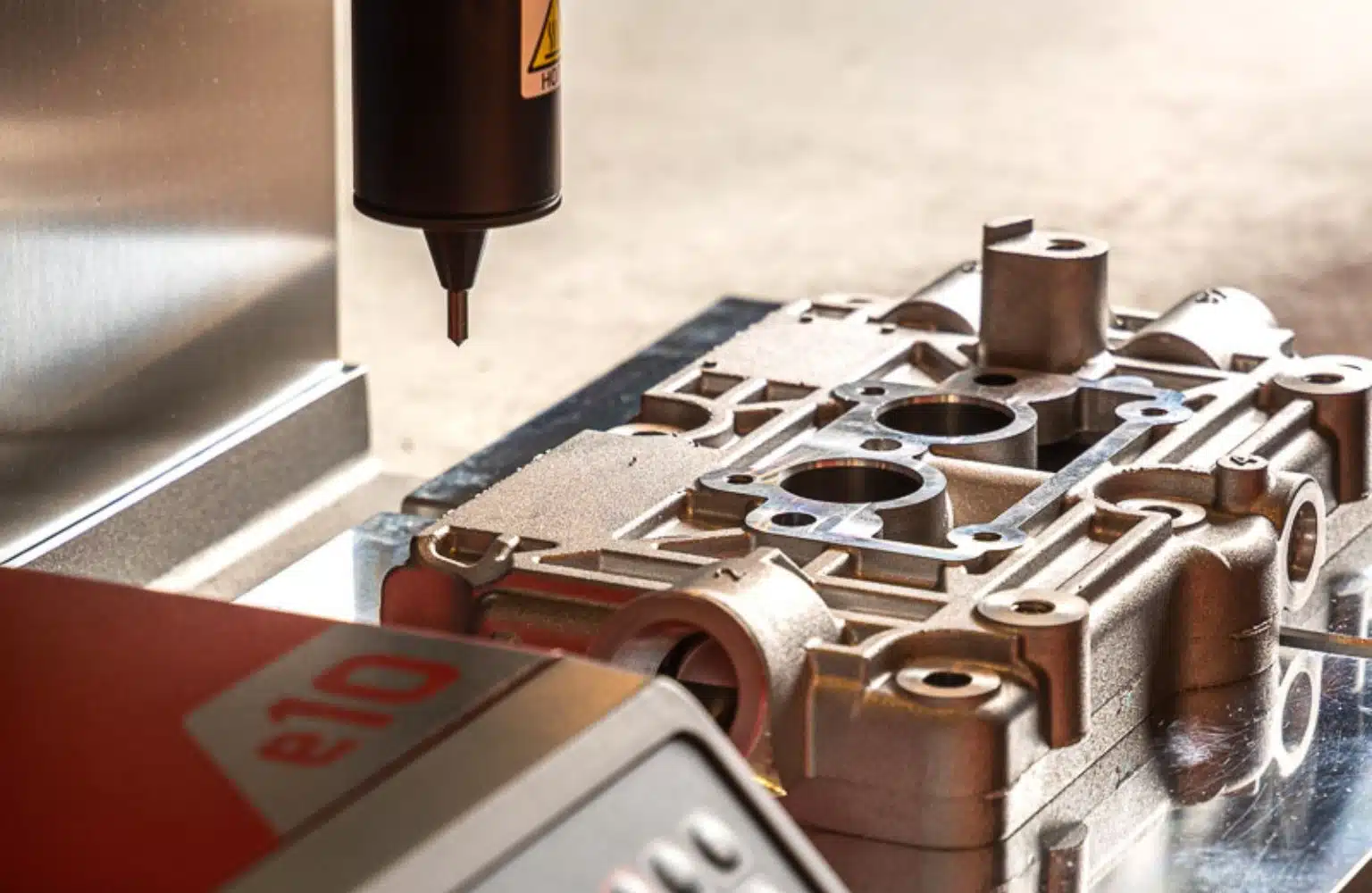

Dot peen technology provides reliable and permanent marking directly in the material, through a tungsten carbide stylus that strikes a series of dots at a very high rate.

Dot peen marking technology with electromagnetic control enables parts with various shapes and surface finishes to be marked: plane, concave, convex, circular, raw and machined surfaces.
It only needs an electrical power supply.

Marking window	150 x 100 mm
Dimensions	349 x 292 x 268 mm
Weight	12 kg
Connection cable	5 m to 15 m on option
Stylus	Tungsten carbide 60 mm (80 mm on option)
Protection bellows	Stainless steel
Automatic Z axis	Auto-sensing function on option

The barcode reader allows automatic and fast selection of the file and content to be marked, eliminating the possibility of input errors. It can read 1D and 2D codes, including QR and Datamatrix codes. It features a Bluetooth connection, ensuring wireless communication with the machine.

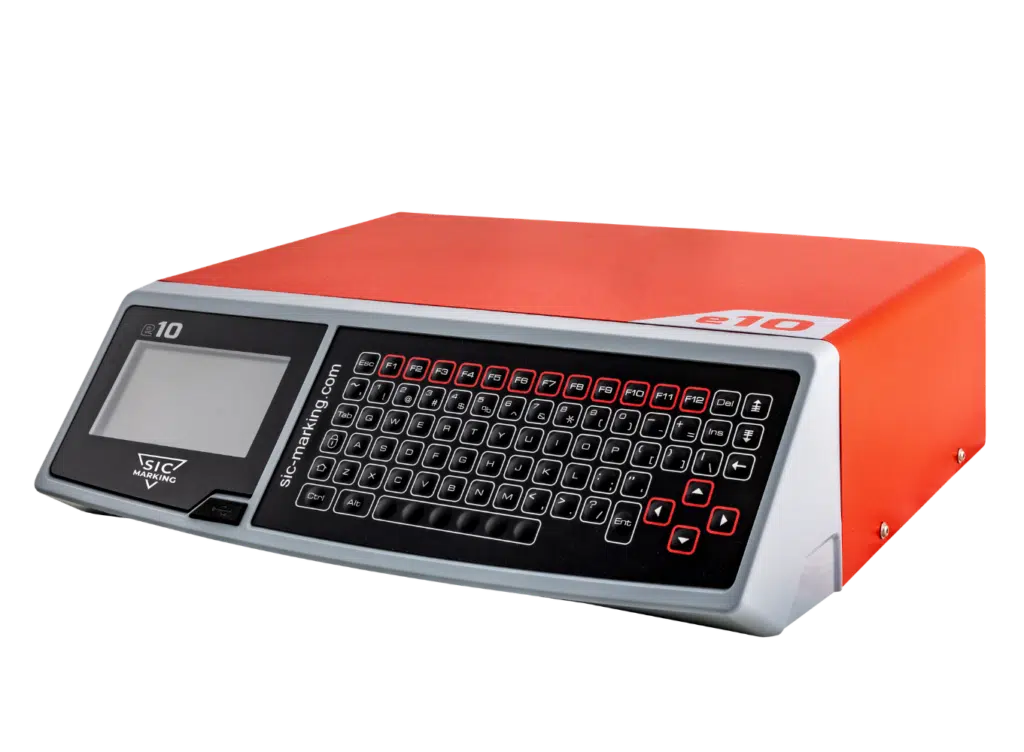

The e10 R controller allows ultra-fast startup and navigation thanks to a latest generation microcontroller. The e10 R has the same features as the e10, but it also allows direct integration on a chassis or in a vertical position. Thanks to an option, it can be integrated directly into a control cabinet (DIN rail mounting kit).

The maintenance kit is an essential accessory to ensure the durability and proper functioning of the machine. It includes all the consumables and parts needed to perform maintenance operations in complete autonomy, without having to call a technician.

Autosensing allows the machine to automatically adapt and position itself at different heights of parts. This function ensures perfect regularity of impact, regardless of the geometry of the part. It is generally associated with a third numerical axis (Z).

The digital Z-axis allows the marking head to access hard-to-reach areas or mark a part on several levels in the same cycle. This option is available in different approach strokes: 50, 100 and 250 mm.
