Our solutions > PRODUCTION LINE > integrated dot peen

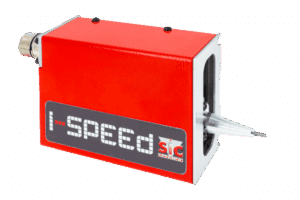

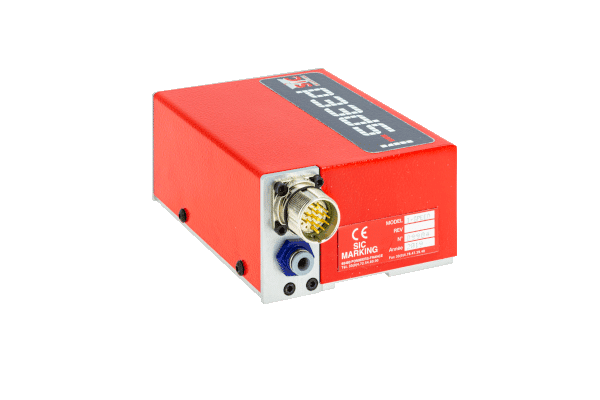

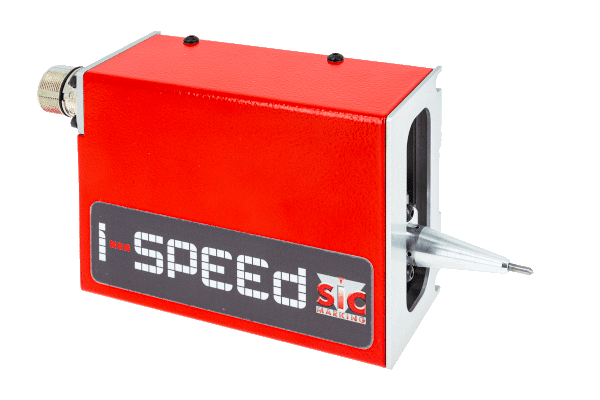

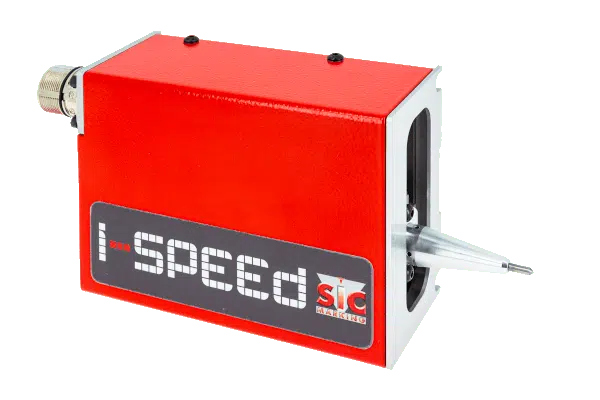

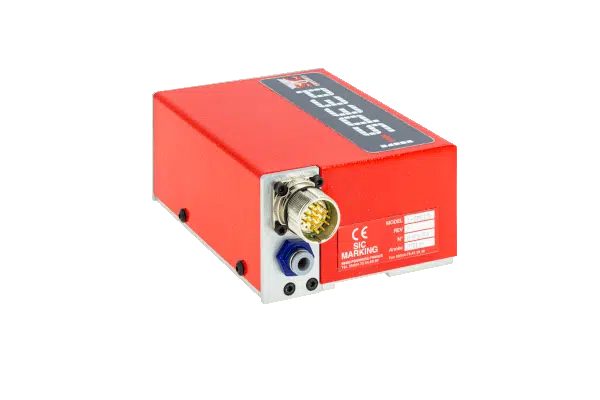

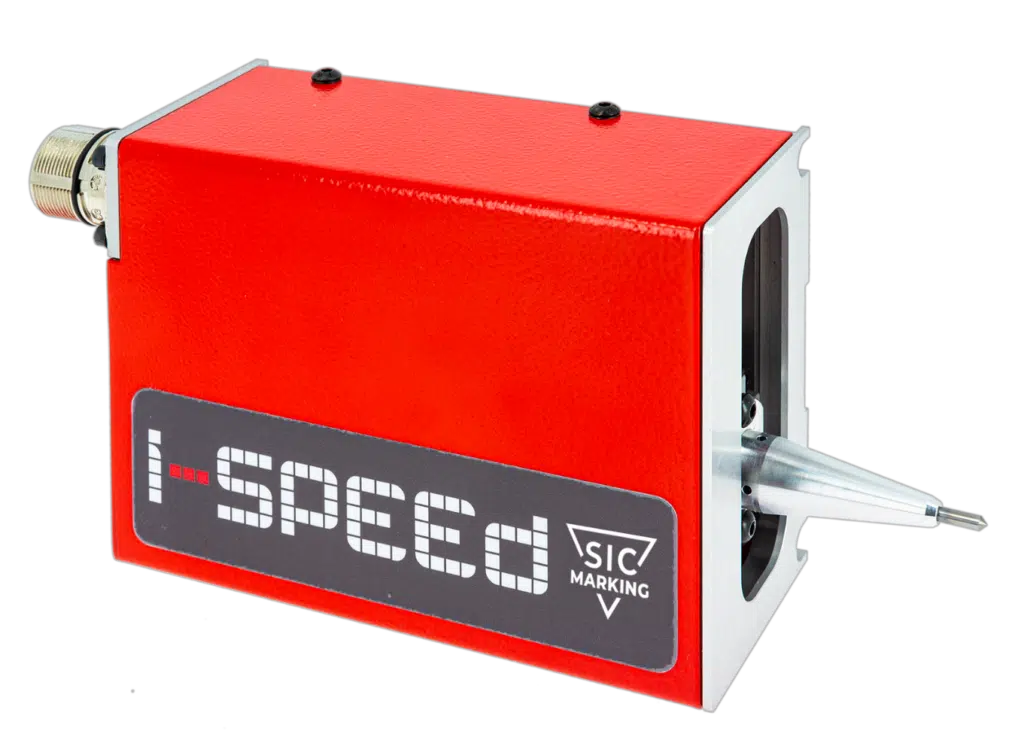

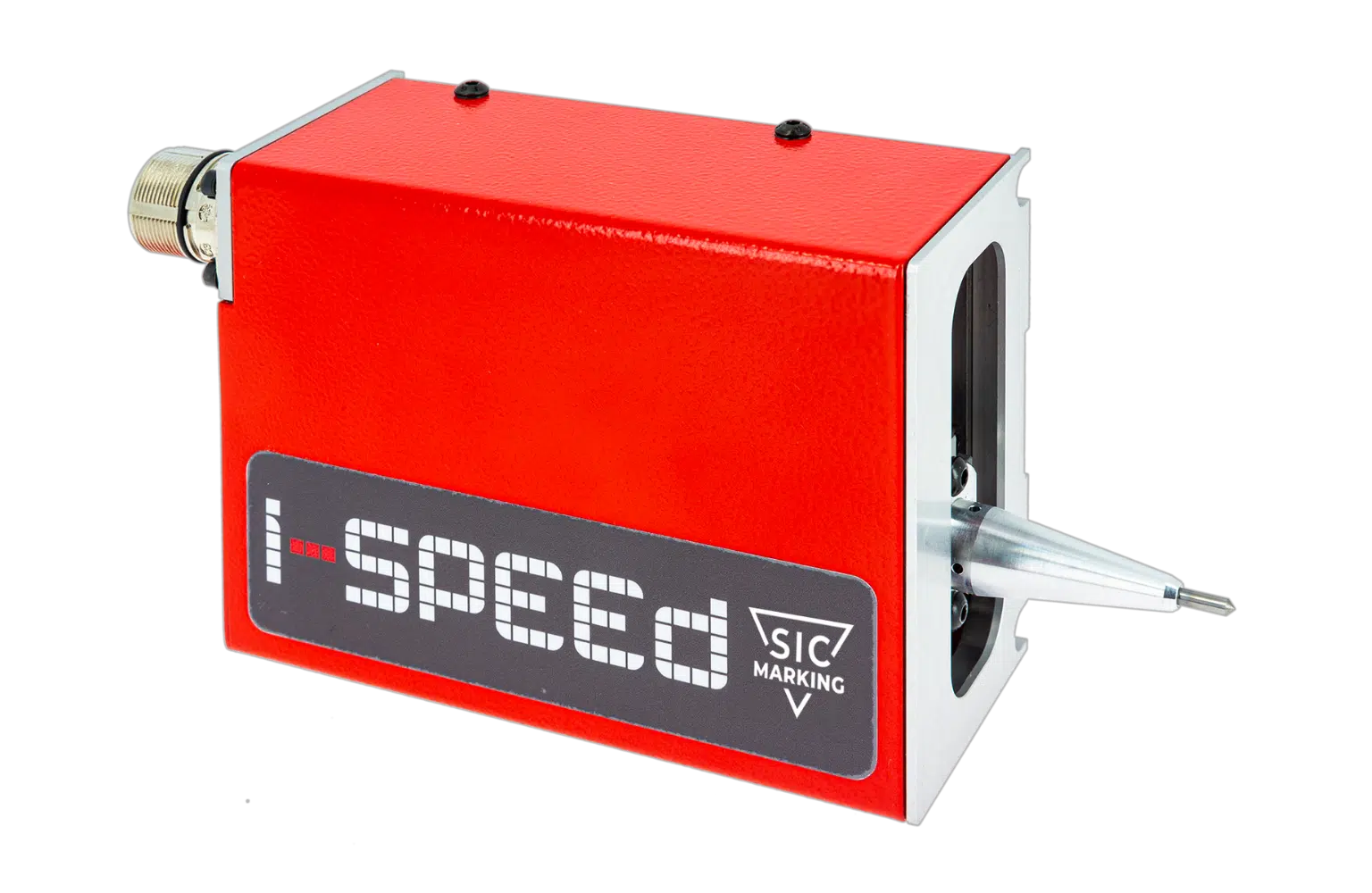

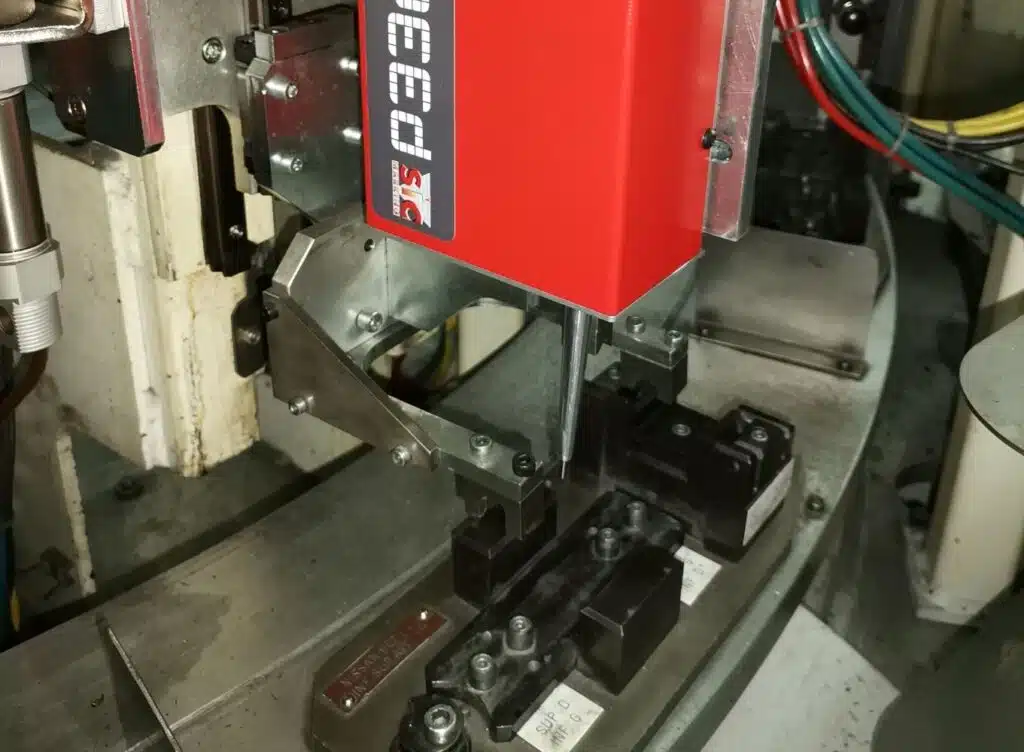

The I-SPEED is a PNEUMATIC DOT PEEN MARKING MACHINE THAT CAN BE INTEGRATED INTO A PRODUCTION LINE.
Â
It uses CONTINUOUS VIBRATION TECHNOLOGY.

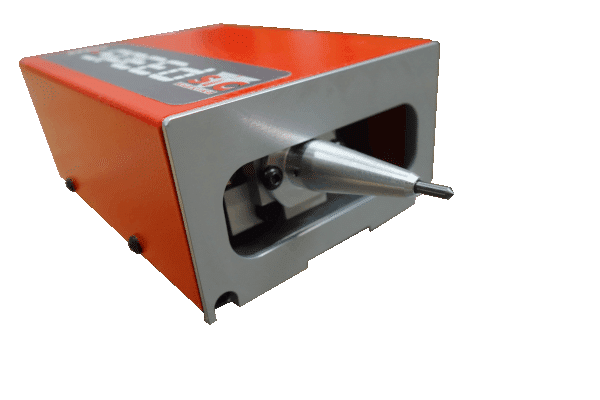

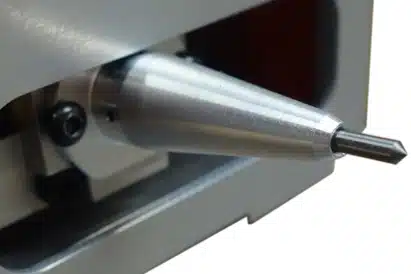

This is a variant of dot peening in which a pneumatic punch vibrates while being moved, which gives very fast continuous marking.
The pneumatic striker is ideal for simple marking at high rates.
Â

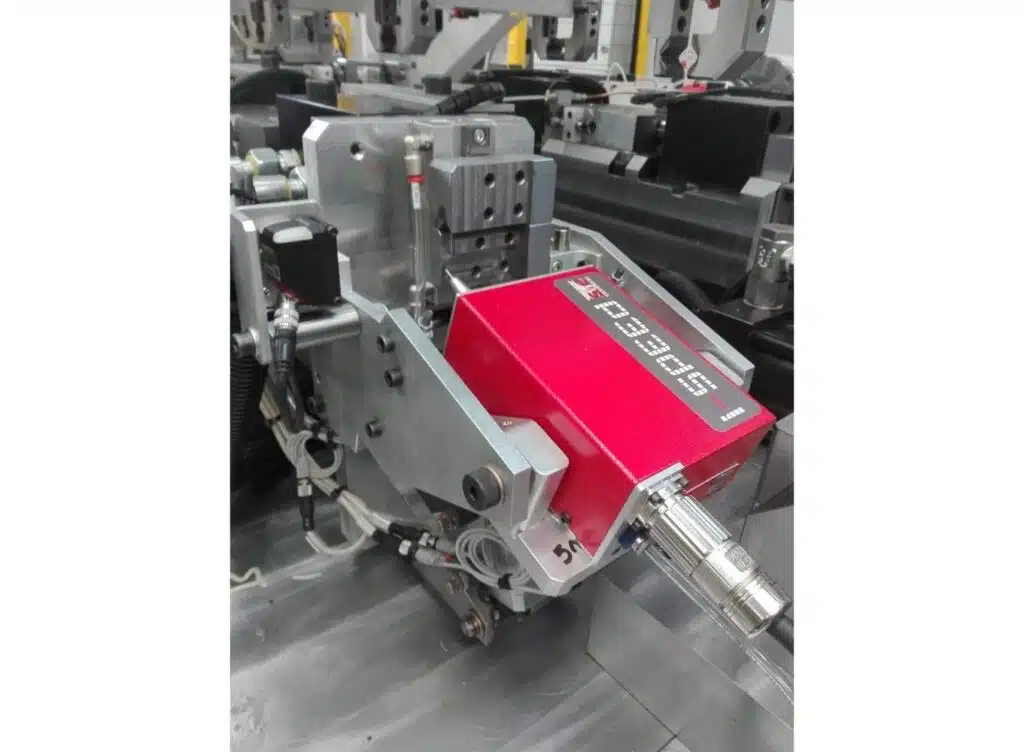

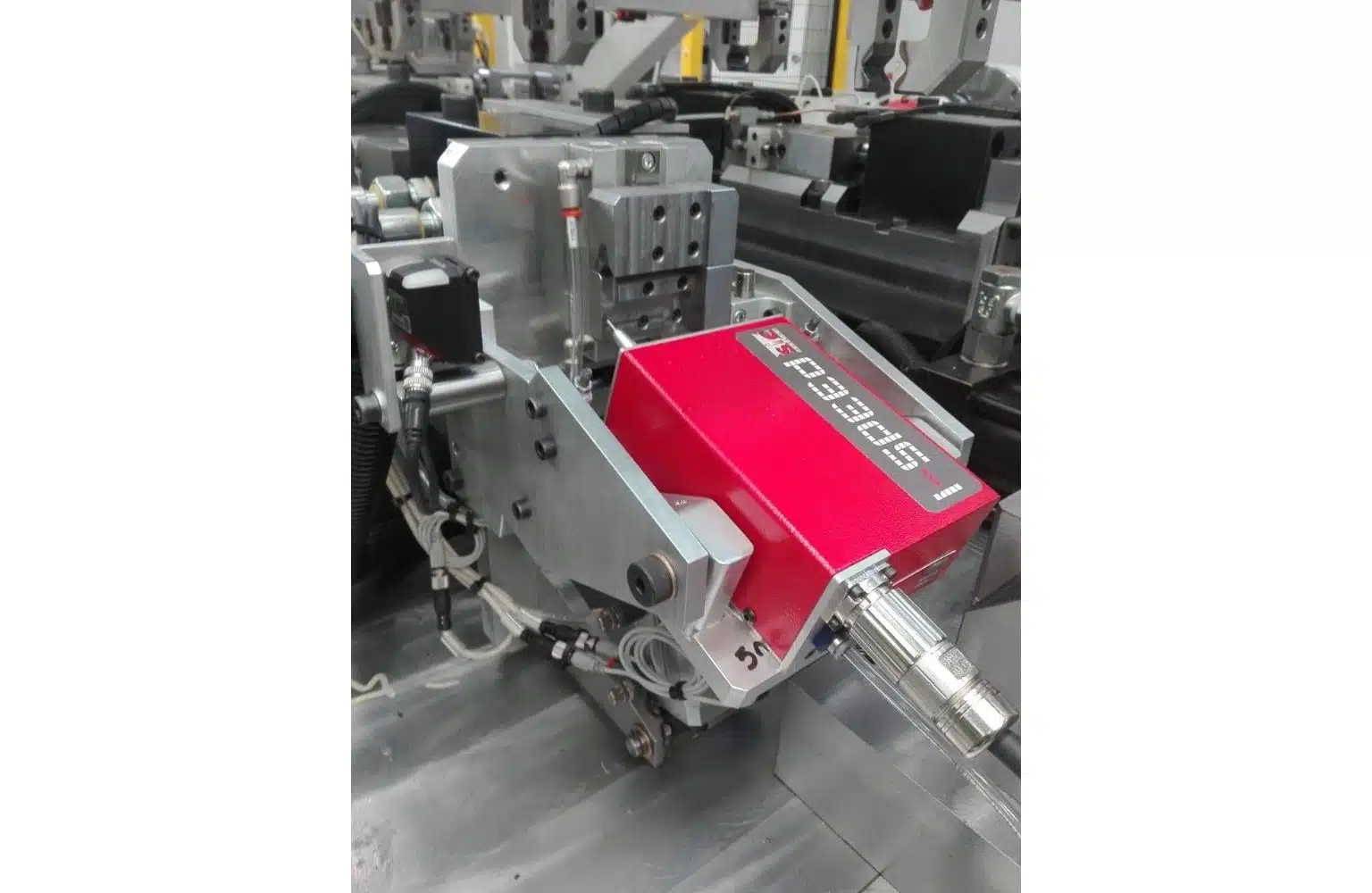

The I-SPEED is perfectly compatible with very high-rate production lines and is capable of marking UP TO 10 CHARACTERS per second.
Â

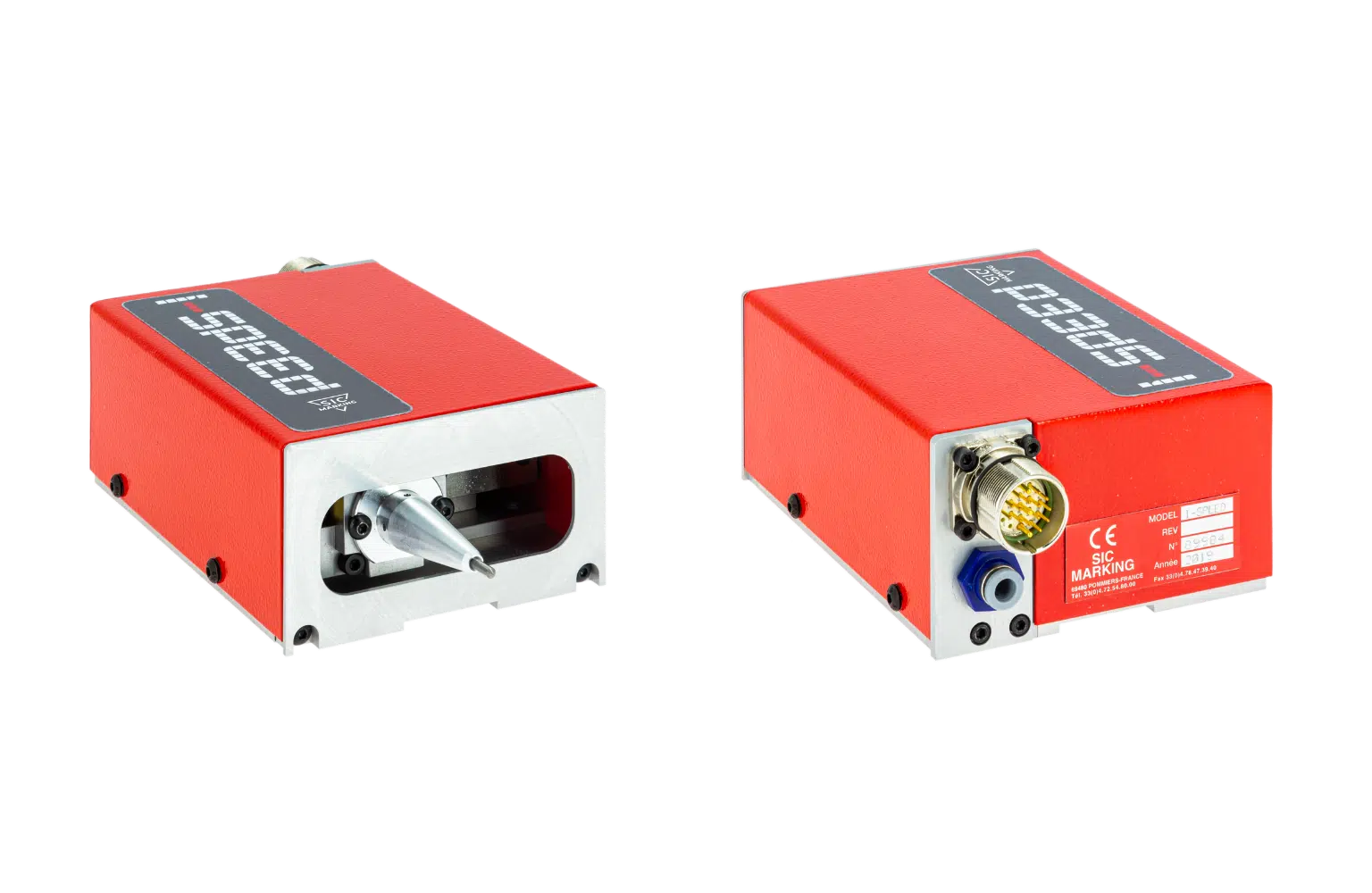

In addition, its SMALL SIZE (218 x 107 x 62 mm) makes it easy to incorporate in a production line.
These specifications make the I-SPEED one of the fastest and most compact integrable machines on the market.
Â
The E10 R controller is compact and is ideal for the integrable range. It has a Qwerty keyboard covered by a waterproof membrane, and a backlit LCD screen that provides the user with a simple and intuitive interface.
Marking files can be uploaded/downloaded to/from the controller, to/from a PC, using a USB memory stick.
Â

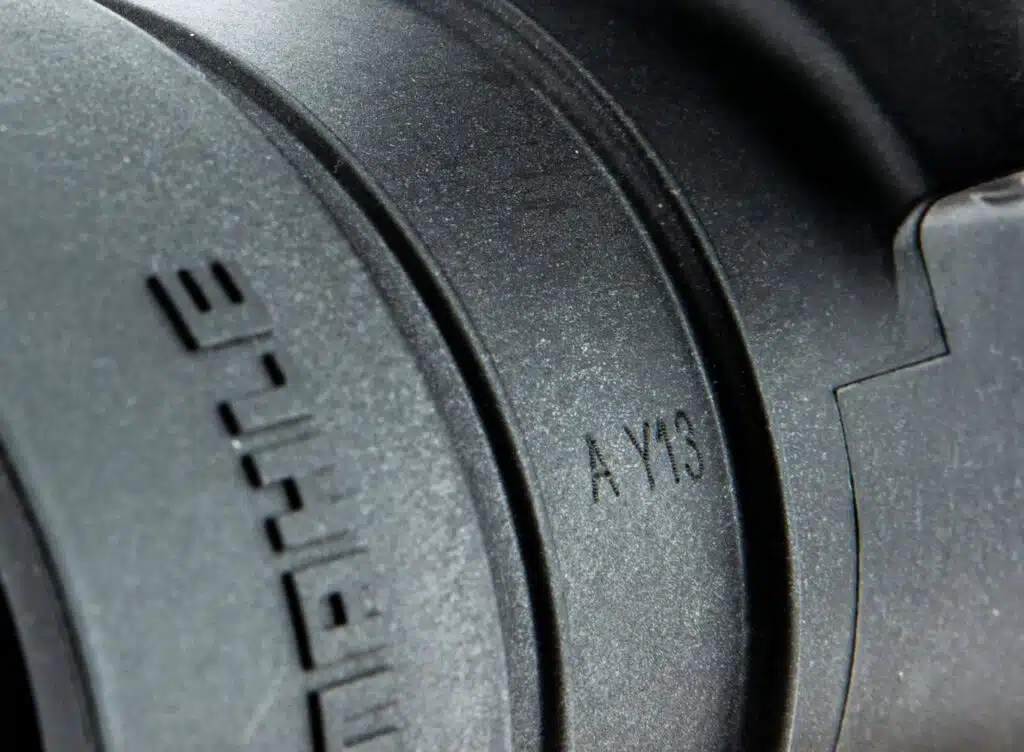

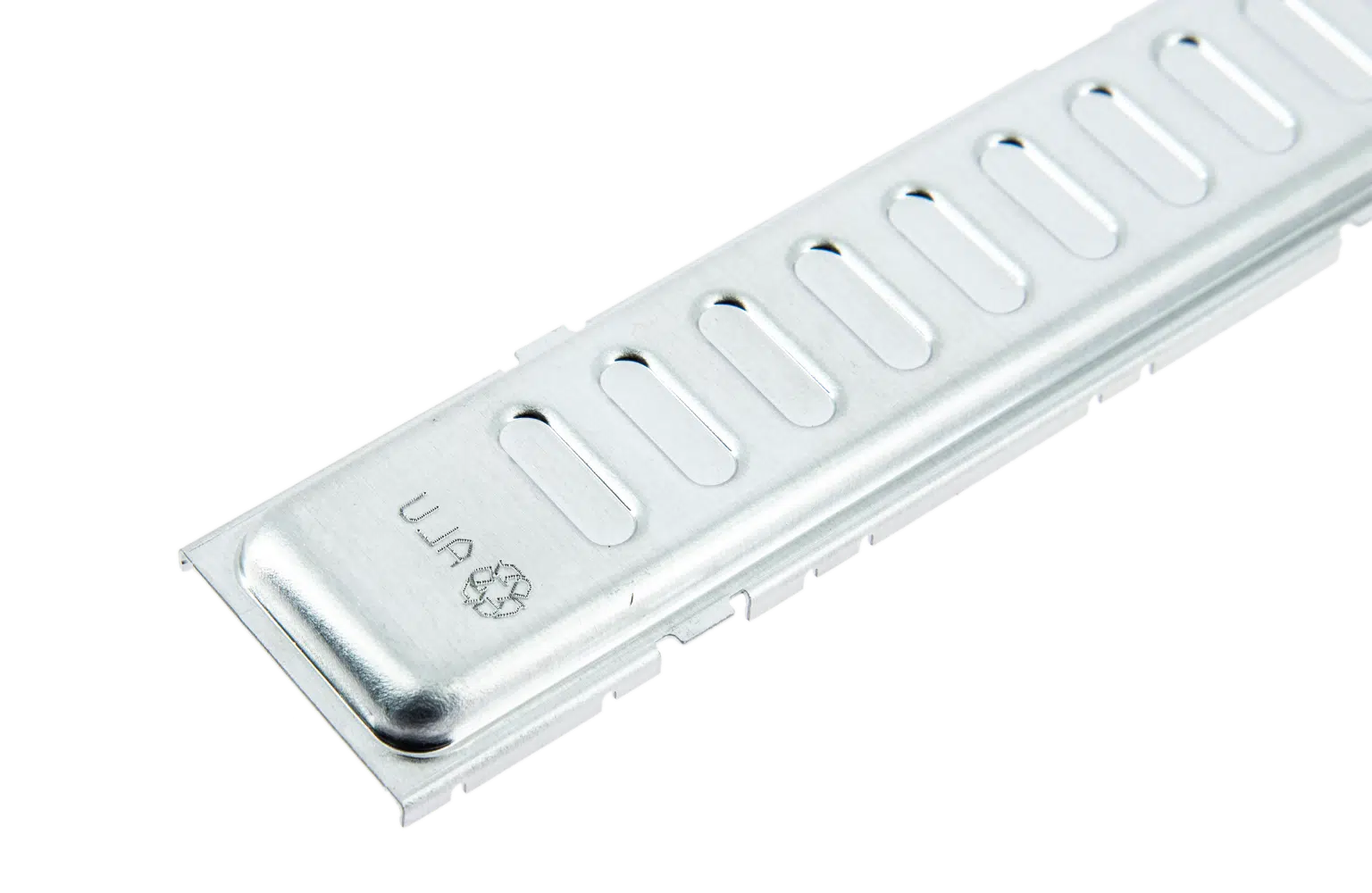

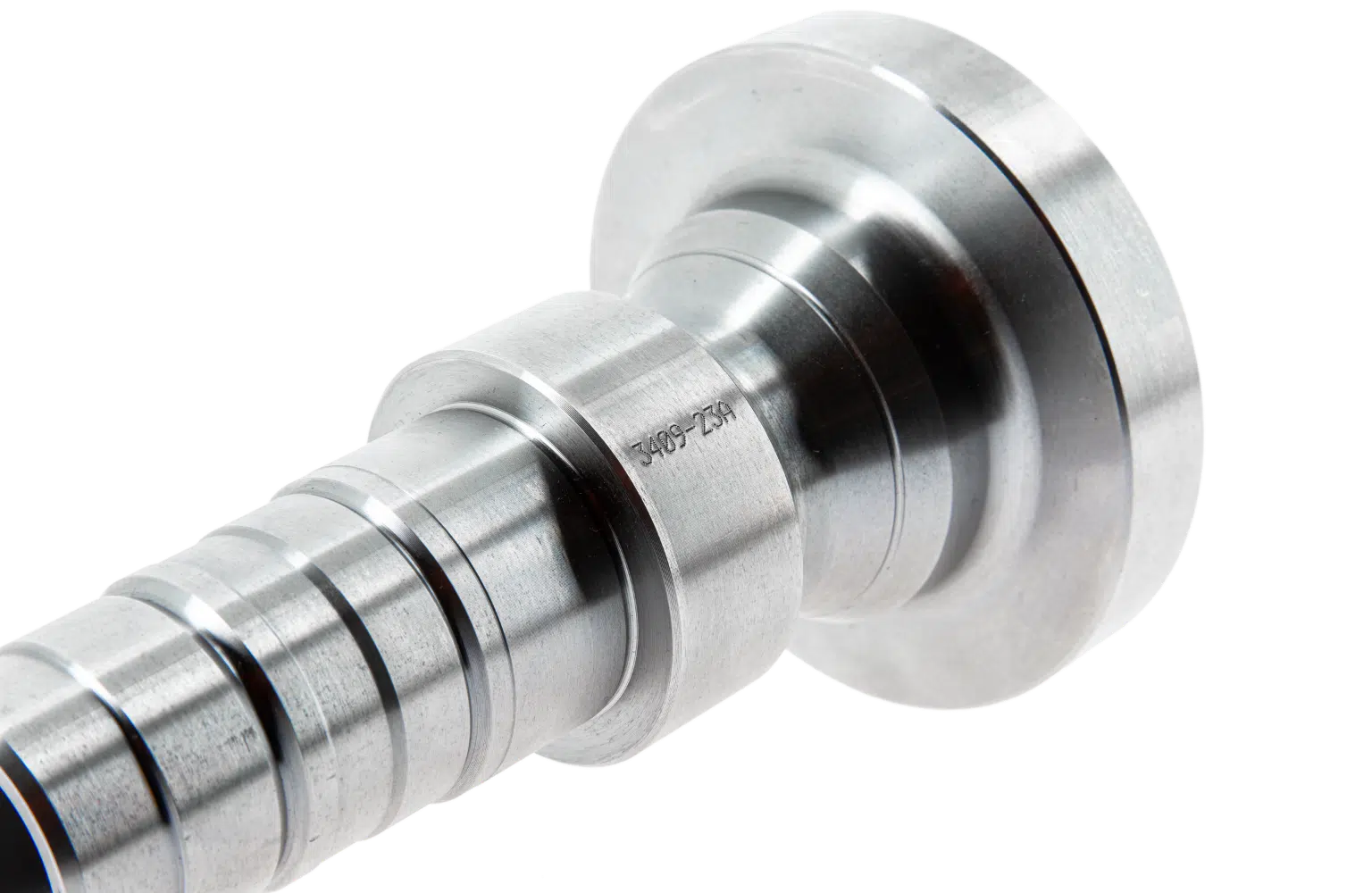

The I-SPEED provides very fast marking on all types of material, from plastic to treated steel with hardness up to 62 HRC.
It is easy to use and can mark parts of various shapes and different surface conditions.
Â
Â
Â
Â
The I-SPEED is perfectly compatible with high rate production lines and can mark up to 10 characters per second.
50 x 20Â mm
218 x 107 x 62Â mm
1.7Â kg
5 or 10 m
Carbide 60 mm
112 x 380 x 222 mm or 140 x 380 x 222 mm with DIN rail kit (option)
5Â kg
95 x 54Â mm
Qwerty with waterproof membrane
300Â W
Single phase, 85 to 260 V AC, 50-60Hz
2 (3rd and 4th on option)
More than 2000
7110 KB
Serial numbering, date/time tags
Creation from the PC software
Up to 348 characters, 48 x 48 cells
Arial, Courier, OCR and OCRA
Angular, Radial, Inverted and Mirror
Up to 5 characters per second
From 0.1 mm to 99 mm
9 levels
Up to 0.5Â mm
Up to 8Â mm
Maximum 10
3 security levels
Password protected
Self-Diagnostic component
17
RS232, RS422, USBx2, RS485, Profibus and Ethernet on option
16
USB
5V-0.5A and 24V-0.5A
Creation and transfer software
PC software or USB memory stick
Option
PRESSURE RELIEF VALVE
The pressure relief valve allows the machine air supply pressure to be adjusted in order to find the ideal setting.
Â
The benefit:
Â
It facilitates the setting up of the machine
E10 R CONTROLLER
The E10 R controller provides a very fast startup and navigation, through a latest generation micro-controller.
Â
The E10 R offers the same functions as the E10.
In addition, it can be directly integrated on a chassis or mounted in the vertical position.
Â
With the DIN rail mounting kit it can be integrated directly in an electrical cabinet.
Â
The benefits:
Â
Â
– Connections facing upwards
– Connections downwards simply by turning the cover over.
Â
COMMUNICATION BOARDS
SIC Marking laser marking machines can be connected to an industry network.
Â
Our systems come equipped with many connection possibilities (digital I/O, Ethernet TCP/IP, RS232), and they also offer many possibilities for dialogue with all the elements of their environment.
Our machines can very easily be integrated and interfaced in all production lines that use Profinet, Profibus or Ethernet IP field buses, through optional communication boards and simple software solutions.
Â
The benefits:
Â
This solution allows fast integration into an automatic systems structure based on standard industrial networks.
