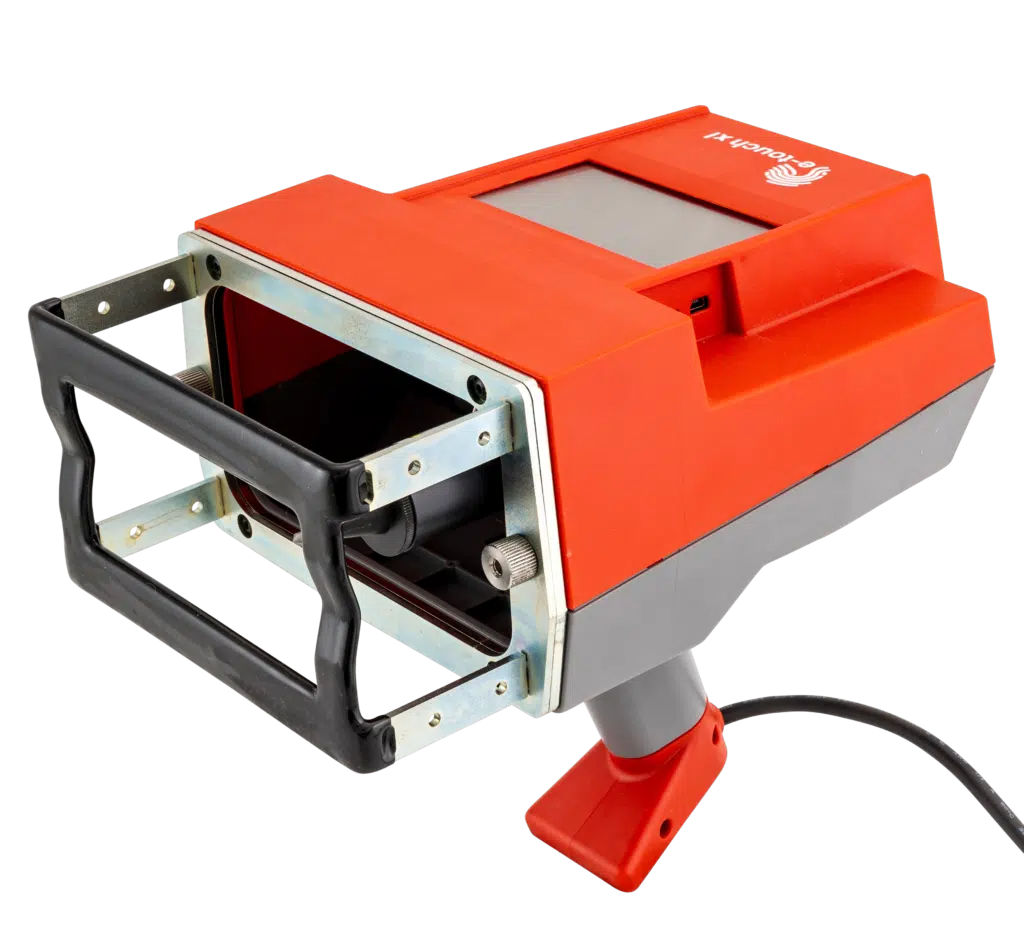

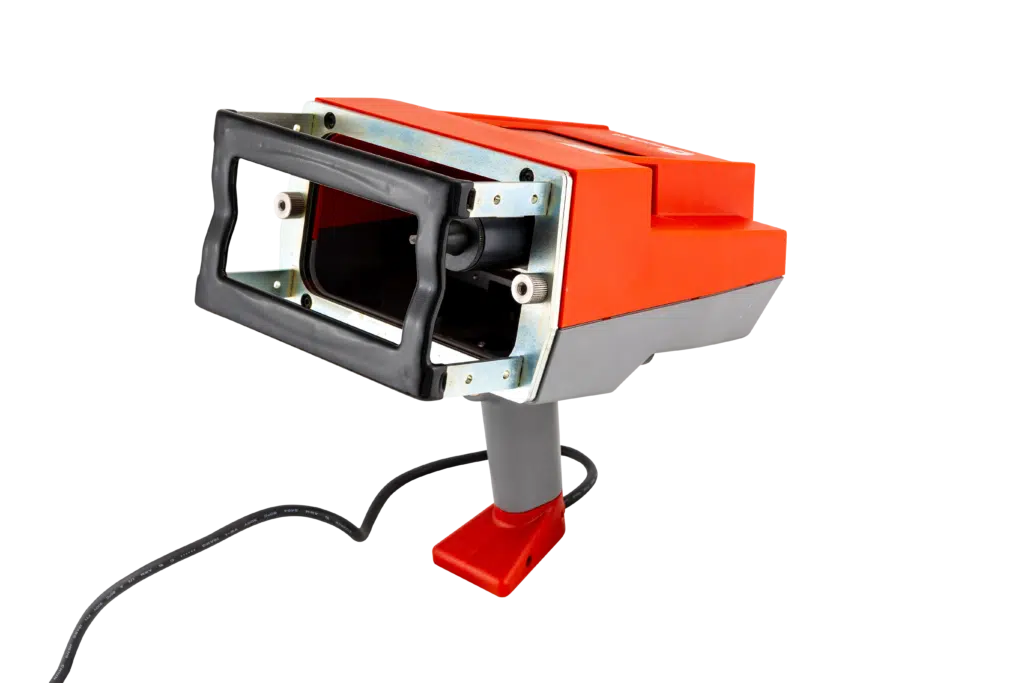

The E-TOUCH XL is a cordless portable touch screen marking machine with A VERY LARGE MARKING WINDOW: 120 x 50 mm.
It is robust, compact and light.

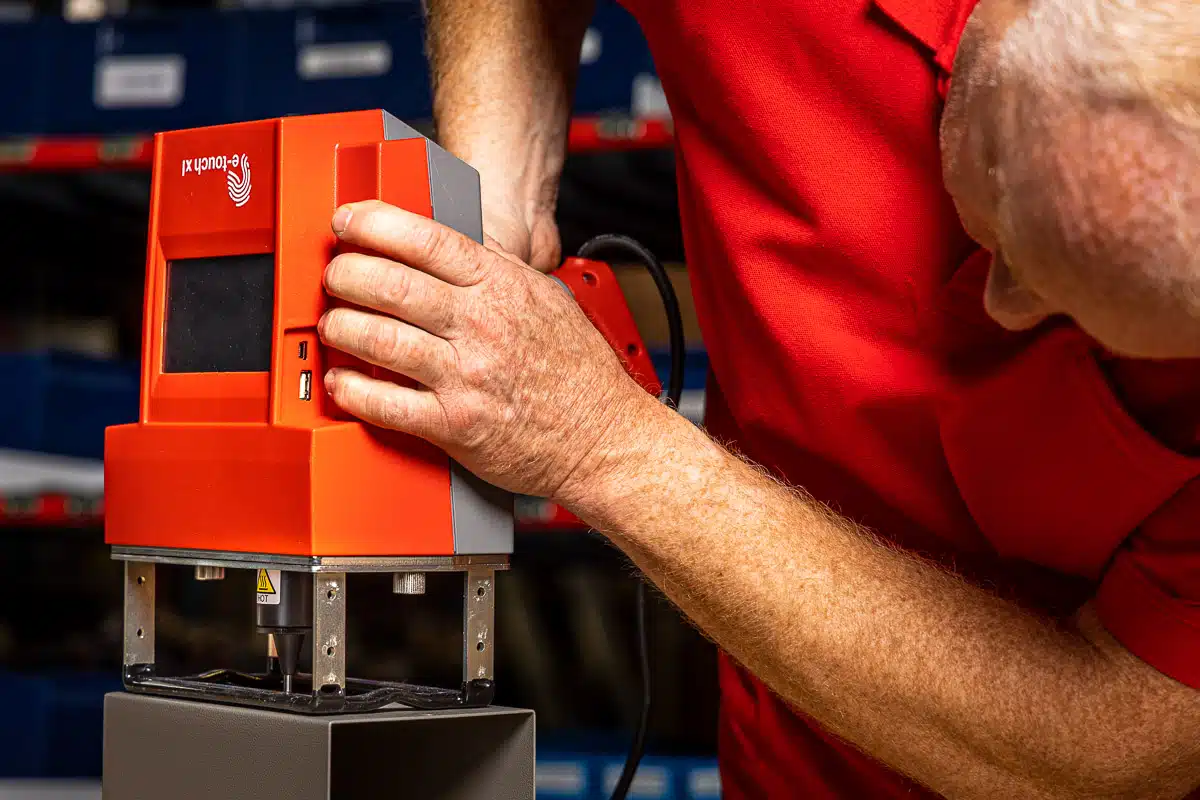

It has 3 CONTACT FACES that allow it to be set up in various marking configurations (piece shapes and marking conditions).
The E-TOUCH XL WEIGHS LESS THAN 3 kg and has a large marking window. It can mark HEAVY OR BULKY PARTS while also being mobile.
Nevertheless, its internal metal structure makes it very robust.
In addition, an ergonomic handle and excellent mass balancing make it VERY EASY TO HANDLE.
The shape of the E-TOUCH XL allows programming with both hands.

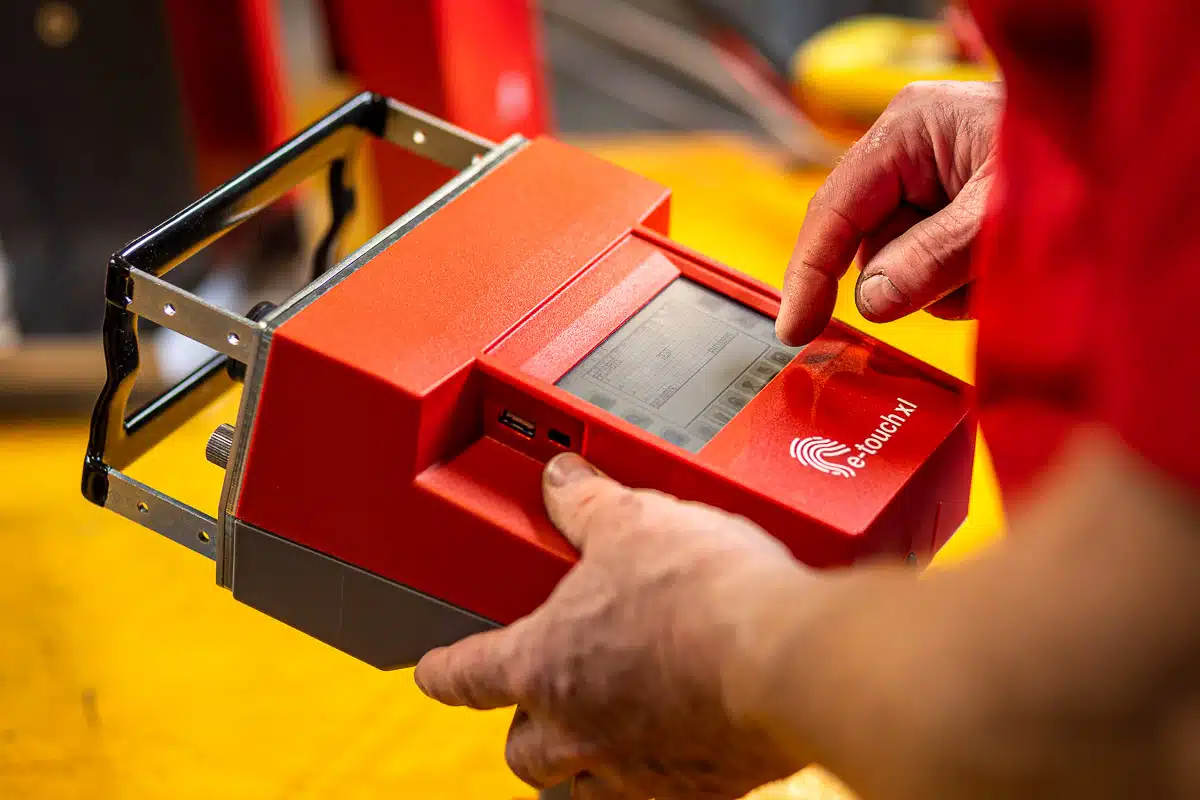

The TOUCH SCREEN is usable with or without gloves, which makes it particularly suitable for use in an industrial environment.
Its full-size viewing window allows the MARKING TO BE PREVIEWED exactly as it will be applied on the piece.
The E-TOUCH XL portable touch screen marking machine uses DOT PEEN TECHNOLOGY to mark industrial parts. The marking may be alphanumeric text, a logo, a 2D Datamatrix code or a QR Code.
The dot peen technology provides RELIABLE AND PERMANENT MARKING directly in the material, through a tungsten carbide stylus that strikes a series of dots at a very high rate.
The E-TOUCH XL has an INTEGRAL E1 CONTROLLER.
The control software allows the controller to programme all the marking parameters through the screen-keyboard interface.
Programming is also possible from a PC.
120 x 50Â mm
272 x 194 x 251Â mm
2.6Â kg
5Â m
Carbide
95 x 54Â mm
Touch
Up to 20,000 files
100 MB
Alphanumeric, serial numbering, date/time tags, barcode
Loading from USB memory stick
Courier, 4×6, OCR-Bold, OCRA and OCR
Linear, radial, angular, DataMatrix, logo
Up to 2.5 characters per second
Minimum 1 mm
1 – 9
Up to 0.3 mm
0.05Â mm
9Â mm
USB and Coax.
1D/2D BLUETOOTH BARCODE READER
The 1D/2D barcode reader is used to select marking files and also to enter variable data.
There is a choice of two readers; one only reads 1D codes and the other is multi-function for 1D and 2D codes, capable of reading printing on paper or labels.
The code’s content is entered in the marking file as a variable.
The text read can be marked in full or divided into several parts.
This option ensures a high level of security.
No risk of error due to manual entry.
The data read can be displayed on the SIC controller screen.
The various codes read are Codabar, Code 25 industrial, Code 25 interlaced, Code matrix 25, Code 25 standard, Code 39, Code 93, Code 128, Code EAN-8, Code EAN-13, Code UPC-E, Code MSI and Code 11.
The benefits:
ATTACHMENT RING + BALANCER
The balancer allows the marking head to be perfectly balanced in all positions.
Its stroke is 2000 mm and its capacity is 3 to 5 kg.
The benefits:
COLUMN BASE FOR PORTABLE MARKING SYSTEM
The column base allows a portable marking system to be used as a marking station.
The benefits:
