Portable cordless Dot Peen machine
E-MARK EVO

High performance. Portable. Built to last.

A portable all-in-one solution
Autonomous and mobile
Robust and compact

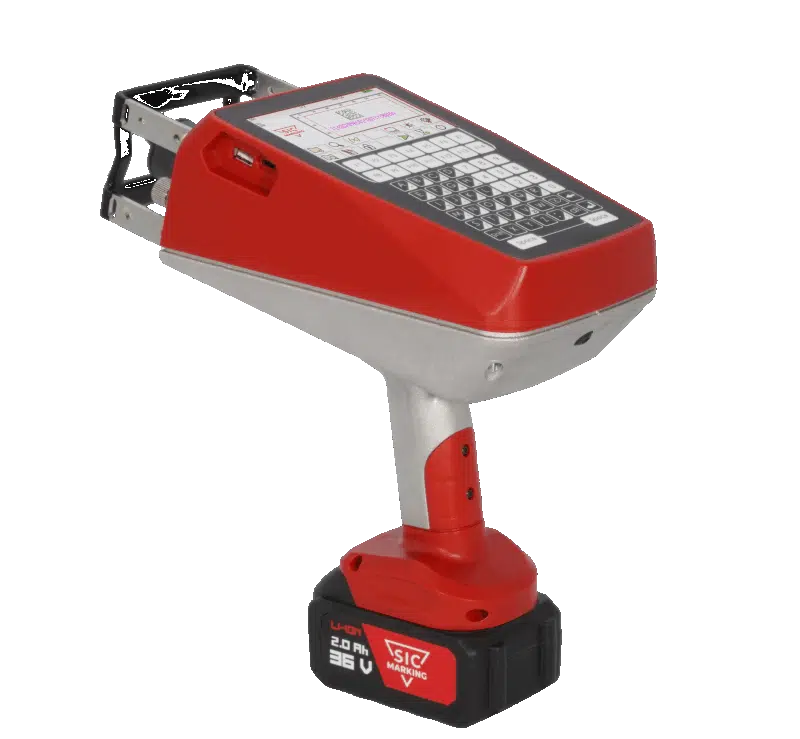

pistolet de marquage à micro-percussion E mark EVO
Description

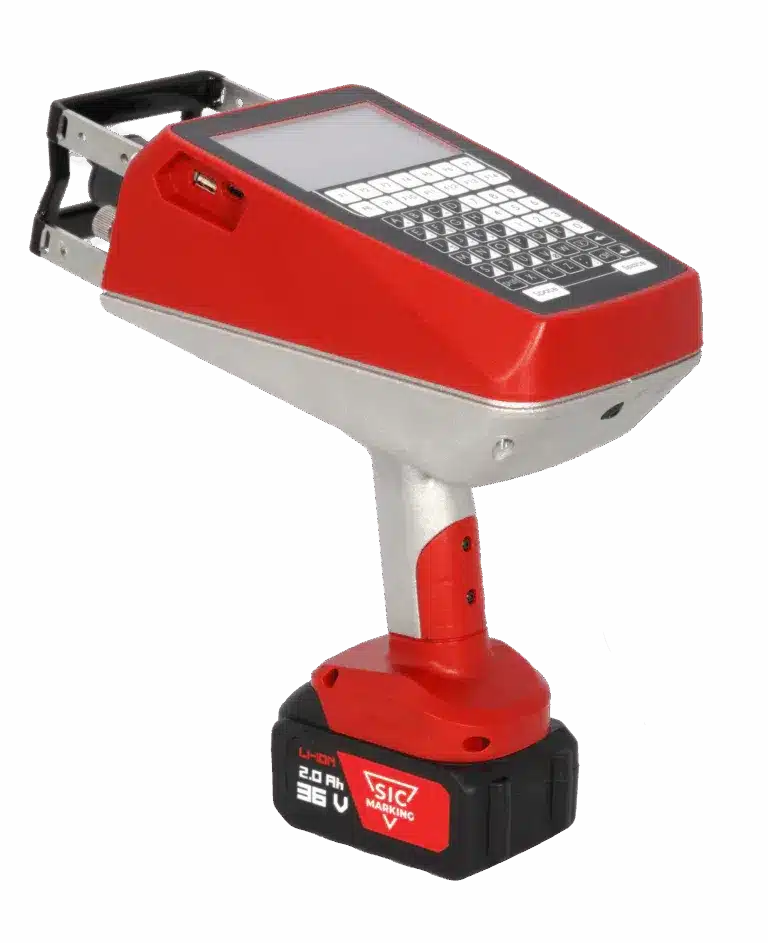

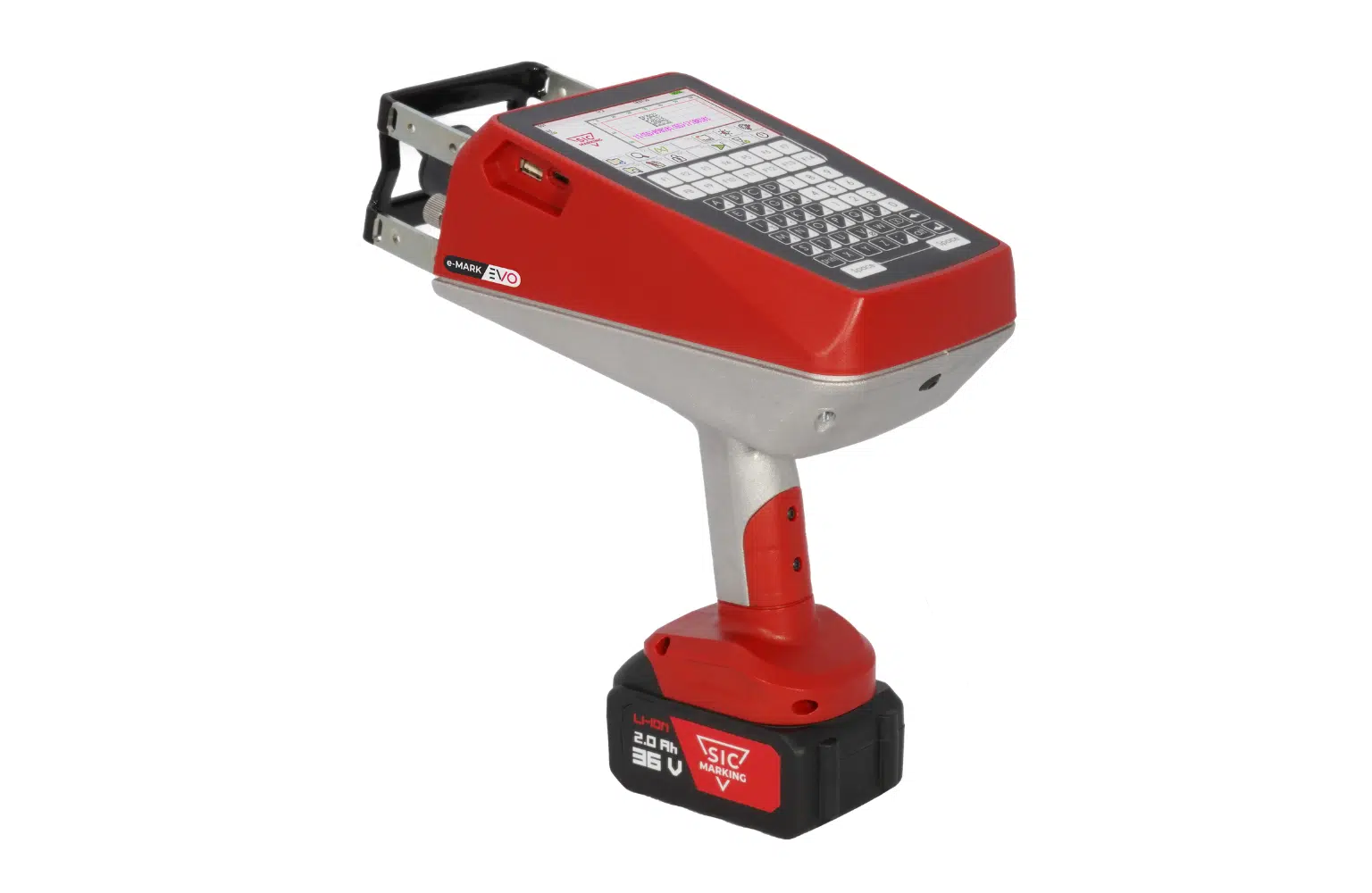

The E-MARK EVO is a portable, cordless, all-in-one dot peen marking machine capable of marking all types of materials, from plastic to treated steel, up to 62 HRC.



The E-MARK EVO marking gun has a 36V Li-Ion battery offering up to 3 hours of battery life, and comes with two batteries, a storage case, and a fast charger, allowing for continuous work.



This portable marking machine has three interchangeable face plates, adapting to all industrial environments.

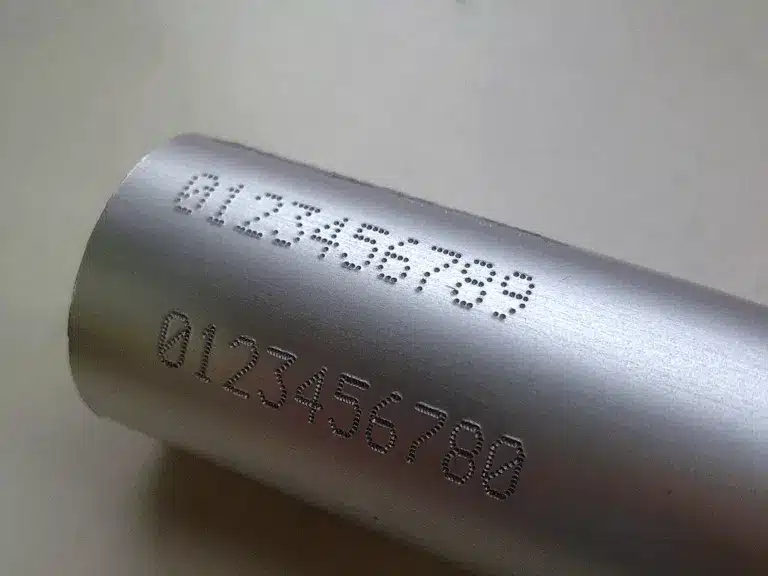

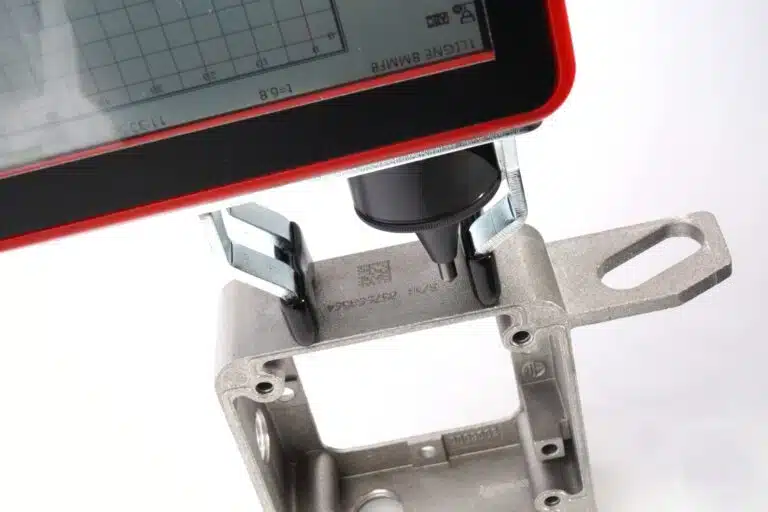

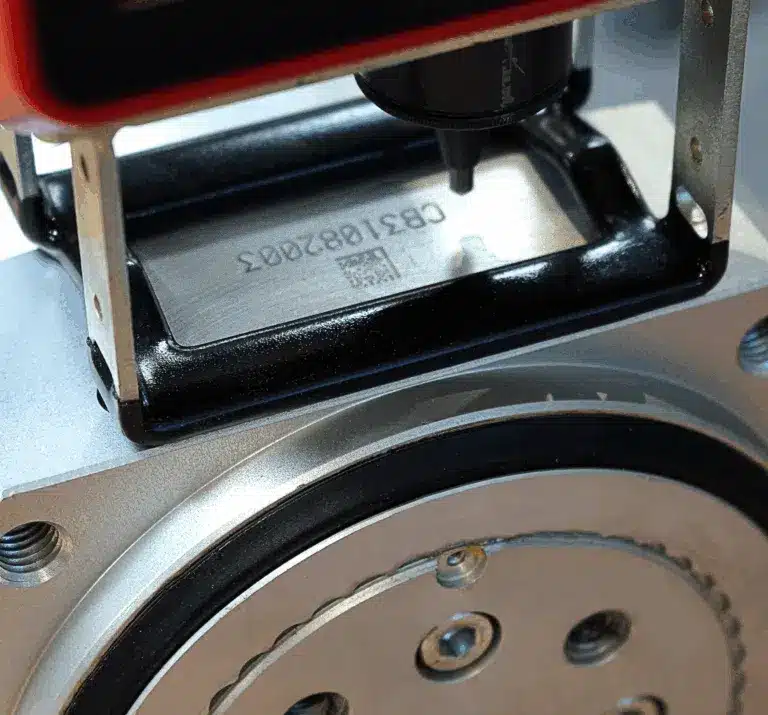

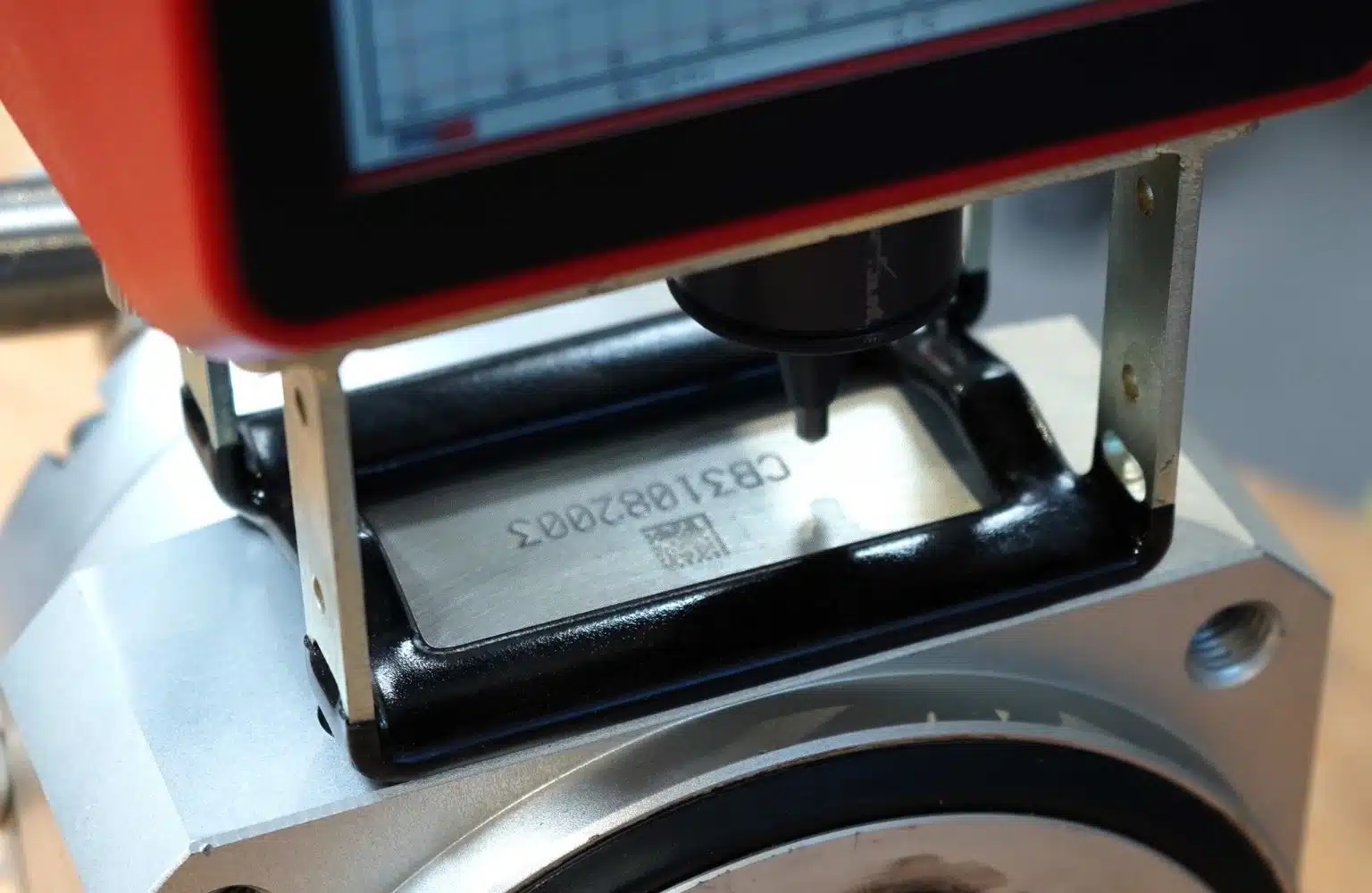

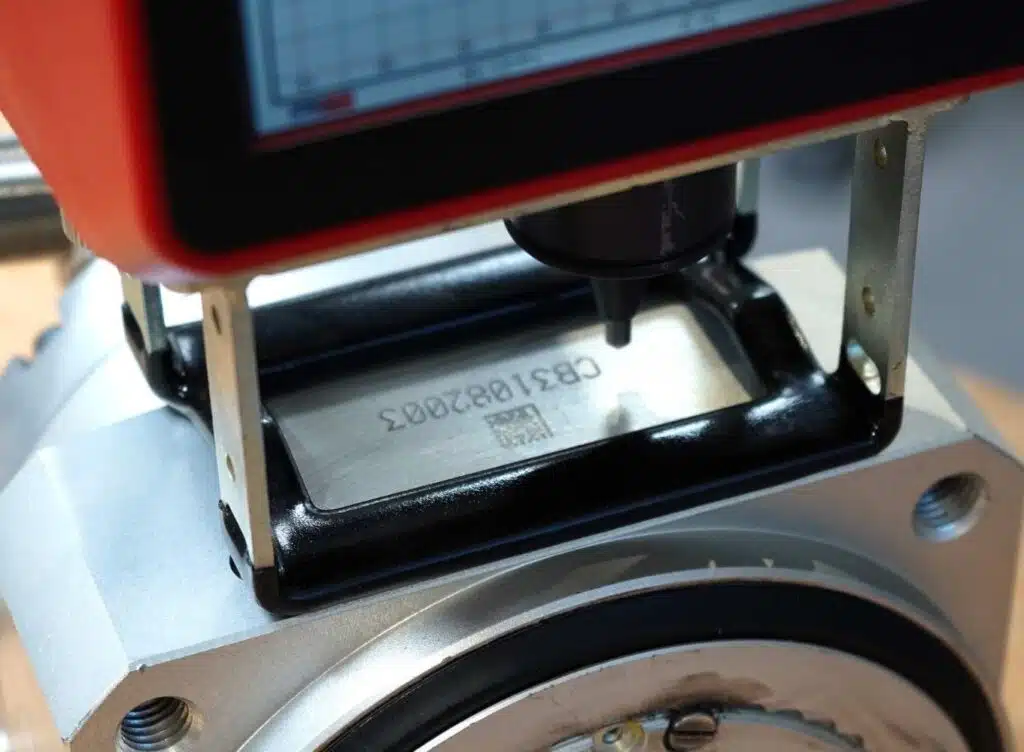

Thanks to its micro-percussion technology and tungsten carbide stylus, it guarantees durable and unalterable marking of your text, logos, and 2D Datamatrix codes. In addition, its booster option allows for even deeper and more visible marking after painting or surface treatment.

machine de marquage à micro-percussion portable e-MARK

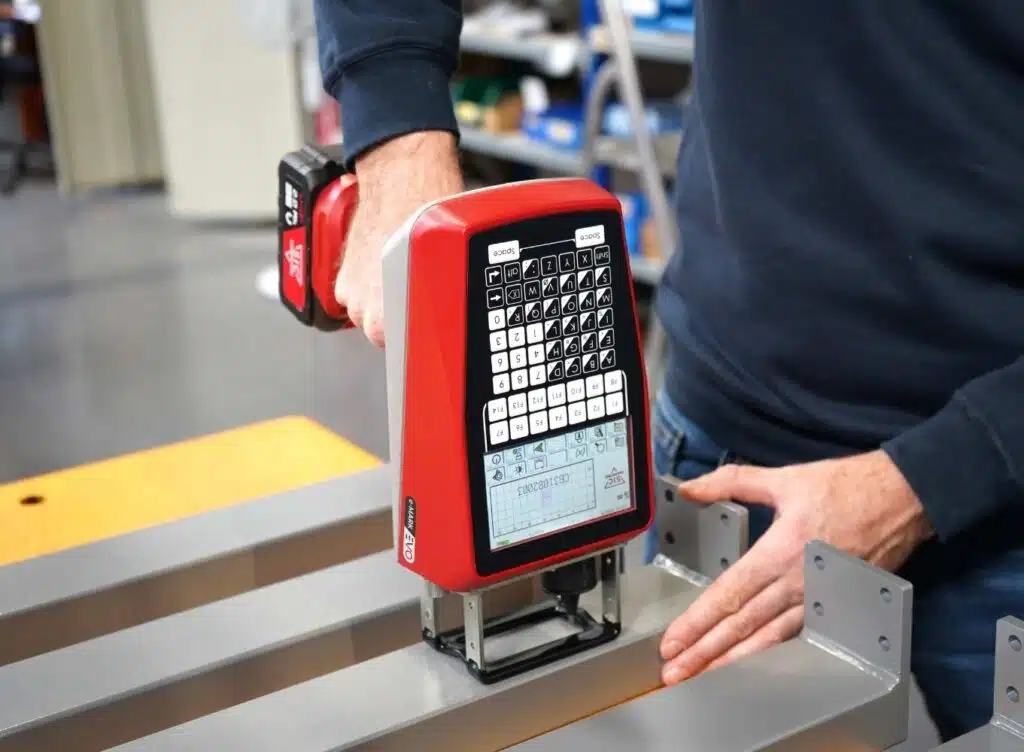

ALL-IN-ONE, COMPACT PORTABLE MARKING GUN

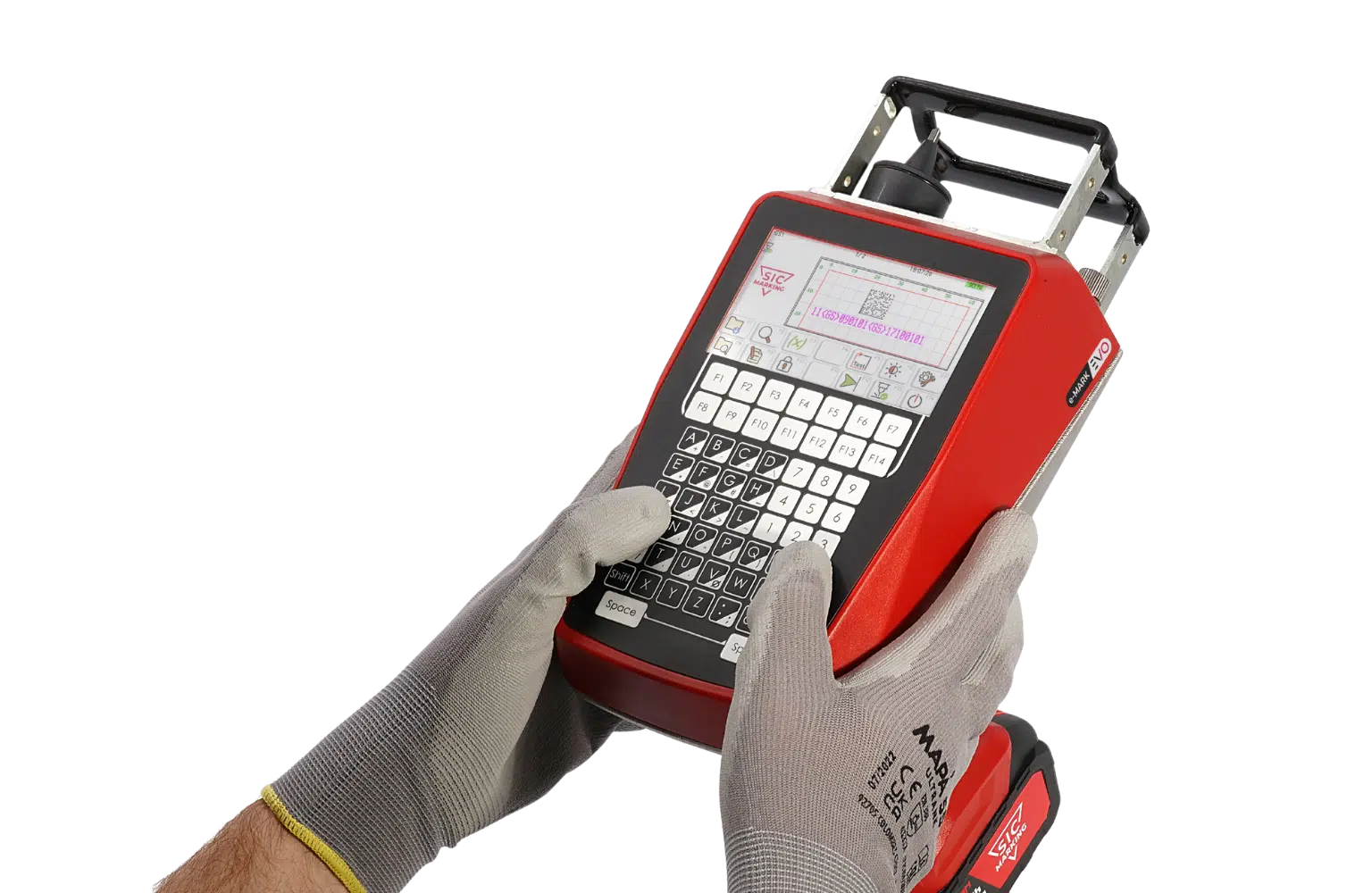

  • Lightweight, balanced machine that can be operated with one hand.

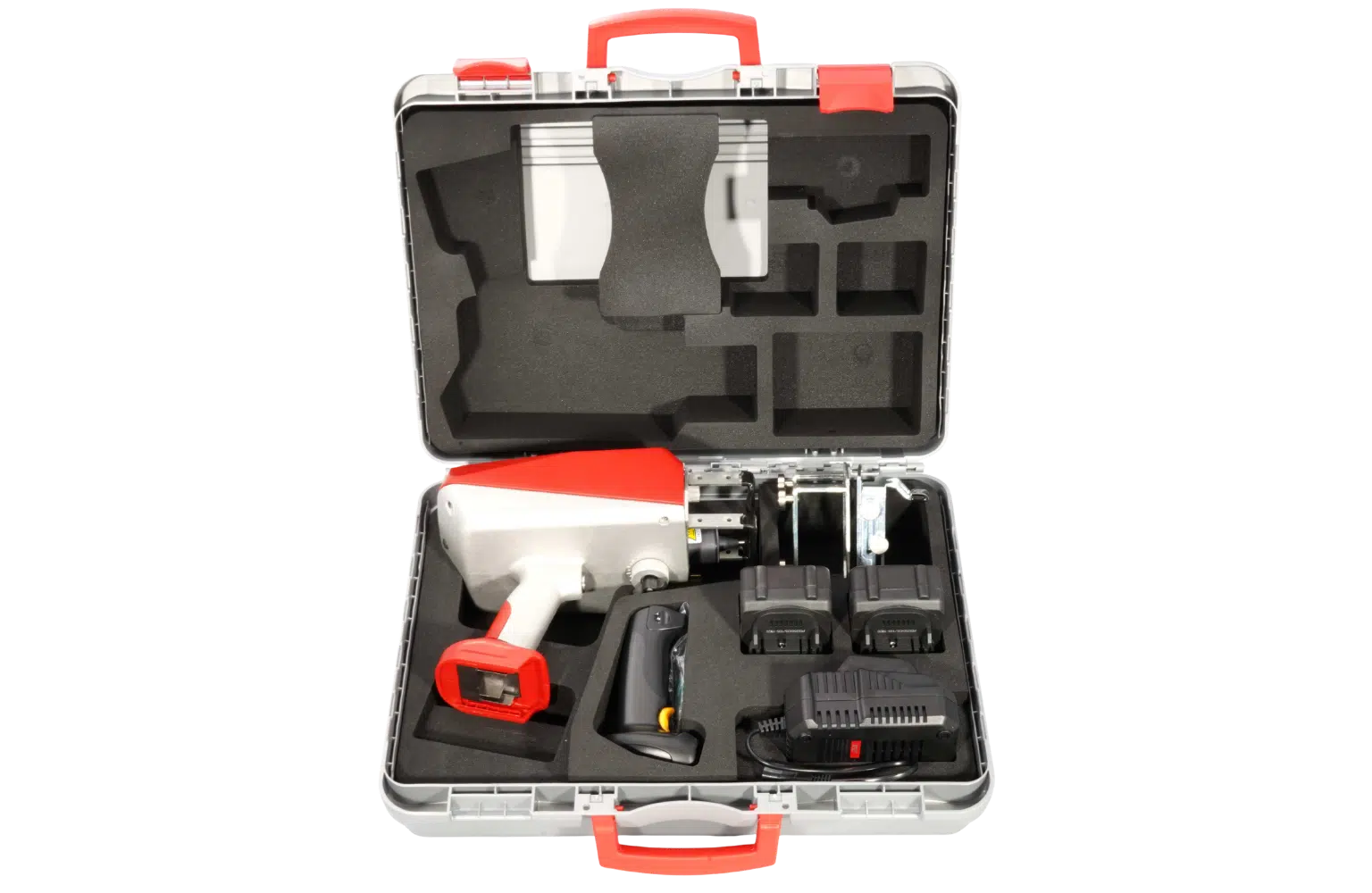

  • Complete package, including a carrying case, 2 batteries, and a fast charger.

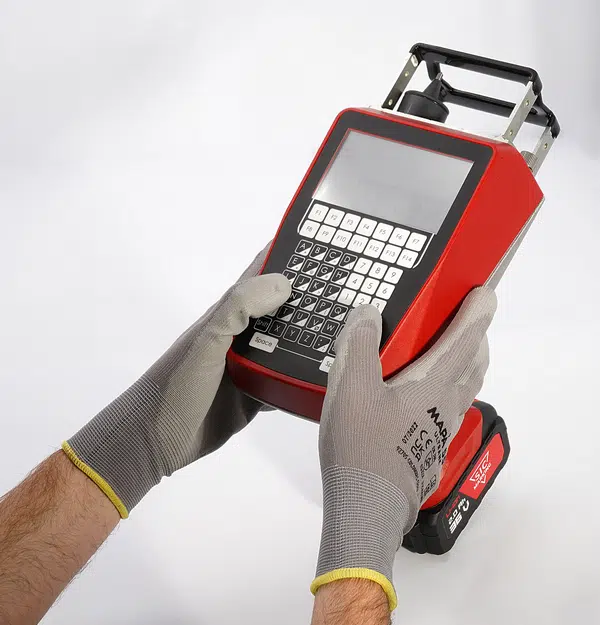

  • 100% autonomous solution : control unit with onboard HMI and integrated keyboard.

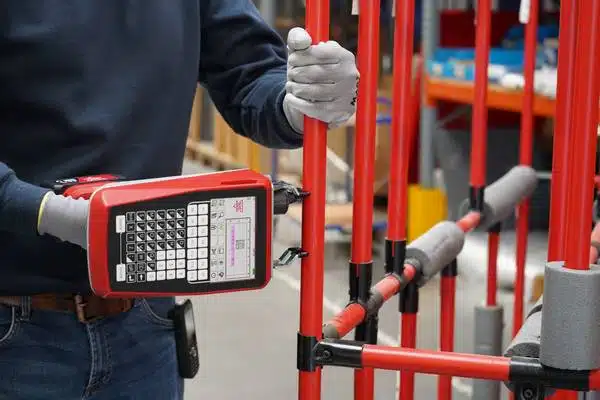

fabricant portable de marquage micro-percussion E-MARK EVO

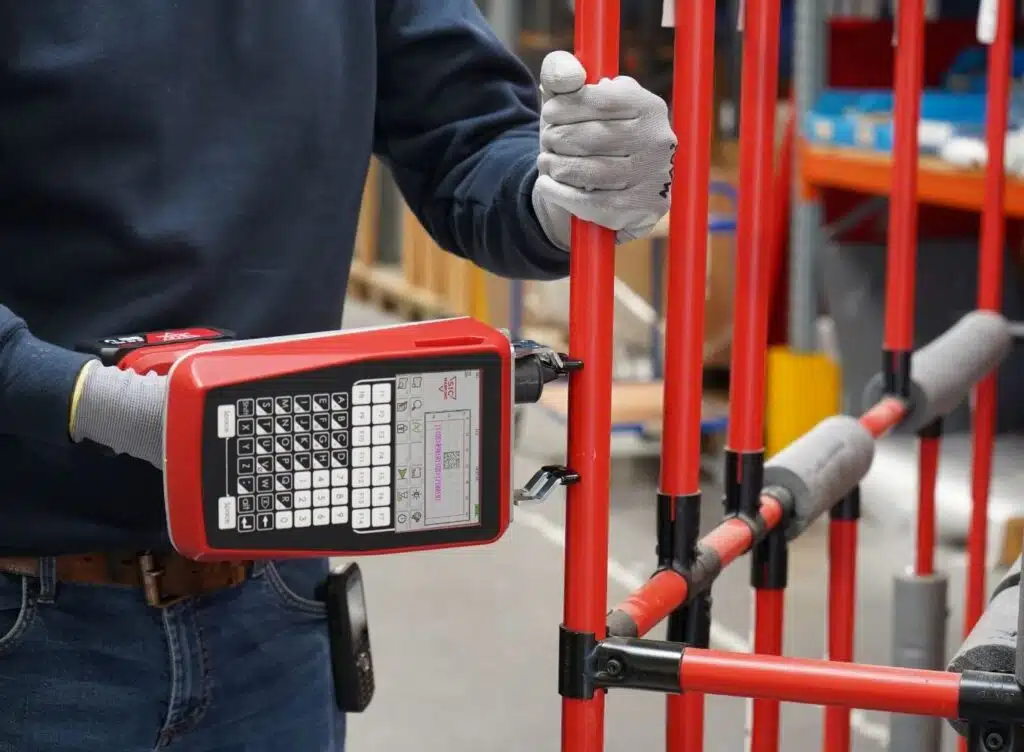

MACHINE SUITABLE FOR ALL TYPES OF PARTS

  • Mobile and flexible.

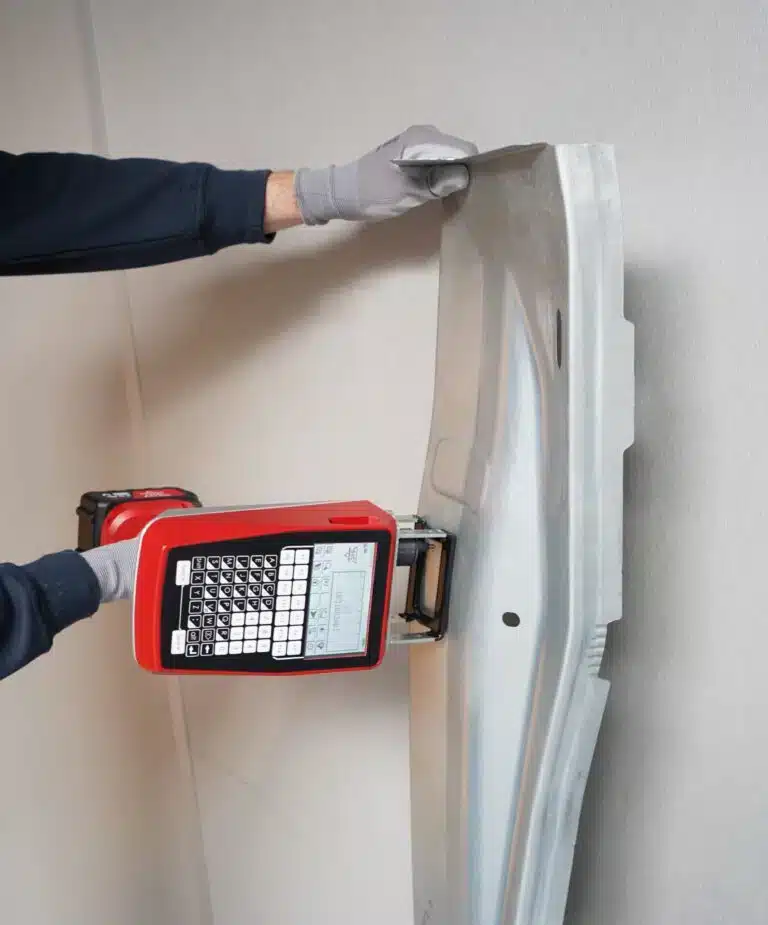

  • Easy marking of heavy and bulky parts.

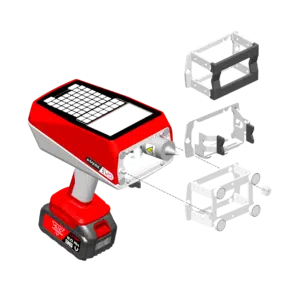

  • 3 front face plates available : non-slip, adjustable, and magnetic.
machine de gravage micro-percussion portable

SIMPLE AND RELIABLE MARKING

  • Creation and management of files directly on the machine or from the workstation.
  • Flexible use, with operator/supervisor mode allowing critical settings to be locked.
  • Secure your markings with duplicate marking detection, alerting the user in the event of repeated serial number.

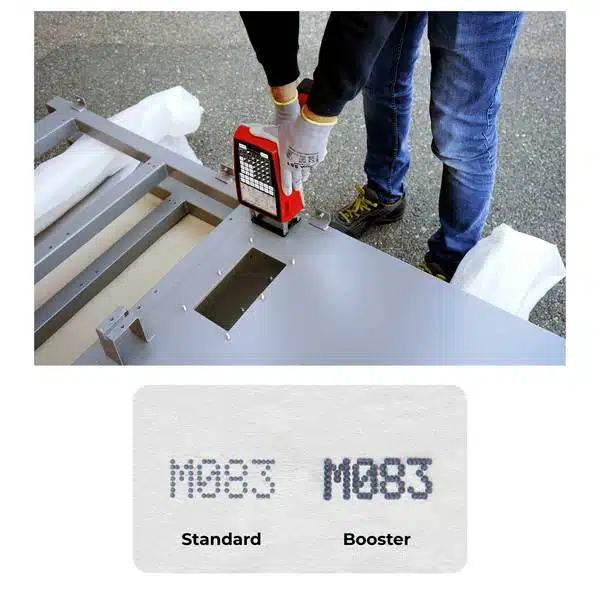

expert machine marquage industriel mobile E-MARK EVO

DESIGN FOR INTENSIVE USE

    • Work without interruption thanks to two high-capacity batteries.
    • Mark materials up to 62 HRC hardness.
    • Choose your machine according to your applications :
      • Standard version : Fast and accurate marking.
      • Booster version : Fast and accurate marking, but also deep and visible after painting or surface treatment.

    The E-MARK EVO marking gun in pictures

    portable de gravage-à micro-percussion E-MARK EVO
    machine de marquage industriel E-MARK EVO
    solution de marquage mobile micropercussion E-MARK EVO
    pistolet de marquage industriel E-MARK EVO
    machine marquage micropercussion métal
    pistolet de marquage industriel E-MARK EVO
    marquage mobile micro-percussion
    solution de marquage micro-percussion mobile
    portable de marquage micro-percussion E-MARK EVO
    solution flexible de marquage industriel portable
    marquage micro-percussion portable surmétal
    pistolet de marquage micropercussion pour pièce industrielle
    solution de marquage portable pour métal

    Technical specifications

    Power supply

    36 V battery

    Battery charging time

    1 hour

    Battery life

    3 hours

    Marking window

    60 x 25 mm

    External dimensions

    279 x 280 x 135 mm

    Weight

    3,2 kg

    Stylus

    Tungsten carbide

    Memory space

    Over 2,000 files

    AVAILABLE ACCESSORIES :

    Barcode reader

    The barcode reader allows automatic and fast selection of the file and content to be marked, eliminating the possibility of input errors. It can read 1D and 2D codes, including QR and Datamatrix codes. It features a Bluetooth connection, ensuring wireless communication with the machine.

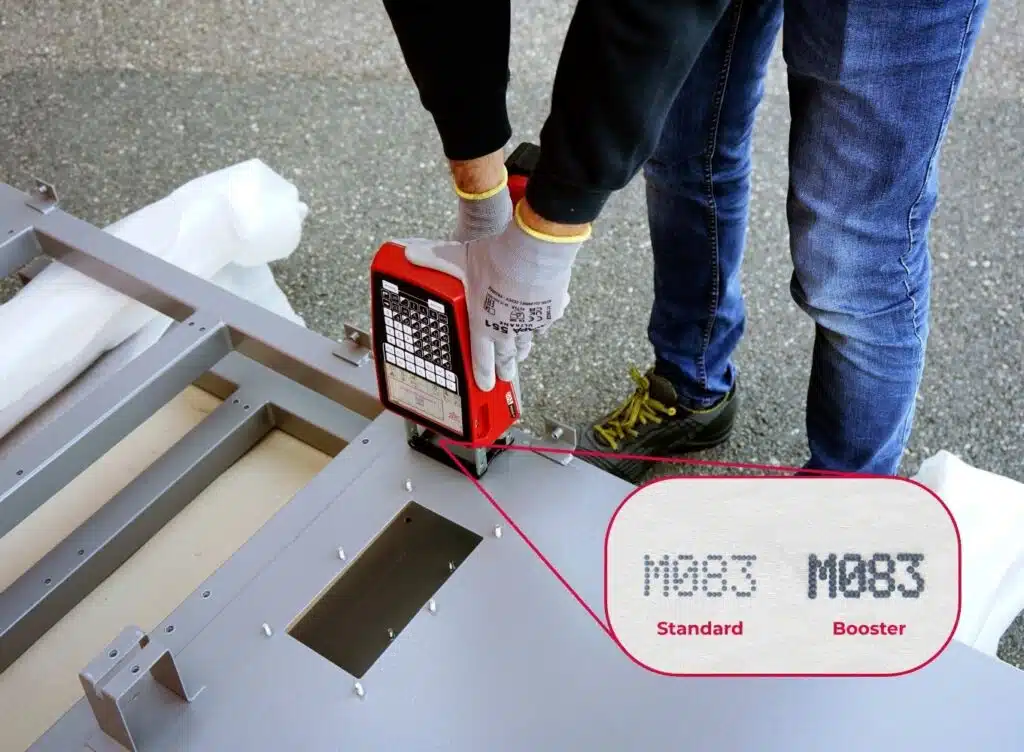

    Booster option

    The Booster option is a card integrated into the e-MARK EVO that ensures fast, precise, and deep marking, providing excellent visibility even after painting or surface treatment.

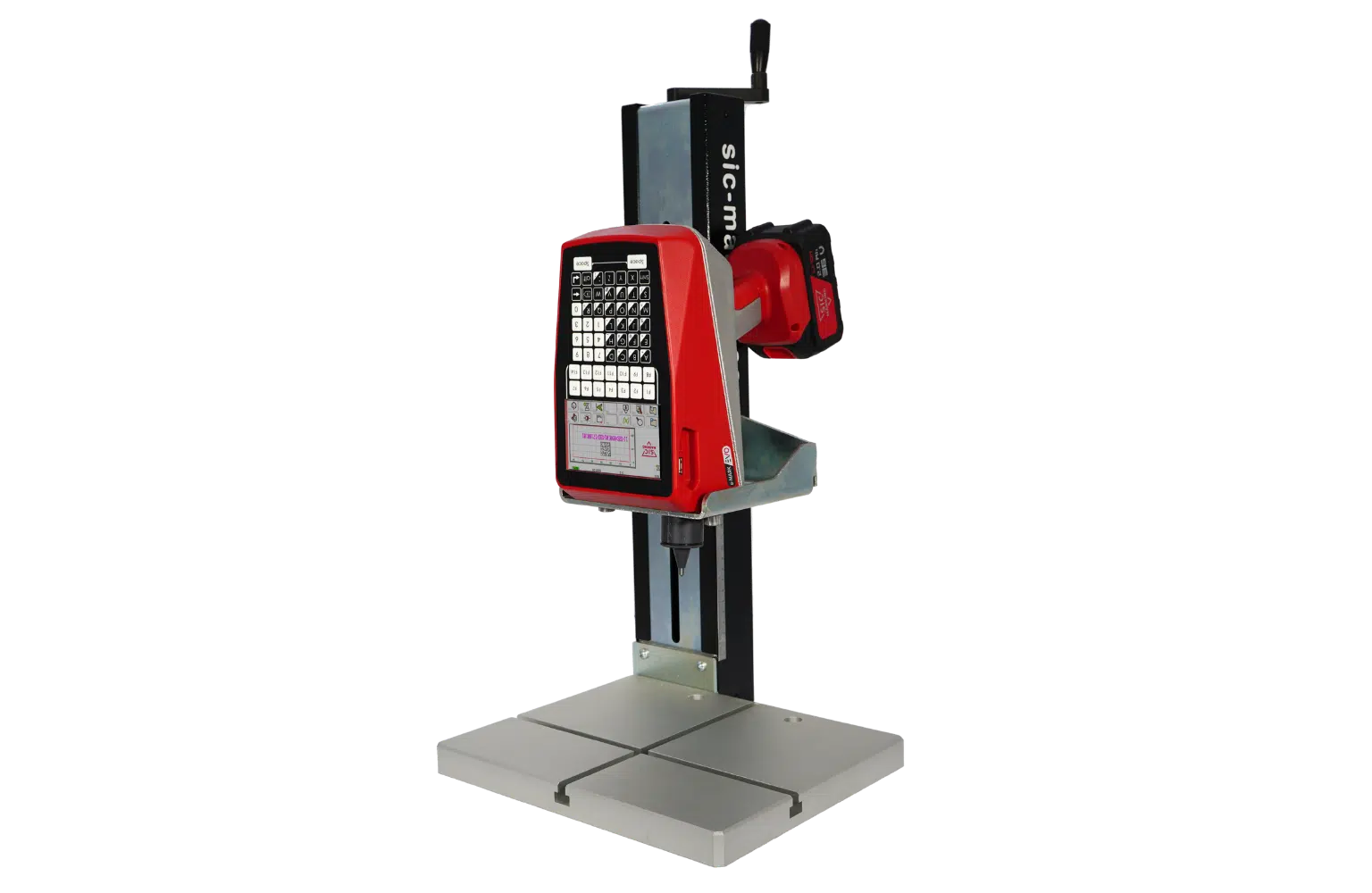

    Column base

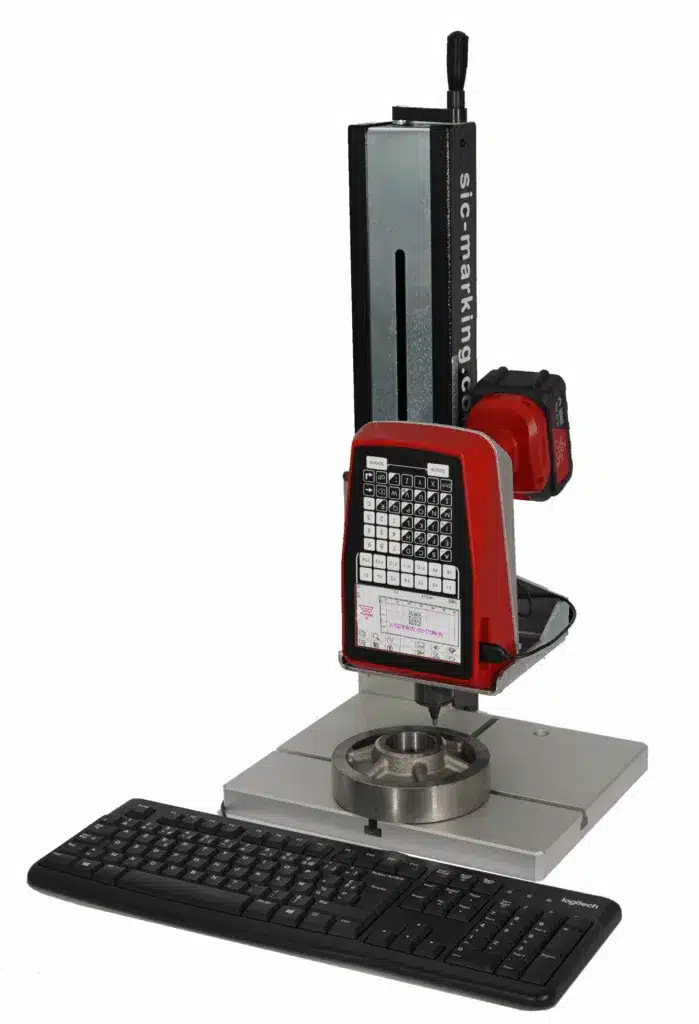

    The column base transforms the portable marking machine into a stable, stationary workstation, allowing for precise positioning and easy height adjustment depending on the part. Ideal for repetitive series or small parts, it offers stability, quality, and consistency in marking while retaining the versatility of the e-MARK EVO.

    Support faces

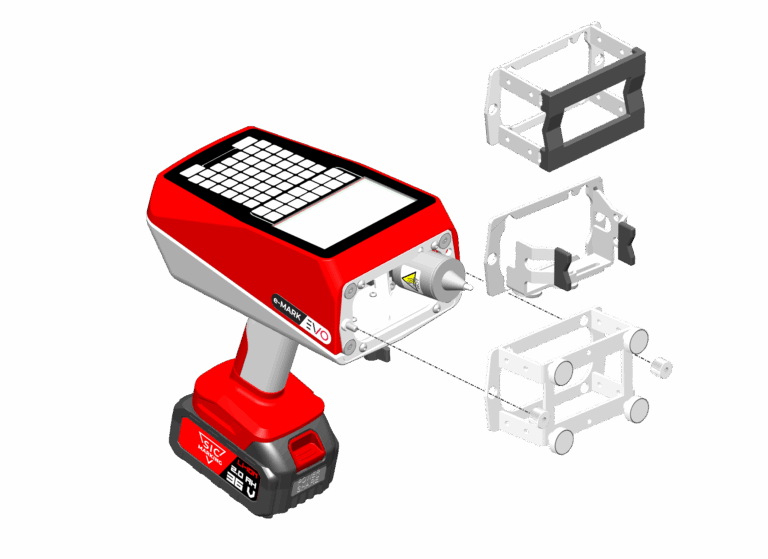

    The e-MARK EVO has three interchangeable support faces: one with a non-slip surface, one reduced and adjustable, and one magnetized. Their quick and tool-free exchange allows immediate adaptation to any geometry of parts, whether they are large, cylindrical, or have small surfaces.

    Discover all the possible uses of marking with the E-MARK EVO.

    Play video

    Contact us
    Need d’information ?

    Get in touch with one of our experts!

    OUR SOLUTIONS

    Discover our products

    Discover our flagship laser marking, dot peen, and scribing equipment, including our portable machines, line-integrated modules, and standalone marking stations.

    pistolet de marquage à micro-percussion E mark EVO

    E-MARK EVO

    A portable all-in-one solution
    Autonomous and mobile
    Robust and compact
    Marcatore Portatile a Micropercussione a Batteria E-mark XL

    E-MARK XL

    Large marking window
    Autonomous and mobile
    Robust and compact

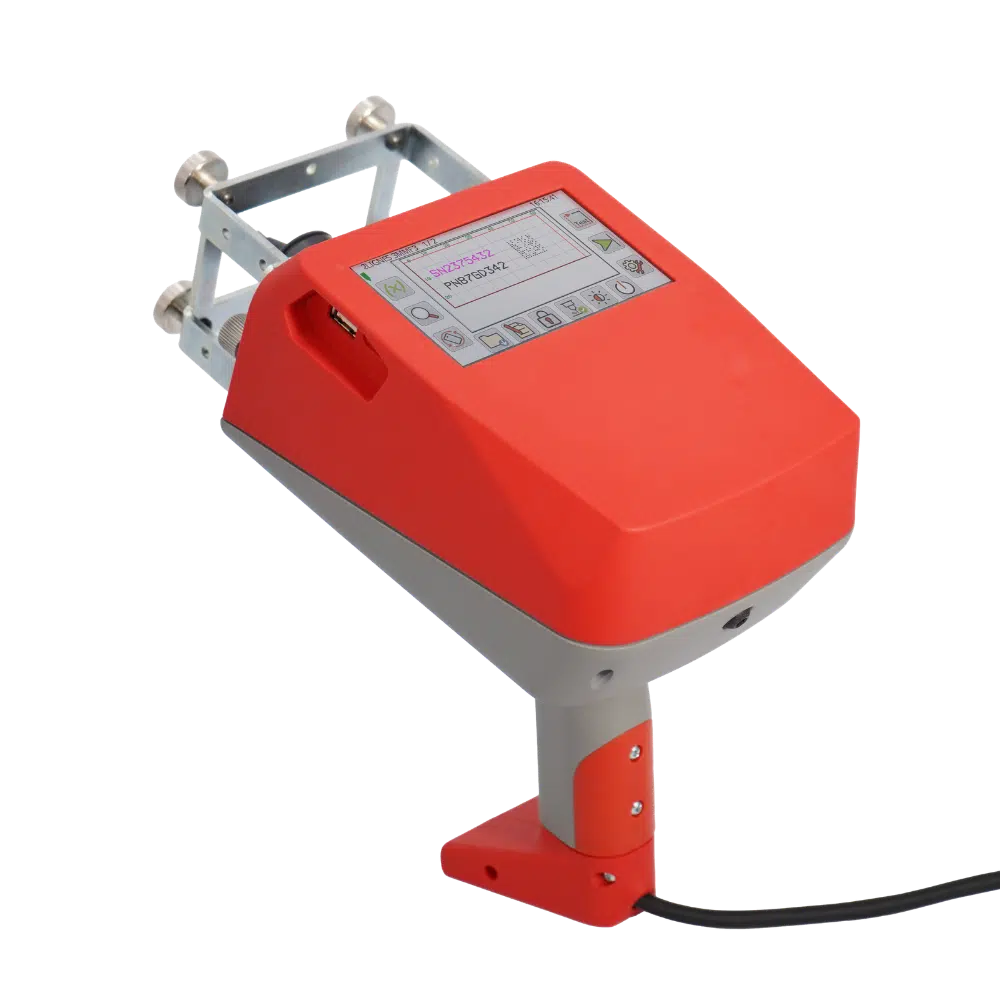

    Marcatore Portatile con Touch Screen E-TOUCH

    E-TOUCH

    Touch screen
    Compact and light
    Removable front panels
    Macchina di Marcatura Portatile con touch screen E-TOUCH XL

    E-TOUCH XL

    Large marking window
    Autonomous and mobile
    Robust and compact

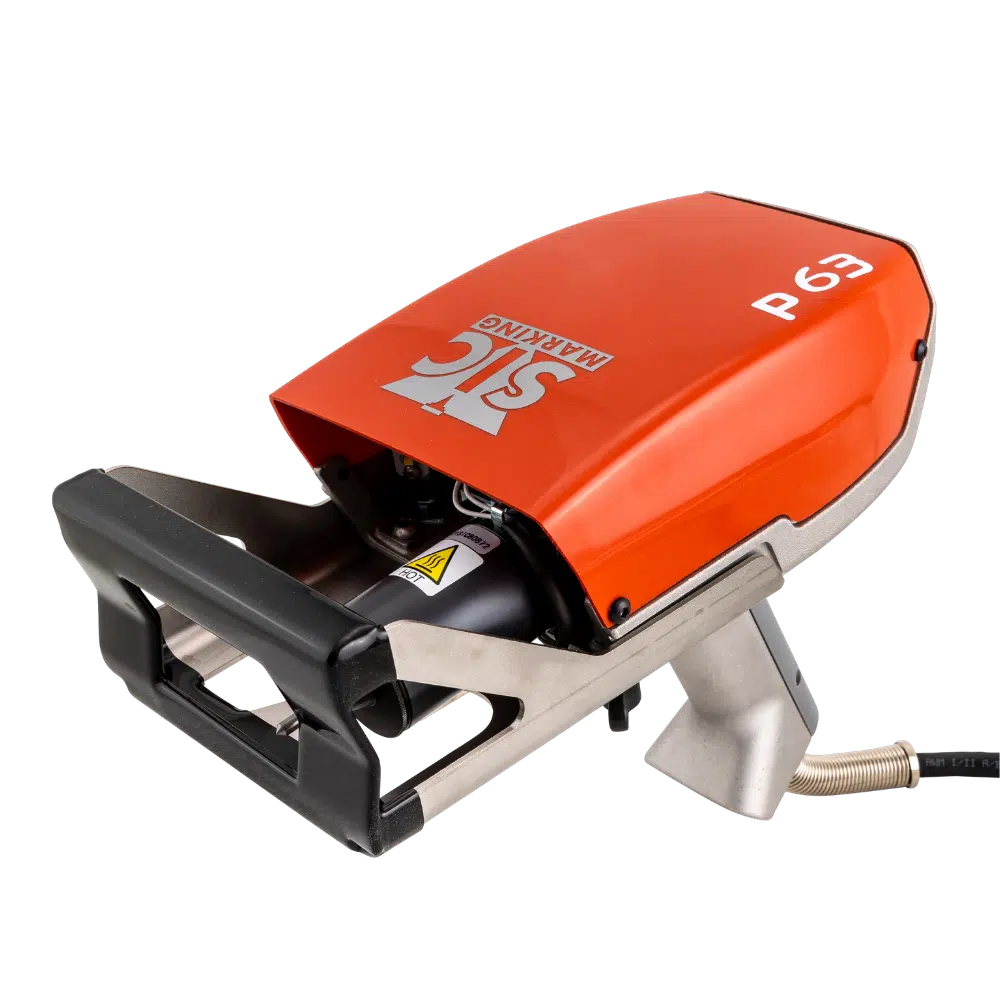

    Marcatore Portatile a Pistola P63 con Tecnologia a Micropercussione

    P 63

    Durability
    Heavy use
    Deep marking option

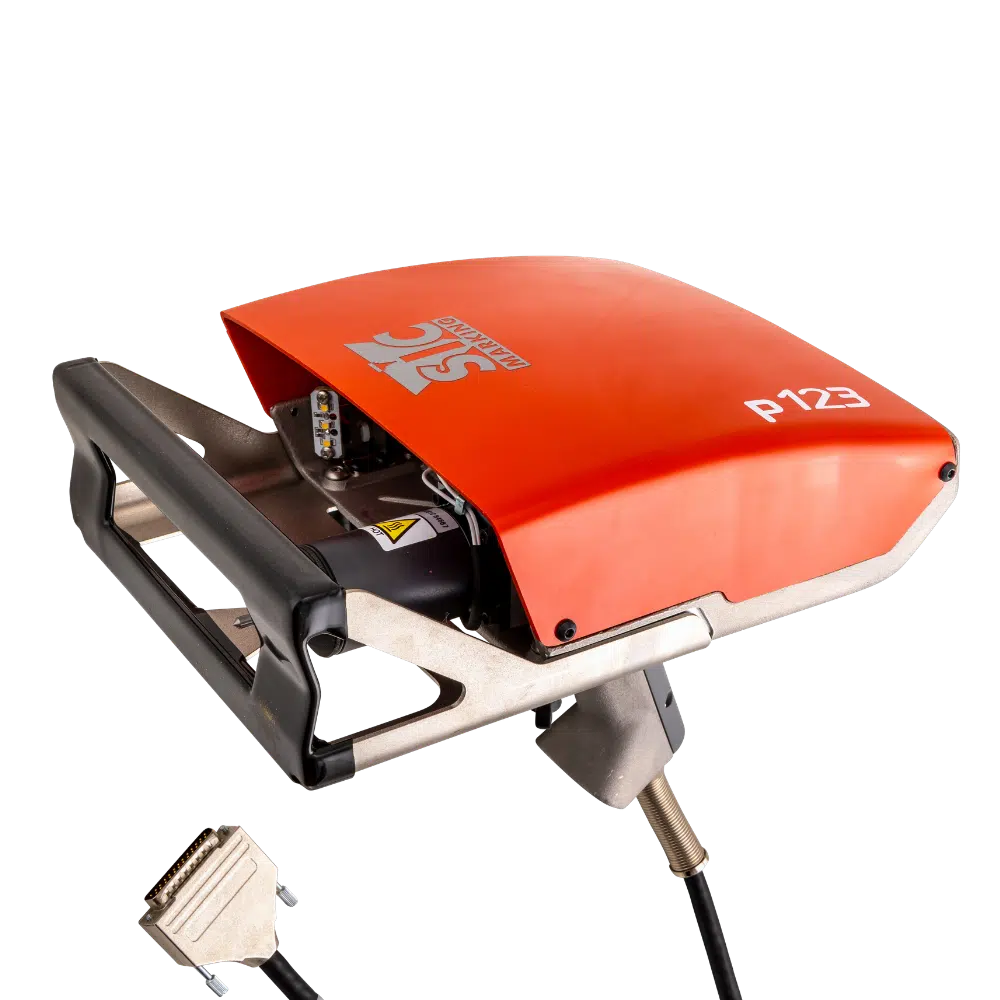

    Pistola di Marcatura a Micropercussione P123
